Documentation of autonomous hardware mounted on Kubo as of 2020/01/27.
| Image | Hardware | Links |
|---|---|---|
 |
Intel NUC 5i7RYH | (reference) (documentation) |
 |
Teensy 3.5 | (reference) |
| Image | Hardware | Links |
|---|---|---|
|
|
Hemisphere Vector V103 GPS | (reference) (documentation) |
 |
Hokuyo UXM-30LX-E Lidar | (reference) (documentation) |
 |
Swift Navigation RTK GPS | (reference) (reference-radios)(documentation) |
 |
PhidgetSpatial Precision High Resolution IMU | (reference) (documentation) |
 |
Vishay Spectrol Precision Potentiometer 10K 534-11102 | (reference) |
 |

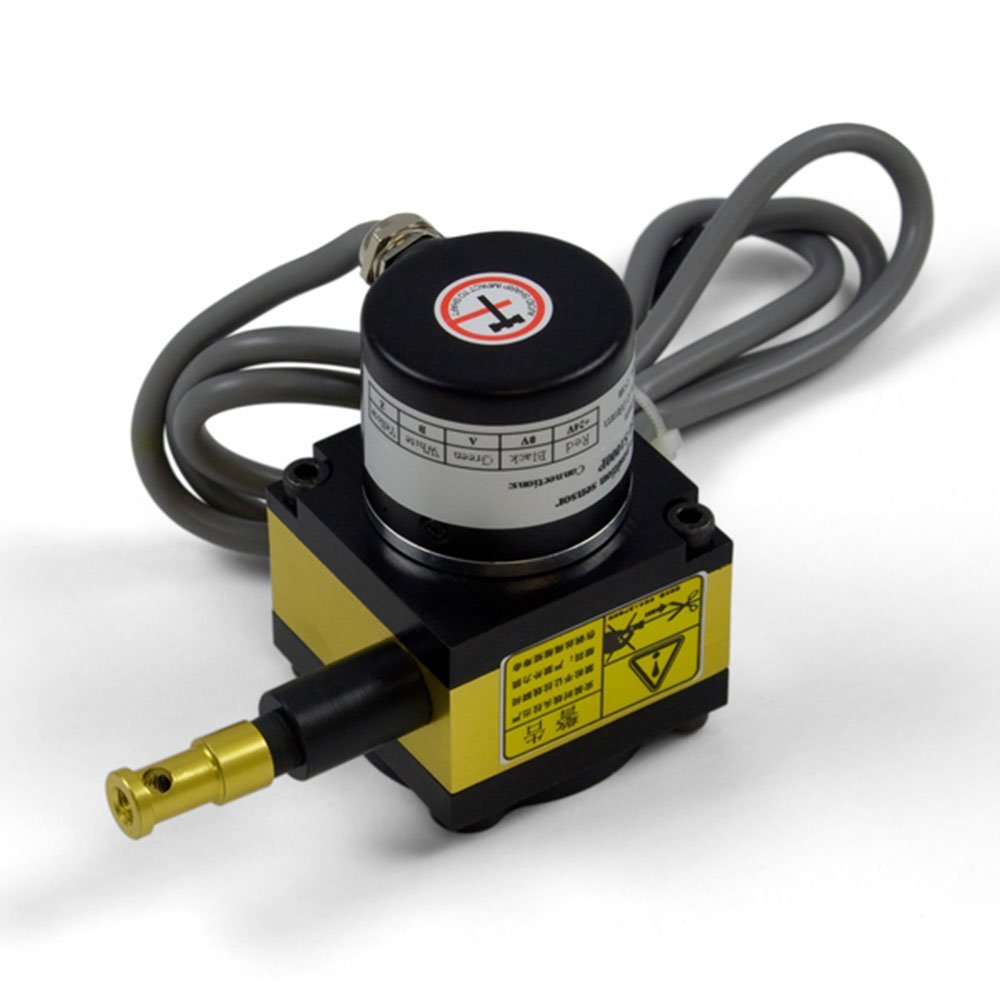

Calt 1000mm Pull Cable Encoder | (reference) (reference) |
| DFROBOT URM06-Analog Ultrasonic Range Finder | (reference) (reference) | |
 |
Point Grey Blackfly 13S2C-CS Camera | (reference) |
 |
Fujifilm DF6HA-1B Lens | (reference) |
| Image | Hardware | Links |
|---|---|---|
| V-Infinity VHK200W-Q24-S12 Voltage Regulator | (reference) | |
 |
Blue Sea Systems Battery Switch | (reference) |
 |
Blue Sea Systems Automatic Charging Relay | (reference) |
 |
Blue Sea Systems Fuse Block | (reference) |
 |
5V 5A Step Down Voltage Regulator | (reference) |
 |
AnyVolt Micro - Dimension Engineering | (reference) |
 |

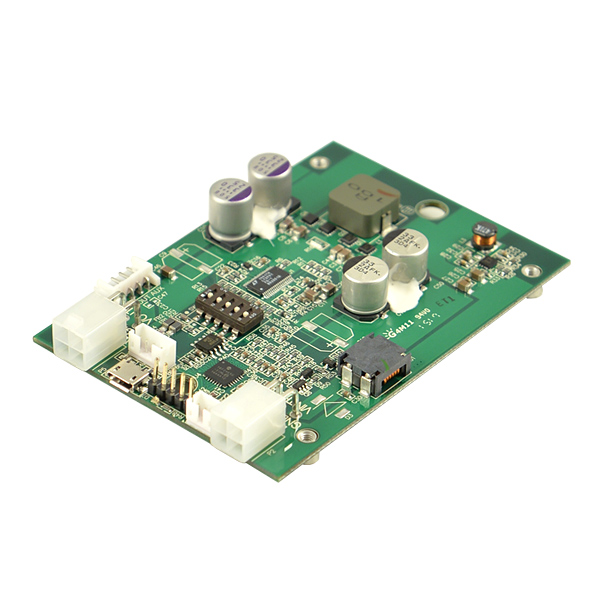

Mini-box DCDC-NUC Power Supply | (reference) |
 |

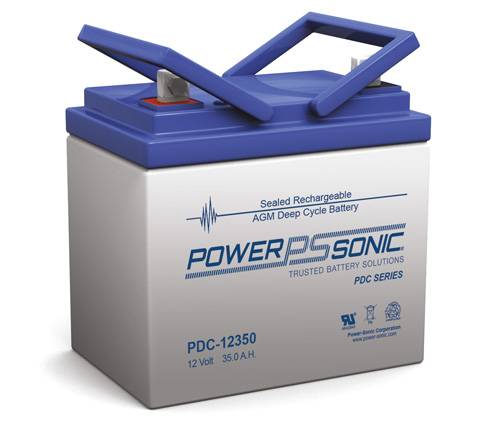

Power Sonic PDC-12350nb | (reference) |
 |

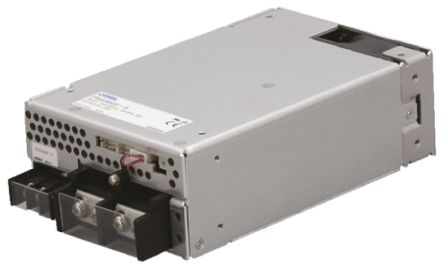

Cosel PBA600F-12 | (reference) |
| Image | Hardware | Links |
|---|---|---|
 |

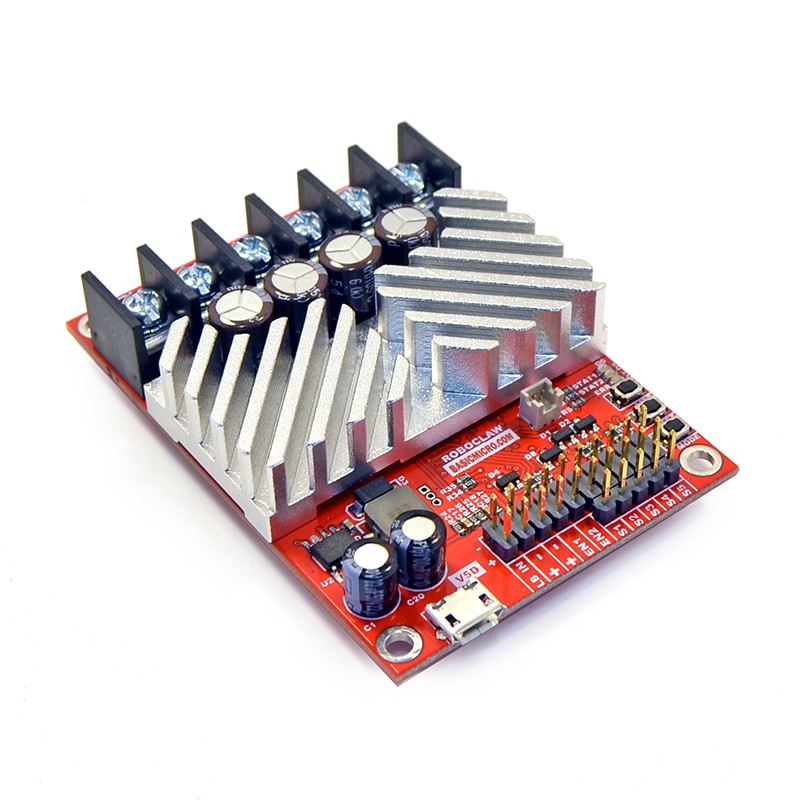

Roboclaw 2x45A Motor Controller | (reference) |
 |
Lo-Cog DC Servo Gearmotor | (reference) |
 |
4" Stroke 25 lb Thrust Linear Actuator | (reference) |
 |
6" Stroke 35 lb Thrust Linear Actuator | (reference) (documentation) |
Safety System (documentation)
| Image | Hardware | Links |
|---|---|---|
|
|
BACO Mushroom Head Stay-put Estop | (reference) |
 |
12 VDC 30-40A Automotive Relay | (reference) |
| Image | Hardware | Links |
|---|---|---|
 |
Sabertooth 2x25 Motor Controller | (reference) |
 |
Roboclaw 2x15A Motor Controller | (reference) |
 |
Bourns Precision Steering Potentiometer | (reference) |
 |
Pittman GM14904S015-R1 Brushed Gearmotor | (reference) |
 |
Diamond VC500 Video Recording Cable | (reference) |
 |

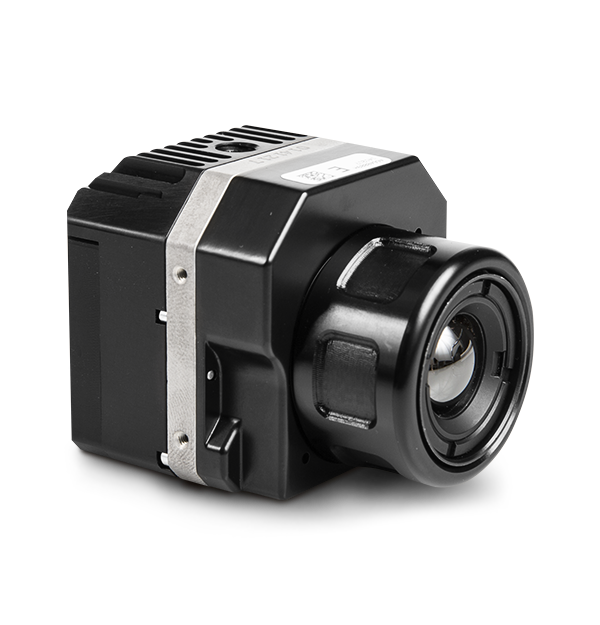

FLIR VUE 436-0012-00 Camera | (reference) |
| Image | Hardware | Links |
|---|---|---|
|
|
Operators Manual Canister | (reference) |
