Include - AppDaddy-Software-Solutions-Inc/framework-markup-language GitHub Wiki

<INCLUDE/> : Widget

The <INCLUDE/> widget takes an external xml file and inserts it into the FRAMEWORK that houses the INCLUDE. It is important to remember that the widgets within an INCLUDE file must be treated as if they were written within the template, and thus must follow the FML rules, such as unique id's.

INCLUDE is best used to insert a repeatedly used piece of FML into multiple templates, or to lower the clutter of a single template by breaking it into functional parts.

  • Used to break complex templates into manageable parts.
  • Used to share a set of bindings across multiple templates.
  • Reuse a single file across multiple templates to reduce editing time, such as HEADER's
  • Pass in attributes using the url.

Restrictions:

  • An INCLUDE should be treated as if its file was written within the template it is included in.
  • INCLUDE should never use the same url twice within a template, unless NO id's are present within the file.
  • The INCLUDE document should always be wrapped in <FML> tags on the outermost level.

Attributes

Name Type Default Description Req
url string true The visibility of the widget.
exclude bool false If the widget is excluded. Is not mutable once the template is loaded.

Examples

An XML example of a INCLUDE being used to include color bindings.

(fig. a)
<FML>
	<INCLUDE url="templates/colors.xml" />

    <BOX center="true" color="{stcol}">
        <BOX height="50%" width="50%" radius="20" color="{tcol}" center="true">
            <TEXT style="h6" color="{hcol}" value="_Colors Included_" />
        </BOX>
    </BOX>
</FML>

<!--The included file-->
<FML>
    <VAR id="tcol"      value="#5dae6e" />
    <VAR id="stcol"     value="#29533a" />
    <VAR id="hcol"      value="#3F4347" />
</FML>

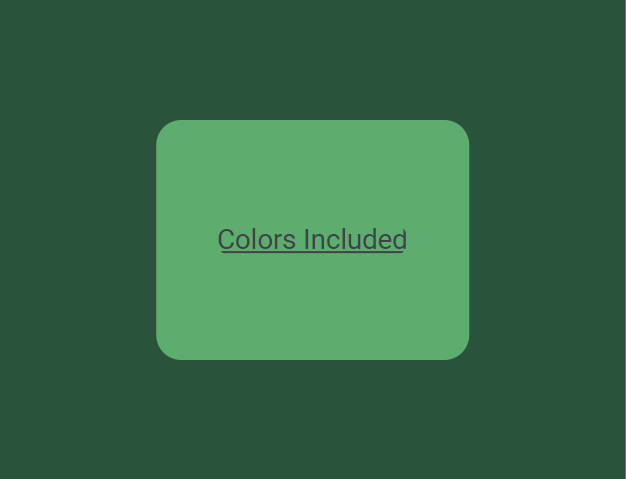

(img. a)

INCLUDE Example

logo See it in Action

(fig. b)

An XML example of a INCLUDE being used to include a visual footer.

<FML>
      <INCLUDE url="resources/templates/[email protected]" />
</FML>

<!--The included file-->
 <FML>
	<FOOTER height="35" >
		<BOX color="white" width="100%" height="100%"/>
		<POSITIONED right="20" top="0">
			<IMAGE url="resources/images/fml.svg"  height="30" opacity="0.5"/>
		</POSITIONED>
		<POSITIONED left="10" bottom="9">
			<ROW expand="false">
				<TEXT style="caption" size="12" value="For assistance email" />
				<BOX width="5" height="0"/>
				<TEXT style="button" size="12" value="{email}" color="green" />
			</ROW>
		</POSITIONED>

	</FOOTER>
</FML>

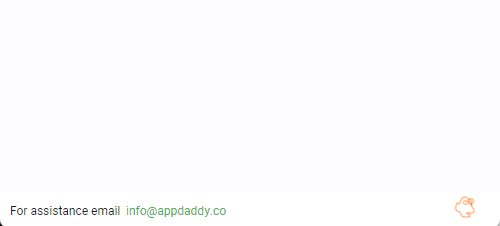

(img. b)

INCLUDE Example
