As you may have noticed, WeeWX is a pretty flexible bit of code. Nominally it
is a data collector - it pulls data from hardware and puts the data into a
database. But it can also process the data before storing it, for example by
apply 'Quality Control' rules or by calculating derived observations such as
windchill or heat index.
WeeWX also includes a reporting engine. Once the data are in the database,
WeeWX can generate HTML pages and images to display current conditions or
historical values.
And WeeWX can emit data for use elsewhere, either automatically as part of its
reporting or uploading system, or manually using the wee_* utilities or raw SQL
queries.
The following sections enumerate some ways to configure hardware for the first
part - how to get data into WeeWX.

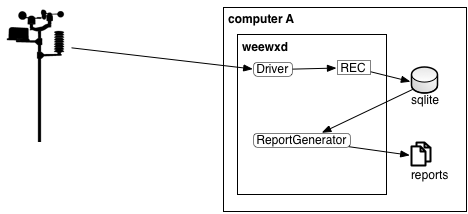

Configuration 1: Driver for directly-connected data source
In its default configuration, WeeWX uses a single driver to collect data from a
single weather station. The weather station typically has a suite of sensors,
such as anemometer for wind speed and direction, thermometer for temperature,
etc. Some weather stations have a fixed set of sensors, other stations can use
a variety of sensor configurations. There is a WeeWX driver for each type of
station, and the driver "knows" the capabilities and configurations of the
hardware for which it is designed.
Most weather stations are connected directly to the computer on which WeeWX is
running. This might be with a USB cable, a serial cable for RS232, a serial
cable for ModBus or SDI12, or even an ethernet cable for TCP/IP. The driver
uses whatever protocol is defined by the hardware designer to get data from the
sensors.
Examples: Ultimeter, TWI, Visala

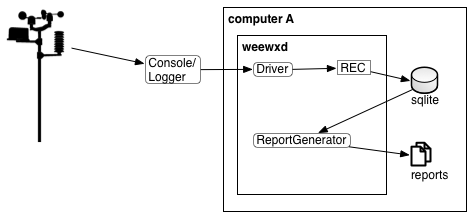

Configuration 2: Driver for directly-connected logger
Some hardware includes a data logger. If WeeWX shuts down, the logger will
continue to collect data. When WeeWX starts up, it will read data from the
logger since the last time it collected data, so there will be no gaps in the
data.

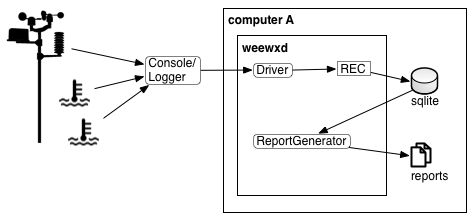

Configuration 3: Driver for directly-connected extensible data source
Some hardware is directly extensible — you can add sensors and
the hardware will recognize them. In some cases this might be additional
temperature/humidity sensors. For other stations, you can add soil moisture,
leaf wetness, solar radiation, or other types of sensors.

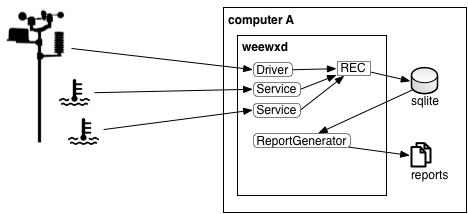

Configuration 4: Driver with services for additional data sources
Sometimes a single weather station does not provide enough types of sensors.
For example, how would you add a snow depth sensor to an Acurite 5in1 with
console? Use a WeeWX service! A WeeWX data collection service can add
observations to each LOOP or archive record. So you can add data from a snow
depth sensor and a tide level sensor to data from an Acurite 5in1 station, then
the reports will show integrated data.
Examples: Maxbotix, 1-wire, AS3935

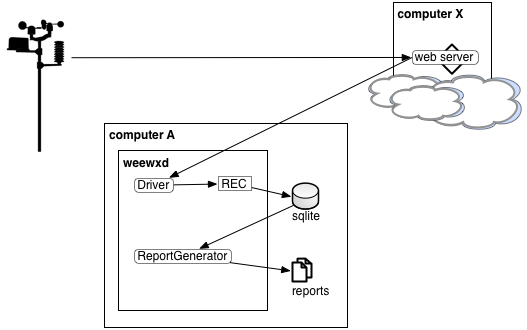

Configuration 5: Driver for network-connected data source using cloud API
Davis introduced the WeatherLinkIP service in the mid-2000s - when connected to
a TCP/IP interface, a Vantage station can send weather data directly to Davis'
WeatherLink service. Other manufacturers such as Rainwise, WeatherHawk, and
Columbia offered similar adapters to capture the (typically RS232) output from
their sensors and send it directly to their respective data capture services.
Low-end manufacturers such as Fine Offset, Acurite, and NetAtmo have taken this
approach even further - their direct-to-internet models will *only* communicate
over TCP/IP.
There are drivers for WeeWX that will get data from the internet services for
the direct-to-internet stations. In the bad old days, this was done by "screen
scraping" — reading a web page then trying to figure out the data. Now these
drivers typically use an API (application programming interface) defined by the
internet service.
Examples: netatmo, myacurite, weatherlink

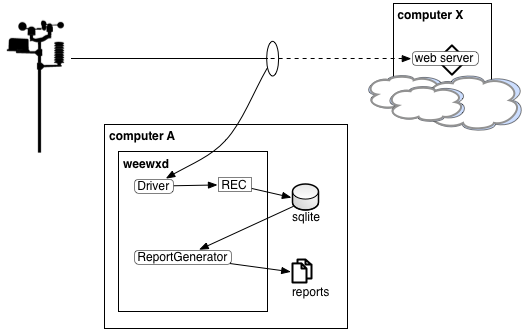

Configuration 6: Driver for network-connected data source using local API, sniffing, or hijacking
In some cases it is possible to redirect and/or intercept the communication from
direct-to-internet stations. As long as the hardware manufacturer has not
resorted to encryption or other user-hostile practices, WeeWX can capture the
data from these stations so that you can own and manage your own data, no matter
what might happen to the internet service or the company that provides it.
There are two approaches:
Sniff the network traffic
Hijack the DNS/Proxy so that the hardware sends to WeeWX
