Installation Instructions

The following are instructions on how to run Omega from source on the platform of your choice.

High Level
Fedora
Ubuntu
Windows
Mac OSX
Production Install
Next Steps
omega-conf

Eventually it'd be good to submit packages to the major Linux distributions (any contributions on that front would be more than welcome!).

But until that time, this page will be updated to reflect the latest setup process on the supported platforms. Any errors in this process are high priority bugs in the application that need to be resolved (please file an issue if you run into anything).

Note the web frontend uses WebGL so if you wish to run and access that you will need a graphics card/adapter with OpenGL capabilities. Support for non-opengl rendering is on the TODO list.

Install Omega Dependencies:

sudo yum install git gcc gcc-c++ ruby-devel openssl-devel libcurl-devel rabbitmq-server
gem install rjr
gem install curb
gem install eventmachine_httpserver
gem install em-http-request --version 1.0.3
gem install em-websocket
gem install em-websocket-client
gem install amqp

Startup the messaging queue:

sudo service rabbitmq-server start
sudo chkconfig --level 35 rabbitmq-server on

Download Omega:

git clone https://github.com/movitto/omega.git
cd omega

Run the server:

RUBYLIB='lib' ./bin/omega-server

Seed it (in a seperate terminal):

RUBYLIB='lib' ./examples/universes/small.rb

Create a user:

RUBYLIB='lib' ./examples/users.rb Anubis sibuna Athena regular_user

Include static image and audio content in ui:

git clone https://github.com/movitto/omega-conf.git # this will take a few minutes
ln -s ~/omega/omega-conf/release/omega-content/audio/ site/source
ln -s ~/omega/omega-conf/release/omega-content/images/ site/source

Setup the web frontend:

sudo yum install nodejs
gem install rake
gem install middleman
rake site:preview

A web server is needed to proxy requests between the browser and omega-server/ the web frontend:

sudo yum install httpd
sudo setenforce 0
Copy the omega.conf to /etc/httpd/conf.d/omega.conf.
sudo service httpd start

Pop open firefox, navigate to http://localhost/womega and login!

Gem list:

activesupport (3.2.15)
addressable (2.3.5)
amq-protocol (1.8.0)
amqp (1.1.0)
bigdecimal (1.2.0)
bundler (1.3.5)
chunky_png (1.2.9)
coffee-script (2.2.0)
coffee-script-source (1.6.3)
compass (0.12.2)
cookiejar (0.3.0)
curb (0.8.5)
em-http-request (1.0.3)
em-socksify (0.3.0)
em-websocket (0.5.0)
em-websocket-client (0.1.2)
eventmachine (1.0.3)
eventmachine_httpserver (0.2.1)
execjs (1.4.0)
ffi (1.9.3)
fssm (0.2.10)
haml (4.0.3)
hike (1.2.3)
http_parser.rb (0.6.0.beta.2, 0.5.3)
i18n (0.6.5)
io-console (0.4.2)
json (1.7.7)
kramdown (1.2.0)
listen (1.3.1)
middleman (3.1.6)
middleman-core (3.1.6)
middleman-more (3.1.6)
middleman-sprockets (3.1.4)
multi_json (1.8.2)
psych (2.0.0)
rack (1.5.2)
rack-test (0.6.2)
rake (10.1.0)
rb-fsevent (0.9.3)
rb-inotify (0.9.2)
rb-kqueue (0.2.0)
rdoc (4.0.1)
rjr (0.16.6)
sass (3.2.12)
sprockets (2.10.0)
sprockets-helpers (1.0.1)
sprockets-sass (1.0.2)
thor (0.18.1)
tilt (1.3.7)
uglifier (2.1.2)
websocket (1.1.1)

Install Omega Dependencies:

sudo apt-get install git c++ ruby1.9.1-dev libssl-dev libcurl4-openssl-dev rabbitmq-server
gem install --install-dir ~/.gem/ruby/1.9.1/ rjr
gem install --install-dir ~/.gem/ruby/1.9.1/ curb
gem install --install-dir ~/.gem/ruby/1.9.1/ eventmachine_httpserver
gem install --install-dir ~/.gem/ruby/1.9.1/ em-http-request --version 1.0.3
gem install --install-dir ~/.gem/ruby/1.9.1/ em-websocket
gem install --install-dir ~/.gem/ruby/1.9.1/ em-websocket-client
gem install --install-dir ~/.gem/ruby/1.9.1/ amqp

Download Omega:

git clone https://github.com/movitto/omega.git
cd omega

Run the server:

RUBYLIB='lib' ./bin/omega-server

Seed it (in a seperate terminal):

RUBYLIB='lib' ./examples/universes/small.rb

Create a user:

RUBYLIB='lib' ./examples/users.rb Anubis sibuna Athena regular_user

Include static image and audio content in ui:

git clone https://github.com/movitto/omega-conf.git # this will take a few minutes
ln -s ~/omega/omega-conf/release/omega-content/audio/ site/source
ln -s ~/omega/omega-conf/release/omega-content/images/ site/source

Setup the web frontend:

sudo apt-get install nodejs
gem install --install-dir ~/.gem/ruby/1.9.1/ middleman
cd site
~/.gem/ruby/1.9.1/bin/middleman server -p 4567

A web server is needed to proxy requests between the browser and omega-server/ the web frontend:

sudo apt-get install apache2
Copy the omega.conf to /etc/httpd/conf.d/omega.conf.
sudo service a2enmod proxy
sudo service a2enmod proxy_http
sudo service apache2 start

Pop open firefox, navigate to http://localhost/womega and login!

Gem list:

activesupport (3.2.15)
addressable (2.3.5)
amq-protocol (1.8.0)
amqp (1.1.0)
bundler (1.3.5)
chunky_png (1.2.9)
coffee-script (2.2.0)
coffee-script-source (1.6.3)
compass (0.12.2)
cookiejar (0.3.0)
curb (0.8.5)
em-http-request (1.0.3)
em-socksify (0.3.0)
em-websocket (0.5.0)
em-websocket-client (0.1.2)
eventmachine (1.0.3)
eventmachine_httpserver (0.2.1)
execjs (1.4.0)
ffi (1.9.3)
fssm (0.2.10)
haml (4.0.3)
hike (1.2.3)
http_parser.rb (0.6.0.beta.2, 0.5.3)
i18n (0.6.5)
json (1.8.1)
kramdown (1.2.0)
listen (1.3.1)
middleman (3.1.6)
middleman-core (3.1.6)
middleman-more (3.1.6)
middleman-sprockets (3.1.4)
multi_json (1.8.2)
rack (1.5.2)
rack-test (0.6.2)
rake (10.1.0)
rb-fsevent (0.9.3)
rb-inotify (0.9.2)
rb-kqueue (0.2.0)
rjr (0.16.6)
sass (3.2.12)
sprockets (2.10.0)
sprockets-helpers (1.0.1)
sprockets-sass (1.0.2)
thor (0.18.1)
tilt (1.3.7)
uglifier (2.1.2)
websocket (1.1.1)

Download/Install Ruby For Windows:

http://dl.bintray.com/oneclick/rubyinstaller/rubyinstaller-1.9.3-p448.exe?direct
add ruby executables & associate rb files

Registration Screenshot

Download Ruby DevKit for Windows:
https://github.com/downloads/oneclick/rubyinstaller/DevKit-tdm-32-4.5.2-20111229-1559-sfx.exe
Run and extract to C:\Ruby193\devkit

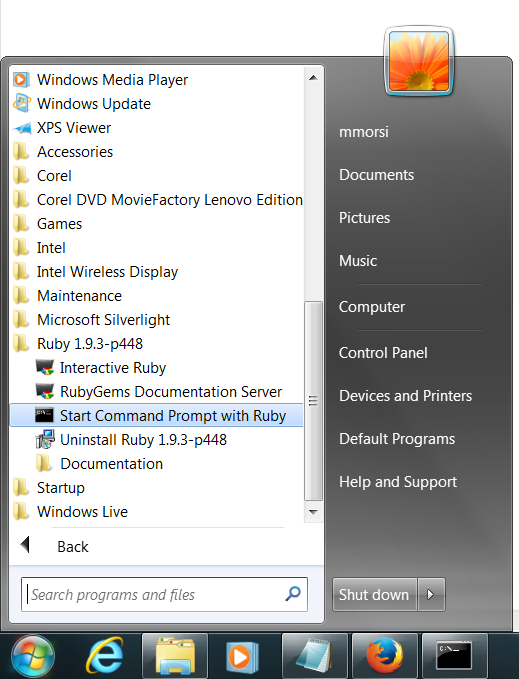

Open a terminal with Ruby:
- Start Menu > All Programs > Ruby1.9.3-p448 > Start Command Prompt with Ruby

Enter the following commands at the prompt (indicated here with '>')

cd C:\Ruby193\devkit
ruby dk.rb init
ruby dk.rb install

Install Omega Dependencies:

gem install rjr --platform=ruby
gem install eventmachine_httpserver --platform=ruby
gem install em-http-request --platform=ruby --version=1.0.3
gem install em-websocket --platform=ruby
gem install em-websocket-client --platform=ruby

Download curl for Windows:

http://curl.haxx.se/gknw.net/7.33.0/dist-w32/curl-7.33.0-devel-mingw32.zip
Click on download, double click on curl-7.33.0-devel folder, select all files, right click and select 'copy'

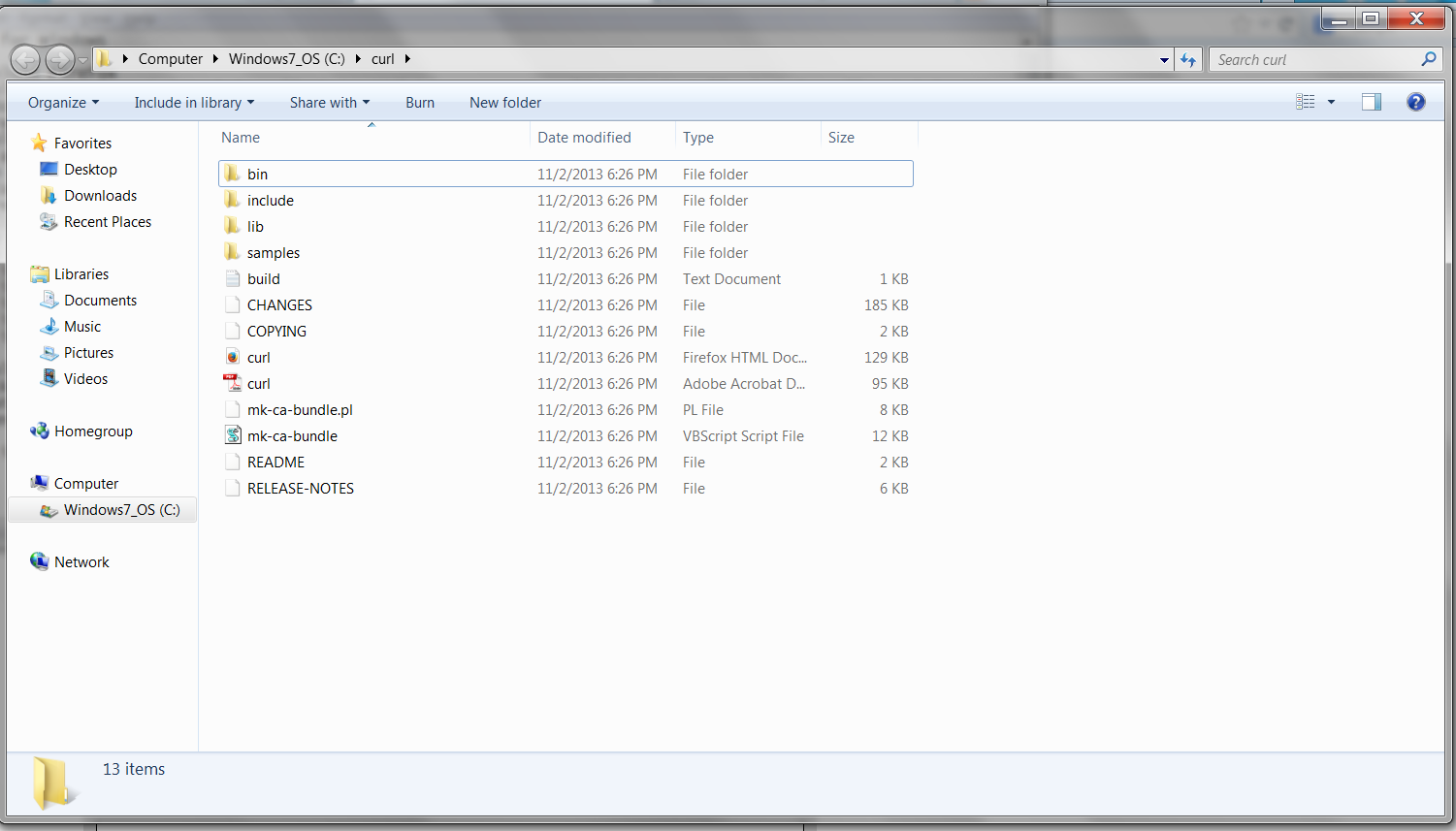

Create a folder at C:\curl, inside right click and 'paste' all files

Registration Screenshot

gem install curb --platform=ruby -- --with-curl-bin="C:/curl/bin" --with-curl-lib="C:/curl/bin" --with-curl-include="C:/curl/include"

Install messaging queue:

gem install amqp --platform=ruby
Download and install erlang for windows: http://www.erlang.org/download/otp_win32_R16B02.exe
Download and install rabbitmq-server (will auto-start on install): http://www.rabbitmq.com/releases/rabbitmq-server/v3.2.0/rabbitmq-server-3.2.0.exe

Install git for Windows and fetch Omega:

Download/install git for windows: https://msysgit.googlecode.com/files/Git-1.8.4-preview20130916.exe
I left all options at the defaults except for "Use git with Windows Command Prompt"

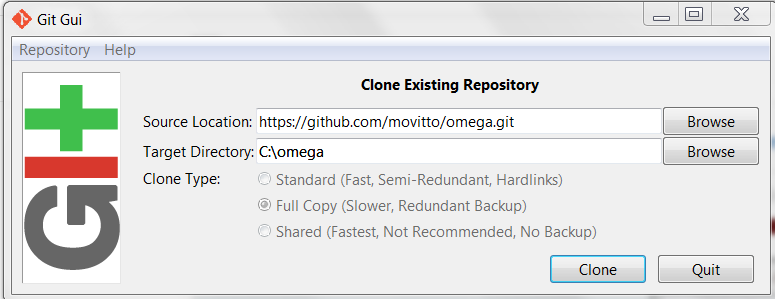

Open git gui: Start Menu > Git > Git GUI
Click 'clone existing repository'
Clone https://github.com/movitto/omega.git to C:\omega

Registration Screenshot

Run Omega:

set PATH=%PATH%;C:\curl\bin
cd C:\omega
ruby -Ilib bin\omega-server

The server will now stay running so long as this terminal is open.

Seed Omega (in a seperate terminal):

cd C:\omega
ruby -Ilib .\examples\universes\small.rb
ruby -Ilib .\examples\users.rb Anubsi sibuna Athena regular_user
note: ran into issue w/ previous command where it ran successfully but did not exit/return to command line (just hung) after it was done, need to fix

Setup UI Audio/Image content:

Open git gui
Clone https://github.com/movitto/omega-conf.git to C:\omega\omega-conf (will take a few minutes)
Copy images and audio directories underneath C:\omega\omega-conf\release\omega-content to C:\omega\site\source

Registration Screenshot

Run Web UI frontend:

Download/install nodejs for windows http://nodejs.org/dist/v0.10.21/node-v0.10.21-x86.msi
cd C:\omega
gem install rake --platform=ruby
gem install middleman --platform=ruby
gem install wdm --platform=ruby
rake site:preview

Setup nginx webserver to proxy requests between Omega and web fronend:

Download: http://nginx.org/download/nginx-1.5.6.zip
Install to C:\nginx

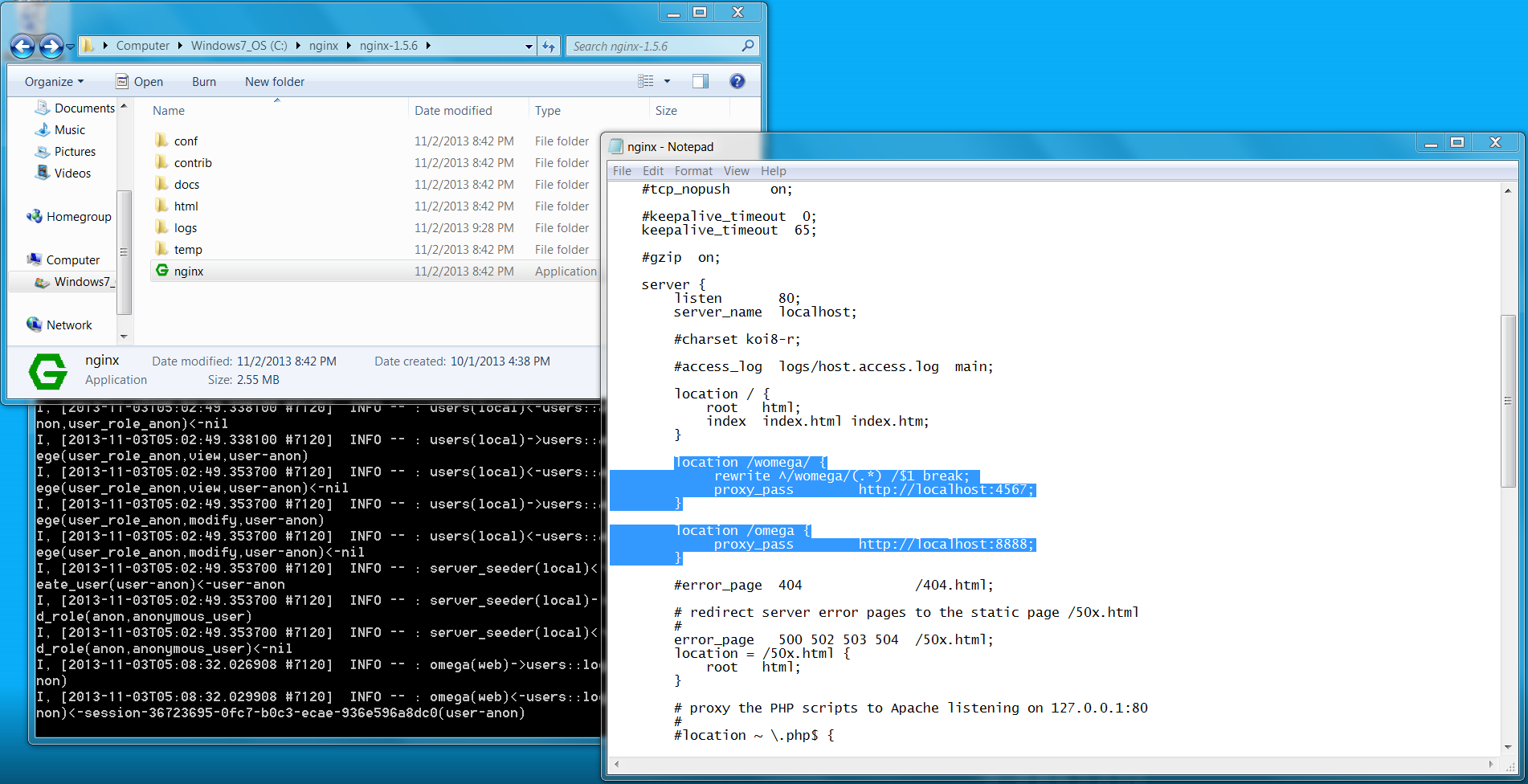

Edit C:\nginx\conf\nginx.conf config

Add the following to the default server section of the config:

  location /womega/ {
       rewrite ^/womega/(.*) /$1 break;
       proxy_pass        http://localhost:4567;
  }

  location /omega {
       proxy_pass        http://localhost:8888;
  }

Registration Screenshot

Double click on nginx.exe in C:\ngnix to start the server

Use the Simulation:

Open up firefox, navgigate to http://localhost/womega and login!

Gem list:

activesupport (3.2.15)
addressable (2.3.5)
amq-protocol (1.8.0)
amqp (1.1.1)
bigdecimal (1.1.0)
bundler (1.3.5)
chunky_png (1.2.9)
coffee-script (2.2.0)
coffee-script-source (1.6.3)
colored (1.2)
compass (0.12.2)
cookiejar (0.3.0)
curb (0.8.5)
em-http-request (1.0.3)
em-socksify (0.3.0)
em-websocket (0.5.0)
em-websocket-client (0.1.2)
eventmachine (1.0.3 x86-mingw32)
eventmachine_httpserver (0.2.1)
execjs (1.4.0)
ffi (1.9.3)
fssm (0.2.10)
haml (4.0.3)
hike (1.2.3)
http_parser.rb (0.5.3)
i18n (0.6.5)
io-console (0.3)
json (1.8.1, 1.5.5)
kramdown (1.2.0)
listen (1.3.1)
middleman (3.1.6)
middleman-core (3.1.6)
middleman-more (3.1.6)
middleman-sprockets (3.1.4)
minitest (2.5.1)
multi_json (1.8.2)
rack (1.5.2)
rack-test (0.6.2)
rake (10.1.0, 0.9.2.2)
rb-fsevent (0.9.3)
rb-inotify (0.9.2)
rb-kqueue (0.2.0)
rdoc (3.9.5)
rjr (0.16.6)
sass (3.2.12)
sprockets (2.10.0)
sprockets-helpers (1.0.1)
sprockets-sass (1.0.2)
thor (0.18.1)
tilt (1.3.7)
uglifier (2.1.2)
wdm (0.1.0)
websocket (1.1.1)

See the Configuration section of the wiki for more information on how to configure the server.

The Omega Config Recipe consists of many tools & config files to assist w/ an omega install:

a puppet receipe to install / setup omega w/ dependencies and frontend
a bootstrapping script to install Omega from scratch + other helper / utility scripts
the image & audio content for an omega release
various other resources, config files, docs, and helpers

It iss a good starting resource to see the steps required to install project releases.

To use the bootstrap script simply download and run it as root like so:

$ wget https://raw.github.com/movitto/omega-conf/master/bin/omega-bootstrap.sh
$ chmod +x omega-bootstrap.sh
$ sudo ./omega-bootstrap.sh

Note it's been a little while since the recipe / bootstrap script has been updated. If there are any bugs feel free to file and issue or a pull request! Thanks!
