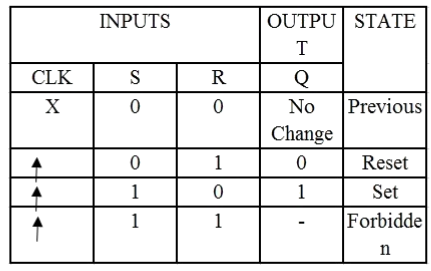

SR flipflop (Gate Level)

module srff(q, qbar, s, r, clk);
input s,r,clk;
output q, qbar;
wire nand1_out; // output of nand1
wire nand2_out; // output of nand2
nand (nand1_out,clk,s);
nand (nand2_out,clk,r);
nand (q,nand1_out,qbar);
nand (qbar,nand2_out,q);
endmodule

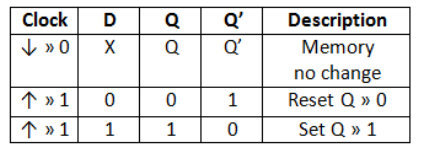

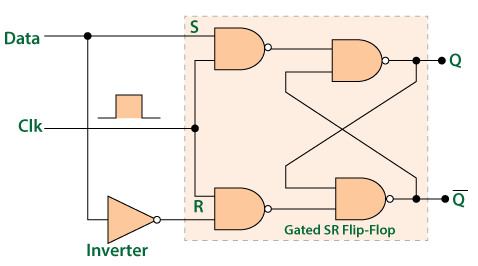

D flipflop (Behavioral model)

module dff(d,clk,q,qbar);
input d, clk;
output reg q, qbar;
always@(posedge clk)
begin
q <= d;
qbar <= !d;
end
endmodule

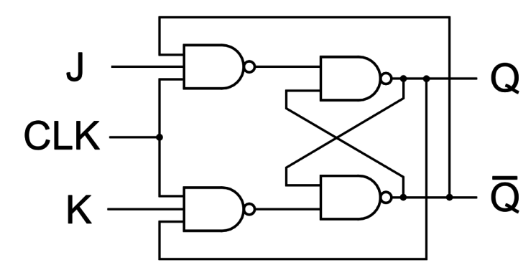

JK flipflop (Gate level)

module jkff(q,qbar,clk,j,k);
input j,k,clk;
output q,qbar;
wire nand1_out; // output from nand1
wire nand2_out; // output from nand2
nand(nand1_out, j,clk,qbar);
nand(nand2_out, k,clk,q);
nand(q,qbar,nand1_out);
nand(qbar,q,nand2_out);
endmodule
