Sequential circuit

A sequential circuit is a type of digital circuit that uses memory elements, such as flip-flops, to store information and produce an output that depends on both the current input and the current state of the circuit. The output of a sequential circuit can be affected by previous inputs and the current state of the circuit.

Types of triggering

In sequential circuits, triggering usually refers to the process of causing a flip-flop or other memory element to change its state based on a clock signal or some other input signal. Screenshot 2023-03-15 093718

  • Edge triggering:

Edge triggering occurs when a change in the input signal is detected. Specifically, it occurs when there is a transition from a low voltage level to a high voltage level or from a high voltage level to a low voltage level. This type of triggering is used in flip-flops, where the output changes state based on the transition of the input signal.

  • Level triggering:

Level triggering occurs when the input signal is held at a specific voltage level for a certain period of time. This type of triggering is commonly used in latches, where the output is updated whenever the input signal remains at a certain voltage level. Level triggering can be either active high or active low, depending on whether the output changes when the input signal is high or low.

Set up, Hold Time and propagation delay

Screenshot (4)

Set up time

The amount of time the data at the input must be stable before the active edge of clock. Any violation may cause incorrect data to be captured, which is known as setup violation.

Hold Time

The amount of time the data at the input must be stable after the active edge of clock. Any violation may cause incorrect data to be captured, which is known as Hold violation.

Propagation delay

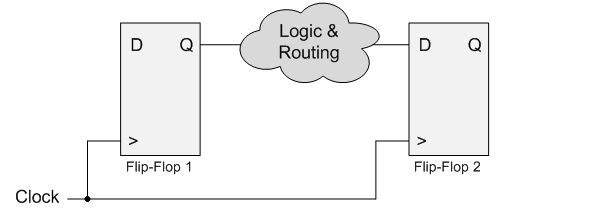

lets us consider 2 D Flip flop

Screenshot (6)

  • It takes time for a signal to travel from source to destination i.e FF1 is source and FF2 id destination
  • All the flip flop will be made up of nand or nor gate hence after passing through each gates the delay occurs.
  • when the propogation delay is longer which means we cant run the clock quickly

suppose a nand gate in logic and routing, the nand gate has its lookup table it goes through it and propagation delay occurs

  • Consider a master slave D Latch based Flip flop

Untitled123-removebg-preview

let us design a flip flop by using 2 latches, clock is inverted to latch1 so its negative triggered and where as positive triggered at latch 2

now let us draw the timing diagram for the output Q1, Q2 and Q

setup drawio

  • we know that latch 1 act as negative latch due to inverter so it triggers at its negative level we can observe in the waveform of Q1
  • latch 2 act as positive latch so its going to trigger at positive level this can be observed in Q2
  • hence the final output of flip flop Q will be same as Q2 u can see that in above mentioned circuit diagram

Is the output acting as flip flop? we know that whenever the input is given the flip flop will be only considered at positive edges hence we can see the output Q triggers at positive edges hence we obtained flip flop from latches.

  • why the Set up and hold time is there in the flip flop?

In the previous example master slave D flip flop there was no propagation delay, but now let us set some delay and check it

dddo-removebg-preview

As we can see that we gave a propagation delay of 2ns for latch1 so if we give input at D we will getting output after 2ns, lets assume the width of the clock period is 10ns and width of input D to positive edge 2ns mentioned in the diagram.

Screenshot__13_-removebg-preview

In order to check why setup time is required we are going to give a delay of 1ns in the input D as shown in the diagram

new

when delay is given to the input D we already considered the delay of latch will be 2ns we know that latch1 is a negative level triggered but due to delay of 2ns output we are going to get at positive level hence this is known as set up voilation condition.

Screenshot__17_-removebg-preview

  • Hold time voilation? A inverter is connected to clock of latch1 where we assumed the inverter with a delay of 1ns hence if the input is going to change during that delay then wont be getting a hold time it leads to hold violation.
