Step 1: Write the truth table of the required flip-flop

Here the required flip-flop is JK flip-flop

JK TRUTH drawio

Step 2: Write the excitation table of the given flip-flop

In this case the given flip-flop is D flip-flop

EXCIATIOND drawio

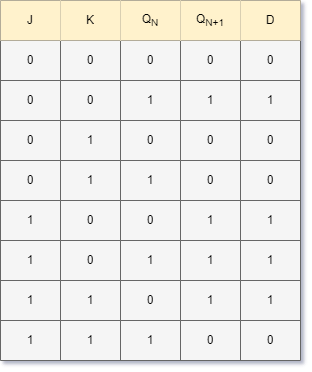

Step 3: The conversion table, which is a combination of the truth table and excitation table

To implement a JK flip-flop from D flip-flop is as follows

D TO JK drawio

Step 4: Find the Boolean expressions for the inputs of the given flip-flop

In this case, the given flip-flop is D.

Therefore, write the Boolean expressions for D from the conversion table using K-Map.

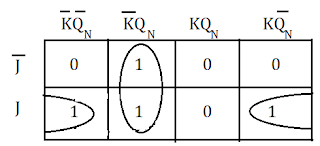

K-Map for D:


Expression for D would be

EXPRESSION D TO JK drawio

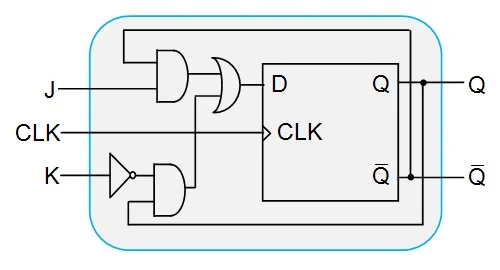

Step 5: Draw the circuit for implementing JK flip-flop from D flip-flop

For this, connect the D input of the D flip-flop to the circuit of the Boolean expression for D.

Therefore, the circuit would be:
