Add your user templates in the appropriate section, please resize images to 150px maximum width and 100px maximum height.
No referral links allowed!!!
| Device name | Device image | Template |
|---|---|---|
| AVATAR/AISIRER Smart Plug 10A |  |
{"NAME":"AWP07L","GPIO":[56,255,255,255,255,134,255,255,130,17,132,21,255],"FLAG":1,"BASE":18} |
| RGB Smart Plug 16A |  |
{"NAME":"RGB Smart Plug","GPIO":[37,0,39,0,38,134,0,0,131,17,132,21,0],"FLAG":0,"BASE":45} |
| Panamalar NX-SM200 16A Plug |  |
{"NAME":"NX-SM200","GPIO":[0,255,0,255,56,134,0,0,131,17,132,21,0],"FLAG":0,"BASE":45} |

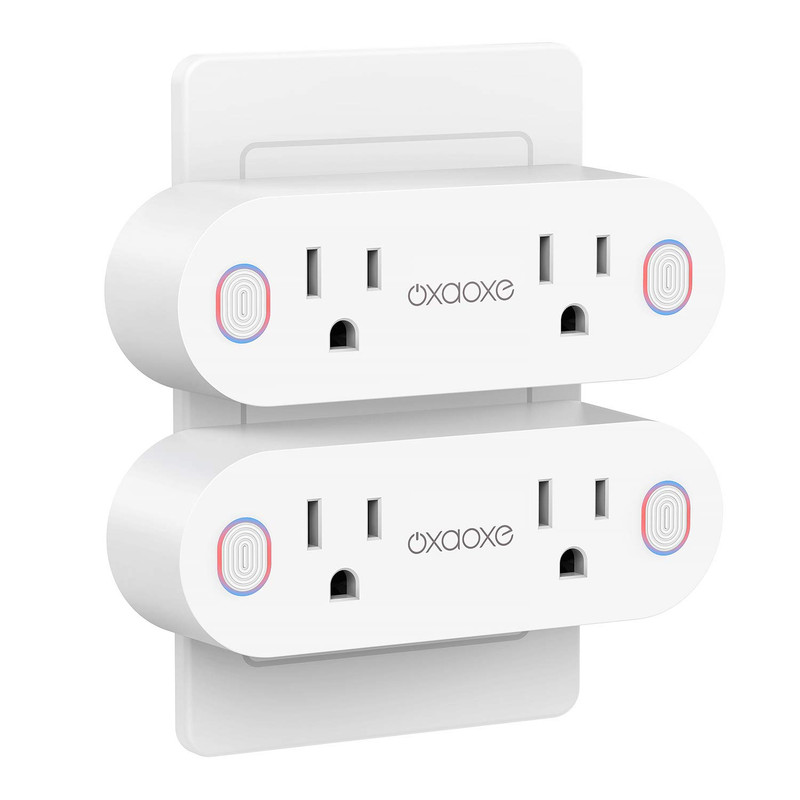

| SP201 Based Dual Plugs |  |
{"NAME":"SP-201","GPIO":[31,0,0,131,17,134,0,0,21,18,132,22,0],"FLAG":0,"BASE":45} |
| TECKIN SM-110 - UK Power monitoring plug |  |
{"NAME":"SM-110","GPIO":[57,255,56,255,0,134,0,0,131,17,132,21,0],"FLAG":0,"BASE":45} |
| WAZA Smart Plug 10A |  |
{"NAME":"WAZA","GPIO":[0,0,0,0,21,17,0,0,56,0,0,0,0],"FLAG":1,"BASE":18} |
| Tuya Esicoo Smart Plug 10A Model YX-WS01 |  |
{"NAME":"Esicoo Plug","GPIO":[255,17,255,255,255,255,255,255,255,56,21,255,255],"FLAG":0,"BASE":18} |

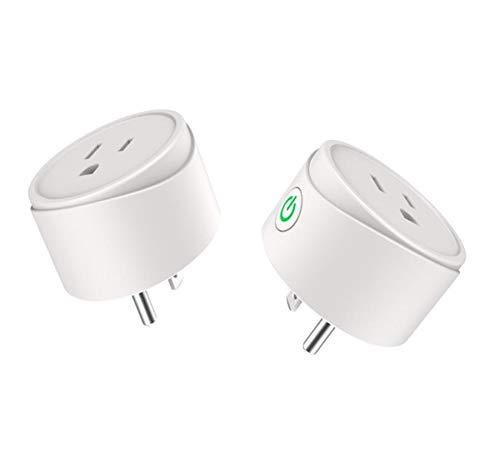

| DWFeng Mini Smart Socket 10A Model AWP02L-N |  |
{"NAME":"AWP02L-N","GPIO":[255,255,56,255,255,255,255,255,255,17,255,21,255],"FLAG":0,"BASE":18} |
| Device name | Device image | Template |
|---|---|---|

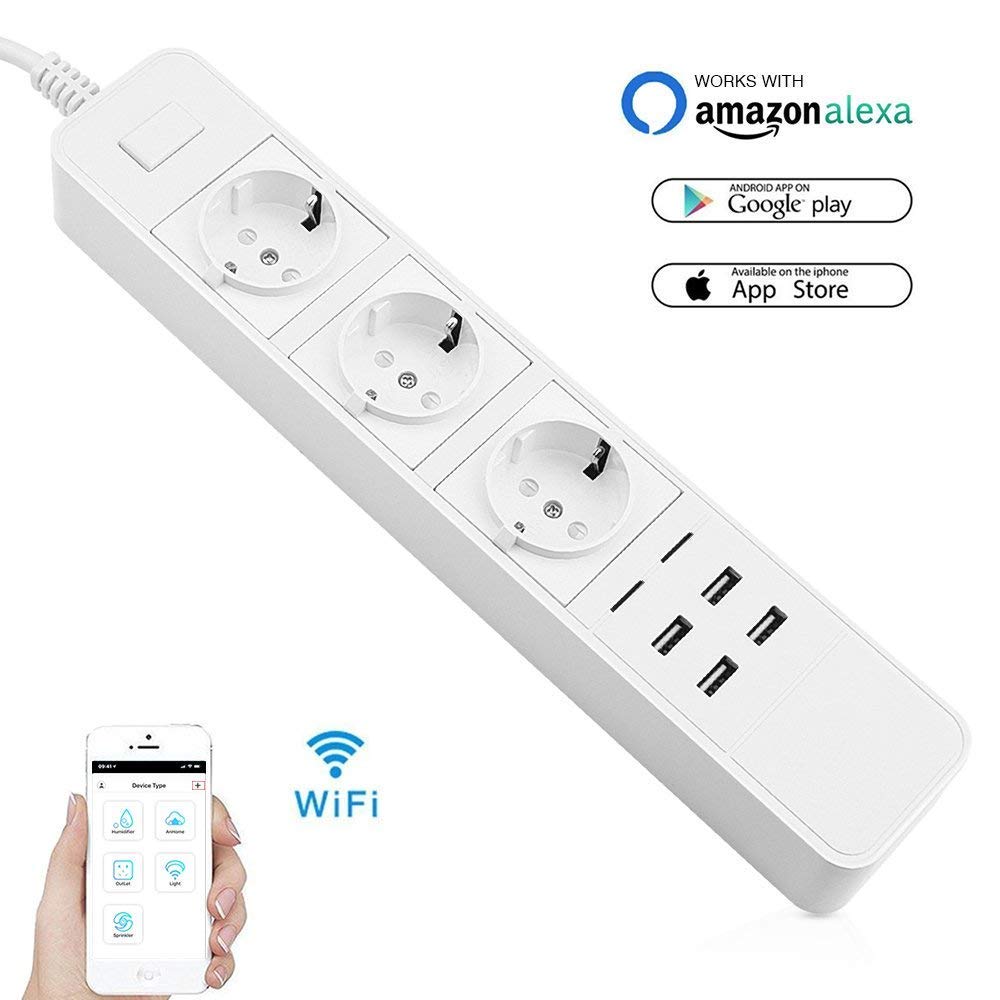

| Viflykoo 3 socket + USB Wifi power strip (Nocovy0428wifide3) |  |
{"NAME":"Viflykoo 3xStr","GPIO":[0,0,53,0,0,23,0,0,21,56,17,24,22],"FLAG":1,"BASE":18}Button controls single relay only. To switch other relays. rule on button1#state do backlog POWER1 toggle; POWER2 toggle; POWER3 toggle; POWER4 toggle endon
|

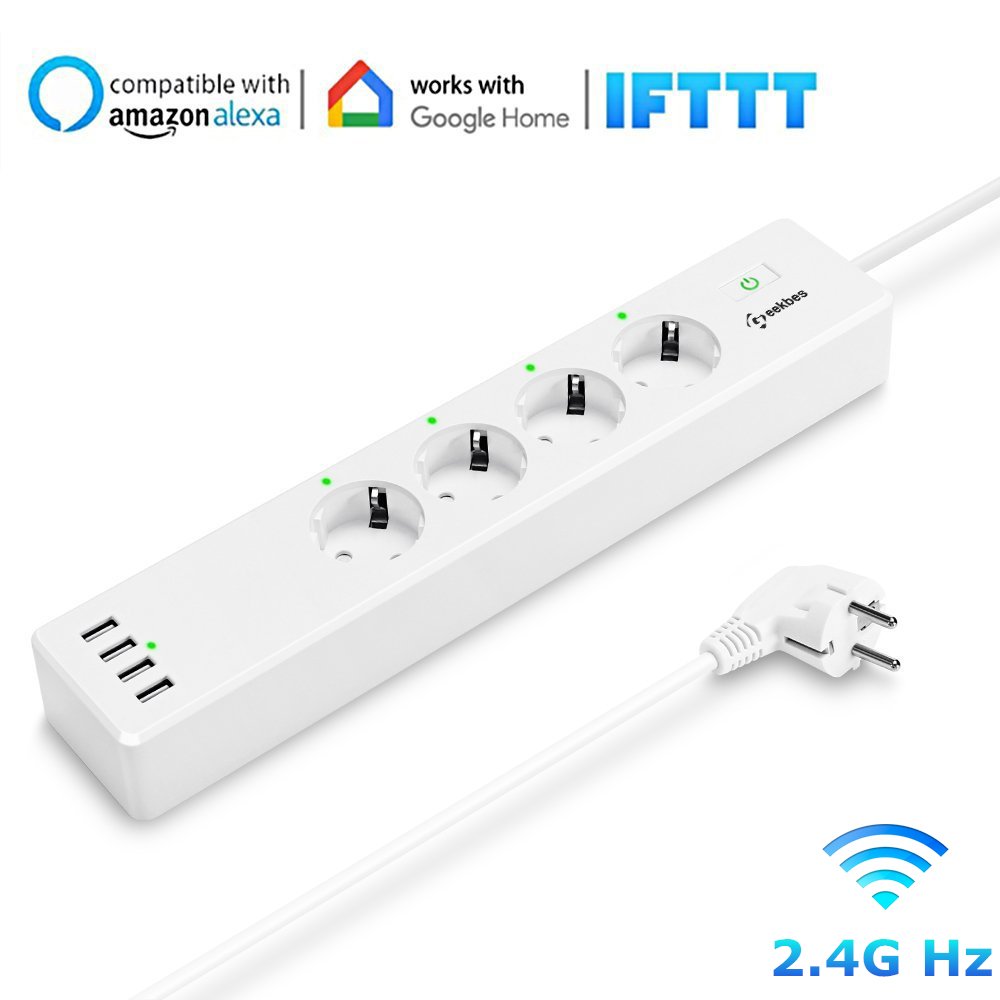

| Geekbes 4 socket + USB Wifi power strip (B078W23BW9) |  |
{"NAME":"Geekbes 4xStri","GPIO":[0,56,0,17,22,21,0,0,23,24,25,0,0],"FLAG":1,"BASE":18}Button controls single relay only. To switch other relays: rule on button1#state do backlog POWER1 toggle; POWER2 toggle; POWER3 toggle; POWER4 toggle; POWER5 toggle endon
|
| Device name | Device image | Template |
|---|---|---|
| Merkury A19 60W Dimmable White Bulb |  |
{"NAME":"MI-BW902-999W","GPIO":[0,0,0,0,0,37,0,0,0,0,0,0,0],"FLAG":0,"BASE":18} |
| Merkury A21 75W RGBW Bulb |  |
{"NAME":"MI-BW904-999W","GPIO":[0,0,0,0,140,37,0,0,0,142,141,0,0],"FLAG":1,"BASE":69} |
| Merkury BR30 65W Tunable White Bulb |  |
{"NAME":"MI-BW905-999W","GPIO":[0,0,0,0,37,37,0,0,38,0,0,0,0],"FLAG":0,"BASE":18} |
| Electrodragon ESP LED Strip Board |  |
{"NAME":"ED LedStrip","GPIO":[0,0,0,0,0,0,0,0,39,38,0,37,0],"FLAG":1,"BASE":18} |
| Feit Electric RGBW Bulb (note BGR color order) |  |
{"NAME":"OM60/RGBW","GPIO":[255,255,255,255,140,37,0,0,38,142,141,255,255],"FLAG":0,"BASE":18} |
| Feit Electric WiFi LED Dimmable 65W Equivalent Soft White (2700K) Light |  |
{"NAME":"Feit BR30 WW","GPIO":[0,0,0,0,0,37,0,0,0,0,0,0,0],"FLAG":0,"BASE":18} |
| Feit Electric WiFi LED Dimmable 65W Equivalent Daylight (10K) Light |  |
{"NAME":"Feit BR30 CW","GPIO":[0,0,0,0,0,37,0,0,0,0,0,0,0],"FLAG":0,"BASE":18} |
| Device name | Device image | Template |
|---|---|---|
| Martin Jerry 15A Switch - US 1 Gang |  |
{"NAME":"MJ Switch","GPIO":[255,255,255,255,57,56,255,255,21,17,255,255,255],"FLAG":0,"BASE":18} |
| Device name | Device image | Template |
|---|---|---|
| WL-SW01_10 |  |
{"NAME":"WL-SW01_10","GPIO":[17,149,0,148,0,0,0,0,21,56,0,0,0],"FLAG":0,"BASE":1} |
