WL SW01_10 WiFi Smart Switch - FengtianGu/Sonoff-Tasmota GitHub Wiki

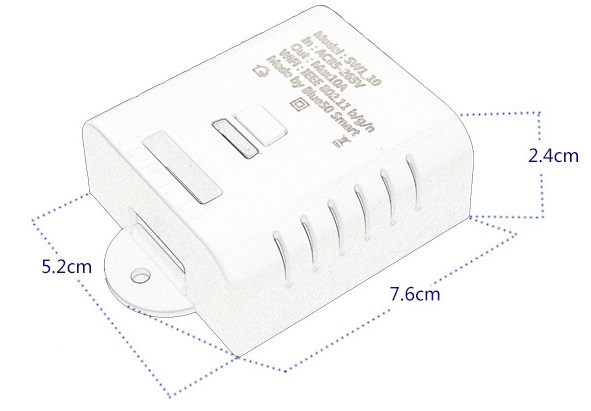

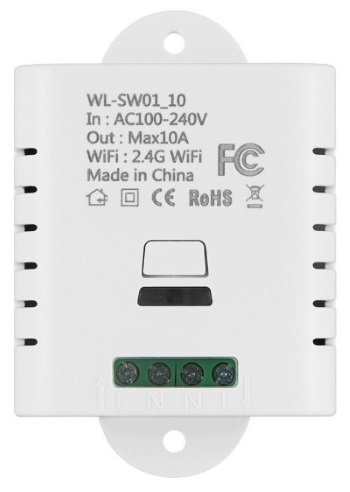

Manufactured by Blue50 as WL-SW01_10 and also sold as TISHRIC.

Sonoff Basic in a different form factor with the same features.

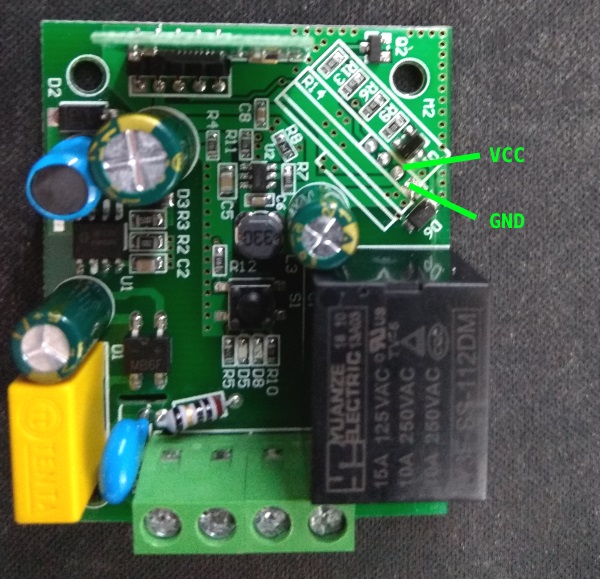

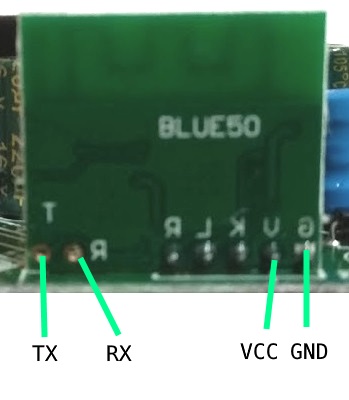

It contains an ESP8285 chip on a vertical breakout board with all the needed GPIOs broken out and labeled. There are also a couple pads on the board to solder VCC and G.

Use template {"NAME":"WL-SW01_10","GPIO":[17,149,0,148,0,0,0,0,21,56,0,0,0],"FLAG":0,"BASE":1}

If your Tasmota version doesn't support templates select module Sonoff Basic (1).
