Math functions

It's possible to compute math values like standard deviation using the chart data and itegrate the value into the chart with annotateLabel or inGraphDataTmpl. Integrated math functions

• mean
• varianz
• stddev (Standard deviation)
• cv (Coefficient of variation)

If you want to add the difference between the current value and a math function you can add a Dif after the name of the math function. For example: inGraphDataTmpl: '<%=meanDif()%>' inGraphDataTmpl: '<%=v3-mean()%>' If you want to have the varianz over each data point: inGraphDataTmpl: '<%=varianz()%>' And it's possible to round the data using inGraphDataTmpl: '<%=varianz(3)%>' The default number of decimal places is 2 inGraphDataTmpl: '<%=varianz(2)%>' = inGraphDataTmpl: '<%=varianz()%>'

Line and Bar charts

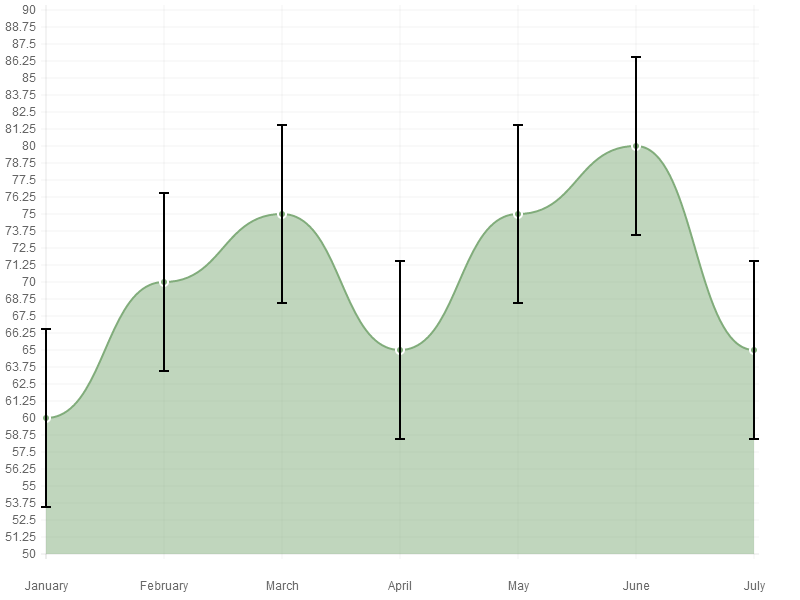

Standard deviation

It's possible to add deviation lines into line and bar charts.(math.html) You can specify which datasets should use a math function using drawMathDeviation. Every deviation has a

• deviationStrokeColor (default: rgba(220,220,220,1))
• deviationWidth which is the length of the horizontal lines at the top and bottopm of the vertical line (default: 0px)

var LineData = {
	labels : ["January","February","March","April","May","June","July"],
	datasets : [
		{
			fillColor : "rgba(129, 172, 123, 0.5)",
			strokeColor : "rgba(129, 172, 123, 1)",
			pointColor : "rgba(129, 172, 123, 1)",
			pointStrokeColor : "#fff",
			drawMathDeviation: "stddev",
			deviationStrokeColor: "#000",
			deviationWidth: 5,
			data : [60,70,75,65,75,80,65],
      title : "line 1"
		}
	]
}
