Spacing Layout

Through “space” options, you can adjust where elements are put on the canvas. For all those options, the value must be a positive integer value and correspond to a number of pixels.

Contents

• footNoteSpaceAfter
• footNoteSpaceBefore
• graphSpaceAfter
• graphSpaceBefore
• graphSubTitleSpaceAfter
• graphSubTitleSpaceBefore
• graphTitleSpaceAfter
• graphTitleSpaceBefore
• spaceBottom
• spaceLeft
• spaceRight
• spaceTop
• legendBordersSpaceAfter
• legendBordersSpaceBefore
• legendBordersSpaceLeft
• legendBordersSpaceRight
• legendSpaceAfterText
• legendSpaceBeforeText
• legendSpaceBetweenBoxAndText
• legendSpaceBetweenTextHorizontal
• legendSpaceBetweenTextVertical
• legendSpaceLeftText
• legendSpaceRightText
• xAxisLabelSpaceAfter
• xAxisLabelSpaceBefore
• xAxisSpaceAfter
• xAxisSpaceBefore
• xAxisSpaceBetweenLabels
• yAxisLabelSpaceLeft
• yAxisLabelSpaceRight
• yAxisSpaceLeft
• yAxisSpaceRight
• yAxisUnitSpaceAfter
• yAxisUnitSpaceBefore

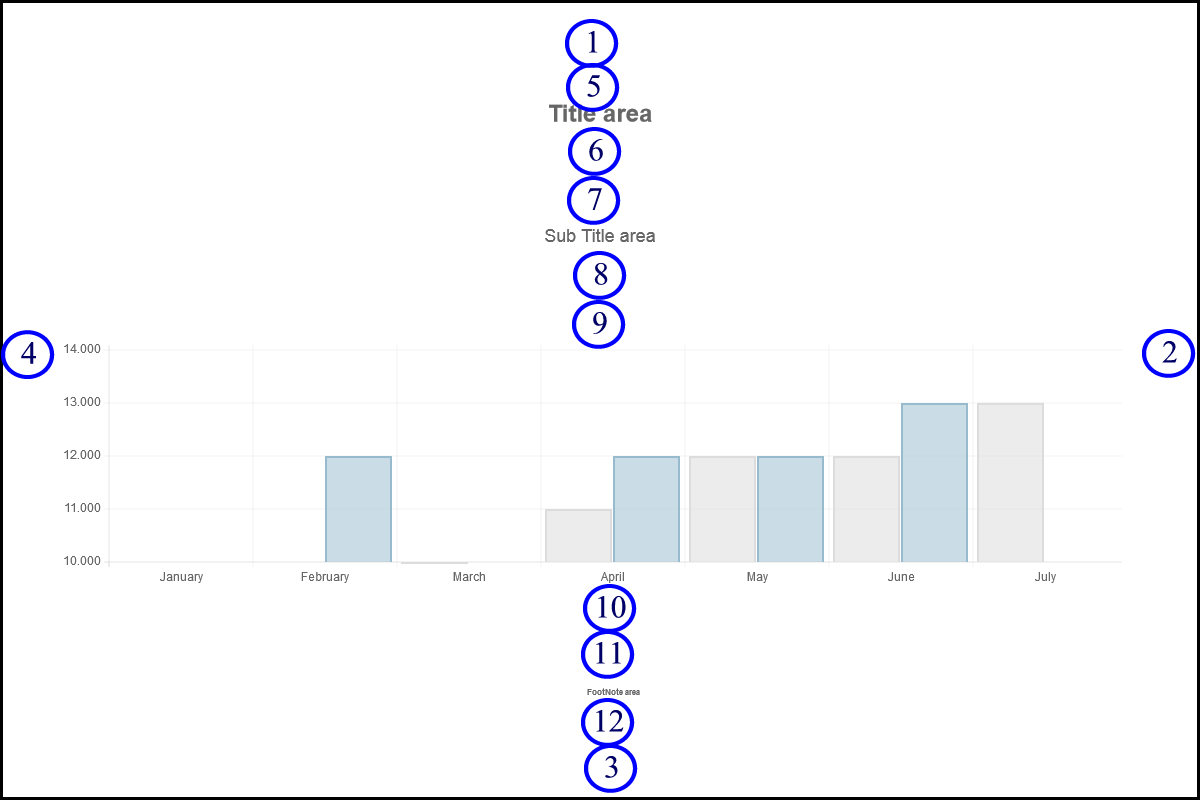

footNoteSpaceAfter

Location: 12

Default Value : 5

Applies only if a footnote is specified.

footNoteSpaceBefore

Location: 11

Default Value : 5

Applies only if a footnote is specified.

graphSpaceAfter

Location: 10

Default Value : 5

graphSpaceBefore

Location: 9

Default Value : 5

graphSubTitleSpaceAfter

Location:8

Default Value : 5

Applies only if a subTitle is specified.

graphSubTitleSpaceBefore

Location: 7

Default Value : 5

Applies only if a subTitle is specified.

graphTitleSpaceAfter

Location: 6

Default Value : 5

Applies only if a title is specified.

graphTitleSpaceBefore

Location:5

Default Value : 5

Applies only if a title is specified.

spaceBottom

Location: 3

Default Value : 0

spaceLeft

Location: 4

Default Value : 0

spaceRight

Location: 2

Default Value : 0

spaceTop

Location: 1

Default Value : 0

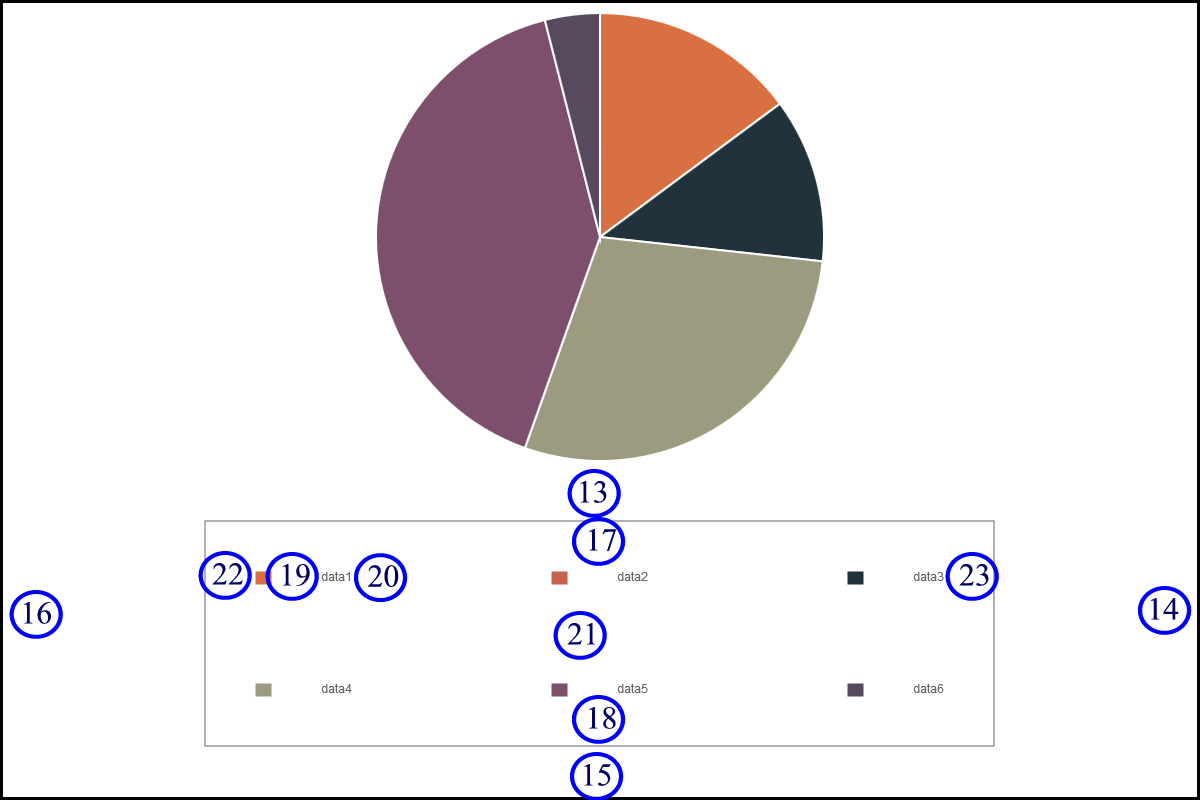

legendBordersSpaceAfter

Location: 15

Default Value : 5

Applies only if the legend has a border (option legendBorders : true)

legendBordersSpaceBefore

Location: 13

Default Value : 5

Applies only if the legend has a border (option legendBorders : true)

legendBordersSpaceLeft

Location: 16

Default Value : 5

Applies only if the legend has a border (option legendBorders : true)

The value specified is the minimum space to leave on the left of the legend.

legendBordersSpaceRight

Location: 14

Default Value : 5

Applies only if the legend has a border (option legendBorders : true)

The value specified is the minimum space to leave on the right of the legend.

legendSpaceAfterText

Location: 18

Default Value : 5

Applies only if the legend has to be displayed (option legend : true)

legendSpaceBeforeText

Location: 17

Default Value : 5

Applies only if the legend has to be displayed (option legend : true)

legendSpaceBetweenBoxAndText

Location: 19

Default Value : 5

Applies only if the legend has to be displayed (option legend : true)

legendSpaceBetweenTextHorizontal

Location: 20

Default Value : 5

Applies only if the legend has to be displayed (option legend : true)

legendSpaceBetweenTextVertical

Location: 21

Default Value : 5

Applies only if the legend has to be displayed (option legend : true) and if the legend is displayed on more than one line.

legendSpaceLeftText

Location: 22

Default Value : 5

Applies only if the legend has to be displayed (option legend : true)

legendSpaceRightText

Location: 23

Default Value : 5

Applies only if the legend has to be displayed (option legend : true)

xAxisLabelSpaceAfter

Location: 27

Default Value : 5

Applies only for charts with X axis and if xAxisLabel is defined.

xAxisLabelSpaceBefore

Location: 26

Default Value : 5

Applies only for charts with X axis and if xAxisLabel is defined.

xAxisSpaceAfter

Location: 25

Default Value : 5

Applies only for charts with X axis.

xAxisSpaceBefore

Location: 24

Default Value : 5

Applies only for charts with X axis.

xAxisSpaceBetweenLabels

Location: 28

Default Value : 5

Applies only for charts with X axis.

This value is the minimum space required between x labels.

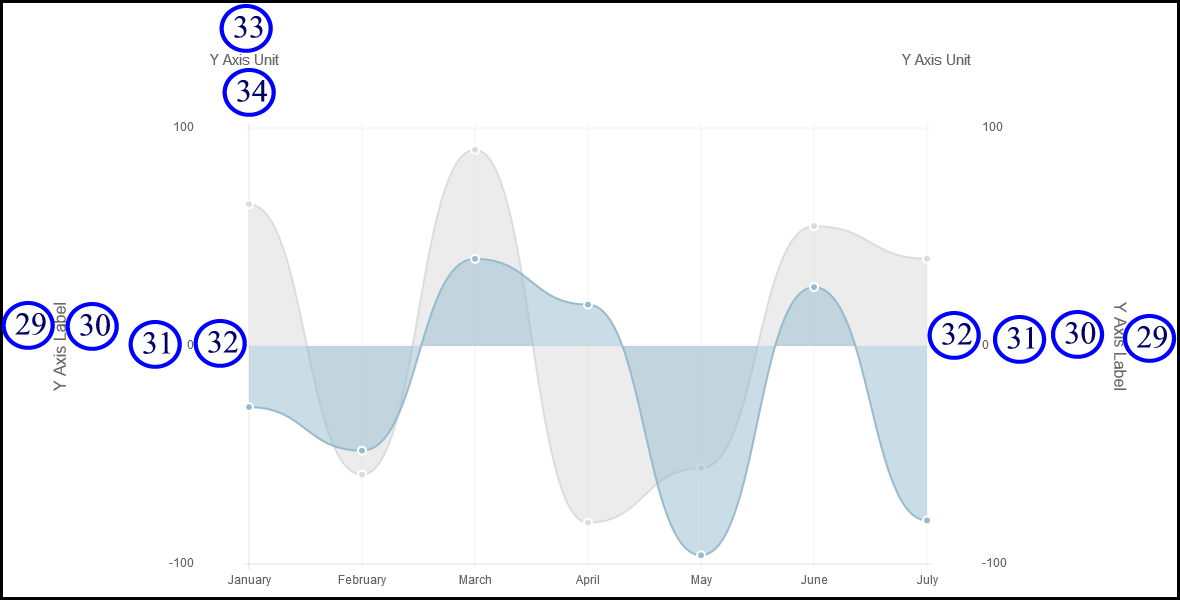

yAxisLabelSpaceLeft

Location: 29

Default Value : 5

Applies only for charts with Y axis and if yAxisLabel is defined.

yAxisLabelSpaceRight

Location: 30

Default Value : 5

Applies only for charts with Y axis and if yAxisLabel is defined.

yAxisSpaceLeft

Location: 31

Default Value : 5

Applies only for charts with Y axis.

yAxisSpaceRight

Location: 32

Default Value : 5

Applies only for charts with Y axis.

yAxisUnitSpaceAfter

Location: 34

Default Value : 5

Applies only for charts with Y axis and if yAxisUnit is defined.

yAxisUnitSpaceBefore

Location: 33

Default Value : 5

Applies only for charts with Y axis and if yAxisUnit is defined.
