TG : BOX
The <TD/> table header group widget is used to define the table header groups. Table header groups can contain can contain one or more <TD/> or <TG/> child cells. Table header groups can also contain other widgets for display (typically TEXT and ICON widets.
| Name | Type | Default | Description | Req |
|---|---|---|---|---|
| sortable | bool | All header cells are sortable. Note, indivdual header cells may override this and must have a sort defined |
||
| resizeable | bool | All header cells are resizeable. Note, indivdual header cells may override this | ||
| editable | bool | All header cells are editable. Note, indivdual header cells may override this | ||
| resize | string | normal | Defines how column resizing shares space with adjacent siblings. Possible values are "none", "normal" and "pushpull" | |
| filter | bool | Show column filter inputs for each header cell. Note, indivdual header cells may override this |

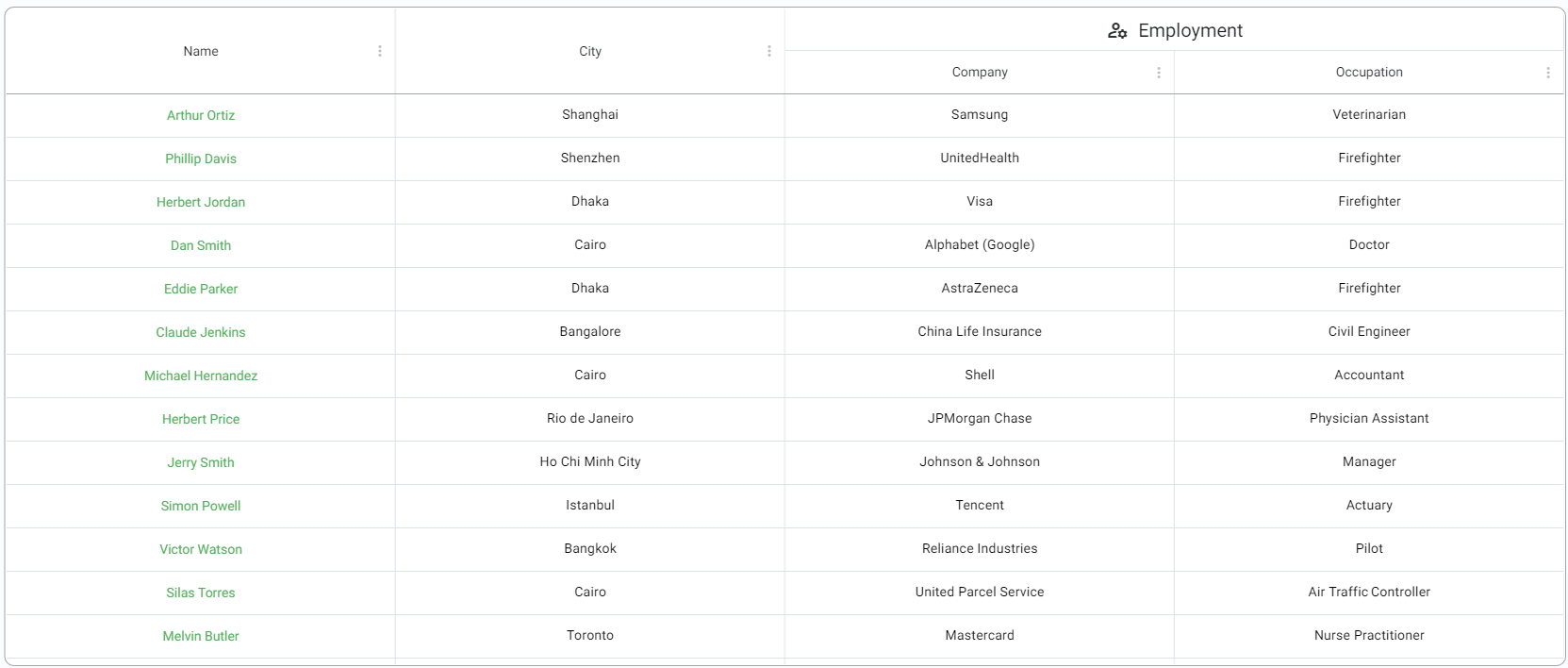

This example shows a single header group.
<?xml version="1.0"?>
<FML title="TABLE (example10)" linkable="true" keywords="export tg group">
<TESTDATA id="ppl" rows="200"/>
<TABLE id="tbl" data="ppl" paged="false" scrollshadows="true" margin="10">
<!-- Table Header -->
<TH>
<TD>
<TEXT value="Name"/>
</TD>
<TD field="city">
<TEXT value="City"/>
</TD>
<TG>
<ROW expand="false" center="true">
<ICON value="manage_accounts_outlined" size="24"/>
<PAD right="10"/>
<TEXT value="Employment" size="20"/>
</ROW>
<TD field="company">
<TEXT value="Company"/>
</TD>
<TD field="occupation">
<TEXT value="Occupation"/>
</TD>
</TG>
</TH>
</TABLE>
</FML>
