<RADIO/> : FormField
The <RADIO/> widget creates a list of <OPTION/> widgets with an interactive radio selector. Only one radio <OPTION/> can be selected for the <RADIO/>.
- For multiple selections use the <SELECT/> widget.
- A user can only select one <OPTION/> within the <RADIO/> at a time.
| Name | Type | Default | Description | Req |
|---|---|---|---|---|
| data | string | null | The Datasource to populate the OPTIONs with. See Datasources. |
|
| width | int / % | null | The width of the widget. | |
| size | int | null | The size of the [RADIO] icon. |
|
| color | string | null | The color of the checkbox icon | |
| layout | string | column | Orientation to layout the options, alternatively it can be set to row |

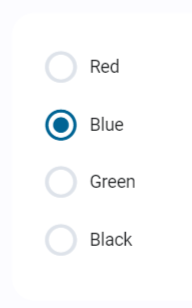

<RADIO id="radio" size="30" value="#0000FF">
<OPTION value="#FF0000" label="Red"/>
<OPTION value="#0000FF" label="Blue"/>
<OPTION value="#00FF00" label="Green"/>
<OPTION value="#000000" label="Black"/>
</RADIO>A RADIO populated by a DATA Datasource
<FML>
<COL center="true">
<RADIO id="monthradio" data="MONTHS" size="30">
<OPTION value="{data.month}" label="{data.month}"/>
</RADIO>
</COL>
<DATA id="MONTHS" root="ROWS.ROW">
<VALUE>
<![CDATA[<ROWS>
<ROW>
<month>January</month>
</ROW>
<ROW>
<month>February</month>
</ROW>
<ROW>
<month>March</month>
</ROW>
<ROW>
<month>April</month>
</ROW>
<ROW>
<month>May</month>
</ROW>
<ROW>
<month>June</month>
</ROW>
<ROW>
<month>July</month>
</ROW>
<ROW>
<month>August</month>
</ROW>
<ROW>
<month>September</month>
</ROW>
<ROW>
<month>October</month>
</ROW>
<ROW>
<month>November</month>
</ROW>
<ROW>
<month>December</month>
</ROW>
</ROWS>]]>
</VALUE>
</DATA>
</FML>
