Overview

The PIVOT is a child of Datasources, it is useful for manipulating the data to a more singular / understandable format that focuses on 2 fields that share a data point you pivot around.

Restrictions:

Currently the {total}, {count}, {average}, {min} and {max} can only be bound to the first column so referencing the column will give you the sum by default.

Parent:

Datasources

Children:

None

Widget Attributes

Name Type Default Description Req
row string n/a Field to build rows from ✔
column string n/a Field to build columns from ✔
field string n/a Field to sum/avg against rows & columns ✔
addsummaryrows bool false If true, 2 rows are added to the end of the data set. Rows "AVG" and "TOTAL" show the columns summary for each
addsummarycolumnns bool false If true, 2 columns are added to the end of the data set. Rows "AVG" and "TOTAL" show the rows summary for each

Examples

All examples will use this example data from this Datasource endpoint: api.web/fastfood

Show pre-pivot dataset
<DATA>
	<ROW>
		<RESTAURANT>McDonalds</RESTAURANT>
		<DATE>2021-09-28</DATE>
		<AMOUNT>23.45</AMOUNT>
		<DRIVETHROUGH>true</DRIVETHROUGH>
	</ROW>
	<ROW>
		<RESTAURANT>BurgerKing</RESTAURANT>
		<DATE>2021-09-28</DATE>
		<AMOUNT>8.95</AMOUNT>
		<DRIVETHROUGH>true</DRIVETHROUGH>
	</ROW>
	<ROW>
		<RESTAURANT>Wendy's</RESTAURANT>
		<DATE>2021-09-28</DATE>
		<AMOUNT>31.11</AMOUNT>
		<DRIVETHROUGH>false</DRIVETHROUGH>
	</ROW>
	<ROW>
		<RESTAURANT>McDonalds</RESTAURANT>
		<DATE>2021-09-28</DATE>
		<AMOUNT>3.65</AMOUNT>
		<DRIVETHROUGH>true</DRIVETHROUGH>
	</ROW>
	<ROW>
		<RESTAURANT>A&amp;W</RESTAURANT>
		<DATE>2021-09-28</DATE>
		<AMOUNT>44.94</AMOUNT>
		<DRIVETHROUGH>false</DRIVETHROUGH>
	</ROW>
	<ROW>
		<RESTAURANT>McDonalds</RESTAURANT>
		<DATE>2021-09-28</DATE>
		<AMOUNT>33.07</AMOUNT>
		<DRIVETHROUGH>false</DRIVETHROUGH>
	</ROW>
	<ROW>
		<RESTAURANT>BurgerKing</RESTAURANT>
		<DATE>2021-09-28</DATE>
		<AMOUNT>13.82</AMOUNT>
		<DRIVETHROUGH>false</DRIVETHROUGH>
	</ROW>
	<ROW>
		<RESTAURANT>Arby's</RESTAURANT>
		<DATE>2021-09-29</DATE>
		<AMOUNT>24.77</AMOUNT>
		<DRIVETHROUGH>false</DRIVETHROUGH>
	</ROW>
	<ROW>
		<RESTAURANT>BurgerKing</RESTAURANT>
		<DATE>2021-09-29</DATE>
		<AMOUNT>13.13</AMOUNT>
		<DRIVETHROUGH>true</DRIVETHROUGH>
	</ROW>
	<ROW>
		<RESTAURANT>Subway</RESTAURANT>
		<DATE>2021-09-29</DATE>
		<AMOUNT>17.10</AMOUNT>
		<DRIVETHROUGH>false</DRIVETHROUGH>
	</ROW>
	<ROW>
		<RESTAURANT>McDonalds</RESTAURANT>
		<DATE>2021-09-29</DATE>
		<AMOUNT>17.26</AMOUNT>
		<DRIVETHROUGH>true</DRIVETHROUGH>
	</ROW>
	<ROW>
		<RESTAURANT>A&amp;W</RESTAURANT>
		<DATE>2021-09-29</DATE>
		<AMOUNT>24.01</AMOUNT>
		<DRIVETHROUGH>true</DRIVETHROUGH>
	</ROW>
	<ROW>
		<RESTAURANT>A&amp;W</RESTAURANT>
		<DATE>2021-09-29</DATE>
		<AMOUNT>18.73</AMOUNT>
		<DRIVETHROUGH>false</DRIVETHROUGH>
	</ROW>
	<ROW>
		<RESTAURANT>BurgerKing</RESTAURANT>
		<DATE>2021-09-29</DATE>
		<AMOUNT>9.89</AMOUNT>
		<DRIVETHROUGH>true</DRIVETHROUGH>
	</ROW>
	<ROW>
		<RESTAURANT>Arby's</RESTAURANT>
		<DATE>2021-09-30</DATE>
		<AMOUNT>22.29</AMOUNT>
		<DRIVETHROUGH>false</DRIVETHROUGH>
	</ROW>
	<ROW>
		<RESTAURANT>BurgerKing</RESTAURANT>
		<DATE>2021-09-30</DATE>
		<AMOUNT>12.45</AMOUNT>
		<DRIVETHROUGH>true</DRIVETHROUGH>
	</ROW>
	<ROW>
		<RESTAURANT>Subway</RESTAURANT>
		<DATE>2021-09-30</DATE>
		<AMOUNT>32.90</AMOUNT>
		<DRIVETHROUGH>false</DRIVETHROUGH>
	</ROW>
	<ROW>
		<RESTAURANT>McDonalds</RESTAURANT>
		<DATE>2021-09-30</DATE>
		<AMOUNT>13.59</AMOUNT>
		<DRIVETHROUGH>true</DRIVETHROUGH>
	</ROW>
	<ROW>
		<RESTAURANT>Wendy's</RESTAURANT>
		<DATE>2021-09-30</DATE>
		<AMOUNT>21.94</AMOUNT>
		<DRIVETHROUGH>true</DRIVETHROUGH>
	</ROW>
	<ROW>
		<RESTAURANT>McDonalds</RESTAURANT>
		<DATE>2021-09-30</DATE>
		<AMOUNT>22.12</AMOUNT>
		<DRIVETHROUGH>true</DRIVETHROUGH>
	</ROW>
	<ROW>
		<RESTAURANT>BurgerKing</RESTAURANT>
		<DATE>2021-09-30</DATE>
		<AMOUNT>12.77</AMOUNT>
		<DRIVETHROUGH>true</DRIVETHROUGH>
	</ROW>
</DATA>
(fig. a)
<Datasource id="fastfood" url="api.web/data/fastfood" autoexecute="true">
	<PIVOT row="DATE" column="RESTAURANT" field="AMOUNT" />
</Datasource>
<TABLE Datasource="fastfood" paged="false">
	<DATAROW id="datarow" height="35" selectedcolor="#EFFFEF" color="#FFF0F0" bordercolor="orange"/>
	<DATACOLUMN sort="DATE" width="100">
		<HEADER><TEXT label="Date" /></HEADER>
		<CELL selectedbordercolor="orange">
			<TEXT color="orange" label="{DATE}"/>
		</CELL>
	</DATACOLUMN>
	<DATACOLUMN sort="MCDONALDS" width="100">
		<HEADER><TEXT label="McDonalds" /></HEADER>
		<CELL selectedbordercolor="blue">
			<TEXT color="orange" label="{McDonalds}"/>
		</CELL>
	</DATACOLUMN>
	<DATACOLUMN sort="BURGERKING" width="100">
		<HEADER><TEXT label="Burger King" /></HEADER>
		<CELL selectedbordercolor="blue">
			<TEXT color="orange" label="{BurgerKing}"/>
		</CELL>
	</DATACOLUMN>
	<DATACOLUMN sort="A&amp;W" width="100">
		<HEADER><TEXT label="A&amp;W" /></HEADER>
		<CELL selectedbordercolor="blue">
			<TEXT color="orange" label="{A&amp;W}"/>
		</CELL>
	</DATACOLUMN>
	<DATACOLUMN sort="WENDY'S" width="100">
		<HEADER><TEXT label="Wendy's" /></HEADER>
		<CELL selectedbordercolor="blue">
			<TEXT color="orange" label="{Wendy's}"/>
		</CELL>
	</DATACOLUMN>
	<DATACOLUMN sort="ARBY'S" width="100">
		<HEADER><TEXT label="Arby's" /></HEADER>
		<CELL selectedbordercolor="blue">
			<TEXT color="orange" label="{Arby's}"/>
		</CELL>
	</DATACOLUMN>
	<DATACOLUMN sort="SUBWAY" width="100">
		<HEADER><TEXT label="Subway" /></HEADER>
		<CELL selectedbordercolor="blue">
			<TEXT color="orange" label="{Subway}"/>
		</CELL>
	</DATACOLUMN>
</TABLE>

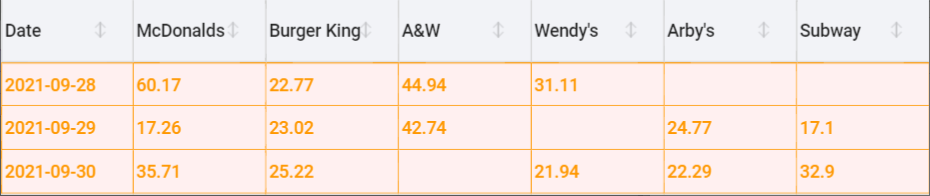

(img. a)

Pivot
