<IMAGE/> : ViewableWidget

The <IMAGE/> widget displays an image from a url.

Images size themselves to their default size unless a width and/or height is specified. If width and/or height is defined, the layout of the image ius based on the *fit value.

Attributes

Name Type Default Description Req
url string The url the image will be retrieved from.
fit string cover The fit of the image within the available space using fit:

  • none : Align the source within the target box (by default, centering) and discard any portions of the source that lie outside the box
  • cover : As small as possible while still covering the entire target box
  • contain : As large as possible while still containing the source entirely within the target box
  • fill : Fill the target box by distorting the source's aspect ratio.
  • width : Make sure the full width of the source is shown, regardless of whether this means the source overflows the target box vertically
  • height : Make sure the full height of the source is shown, regardless of whether this means the source overflows the target box horizontally
  • scale : Align the source within the target box (by default, centering) and, ifnecessary, scale the source down to ensure that the source fits within the box
    		•
    interactive bool false Allows for pinch/pan gestures on mobile and drag/scroll on web & desktop

    Examples

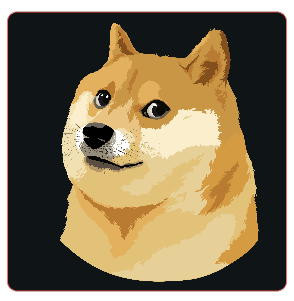

    Example #1 : a simple image sized to 256 x 256 (default fit=cover).


    <FML>
    <BOX layout="stack" width="256" height="256">
        <IMAGE url="resources/images/doge.png" width="256" height="256" />
        <POS bottom="10" left="110">
            <TEXT value="**woof**" />
        </POS>
    </BOX>
</FML>

    logo See it in Action

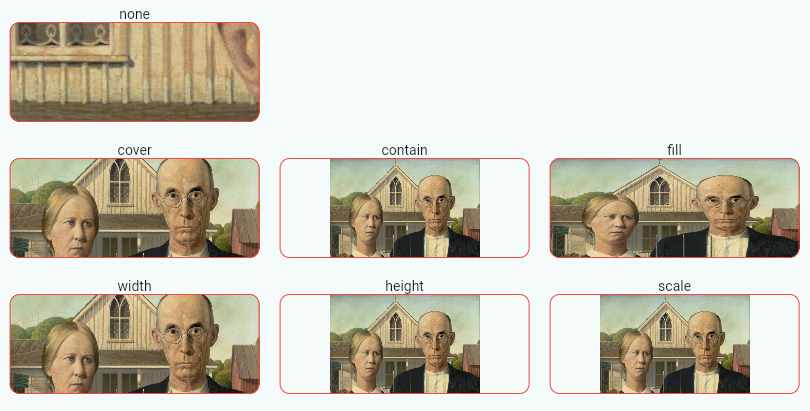

    Example #2 : fitting an image (Original is 1200 x 800) into a 250px x 100px box


    <FML layout="column">

	<COL expand="false" center="true" margin="10">
		<TEXT value="{img0.fit}"/>
		<BOX  layout="stack" expand="false"  bordercolor="red"  radius="10" center="true">
			<IMAGE id="img0" width="250" height="100" url="images/american_gothic.jpg" fit="none"/>
		</BOX>
	</COL>

	<ROW>
		<COL expand="false" center="true" margin="10">
			<TEXT value="{img1.fit}"/>
			<BOX  layout="stack" expand="false"  bordercolor="red"  radius="10" center="true">
				<IMAGE id="img1" width="250" height="100" url="images/american_gothic.jpg" fit="cover"/>
			</BOX>
		</COL>
		<COL expand="false" center="true" margin="10">
			<TEXT value="{img2.fit}"/>
			<BOX  layout="stack" expand="false"  bordercolor="red"  radius="10" center="true">
				<IMAGE id="img2" width="250" height="100" url="images/american_gothic.jpg" fit="contain"/>
			</BOX>
		</COL>
		<COL expand="false" center="true" margin="10">
			<TEXT value="{img3.fit}"/>
			<BOX  layout="stack" expand="false"  bordercolor="red"  radius="10" center="true">
				<IMAGE id="img3" width="250" height="100" url="images/american_gothic.jpg" fit="fill"/>
			</BOX>
		</COL>
	</ROW>

	<ROW>
		<COL expand="false" center="true" margin="10">
			<TEXT value="{img4.fit}"/>
			<BOX  layout="stack" expand="false"  bordercolor="red"  radius="10" center="true">
				<IMAGE id="img4" width="250" height="100" url="images/american_gothic.jpg" fit="width"/>
			</BOX>
		</COL>
		<COL expand="false" center="true" margin="10">
			<TEXT value="{img5.fit}"/>
			<BOX  layout="stack" expand="false"  bordercolor="red"  radius="10" center="true">
				<IMAGE id="img5" width="250" height="100" url="images/american_gothic.jpg" fit="height"/>
			</BOX>
		</COL>
		<COL expand="false" center="true" margin="10">
			<TEXT value="{img6.fit}"/>
			<BOX  layout="stack" expand="false"  bordercolor="red"  radius="10" center="true">
				<IMAGE id="img6" width="250" height="100" url="images/american_gothic.jpg" fit="scale"/>
			</BOX>
		</COL>
	</ROW>

    logo See it in Action

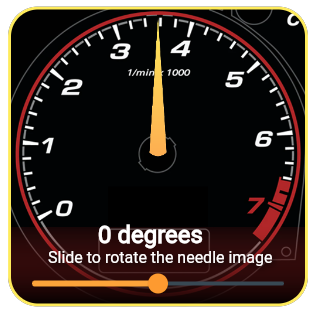

    Example #3 : simlle example of image rotation


    <FML title="IMAGE (example3)" linkable="true" center="true">

	<VAR id="angle" value="=round({angleslider}, 2)"/>

	<STACK height="300" width="300" radius="30" bordercolor="yellow" borderwidth="3">
		<IMAGE url="https://pad.fml.dev/images/gauge.png"/>
		<POSITION bottom="80" left="100">
			<BOX height="40" width="100" color="#000000"/>
		</POSITION>
		<POSITION bottom="0">
			<BOX height="80" width="300" color="#AF1D1D1D,#000000" start="top" end="bottom"/>
		</POSITION>
		<IMAGE url="https://pad.fml.dev/images/needle.png" rotation="{angle}"/>
		<POSITION bottom="0">
			<SLIDER id="angleslider" color="orange" minimum="-120" maximum="120" divisions="60" range="false" value="0" width="300"/>
		</POSITION>
		<POSITION bottom="58" left="90">
			<TEXT value="{angle} degrees" color="white" size="24" bold="true"/>
		</POSITION>
		<POSITION bottom="40" left="40">
			<TEXT value="Slide to rotate the needle image" color="white" shadowcolor="black" elevation="3" size="16"/>
		</POSITION>
	</STACK>

</FML>

    logo See it in Action
