ARCHITECTURE - zero1ne-26/doc GitHub Wiki

μ‹œμŠ€ν…œ μ•„ν‚€ν…μ²˜

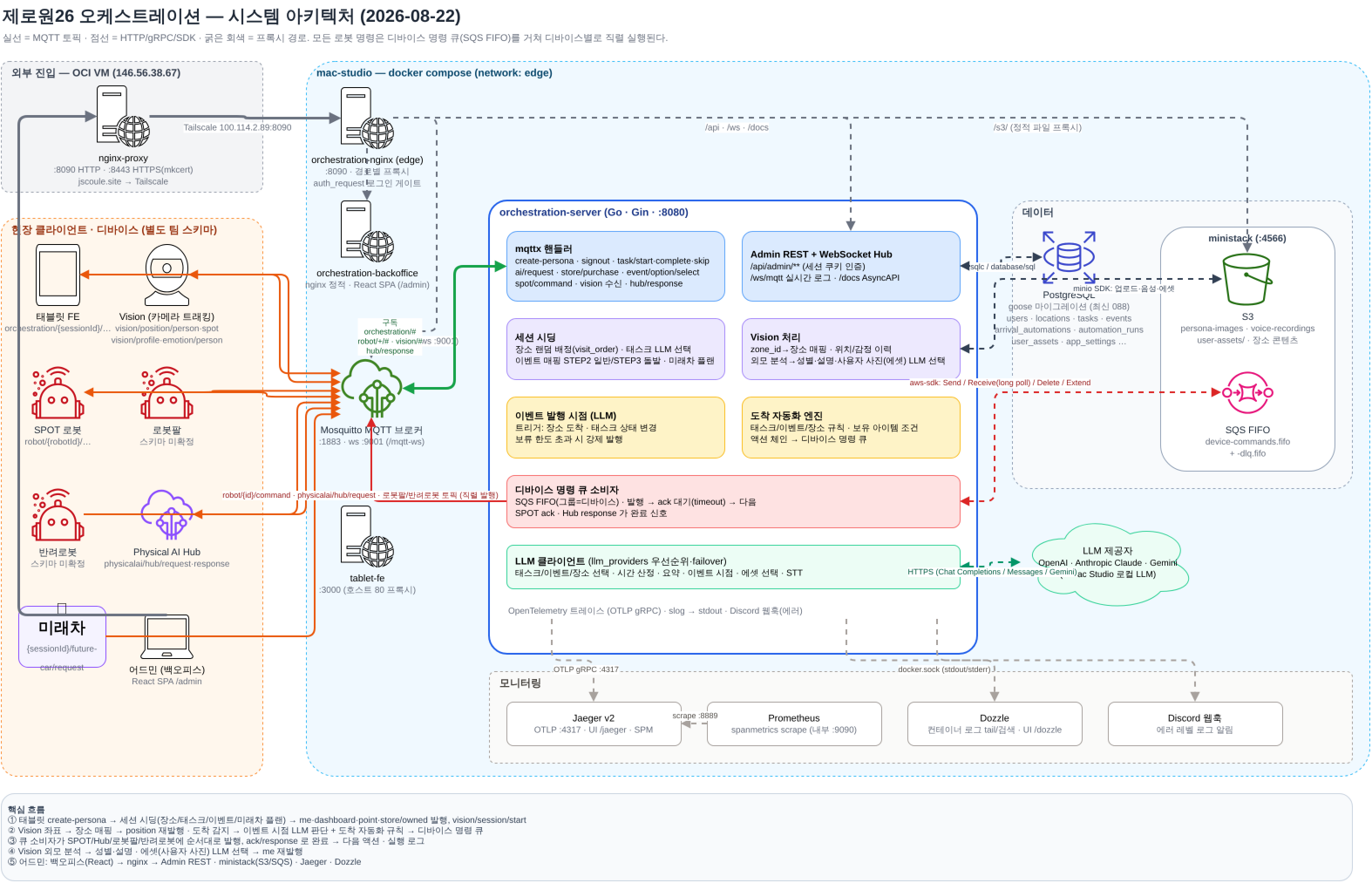

μ΅œμ‹  상세 ꡬ성도 (draw.io): drawio/architecture.drawio β€” 2026-08-22. μ™ΈλΆ€ μ§„μž…(OCI nginx 8090/8443) β†’ mac-studio compose(edge nginx Β· Mosquitto Β· orchestration-server λͺ¨λ“ˆ Β· PostgreSQL Β· ministack S3/SQS Β· Jaeger/Prometheus/Dozzle)와 ν˜„μž₯ λ””λ°”μ΄μŠ€(νƒœλΈ”λ¦Ώ Β· Vision Β· SPOT Β· λ‘œλ΄‡νŒ” Β· λ°˜λ €λ‘œλ΄‡ Β· Hub Β· 미래차)의 ν† ν”½ νλ¦„κΉŒμ§€ 담겨 μžˆλ‹€. draw.io λ°μŠ€ν¬ν†±/μ›Ή(app.diagrams.net)μ—μ„œ μ—΄μ–΄ νŽΈμ§‘. μ„Έμ…˜ λ‹¨μœ„ ν† ν”½ μˆœμ„œλŠ” μ„Έμ…˜ 흐름 μš”μ•½ μ°Έκ³ .

μ‹œμŠ€ν…œ μ•„ν‚€ν…μ²˜

전체 ꡬ성도 (κ°œμš”)

architecture-beta
    group infra(cloud)[Infra]

    service mqtt(server)[MQTT] in infra
    service oc(server)[OCSERVER] in infra
    service db(database)[DB] in infra
    service ha(server)[HomeAssistant] in infra
    service frigate(server)[Frigate] in infra

    group edge(internet)[Edge]

    service tablet(server)[Tablet] in edge
    service spot(server)[SPOT] in edge
    service arm(server)[RobotArm] in edge

    tablet:R -- L:mqtt
    mqtt:R -- L:oc
    oc:B -- T:db
    oc:T -- B:ha
    ha:L -- R:frigate
    mqtt:B -- T:spot
    mqtt:B -- T:arm
