Lab Summary / Goal:

A "group work" lab. Each router has a corresponding group.

Goal: As a class, we built a network according to the topology diagram provided by the professor. Using hardware, each group was responsible for an assigned router.S

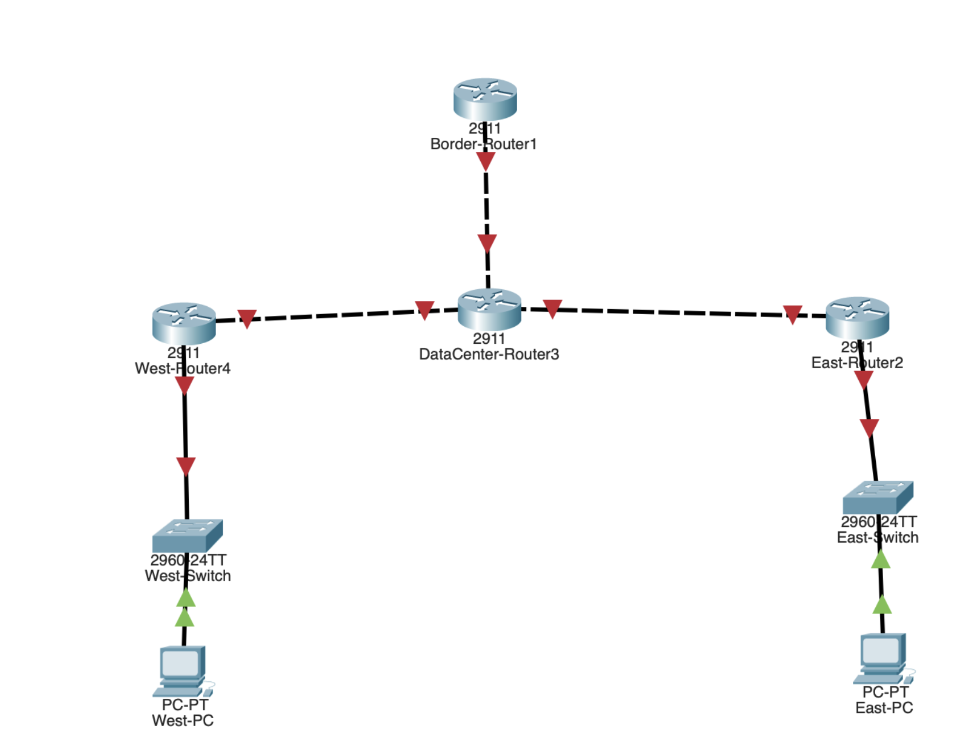

Topology

IP Assignments

Initial Config

• Set appropriate Hostname and IP Addresses

*West to Datacenter: 10.17.1.34.30 (2 hosts router to router)

* West to WestSwitch 10.17.40.2./24

• Linux (Kali linux) box: 10.17.40.2/24

OSPF Configuration

• Enable OSPF (Check OSPF lab if stuck)

• Configure areas and set appropriate call addresses

Kali Configuration

• Using NMTUI set Ip address

• Wire into router

• Use test pings to verify gateway and computer connections

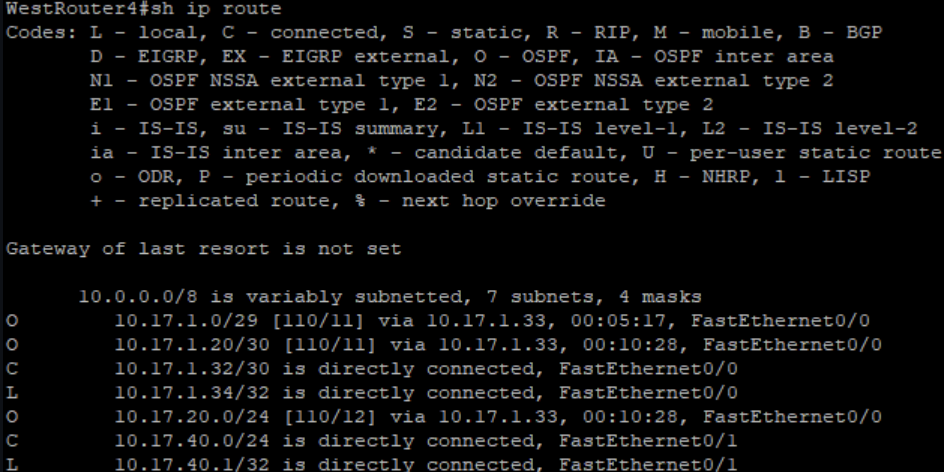

Show IP route

---

Commands:

• network (x.x.x.x - ip address) (x.x.x.x - wildcard mask) area 0

specifies addresses and areas for OSPF

• router ospf 1

Enables OSPF routing

---

Issues/Struggles: No major issues

---

Lab Questions: N/A
