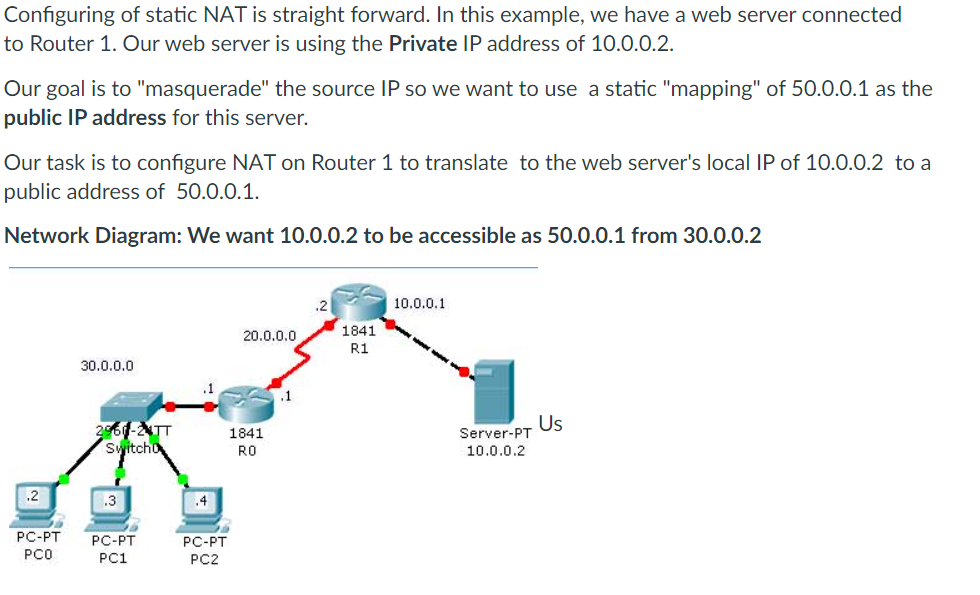

Lab Assignment: image

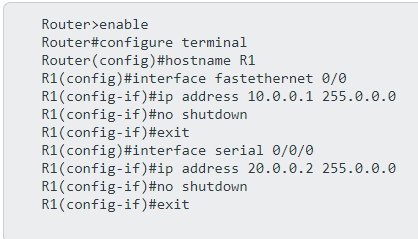

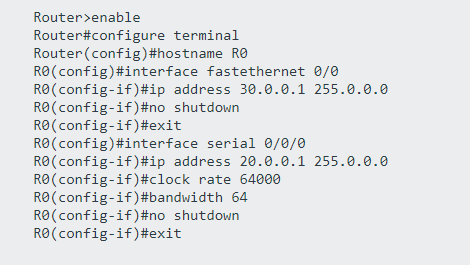

**Commands/Config ** R1: image R0: image

Routing configuration:

  • R1(config)#ip route 30.0.0.0 255.0.0.0 20.0.0.1
  • R0(config)#ip route 50.0.0.0 255.0.0.0 20.0.0.2

** Static Nat on R1 **

  • First, we must define the "outside" and "inside" for the NAT interface image

  • Create a static rule (as the lab explains) image

Functionality Test

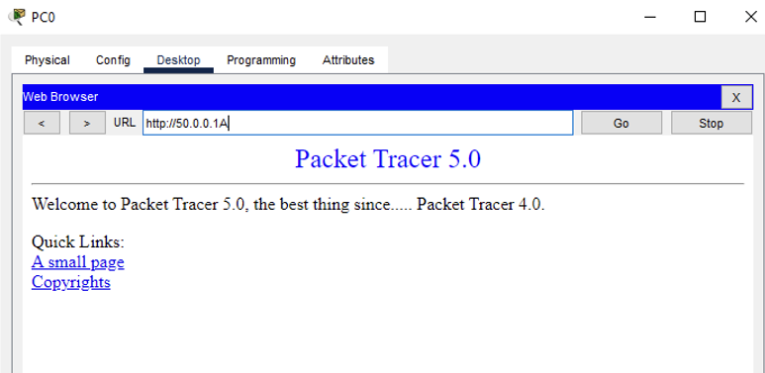

  • Connect to 50.0.0.1 on the web browser on any of your desktops, the following should appear:


Relevant Commands

  • config t (Configure terminal in shorthand) Puts terminal into config mode
  • no shutdown Keeps port open
  • Interface fastethernet 0/0 interface is used to access the individual interface of each connection. In this example it was fastethernet 0/0
  • ip route 30.0.0.0 255.0.0.0 20.0.0.1 Enables routing between two routers. Syntax is Switch Address + subnet mask + router address.
  • ip nat inside/outside Dictates what the Inside / Outside would be for a NAT interface
  • ip nat inside source static 10.0.0.2 50.0.1 Sets a static rule for desired NAT connection.

Issues/Struggles: I had no issues.

Lab Questions: N/A
