Team Info:

Tyler:https://github.com/xyzen/CS490/wiki/Exam-1

Dylan: https://github.com/dagxk9/IoTStuff/wiki/Exam1

Joshua:https://github.com/levizzzle/CS490/wiki/Project-1-Weather-Station

Dylan focused on the Arduino Code Tyler Focused on the Raspberry pi Code Joshua focused on MIT app inventor and Adafruit Dashboard

Along with that we all assisted each with any struggles or problems we had.

Project/Exam 1: Involves working as a group in order to accomplish multiple tasks composed from previous lessons. By the end of our project we have setup 5 different sensors connected directly to the Arduino Uno, we're passing the readings into the MIT App using bluetooth and to the Raspberry Pi using serial. Connected to the Pi we have 16 LEDs for a total of 8 different sensor readings. The design will show 8 green LEDs if all sensor data is in the appropriate range. If a sensor exceeds the threshold set, then the respective green LED turns off and it's coupled red LED turns on to represent it's alarm state. Inside the MIT App we are displaying all 8 sensor readings. Like the LEDs, a sensor that goes out of bounds will display a yellow background behind the value and a notification will flash across the screen to indicate which values have entered an alarm state. In addition to showing values in the MIT app, we are also utilizing the ThingSpeak and Adafruit IO Dashboard API's to pass and illustrate data over time.

*Note: Due to the lack of LEDs BLUE/GREEN were used for "good" state while YELLOW/RED were used for "alarm" state

Click Here to view the code behind this project.

Click Here for a video of this project in action.

Components used:

  • Arduino Uno R3
  • Breadboard
  • Raspberry Pi 3
  • 16x 5mm LED
  • BME280 - Temperature Sensor
  • MQ135 - Gas Sensor
  • Seeed Grove - Light Sensor
  • PPD42 - Dust Sensor
  • HC-SR04 - UltraSonice Distance Sensor
  • HC-05 - Bluetooth Module
  • ESP8266 - Wifi Module

Applications used:

  • MIT App Inventor
  • ThingSpeak
  • Adafuit IO Dashboard

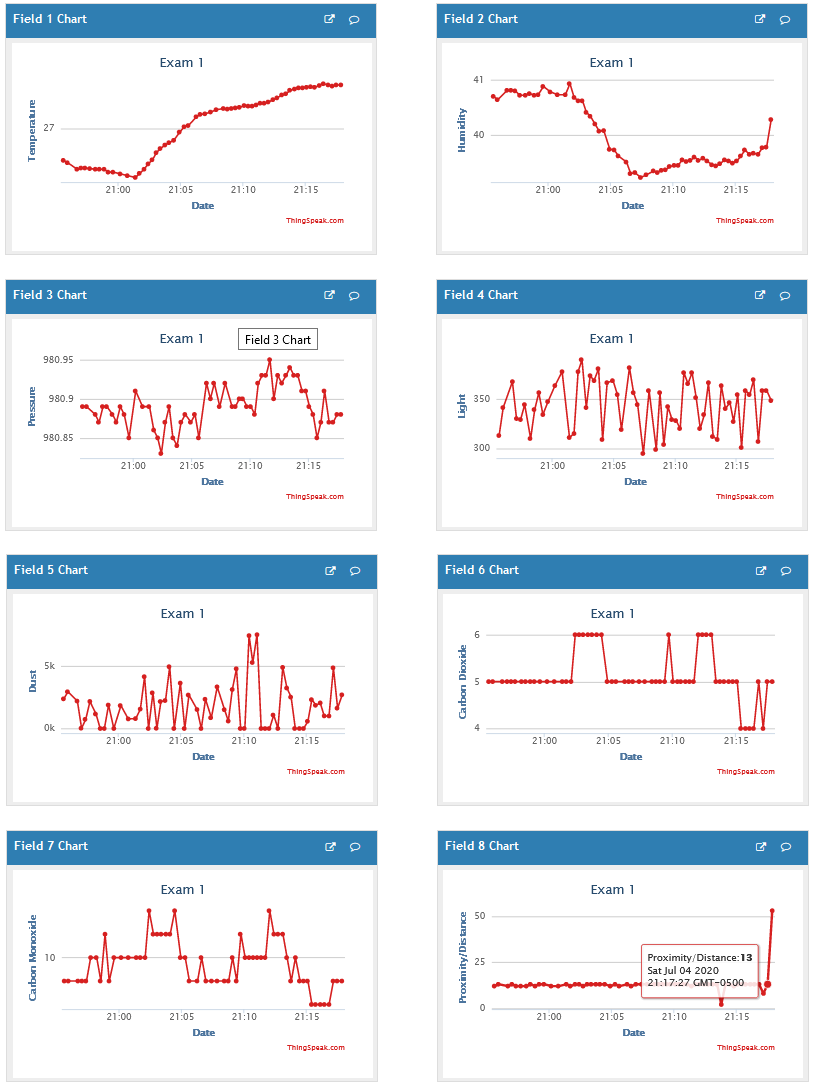

Screenshot of ThingSpeak Chart

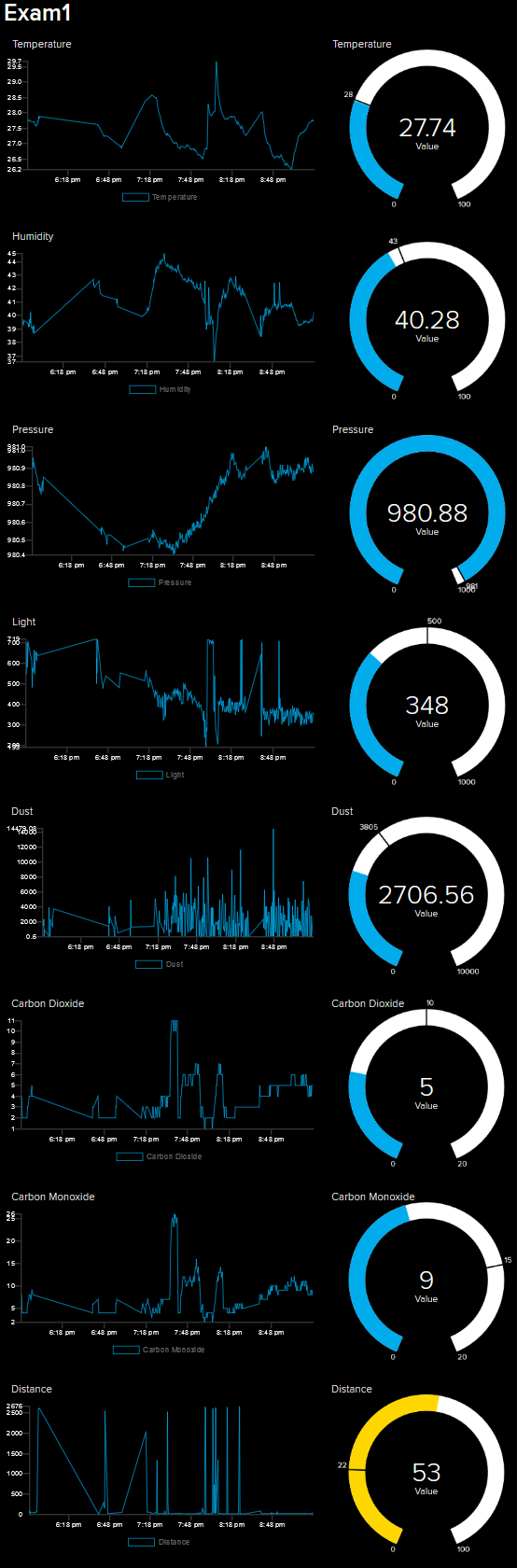

Screenshot of Adafruit IO Dashboard

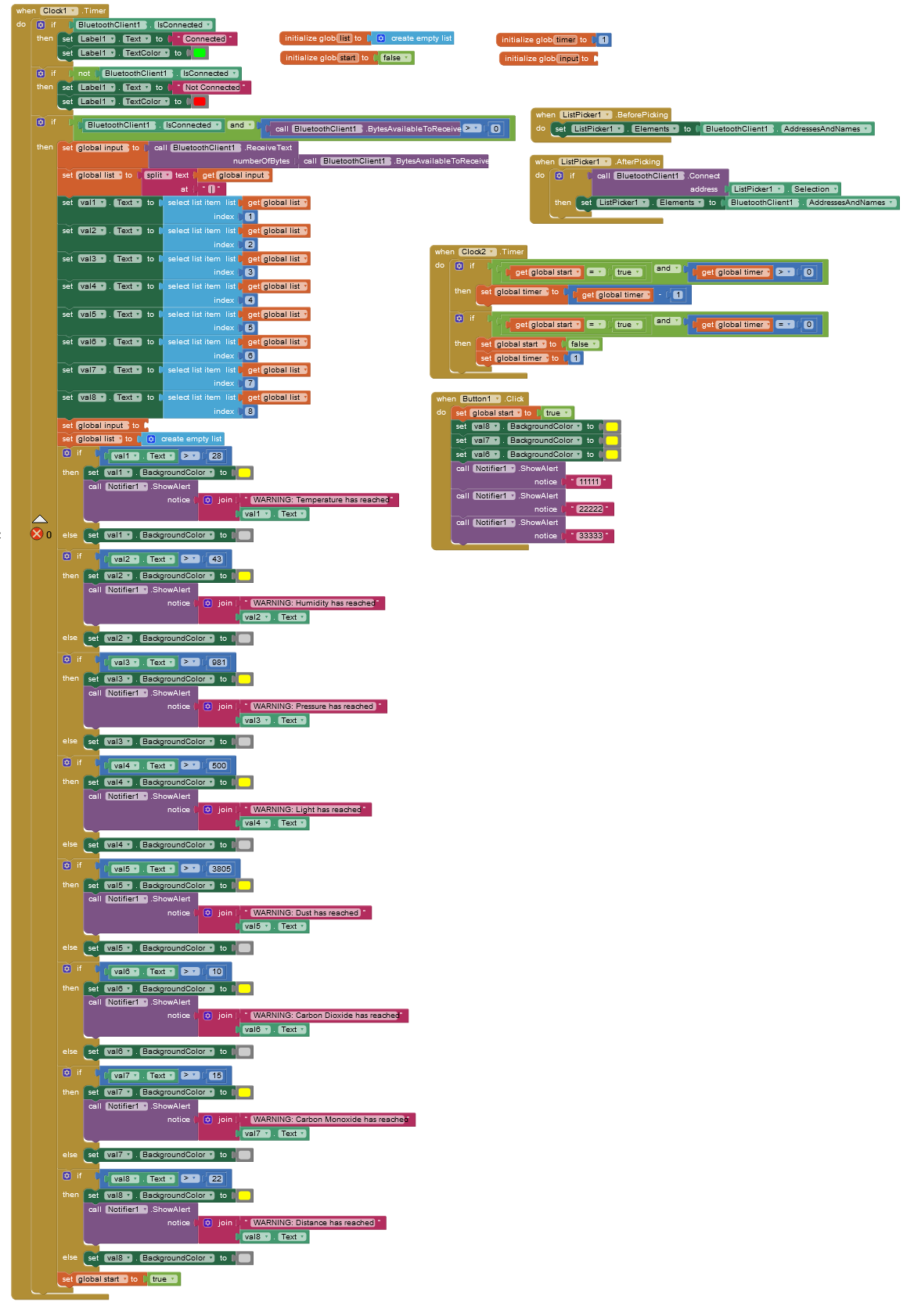

Screenshot of MIT App Inventor Block Code

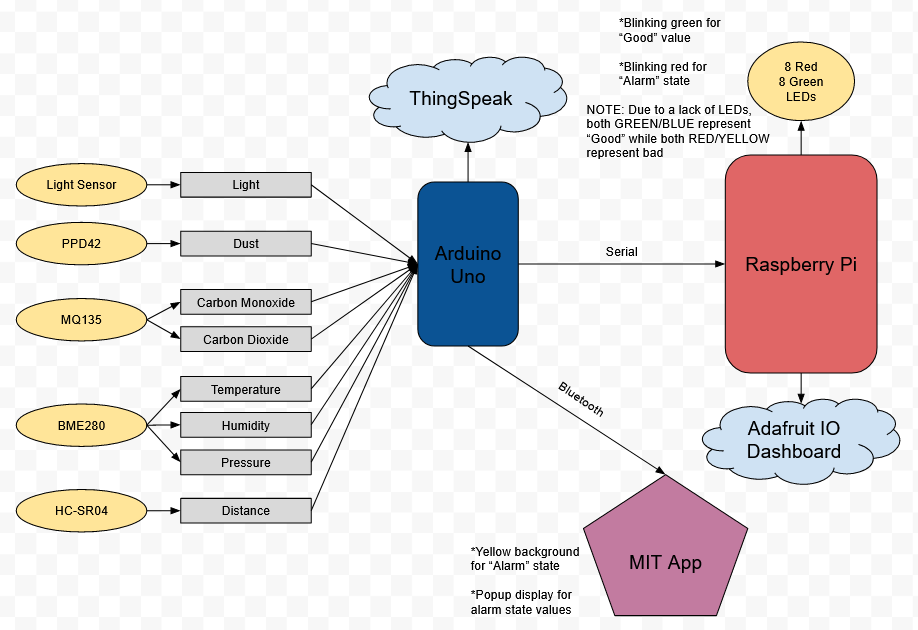

Network Diagram

Arduino Code------------------------------------------------

// ESP01 variables
#include <SoftwareSerial.h>
#define RX 2
#define TX 3
String AP = "AccessPoint";       // AP NAME
String PASS = "Password"; // AP PASSWORD
String API = "ApiKey";   // Write API KEY
String HOST = "api.thingspeak.com";
String PORT = "80";
int countTrueCommand;
int countTimeCommand;
boolean found = false;
SoftwareSerial wifi(RX,TX);

// HC05 variables
SoftwareSerial hc05(5, 6); // RX | TX

// Ultrasonic sensor variables
const int trigPin = 12;
const int echoPin = 13;
long sonic_duration;

// MQ135 variables
/************************Hardware Related Macros************************************/
#define         MQ135PIN                       (3)     //define which analog input channel you are going to use
#define         RL_VALUE_MQ135                 (1)     //define the load resistance on the board, in kilo ohms
#define         RO_CLEAN_AIR_FACTOR_MQ135      (3.59)  //RO_CLEAR_AIR_FACTOR=(Sensor resistance in clean air)/RO,
                                                       //which is derived from the chart in datasheet
/***********************Software Related Macros************************************/
#define         CALIBARAION_SAMPLE_TIMES     (50)    //define how many samples you are going to take in the calibration phase
#define         CALIBRATION_SAMPLE_INTERVAL  (500)   //define the time interal(in milisecond) between each samples in the
                                                     //cablibration phase
#define         READ_SAMPLE_INTERVAL         (50)    //define how many samples you are going to take in normal operation
#define         READ_SAMPLE_TIMES            (5)     //define the time interal(in milisecond) between each samples in
                                                     //normal operation
/**********************Application Related Macros**********************************/
#define         GAS_CARBON_DIOXIDE           (9)
#define         GAS_CARBON_MONOXIDE          (3)
#define         GAS_ALCOHOL                  (4)
#define         GAS_AMMONIUM                 (10)
#define         GAS_TOLUENE                  (11)
#define         GAS_ACETONE                  (12)
//#define         accuracy                     (0)   //for linearcurves
#define         accuracy                   (1)   //for nonlinearcurves, un comment this line and comment the above line if calculations
                                                   //are to be done using non linear curve equations
/*****************************Globals***********************************************/
float           Ro = 10;                            //Ro is initialized to 10 kilo ohms

// BME280 (temp/hum/pres) variables
#include <Wire.h>
#include <SPI.h>
#include <Adafruit_Sensor.h>
#include <Adafruit_BME280.h>
Adafruit_BME280 bme;

// Dust variables
int dust_pin = 10;
unsigned long dust_duration;
unsigned long starttime;
unsigned long sampletime_ms = 2000;
unsigned long lowpulseoccupancy = 0;
float ratio = 0;

// Data variables
float temperature;
float humidity;
float pressure;
int light;
float dust_concentration;
int carbon_dioxide;
int carbon_monoxide;
int distance;

void setup() {
  Serial.begin(9600);
  hc05.begin(9600);
  sonic_setup();
  mq135_setup();
  bme_setup();
  dust_setup();
  light_setup();
  esp01_setup();
}

// Ultrasonic sensor setup
void sonic_setup() {
  pinMode(trigPin, OUTPUT); // Sets the trigPin as an Output
  pinMode(echoPin, INPUT); // Sets the echoPin as an Input
  Serial.println("Passed sonic setup");
}

// MQ135 setup
void mq135_setup() {
  Serial.print("Calibrating...\n");
  Ro = MQCalibration(MQ135PIN);                     //Calibrating the sensor. Please make sure the sensor is in clean air
                                                    //when you perform the calibration
  Serial.println("Passed mq135 setup");
}

// ESP01 setup
void esp01_setup() {
  wifi.begin(115200);
  sendCommand("AT",5,"OK");
  sendCommand("AT+CWMODE=1",5,"OK");
  sendCommand("AT+CWJAP=\""+ AP +"\",\""+ PASS +"\"",20,"OK");
  Serial.println("Passed wifi setup");
}

void sendCommand(String command, int maxTime, char readReplay[]) {
  Serial.print(countTrueCommand);
  Serial.print(". at command => ");
  Serial.print(command);
  Serial.print(" ");
  while(countTimeCommand < (maxTime*1))
  {
    wifi.println(command);//at+cipsend
    if(wifi.find(readReplay))//ok
    {
      found = true;
      break;
    }
    countTimeCommand++;
  }
  if(found == true)
  {
    Serial.println("OYI");
    countTrueCommand++;
    countTimeCommand = 0;
  }
  if(found == false)
  {
    Serial.println("Fail");
    countTrueCommand = 0;
    countTimeCommand = 0;
  }
  found = false;
 }

// BME280 (temp/hum/pres) setup
void bme_setup() {
  unsigned status;
  // default settings
  status = bme.begin(0x76);
  // You can also pass in a Wire library object like &Wire2
  // status = bme.begin(0x76, &Wire2)
  if (!status) {
      Serial.println("Could not find a valid BME280 sensor, check wiring, address, sensor ID!");
      Serial.print("SensorID was: 0x"); Serial.println(bme.sensorID(),16);
      Serial.print("        ID of 0xFF probably means a bad address, a BMP 180 or BMP 085\n");
      Serial.print("   ID of 0x56-0x58 represents a BMP 280,\n");
      Serial.print("        ID of 0x60 represents a BME 280.\n");
      Serial.print("        ID of 0x61 represents a BME 680.\n");
      while (1) delay(10);
  }
  Serial.println("Passed bme setup");
}

// Dust setup
void dust_setup(){
  pinMode(dust_pin,INPUT);
  starttime = millis();
  Serial.println("Passed dust setup");
}

//Light setup
void light_setup(){
  pinMode(A0,INPUT);
  Serial.println("Passed light setup");
}

void loop() {
  bme_loop();
  light_loop();
  dust_loop();
  mq135_loop();
  sonic_loop();
  wifi_loop();
  hc05_loop();
}

// hc05 (bluetooth) loop
void hc05_loop() {
  String msg = "";
  msg += String(temperature)+"|";
  msg += String(humidity)+"|";
  msg += String(pressure)+"|";
  msg += String(light)+"|";
  msg += String(dust_concentration)+"|";
  msg += String(carbon_dioxide)+"|";
  msg += String(carbon_monoxide)+"|";
  msg += String(distance);
  hc05.println(msg);
}

// Wifi loop
void wifi_loop() {
  String getData = "GET /update?api_key="+ API;
  getData += "&field1="+String(temperature);
  getData += "&field2="+String(humidity);
  getData += "&field3="+String(pressure);
  getData += "&field4="+String(light);
  getData += "&field5="+String(dust_concentration);
  getData += "&field6="+String(carbon_dioxide);
  getData += "&field7="+String(carbon_monoxide);
  getData += "&field8="+String(distance);
  sendCommand("AT+CIPMUX=1",5,"OK");
  sendCommand("AT+CIPSTART=0,\"TCP\",\""+ HOST +"\","+ PORT,15,"OK");
  sendCommand("AT+CIPSEND=0," +String(getData.length()+4),4,">");
  wifi.println(getData);delay(1500);countTrueCommand++;
  sendCommand("AT+CIPCLOSE=0",5,"OK");
}

// Ultrasonic sensor loop
void sonic_loop() {
  // Clears the trigPin
  digitalWrite(trigPin, LOW);
  delayMicroseconds(2);
  // Sets the trigPin on HIGH state for 10 micro seconds
  digitalWrite(trigPin, HIGH);
  delayMicroseconds(10);
  digitalWrite(trigPin, LOW);
  // Reads the echoPin, returns the sound wave travel time in microseconds
  sonic_duration = pulseIn(echoPin, HIGH);
  // Calculating the distance
  distance= (sonic_duration*0.034)/2;  //Speed of sound in air  at  standard condition = 0.034cm/µs
}

// MQ135 loop
void mq135_loop() {
  carbon_dioxide = MQGetGasPercentage(MQRead(MQ135PIN)/Ro,GAS_CARBON_DIOXIDE);
  carbon_monoxide = MQGetGasPercentage(MQRead(MQ135PIN)/Ro,GAS_CARBON_MONOXIDE);
}

// BME280 loop
void bme_loop() {
  temperature = bme.readTemperature();
  humidity = bme.readHumidity();
  pressure = (bme.readPressure() / 100.0F);
}

//Dust loop
void dust_loop(){
  dust_duration = pulseIn(dust_pin, LOW);
  lowpulseoccupancy = lowpulseoccupancy+dust_duration;
  if ((millis()-starttime) >= sampletime_ms) //if the sample time = = 30s
  {
    ratio = lowpulseoccupancy/(sampletime_ms*10.0);
    dust_concentration = 1.1*pow(ratio,3)-3.8*pow(ratio,2)+520*ratio+0.62;
    delay(2000);
    lowpulseoccupancy = 0;
    starttime = millis();
  }
  delay(2000);
}

//Light sensor loop
void light_loop(){
  light=analogRead(A0);
}

// MQ135 functions
/****************** MQResistanceCalculation ****************************************
Input:   raw_adc - raw value read from adc, which represents the voltage
Output:  the calculated sensor resistance
Remarks: The sensor and the load resistor forms a voltage divider. Given the voltage
         across the load resistor and its resistance, the resistance of the sensor
         could be derived.
************************************************************************************/
float MQResistanceCalculation(int raw_adc)
{
  return ( ((float)RL_VALUE_MQ135*(1023-raw_adc)/raw_adc));
}

/***************************** MQCalibration ****************************************
Input:   mq_pin - analog channel
Output:  Ro of the sensor
Remarks: This function assumes that the sensor is in clean air. It use
         MQResistanceCalculation to calculates the sensor resistance in clean air
         and then divides it with RO_CLEAN_AIR_FACTOR. RO_CLEAN_AIR_FACTOR is about
         10, which differs slightly between different sensors.
************************************************************************************/
float MQCalibration(int mq_pin)
{
  int i;
  float RS_AIR_val=0,r0;

  for (i=0;i<CALIBARAION_SAMPLE_TIMES;i++) {                     //take multiple samples
    RS_AIR_val += MQResistanceCalculation(analogRead(mq_pin));
    delay(CALIBRATION_SAMPLE_INTERVAL);
  }
  RS_AIR_val = RS_AIR_val/CALIBARAION_SAMPLE_TIMES;              //calculate the average value

  r0 = RS_AIR_val/RO_CLEAN_AIR_FACTOR_MQ135;                      //RS_AIR_val divided by RO_CLEAN_AIR_FACTOR yields the Ro
                                                                 //according to the chart in the datasheet

  return r0;
}

/*****************************  MQRead *********************************************
Input:   mq_pin - analog channel
Output:  Rs of the sensor
Remarks: This function use MQResistanceCalculation to caculate the sensor resistenc (Rs).
         The Rs changes as the sensor is in the different consentration of the target
         gas. The sample times and the time interval between samples could be configured
         by changing the definition of the macros.
************************************************************************************/
float MQRead(int mq_pin)
{
  int i;
  float rs=0;

  for (i=0;i<READ_SAMPLE_TIMES;i++) {
    rs += MQResistanceCalculation(analogRead(mq_pin));
    delay(READ_SAMPLE_INTERVAL);
  }

  rs = rs/READ_SAMPLE_TIMES;

  return rs;
}

/*****************************  MQGetGasPercentage **********************************
Input:   rs_ro_ratio - Rs divided by Ro
         gas_id      - target gas type
Output:  ppm of the target gas
Remarks: This function uses different equations representing curves of each gas to
         calculate the ppm (parts per million) of the target gas.
************************************************************************************/
int MQGetGasPercentage(float rs_ro_ratio, int gas_id)
{
  if ( accuracy == 0 ) {
  if ( gas_id == GAS_CARBON_DIOXIDE ) {
    return (pow(10,((-2.890*(log10(rs_ro_ratio))) + 2.055)));
  } else if ( gas_id == GAS_CARBON_MONOXIDE ) {
    return (pow(10,((-3.891*(log10(rs_ro_ratio))) + 2.750)));
  } else if ( gas_id == GAS_ALCOHOL ) {
    return (pow(10,((-3.181*(log10(rs_ro_ratio))) + 1.895)));
  } else if ( gas_id == GAS_AMMONIUM ) {
    return (pow(10,((-2.469*(log10(rs_ro_ratio))) + 2.005)));
  } else if ( gas_id == GAS_TOLUENE ) {
    return (pow(10,((-3.479*(log10(rs_ro_ratio))) + 1.658)));
  } else if ( gas_id == GAS_ACETONE ) {
    return (pow(10,((-3.452*(log10(rs_ro_ratio))) + 1.542)));
  }
}

  else if ( accuracy == 1 ) {
    if ( gas_id == GAS_CARBON_DIOXIDE ) {
    return (pow(10,((-2.890*(log10(rs_ro_ratio))) + 2.055)));
  } else if ( gas_id == GAS_CARBON_MONOXIDE ) {
    return (pow(10,(1.457*pow((log10(rs_ro_ratio)), 2) - 4.725*(log10(rs_ro_ratio)) + 2.855)));
  } else if ( gas_id == GAS_ALCOHOL ) {
    return (pow(10,((-3.181*(log10(rs_ro_ratio))) + 1.895)));
  } else if ( gas_id == GAS_AMMONIUM ) {
    return (pow(10,((-2.469*(log10(rs_ro_ratio))) + 2.005)));
  } else if ( gas_id == GAS_TOLUENE ) {
    return (pow(10,((-3.479*(log10(rs_ro_ratio))) + 1.658)));
  } else if ( gas_id == GAS_ACETONE ) {
    return (pow(10,(-1.004*pow((log10(rs_ro_ratio)), 2) - 3.525*(log10(rs_ro_ratio)) + 1.553)));
  }
}
  return 0;
}

Python Code------------------------------------------------

#Libraries
import sys
import time
import serial
import RPi.GPIO as GPIO
from Adafruit_IO import RequestError, Client, Feed, Data

#Adafruit IO Dashboard data
ADAFRUIT_IO_USERNAME = "xyzen"
ADAFRUIT_IO_KEY = "aio_amUu18Y4TPMvDoUyD5Syu6VN09B3"
aio = Client(ADAFRUIT_IO_USERNAME, ADAFRUIT_IO_KEY)

GPIO.setmode(GPIO.BOARD)
outputs = [3, 5, 7, 8, 10, 11, 12, 13, 15, 16, 18, 19, 21, 22, 23, 24]
pairs = [(3, 7), (5, 8), (10, 12), (11, 13), (15, 18), (16, 19), (21, 23), (22, 24)]
[GPIO.setup(pin, GPIO.OUT) for pin in outputs]
[GPIO.output(pin, GPIO.LOW) for pin in outputs]

#Assignment Variables
ser = serial.Serial("/dev/ttyACM0",9600) #Connect to serial
ser.baudrate = 115200 #Set baudrate

def check_alarms(data):
    sensThres = [28, 43, 981, 500, 3805, 10, 15, 22]
    for i in range(8):
        if data[i] > sensThres[i]:
            GPIO.output(pairs[i][0], GPIO.HIGH)
            GPIO.output(pairs[i][1], GPIO.LOW)
        else:
            GPIO.output(pairs[i][0], GPIO.LOW)
            GPIO.output(pairs[i][1], GPIO.HIGH)

#Send data function, sends to Adafruit IO Dashboard
def send_data(data):
    feeds = aio.feeds() #Sets feeds from AIO
    for x in range(len(data)):
        aio.send_data(feeds[x].key, data[x]) #Send data to AIO

wait = 15
timer = time.time()-15
while True:
    read_ser = ser.readline()
    package = read_ser.decode('ASCII')
    print(package[:-1])
    if package[:3] == "MSG":
        data = package[3:].split("|")
        data = [float(reading) for reading in data]
        print(data)
        check_alarms(data)
        try:
            elapsed = time.time() - timer
            if elapsed > wait:
                send_data(data)
                timer = time.time()
                wait = 15
                print("Success!\n")
            else:
                print("Waiting for AIO Dashboard", wait - elapsed, "\n")
        except:
            timer = time.time()
            wait = 60
            print("Failed to update AIO Dashboard\n")

Link to Youtube Video

Things Learned

Project 1 was a test of compilation, not only did we learn how to combine sensors for reading data but we also combined methods of communication. We learned how to manage multiple sensor readings and how to send identical packages using bluetooth to communicate with the MIT App and serial to communicate with the Pi.This was important to sync up our "alarm state" when sensor readings passed the given threshold in both the application and in the Pi code controlling the LEDs. Most importantly however we learned how to communicate with each other to share tasks and effectively produce results as we constructed the project, tested individual layers, and resolved any hurdles.

⚠️ **GitHub.com Fallback** ⚠️
