Quick Draw

User guide apply for v0.19.0 working in PC browser.

With Quick Draw you can quickly draw Herringbone fields (two anchors and spines) or individual links.

Menu commands:

Command	Shortcut Key	Description
Change Mode	`M`	Toggles between fields, links, or starburst draw mode.
Change Color		Opens Color window for choosing color for the next links drawn.
End	`ESC`	Ends quick draw.

To quickly draw anchor/spine fields

Activate Quick Draw Layers button to start quick draw mode.
Look at the mouse tooltip and ensure it says Click the first anchor portal. Activate Change Mode (M key) to toggle between modes.
In the map, select your first anchor portal in your field. Notice the mouse tooltip changes to Click the second anchor portal.
In the map, select your second anchor portal in your field. Notice the mouse tooltip changes to Click a spine portal to draw field.
In the map, select the first portal in the spine and subsequently any other portals along the spine of your field plan. If you make a mistake, the selected portal can be deleted by selecting its pin to open its menu and the activate Delete item.
To end quick draw mode press ESC key or activate End button.

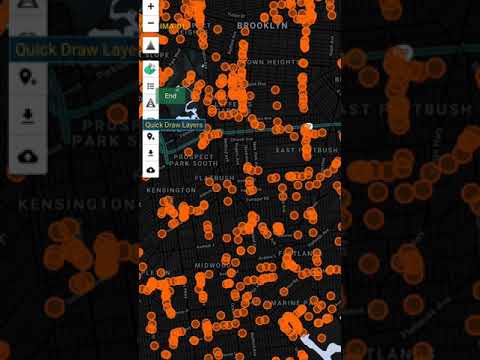

Video (YouTube) - Wasabee Intro: QuickDraw

Activate Quick Draw Layers button to start quick draw mode.
Look at the mouse tooltip and ensure it says Click first portal. Activate Change Mode (M key) to toggle between modes.
In the map, select the first portal in your link. Notice the mouse tooltip changes to Click next portal.
In the map, select the next portal and the follow with any other portals in your link sequence.
To end quick draw mode press ESC key or activate End button.

Shortcut	Description
`M`	Changes mode (fields / links) in Quick Draw Layers.
`T`	Same as `M` key.
`G`	Toggles visual guide lines when drawing using Quick Draw Layers. Simply showing a convenient visual line following your mouse cursor.
`/`	Same as `G` key.
`Shift`+`X`	Clears the current drawing in Quick Draw Layers.
`ESC`	Ends Quick Draw Layers.
