Obsolete - see Web Project workflow - Creation through to Deployment

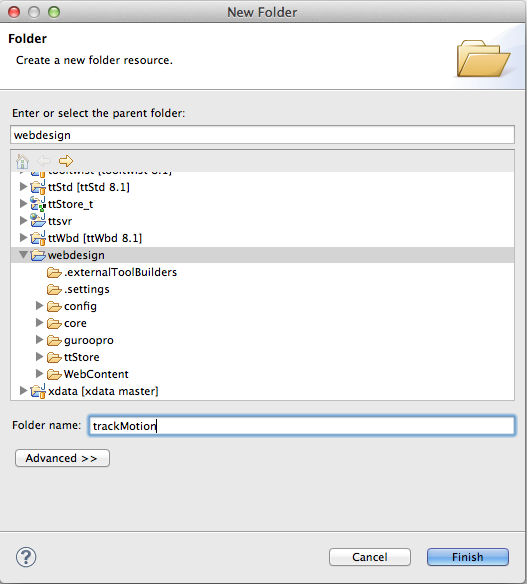

1. In the Tooltwist Workbench menubar, Select File -> New -> Folder and choose webdesign project. Specify the name of the folder and click Finish.

2. Under your project folder you need to add the following directories.
   • navpoints
   • widgets

Figure below used the name "trackMotion" as the project name.

3. Under the widgets folder, add the following directories.
   NOTE: the following names are mandatory. (* as your project name)

*_cutouts
*_images
*_pages
*_zones

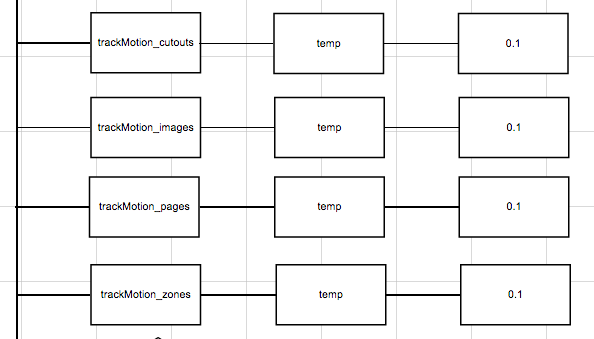

4. To load the directories in the designer, you need to provide a temp folder for the following:

*_cutouts
*_images
*_pages
*_zones

add new a folder and enter the name as temp/0.1

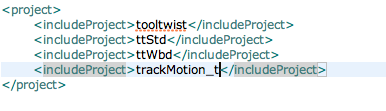

5. Right click the widgets folder and add a new file. Enter the name of the file as project.xml, with the following content.

   tooltwist ttStd ttWbd trackMotion_t

NOTE: * substitute the "trackMotion_t" to your tooltwist project name.

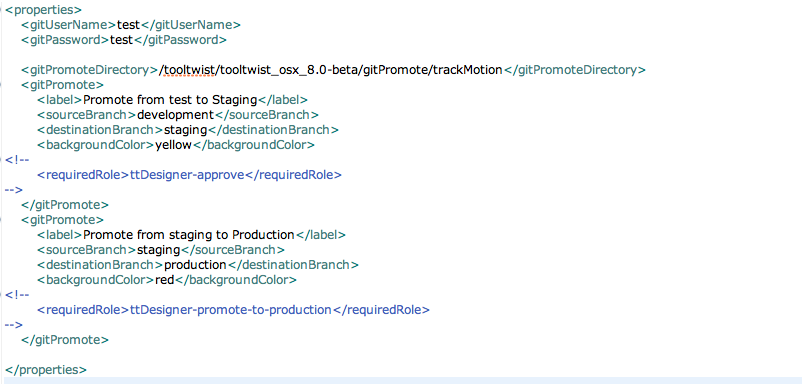

6. Right click again the widgets folder and add a new file. Enter the name of the file as properties.xml, with the following content.

   test test

       <gitPromoteDirectory>/tooltwist/tooltwist_osx_8.0-beta/gitPromote/trackMotion</gitPromoteDirectory>
       <gitPromote>
          <label>Promote from test to Staging</label>
          <sourceBranch>development</sourceBranch>
          <destinationBranch>staging</destinationBranch>
          <backgroundColor>yellow</backgroundColor>
     </gitPromote>
      <gitPromote>
           <label>Promote from staging to Production</label>
           <sourceBranch>staging</sourceBranch>
           <destinationBranch>production</destinationBranch>
           <backgroundColor>red</backgroundColor>
      </gitPromote>


NOTE: * If you don't have a gitPromote folder, you need to create a new one an under this directory:

/tooltwist/tooltwist_osx_8.0-beta/

then create a new folder and specify the name of the project. This is used for specifying the value in <gitPromoteDirectory></gitPromoteDirectory>

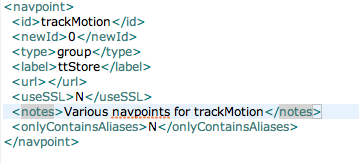

7. Defining navpoints.

Right click the navpoints folder and add a new file. Enter the name of your project. example "trackMotion.xml". With the following initial content.

<navpoint>
  <id>trackMotion</id>
  <newId>0</newId>
  <type>group</type>
  <label>trackMotion</label>
  <url></url>
  <useSSL>N</useSSL>
  <notes>Various navpoints for trackMotion</notes>
  <onlyContainsAliases>N</onlyContainsAliases>
</navpoint>

8. This will be the hierarchy of the webdesign project.
