• Client Credentials effectively only authenticates the app. There is no secured identity information of a user.

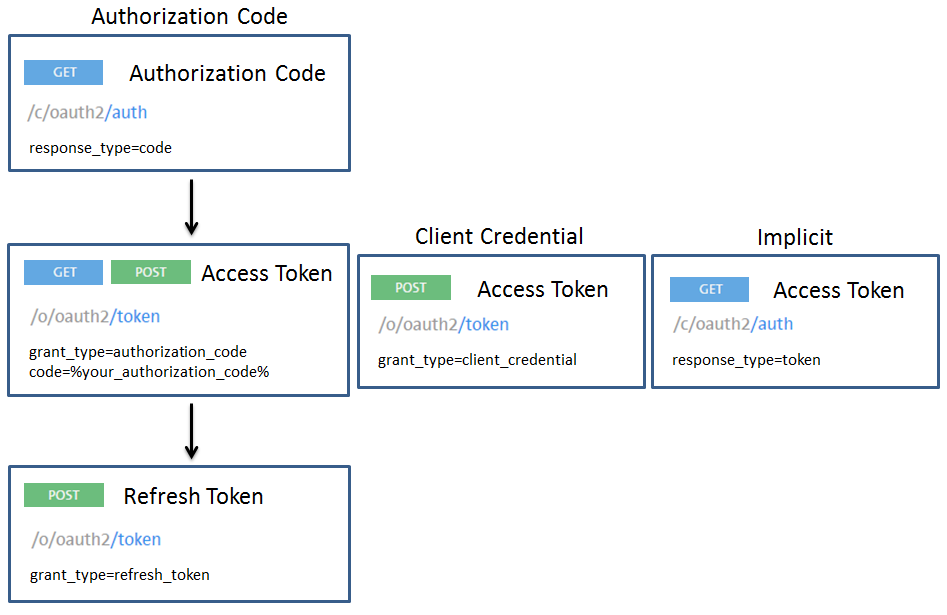

A detailed description of each OAuth method is provided in the respective tutorial page. Here are some of the headlines.

• Authorization Code: First, you need an authorization code /c/oauth2/auth before you can call the GET access token method. See the OAuth Authorization Code Tutorial and learn how to get an authorization code and how to use it.

• Client Credentials: Call the GET access token method directly. No code is needed. It is important to use grant_type=client_credentials. Have look at the OAuth Client Credential Tutorial.

• Implicit: Use the c/oauth2/auth method like to get the authorization code, except the response_type has changed to response_type=token (instead of response_type=code). See the OAuth Implict Tutorial and learn how to use this method. The access token will be returned in the redirect URL directly.

The POST method token with grant_type=refresh_token has to be used, if the time to live of the access token has expired. TTL (default):

• access_token: 1209600000ms (14 days)

• refresh_token: 31536000000ms (365 days)

It is possible to get information about the access and refresh token by calling the GET method info. Sometimes an access token has to be revoked. In this case use the GET method revoke.

APIs can be protected by OAuth access tokens. Every request to such API must contain a valid access token in the header, like this:

Authentication: Bearer AH5ht9HOQQPypHF04vwGGQfljoPy

Most Swisscom user data is protected by scopes (permissions) in addition to OAuth authorization. Each access token has an associated set of scopes. Each scope represents a permission that the token owner has been granted.

OAuth scopes let you define which parts of user data your app needs to access. As an app developer, you can specify your desired scopes in the initial OAuth authorization request. When a user is responding to your OAuth request, the requested scopes will be displayed to them when they are asked to approve your request.

Currently there are only two classes of action:

• read: reading the information about particular resource
• write: any modification related to particular resource

Examples of scopes for the swisscom APIs are:

• read-basicprofile
• read-phone/read-email
• read-voip-callforwardings
• write-voip-callforwardings

During the initial OAuth authorization request process, you can specify desired scopes separated by space: scope=write-voip-callforwardings%20read-voip-callforwardings

An example of OAuth authorization request with specified scope

https://consent.swisscom.com/c/oauth2/auth?response_type=code&redirect_uri=https%3A%2F%2Flocalhost&client_id=%YOUR_CLIENT_ID%&lang=en&scope=write-voip-callforwardings%20read-voip-callforwardings

An example response with requested scopes

{
    "access_token": "KASDFHDASHFSASHAS_DHAISDHFSAIDS",
    "scope": "write-voip-callforwardings read-voip-callforwardings",
    "token_type": "bearer",
    "expires_in": "2591999"
}

The OAuth API specification in detail.

Used to obtain the authorization codes (OAuth 3-legged) or the access token (implicit 2-legged)

• GET: Used to obtain the authorization codes or the access token (implicit)

Used for obtaining access token (authorization code grant), refreshing token, revoking token, obtaining token information.

• GET: Used for obtaining access token and sometimes also a refresh token with authorization code grant.

• POST: Used for obtaining access token and sometimes also a refresh token with authorization code, refresh token, or client credentials grant.

Used for obtaining information about an access or refresh token.

• POST (secured): Used for obtaining information about an access or refresh token.

Used for revoking an access token.

• GET (secured): Used for revoking an access token.

Oauth API Documentation - HTML version
