Installing on a Raspberry Pi

As of version 1.0.6 Universal Gcode Sender should work out of the box on Raspberry Pi running Raspbian (just a couple of tweaks).

Activate OpenGL driver

Raspbian comes with the proprietary video driver VC4 which is not supported by the OpenGL-library that UGS is using. To use the visualizer you need to activate one of the other drivers and remove/move the vc4-libraries.

Make sure your system is up to date:

sudo apt-get update
sudo apt-get dist-upgrade

Configure the video driver:

sudo raspi-config
  • Choose "7 Advanced Options"
  • Choose "A7 GL Driver"
  • Then Finish and reboot

Remove/Move the old video driver

sudo mv /opt/vc /opt/vc.old
sudo reboot

Download and start UGS Platform

Download UGS Platform for RaspberryPI from the download link: https://github.com/winder/Universal-G-Code-Sender#downloads

# Makes sure you have the permission to connect to the USB controller
sudo usermod -a -G dialout pi

mkdir ugs
cd ugs

# Use command below with link address from downloads page for your platform
wget https://ugs.jfrog.io/ugs/UGS/v2.0.7/ugs-platform-app-pi.tar.gz

# Use command below to unzip the file downloaded above
tar zxvf ugs-platform-app-pi.tar.gz

Navigate in file explorer to: /home/pi/ugs/ugsplatform-pi/bin/ugsplatform and run 'ugsplatform'. Create a desktop shortcut by selecting the file and clicking 'create link' from the edit menu.

Open the preferences and change the connection driver to JSSC, otherwise the connection to the CNC controller will be unpredictable.

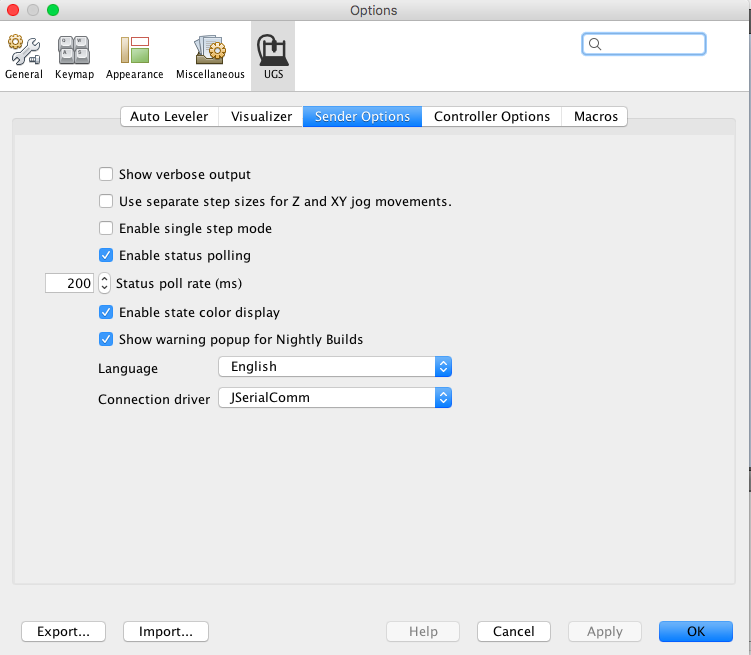

Connection driver

Download and start UGS Classic

Start with installing Java, run these commands from the terminal:

apt-get update
apt-get install openjdk-11-jdk

Make sure your system is using the correct JDK:

java -version
openjdk 11.0.5 2019-10-15
OpenJDK Runtime Environment (build 11.0.5....)
OpenJDK Server VM (build 11.0.5...)

Download UGS classic from the download link: https://github.com/winder/Universal-G-Code-Sender#downloads

Unpack it and start:

unzip -o UniversalGcodeSender.zip -d ugs
chmod +x ugs/start.sh
./ugs/start.sh

Open the preferences and change the connection driver to JSSC, otherwise the connection to the CNC controller will be unpredictable.

Building on Raspberry Pi

Building UGS on a Raspberry Pi is slow but is possible. But there is a limitation in the pendant UI module build script which can't be built on Raspberry Pi and needs to be disabled. Follow the instructions as follows.

Install Java and Maven

Then we need to install Java, run these commands from the terminal:

apt-get update
apt-get install openjdk-11-jdk maven

Make sure your system is using the correct JDK:

java -version
openjdk 11.0.5 2019-10-15
OpenJDK Runtime Environment (build 11.0.5....)
OpenJDK Server VM (build 11.0.5...)

Download the source and build

Download the latest source and unzip it

wget https://github.com/winder/Universal-G-Code-Sender/archive/master.zip
unzip -o master.zip

Build without the pendant UI module by disabling the profile:

cd master
mvn install -P '!create-pendant-web-ui'
