The BlitzWolf BW-SHP6 and the Gosund SP111 are basically the same device, barring the branding.

Product page:

• BlitzWolf® BW-SHP6 - 2300W EU WIFI Smart Socket
• Gosund SP111

Device needs exact calibration with a load >=60 Watt to gain good results! For further infos see Issue #4727

Serial Connection

Please see the Hardware Preparation page for general instructions.

Step 1

Disconnect device from power source!

Step 2

Remove one screw on the back of the device. PH1 screwdriver required.

Step 3

Undo 2 screws. PH1 screwdriver required. Disconnect antenna.

Step 4

Carefully remove PCB from casing for easier soldering.

• Don't stress antenna cable too much.
• Don't lose metal tube.

Step 5

Solder cables to the ESP Pins.

If you do not want to solder you can try using crocodile clips and manually push a jumper cable first to IO0 (enter flash mode while booting, i.e. connect IO0 to ground) and then during flashing push a jumper to TX. Just be careful to not cause any short-circuit with the clips on the other side of the pads.

Step 6

Connect serial adapter and make a shortwire between Pin IO0 and GND during startup (for entering flashmode).

Step 7

Clear flash to avoid issues with dropping WiFi connection.

esptool.py --port COM3 erase_flash

Step 8

Flash Tasmota.

Step 9

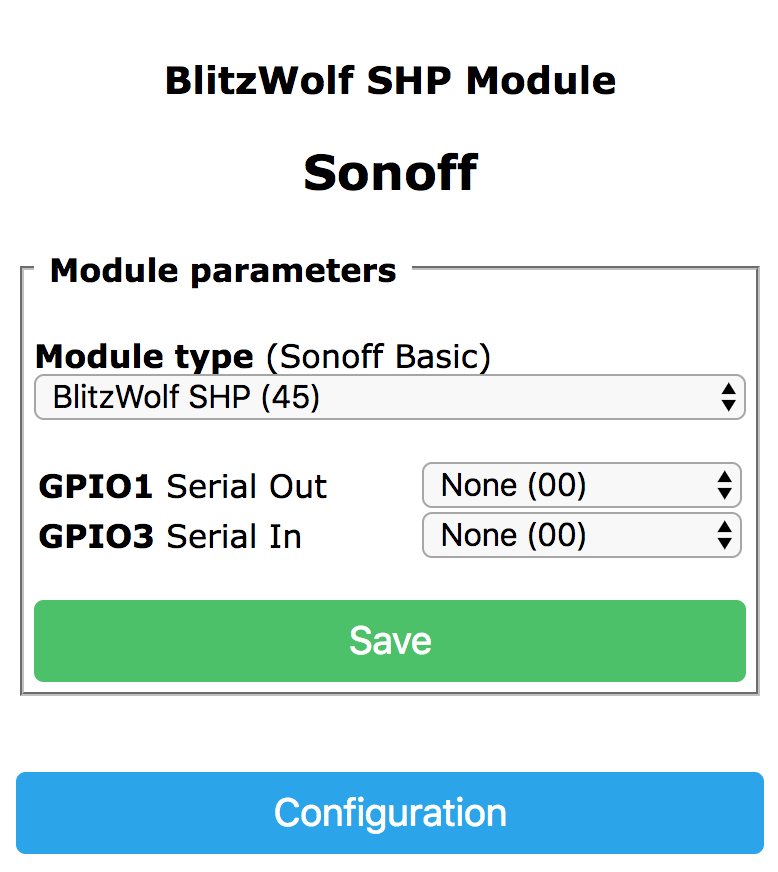

Select the correct configuration under Configuration -> Configure Module

As an alternative for steps 2 to 5:

The following programming adapter could be an option, which requires no soldering or significant disassembly on the SHP-6. It significantly reduces the effort of reflashing multiple SHP-6 units. http://www.thingiverse.com/thing:3476167 https://cdn.thingiverse.com/renders/e2/cc/49/cc/6a/298542652c3ba493b6d4a284ed505efe_preview_featured.jpg

Module Type: BlitzWolf SHP

Other photos

Template

https://blakadder.github.io/templates/blitzwolf_SHP6.html

https://blakadder.github.io/templates/gosund_SP111_v2.html Gosund SP111 with new PCB SP111_A_Wifi_Ver1.1

Calibration fine tuning

Approach the calibration using the Method 2. If not satisfied with the results, you could mod the SMD direct measure resistor or mitigate this using a Tasmota set of rules:

Rule1 ON energy#power<=100 DO Currentcal 2500 BREAK ON energy#power<=500 DO Currentcal 2635 BREAK ON energy#power<=1000 DO Currentcal 2788 BREAK ON energy#power<=1500 DO Currentcal 2942 BREAK ON energy#power<=2000 DO Currentcal 3095 BREAK ON energy#power<=2500 DO Currentcal 3249 BREAK ON energy#power>2500 DO Currentcal 3402 BREAK
Rule1 1

Take the CurrentCal values above as a first approach and should be corrected through the Tasmota Method 2 calibration procedure: https://github.com/arendst/Tasmota/wiki/Power-Monitoring-Calibration

Home Assistant configuration

switch:
  - platform: mqtt
    name: "Blitzwolf"
    state_topic: "stat/blitzwolf/POWER"
    command_topic: "cmnd/blitzwolf/POWER"
    payload_on: "ON"
    payload_off: "OFF"
    retain: false

sensor:
  - platform: mqtt
    name: "Blitzwolf Energy Today"
    state_topic: "tele/blitzwolf/SENSOR"
    value_template: '{{ value_json["ENERGY"]["Today"] }}'
    unit_of_measurement: "kWh"
  - platform: mqtt
    name: "Blitzwolf Energy Yesterday"
    state_topic: "tele/blitzwolf/SENSOR"
    value_template: '{{ value_json["ENERGY"]["Yesterday"] }}'
    unit_of_measurement: "kWh"
  - platform: mqtt
    name: "Blitzwolf Energy Total"
    state_topic: "tele/blitzwolf/SENSOR"
    value_template: '{{ value_json["ENERGY"]["Total"] }}'
    unit_of_measurement: "kWh"
  - platform: mqtt
    name: "Blitzwolf Power"
    state_topic: "tele/blitzwolf/SENSOR"
    value_template: '{{ value_json["ENERGY"]["Power"] }}'
    unit_of_measurement: "W"
  - platform: mqtt
    name: "Blitzwolf Voltage"
    state_topic: "tele/blitzwolf/SENSOR"
    value_template: '{{ value_json["ENERGY"]["Voltage"] }}'
    unit_of_measurement: "V"
  - platform: mqtt
    name: "Blitzwolf Power Factor"
    state_topic: "tele/blitzwolf/SENSOR"
    value_template: '{{ value_json["ENERGY"]["Factor"] }}'
