There are several options to flash the precompiled bin files, here are a few:
Use a CP2101/FTDI232/CH340G/PL232 serial interface. Using jump wires (dupont), connect the interface to the ESP32 CAM as follows:
| TTL Interface | ESP32 CAM |
|---|---|
| GND | GND |
| VCC | VIN |
| TX | U0R (RX) |
| RX | U0T (TX) |
Open Google Chrome and go to the Web Updater
Short the ESP32-CAM pin 0 to GND then plug the usb cable of the serial interface..
(Or you can solder a push button between them for convenience)

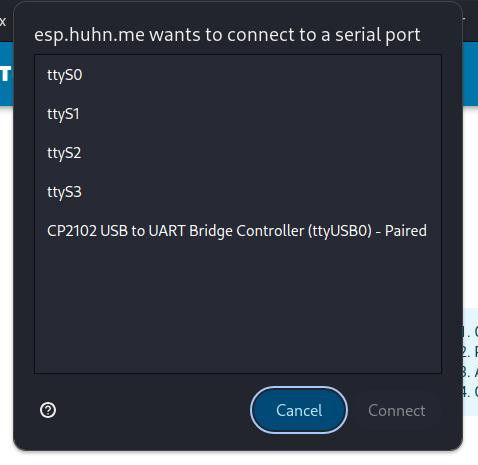

Click connect and choose the serial interface from the connection list (here I have used a CP2101 interface) but yours may show as ESP32.

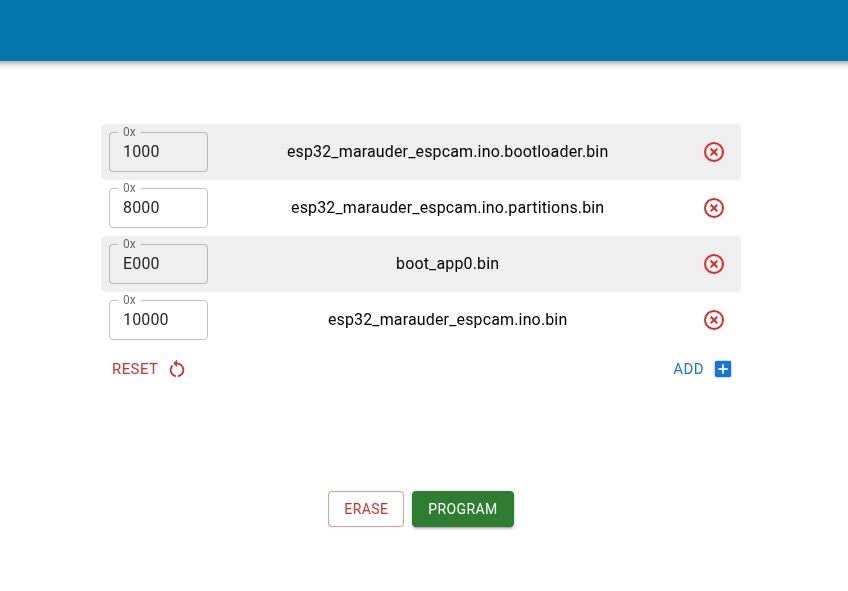

Use the following configuration to select the appropriate files and place them at the corresponding address:
You will find the binaries files under releases or in the build folder. The boot_app0.bin is located in the other files folder

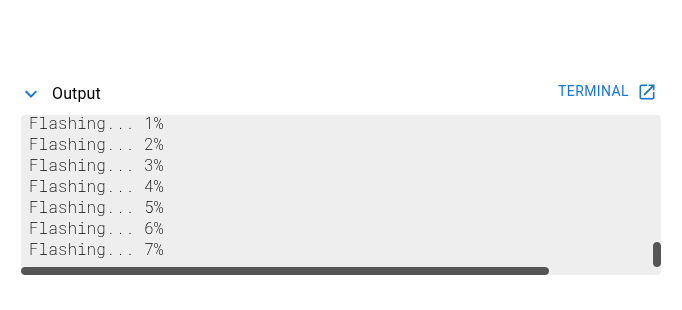

Click program and wait for the flashing to finish
Click the reset button on your ESP32 CAM to reboot.
A CP2101 Serial interface:
Other Serial Interfaces
If everything went right, you can now start Building a Dual ESP32 Marauder
