Building a Standalone ESP32 Marauder - sorinbotirla/esp32-marauder-ESP32-3248S035C GitHub Wiki

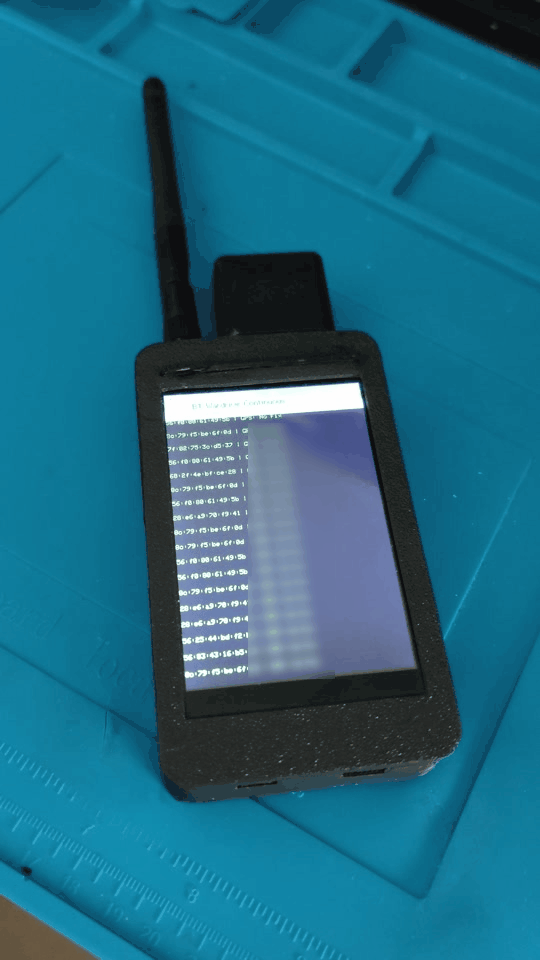

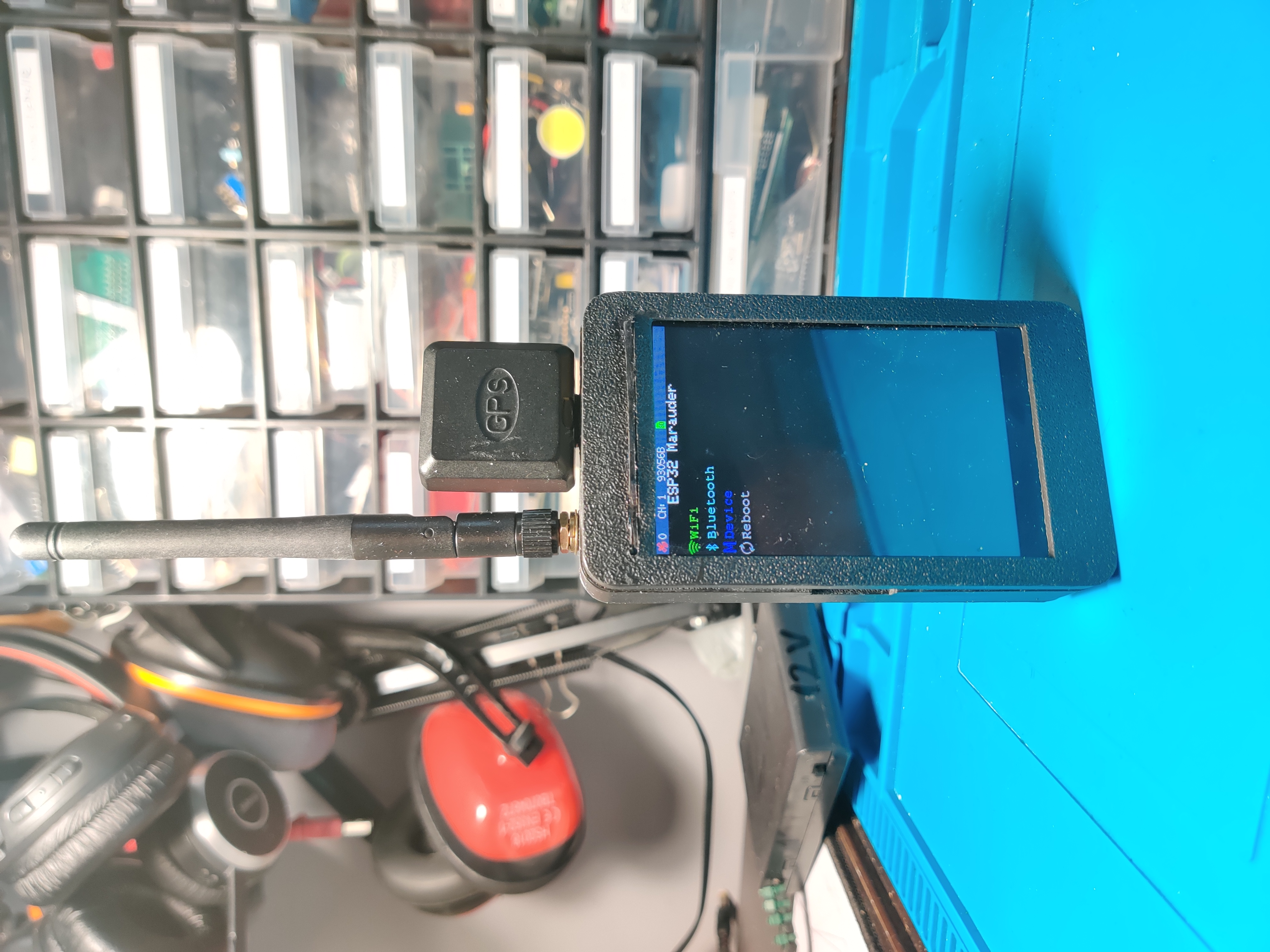

You can create a standalone ESP32 Marauder using this display.
Following steps will explain:
- Adding a Battery and charging module
- Adding a GPS Module
- Connecting an external WiFI/Bluetooth antenna
- Setting up Neopixel WS2812 LED Strip
- 3D Printing the Enclosure

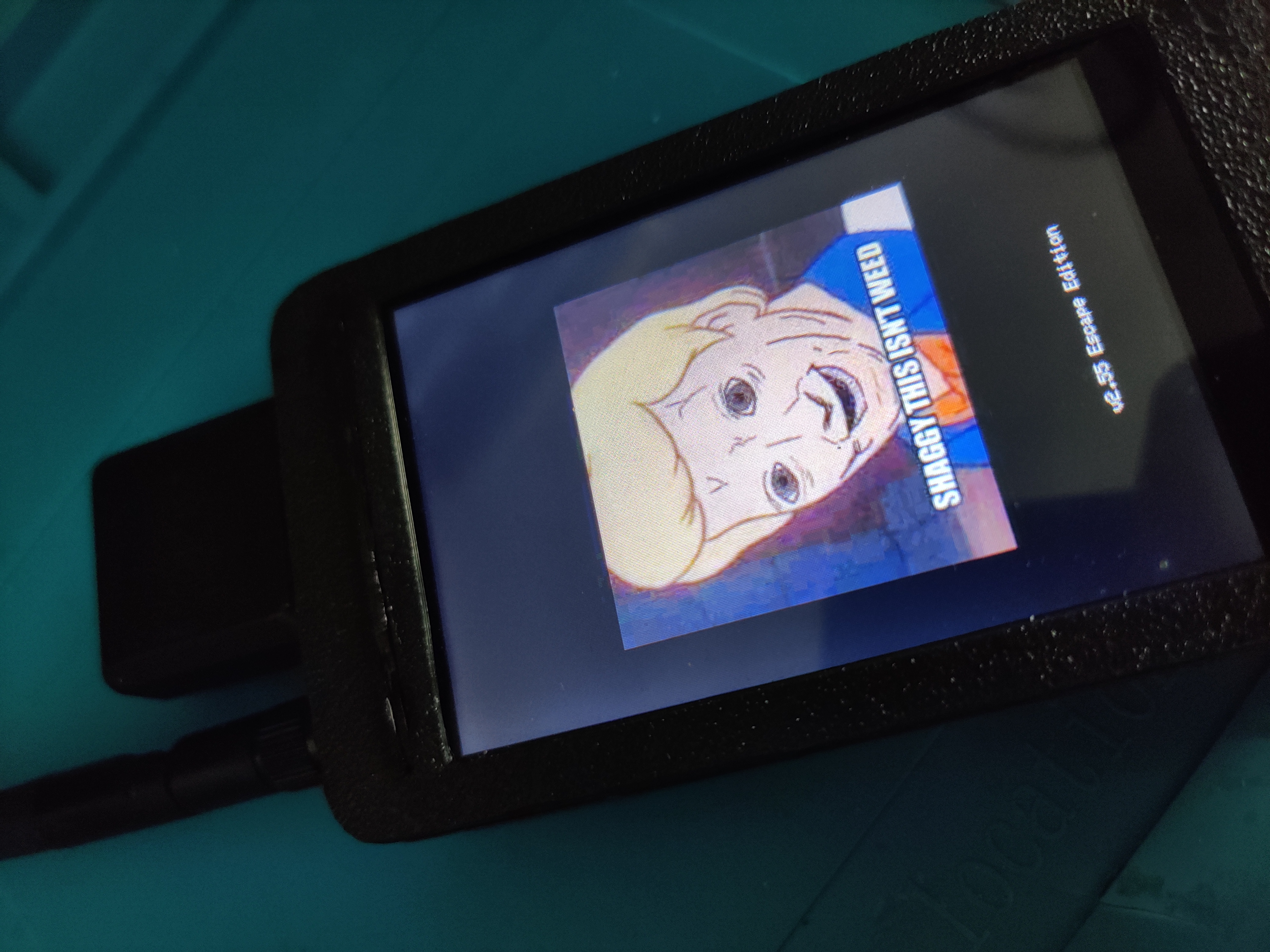

- Customizing the boot image
Before you proceed, basic soldering skills are required, because you will solder wires to connect everything shown in the images bellow.

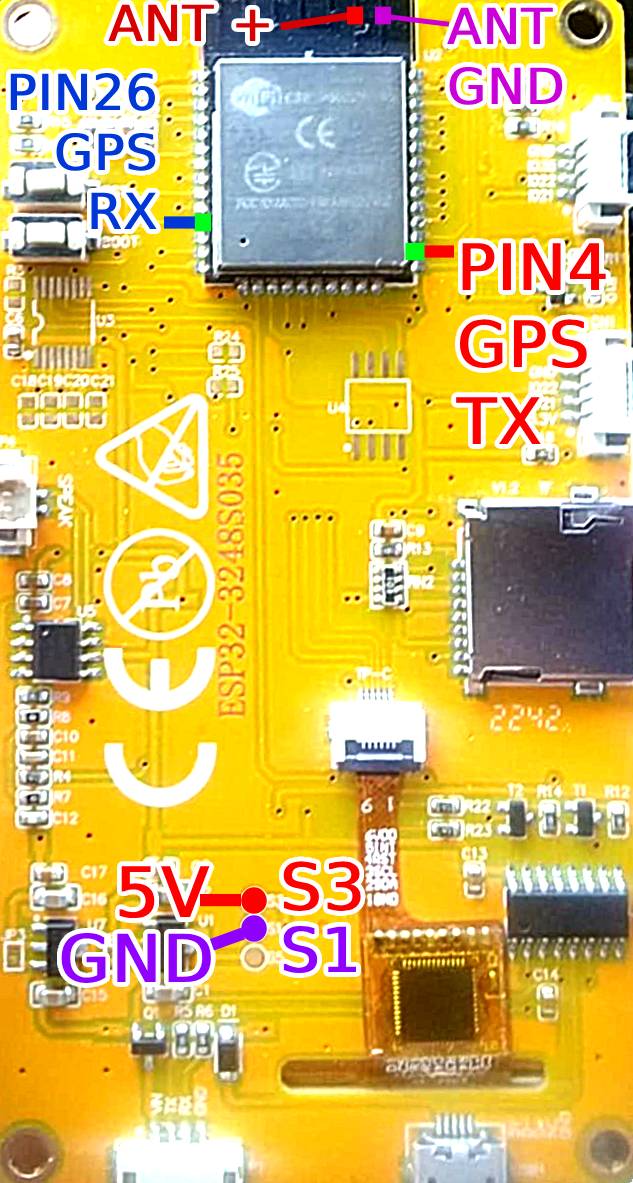

Here are the backend pins you will need for the battery charging circuit, GPS module and WIFI External Antenna.
