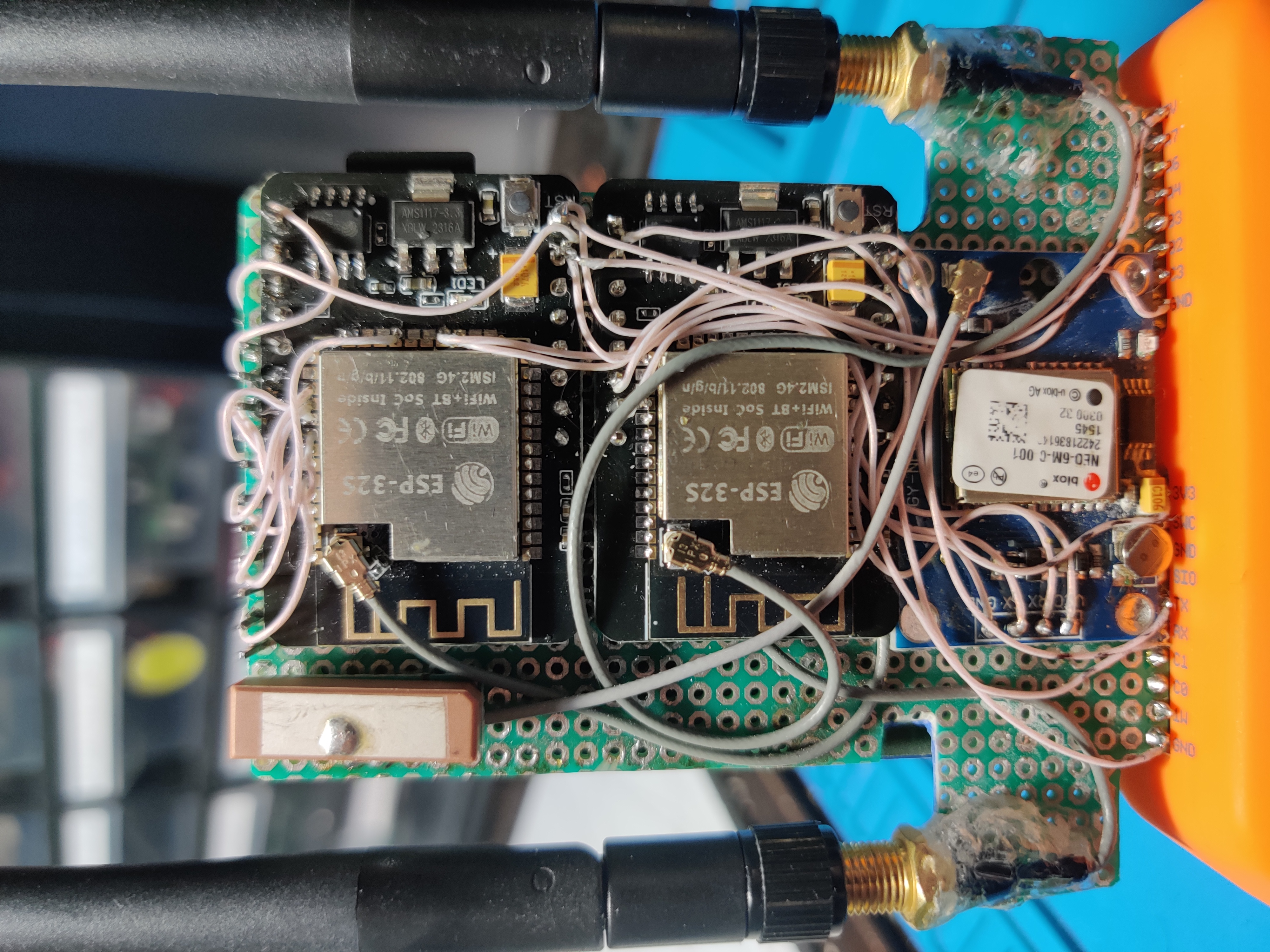

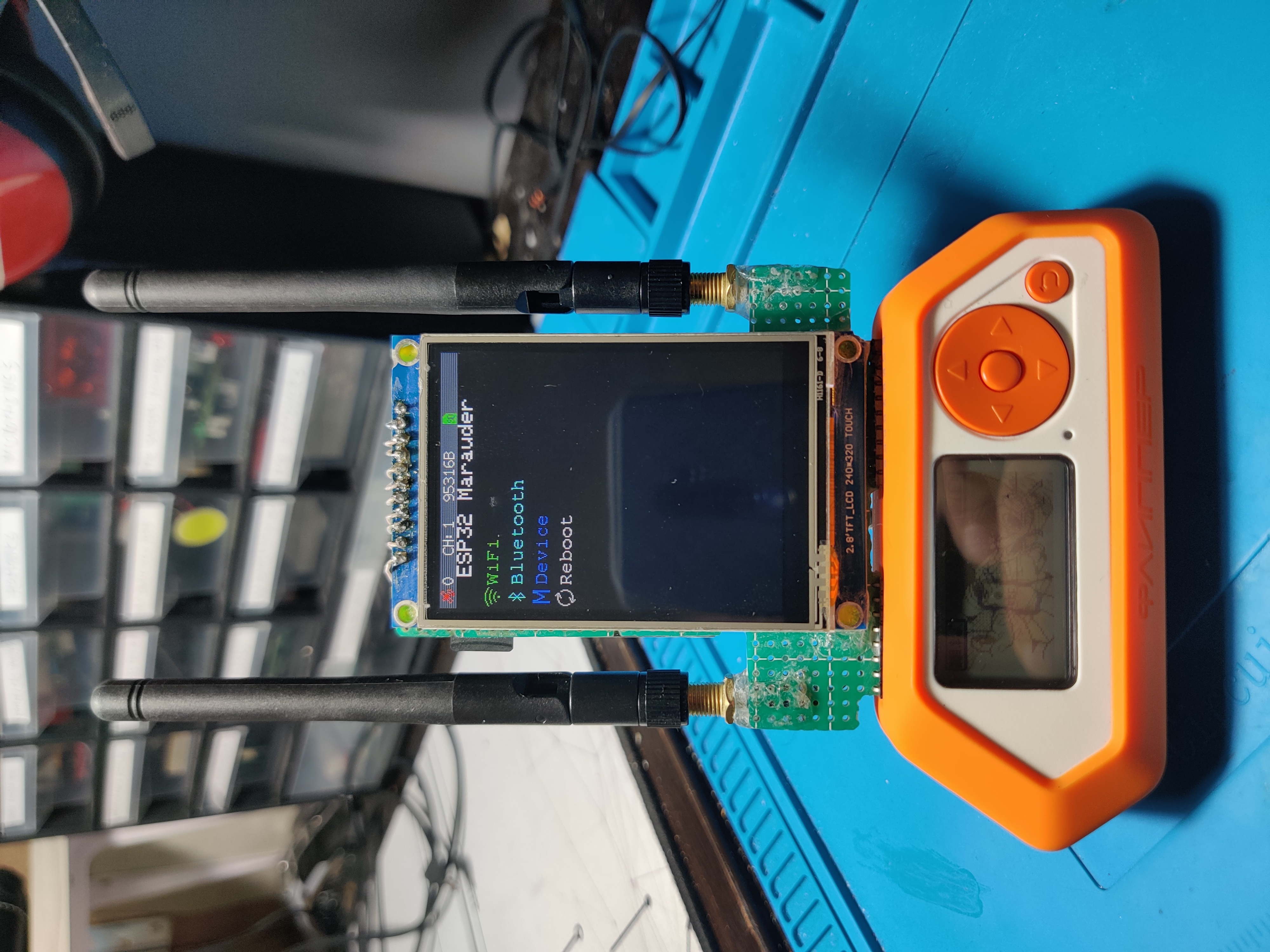

| ESP32-CAM 1 (Screen) | ILI9341 TFT Touchscreen Display | NEO-6M GPS | Flipper Zero |
|---|---|---|---|
| GND | GND | GND | GND |
| 3.3V | VCC | VCC | |
| 5V | 5V | ||
| 5 | RST | ||
| 9 | RX | ||
| 10 | TX | ||
| 16 | DC | ||
| 17 | CS | ||
| 18 | SCK | ||
| 19 | MISO | ||
| 21 | Touch CS | ||
| 23 | MOSI | ||
| 32 (or 3.3V) | BL (Backlight) |
| ESP32-CAM 2 (Flipper) | Flipper Zero |
|---|---|
| GND | GND |
| 3.3V | 3.3V |
| UDR | TX |
| UDT | RX |
Have fun
