繼續 lighttpd
目前有一支可以執行的 fastcgi - TinyFastCGI
試著先把 /cgi-bin/status.cgi?act=status 搬過來
前端不改的話 可以利用 lighttpd URL Rewrites
來把 /cgi-bin/status.cgi?act=status 對應成 /fcgi-bin/tiny.fcgi?cgi=status&act=status
先報考慮 URL Rewrites
以 /fcgi-bin/tiny.fcgi?cgi=status&act=status 而言
這是一個 HTTP GET request
parameter 有
- cgi=status
- act=status
我該如何把 cgi 以及 act 這兩個參數取出來呢
之前 cgi 用的是 cgilib 這一套 library
取參數用的 api 是 cgiGetValue()
實在不確定一樣的東西在 fcgi 能不能繼續使用
確認以下的 code 可以搭配 cgilib 使用
#include <stdlib.h>
#include <fcgi_stdio.h>
#include "cgi.h"
int count;
void initialize(void)
{
count = 0;
}
void main(void)
{
/* Initialization. */
initialize();
/* Response loop. */
while (FCGI_Accept() >= 0)
{
s_cgi *cgi = cgiInit();
char *act = cgiGetValue(cgi, "act");
printf("Content-type: text/html\r\n"
"\r\n"
"<title>FastCGI Hello! (C, fcgi_stdio library)</title>"
"<h1>FastCGI Hello! (C, fcgi_stdio library)</h1>"
"Request number %d<br>"
"GET parameter:<br>"
" act: %s<br>"
"<br>\n",
++count, act);
cgiFree (cgi);
}

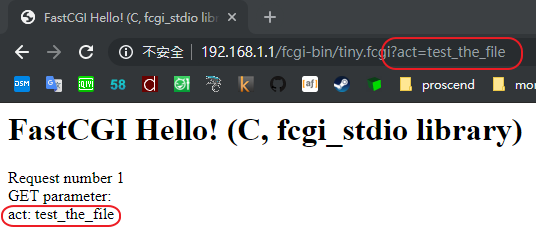

}執行結果如下
commit 5c8c283633f55693a9cdcb478586388b500d2d6e
Refs: [feature/lighttpd]
Author: jeffrey <[email protected]>
Date: Fri May 3 11:45:06 2019 +0800
now tiny.fcgi can use the same libcgi library as previous webcgi
proscend/prosrc/fcgi/.gitignore | 2 +
proscend/prosrc/fcgi/Makefile | 22 +-
proscend/prosrc/fcgi/cgilib-0.7/AUTHORS | 31 +
proscend/prosrc/fcgi/cgilib-0.7/COPYING | 339 +
proscend/prosrc/fcgi/cgilib-0.7/ChangeLog | 60 +
proscend/prosrc/fcgi/cgilib-0.7/INSTALL | 56 +
proscend/prosrc/fcgi/cgilib-0.7/Makefile | 48 +
proscend/prosrc/fcgi/cgilib-0.7/Makefile.am | 33 +
proscend/prosrc/fcgi/cgilib-0.7/Makefile.in | 793 +++
proscend/prosrc/fcgi/cgilib-0.7/aux.C | 243 +
proscend/prosrc/fcgi/cgilib-0.7/aux.H | 31 +
proscend/prosrc/fcgi/cgilib-0.7/aux.O | Bin 0 -> 5224 bytes
proscend/prosrc/fcgi/cgilib-0.7/aux_x.c | 289 +
proscend/prosrc/fcgi/cgilib-0.7/aux_x.h | 31 +
proscend/prosrc/fcgi/cgilib-0.7/cgi.5 | 118 +
proscend/prosrc/fcgi/cgilib-0.7/cgi.c | 1263 ++++
proscend/prosrc/fcgi/cgilib-0.7/cgi.h | 178 +
proscend/prosrc/fcgi/cgilib-0.7/cgiDebug.3 | 48 +
proscend/prosrc/fcgi/cgilib-0.7/cgiEscape.3 | 48 +
proscend/prosrc/fcgi/cgilib-0.7/cgiFree.3 | 51 +
proscend/prosrc/fcgi/cgilib-0.7/cgiFreeList.3 | 43 +
proscend/prosrc/fcgi/cgilib-0.7/cgiGetCookie.3 | 80 +
proscend/prosrc/fcgi/cgilib-0.7/cgiGetCookies.3 | 49 +
proscend/prosrc/fcgi/cgilib-0.7/cgiGetFile.3 | 64 +
proscend/prosrc/fcgi/cgilib-0.7/cgiGetFiles.3 | 48 +
proscend/prosrc/fcgi/cgilib-0.7/cgiGetValue.3 | 55 +
proscend/prosrc/fcgi/cgilib-0.7/cgiGetVariables.3 | 51 +
proscend/prosrc/fcgi/cgilib-0.7/cgiHeader.3 | 49 +
proscend/prosrc/fcgi/cgilib-0.7/cgiInit.3 | 75 +
proscend/prosrc/fcgi/cgilib-0.7/cgiRedirect.3 | 45 +
proscend/prosrc/fcgi/cgilib-0.7/cgiSetHeader.3 | 74 +
proscend/prosrc/fcgi/cgilib-0.7/cgiSetType.3 | 45 +
proscend/prosrc/fcgi/cgilib-0.7/cgitest.c | 308 +
proscend/prosrc/fcgi/cgilib-0.7/config.guess | 1526 +++++
proscend/prosrc/fcgi/cgilib-0.7/config.sub | 1658 +++++
proscend/prosrc/fcgi/cgilib-0.7/configure.ac | 14 +
proscend/prosrc/fcgi/cgilib-0.7/cookies.c | 229 +
proscend/prosrc/fcgi/cgilib-0.7/cookies.txt | 81 +
proscend/prosrc/fcgi/cgilib-0.7/depcomp | 589 ++
proscend/prosrc/fcgi/cgilib-0.7/install-sh | 519 ++
proscend/prosrc/fcgi/cgilib-0.7/jumpto.c | 76 +
proscend/prosrc/fcgi/cgilib-0.7/ltmain.sh | 6964 +++++++++++++++++++++
proscend/prosrc/fcgi/cgilib-0.7/missing | 367 ++
proscend/prosrc/fcgi/tiny.c | 28 +-
proscend/prosrc/fcgi/tiny.fcgi | Bin 4100 -> 4368 bytes
45 files changed, 16706 insertions(+), 15 deletions(-)
M300 的 setting wizard 出了不少 bug
- 0000510: [Wizard] change password , but login new password fail
- 0000511: [Wizard] change LAN IP and range, it will hang up
- 0000512: [Login] Login wrong password, it will hang up
- 0000513: [Wizard] changr time zone, but reboot finished, time zone is still old
M300 先 build 個 branch release/v2.00 先
先 check 0000510: [Wizard] change password , but login new password fail
這個確定已經解決了
再 check 0000511: [Wizard] change LAN IP and range, it will hang up
先試一次 並沒有 apply fail
開完機再試一次 lan module 還是 apply 成功
改來看 0000512: [Login] Login wrong password, it will hang up
commit bc9232a0bb96453e98bff025c5ceed7e1436d7a8
Refs: [release/v2.00], {origin/release/v2.00}
Author: jeffrey <[email protected]>
Date: Fri May 3 13:41:24 2019 +0800
solve issue 0000512: [Login] Login wrong password, it will hang up
proscend/prosrc/www/app/feature/login.js | 1 +
1 file changed, 1 insertion(+)
check 0000513: [Wizard] changr time zone, but reboot finished, time zone is still old
這跟 密碼的問題一樣
改成 apply 就好了
先盤一下周報內容
- M330
- add 'WiFi > MAC Filter' web page
- add 'VLAN Isolation' field at 'VLAN' web page
- add 'IP Address Selection' field at 'Dynamic DNS' web page
- add 'WAN/LAN2 Port Function' field at 'System > Ethernet Ports' web page
- also add hint at 'WAN > Priority' page
- fix issue - 0000461: user can't apply anything in "Time and Date"
- M300
- change web server to avoid https ustable
- solve issue 0000506: M30TG, save the new password compelete via setup wizard but it can't activy
- solve issue 0000510: [Wizard] change password , but login new password fail
- solve issue 0000512: [Login] Login wrong password, it will hang up
- solve issue 0000513: [Wizard] changr time zone, but reboot finished, time zone is still old

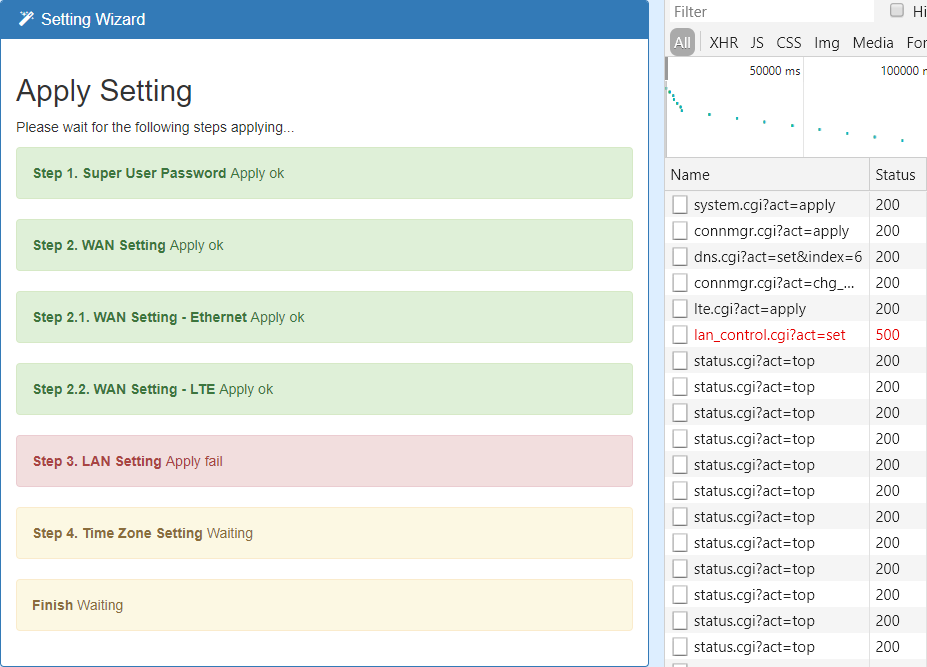

再多試幾次 0000511: [Wizard] change LAN IP and range, it will hang up

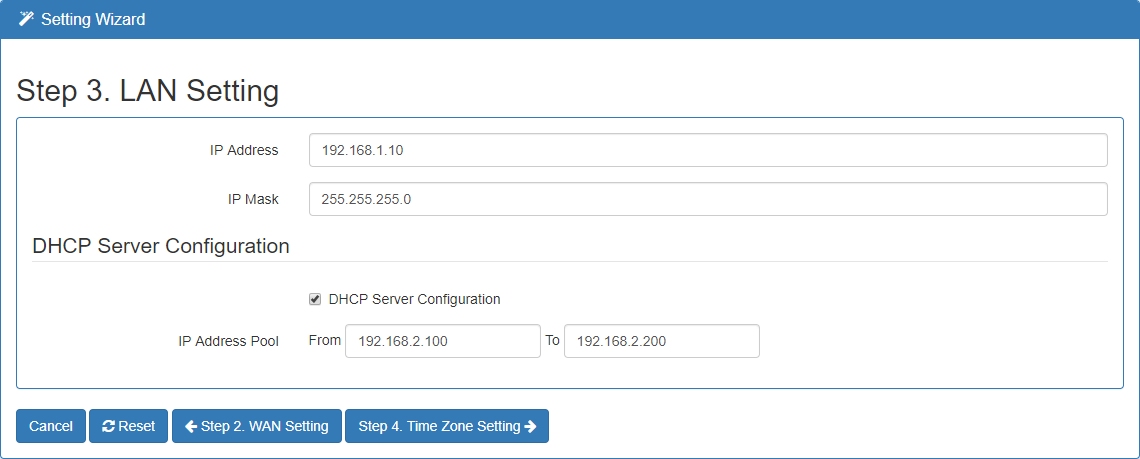

如果 DHCP Server 的 IP Address Pool 故意和 IP Address 網段不一樣的話
那 apply fail 就沒有任何補救的機制
需要想個辦法

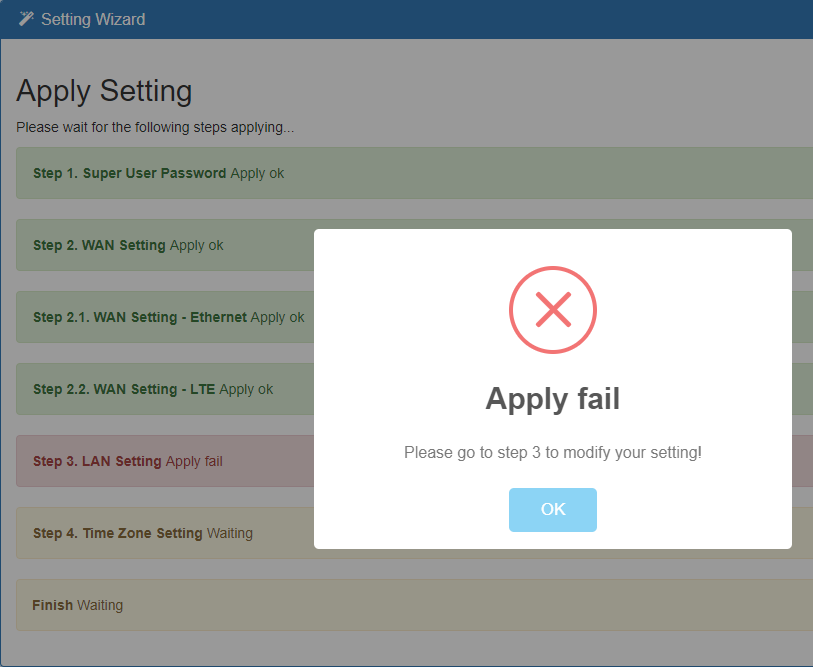

我可以利用 sweet alert 盤跳一個提示視窗並在使用者按下視窗上的 button 後 跳回該 step 讓使用者有機會修改
用最保險的方式掃台
commit 3675d955a48a15878cd03baf7ebb6cba7ca9e29b
Author: jeffrey <[email protected]>
Date: Fri May 3 15:01:17 2019 +0800
solve issue 0000511: [Wizard] change LAN IP and range, it will hang up
diff --git a/proscend/prosrc/www/app/feature/wizard.js b/proscend/prosrc/www/app/feature/wizard.js
index b4af971..fc86e46 100644
--- a/proscend/prosrc/www/app/feature/wizard.js
+++ b/proscend/prosrc/www/app/feature/wizard.js
@@ -123,6 +123,11 @@
}, function(response) {
console.log("step 1 apply fail");
vm.step_1.apply_status = "Apply fail";
+ swal({^M
+ title:"Apply fail",^M
+ text: "Please go to step 1 to modify your setting!",^M
+ type:"error",^M
+ }, function(){vm.step_1.show();});^M
});
};
@@ -171,6 +176,11 @@
}, function(response) {
console.log("step 2 apply fail");
vm.step_2.apply_status = "Apply fail";
+ swal({^M
+ title:"Apply fail",^M
+ text: "Please go to step 2 to modify your setting!",^M
+ type:"error",^M
+ }, function(){vm.step_2.show();});^M
});
};
@@ -296,6 +306,11 @@
}, function(response) {
console.log("step 2.1 apply fail: icos.wanst.set()");
vm.step_2_1.apply_status = "Apply fail";
+ swal({^M
+ title:"Apply fail",^M
+ text: "Please go to step 2.1 to modify your setting!",^M
+ type:"error",^M
+ }, function(){vm.step_2_1.show();});^M
})
.then( function(response) {
console.log("icos.dns_static.apply() ok");
@@ -304,6 +319,11 @@
}, function(response) {
console.log("step 2.1 apply fail: icos.dns_static.apply()");
vm.step_2_1.apply_status = "Apply fail";
+ swal({^M
+ title:"Apply fail",^M
+ text: "Please go to step 2.1 to modify your setting!",^M
+ type:"error",^M
+ }, function(){vm.step_2_1.show();});^M
})
.then( function(response) {
console.log("step 2.1 apply ok");
@@ -314,6 +334,11 @@
}, function(response) {
console.log("step 2.1 apply fail: icos.connmgr.chg_wproto_apply()");
vm.step_2_1.apply_status = "Apply fail";
+ swal({^M
+ title:"Apply fail",^M
+ text: "Please go to step 2.1 to modify your setting!",^M
+ type:"error",^M
+ }, function(){vm.step_2_1.show();});^M
});
@@ -330,6 +355,11 @@
}, function(response) {
vm.step_2_1.apply_status = "Apply fail";
console.log("step 2.1 apply fail: icos.dns_dhcpc.set()");
+ swal({^M
+ title:"Apply fail",^M
+ text: "Please go to step 2.1 to modify your setting!",^M
+ type:"error",^M
+ }, function(){vm.step_2_1.show();});^M
})
.then( function(response) {
console.log("step 2.1 apply ok");
@@ -340,6 +370,11 @@
}, function(response) {
vm.step_2_1.apply_status = "Apply fail";
console.log("step 2.1 apply fail: icos.connmgr.chg_wproto_apply()");
+ swal({^M
+ title:"Apply fail",^M
+ text: "Please go to step 2.1 to modify your setting!",^M
+ type:"error",^M
+ }, function(){vm.step_2_1.show();});^M
});
};
@@ -353,6 +388,11 @@
}, function(response) {
vm.step_2_1.apply_status = "Apply fail";
console.log("step 2.1 apply fail: icos.pppoe.apply()");
+ swal({^M
+ title:"Apply fail",^M
+ text: "Please go to step 2.1 to modify your setting!",^M
+ type:"error",^M
+ }, function(){vm.step_2_1.show();});^M
})
.then( function(response) {
console.log("icos.ipv6lan.default() ok");
@@ -361,6 +401,11 @@
}, function(response) {
vm.step_2_1.apply_status = "Apply fail";
console.log("step 2.1 apply fail: icos.ipv6lan.default()");
+ swal({^M
+ title:"Apply fail",^M
+ text: "Please go to step 2.1 to modify your setting!",^M
+ type:"error",^M
+ }, function(){vm.step_2_1.show();});^M
})
.then( function(response) {
console.log("step 2.1 apply ok");
@@ -371,6 +416,11 @@
}, function(response) {
console.log("step 2.1 apply fail: icos.connmgr.chg_wproto_apply()");
vm.step_2_1.apply_status = "Apply fail";
+ swal({^M
+ title:"Apply fail",^M
+ text: "Please go to step 2.1 to modify your setting!",^M
+ type:"error",^M
+ }, function(){vm.step_2_1.show();});^M
});
};
@@ -463,6 +513,11 @@
}, function(response) {
console.log("step 2.2 apply fail");
vm.step_2_2.apply_status = "Apply fail";
+ swal({^M
+ title:"Apply fail",^M
+ text: "Please go to step 2.2 to modify your setting!",^M
+ type:"error",^M
+ }, function(){vm.step_2_2.show();});^M
});
}
@@ -526,6 +581,11 @@
}, function(response) {
console.log("step 3 apply fail");
vm.step_3.apply_status = "Apply fail";
+ swal({^M
+ title:"Apply fail",^M
+ text: "Please go to step 3 to modify your setting!",^M
+ type:"error",^M
+ }, function(){vm.step_3.show();});^M
});
};
@@ -606,6 +666,11 @@
}, function(response) {
console.log("step 4 apply fail");
vm.step_4.apply_status = "Apply fail";
+ swal({^M
+ title:"Apply fail",^M
+ text: "Please go to step 4 to modify your setting!",^M
+ type:"error",^M
+ }, function(){vm.step_4.show();});^M
});
};
@@ -651,6 +716,11 @@
}, function(response) {
console.log("step 5 apply fail");
vm.step_5.apply_status = "Apply fail";
+ swal({^M
+ title:"Apply fail",^M
+ text: "Please go to step 5 to modify your setting!",^M
+ type:"error",^M
+ }, function(){vm.step_5.show();});^M
});
};
回到 M300 branch feature/lighttpd
