早上上班忘了帶員工識別證
先發一封 mail 給 evonne
幫忙把 wifi 的 web ui 從 develop branch 搬到 hotfox/v1.74 branch
commit 88fcef974b9c661a56fcf45cb0aa7392b0961b59
Refs: [hotfix/v1.74], {origin/hotfix/v1.74}
Author: jeffrey <[email protected]>
Date: Mon Nov 12 09:40:11 2018 +0800
add 'WIFI / WIFI Config' web page
- from develop branch
proscend/prosrc/icos/iweb/iweb.c | 4 +
proscend/prosrc/webcgi/Makefile | 4 +
proscend/prosrc/webcgi/wifi_apsta.c | 183 +++++++++++++++++++++++
proscend/prosrc/www/app/feature/wifi_apsta.html | 115 ++++++++++++++
proscend/prosrc/www/app/feature/wifi_apsta.js | 59 ++++++++
proscend/prosrc/www/app/locale-en.json | 18 +++
proscend/prosrc/www/app/locale-fr.json | 18 +++
proscend/prosrc/www/app/locale-zh-tw.json | 18 +++
proscend/prosrc/www/app/services/icos.service.js | 11 +-
proscend/prosrc/www/src/index.html.src | 1 +
proscend/prosrc/www/src/menu.html.src | 19 +++
11 files changed, 448 insertions(+), 2 deletions(-)
差不多要來玩一下 Cisco 2951 Integrated Services Router
參考 [Cisco 3900 Series and Cisco 2900 Series Hardware Installation Guide]https://www.cisco.com/c/en/us/td/docs/routers/access/2900/hardware/installation/guide/Hardware_Installation_Guide/Install_Connect.html
Console terminal (an ASCII terminal or a PC running HyperTerminal or similar terminal emulation software) configured for 9600 baud, 8 data bits, 1 stop bit, no flow control, and no parity.
得知 console 的 baud rate
接上 console 開機吧
System Bootstrap, Version 15.0(1r)M6, RELEASE SOFTWARE (fc1)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 2010 by cisco Systems, Inc.
Total memory size = 512 MB - DIMM0 = 512 MB, DIMM1 = 0 MB
CISCO2951/K9 platform with 524288 Kbytes of main memory
Main memory is configured to 72/0(dimm 0/1) bit mode with ECC enabled
Readonly ROMMON initialized
program load complete, entry point: 0x4000000, size: 0x18fa0
program load complete, entry point: 0x4000000, size: 0x18fa0
這邊停了快 2 分鐘多
IOS Image Load Test
___________________
Digitally Signed Release Software
program load complete, entry point: 0x4000000, size: 0x63e034c
Self decompressing the image : ##################################################################################################################################################################################################################################################################################################################################################################################################################################################################################################################################################################################################################################################################################################################################################################################################################################################################################################### [OK]
*** No sreloc section
I2C Init
I2C Init
PCI Bridge Cfg
CPU PCIE cont
IO Controller US port, DS port
Smart Init is enabled
smart init is sizing iomem
TYPE MEMORY_REQ
HWIC Slot 1 0x00200000
Onboard devices &
buffer pools 0x0230F000
-----------------------------------------------
TOTAL: 0x0250F000
Rounded IOMEM up to: 38MB.
Using 7 percent iomem. [38MB/512MB]
Restricted Rights Legend
Use, duplication, or disclosure by the Government is
subject to restrictions as set forth in subparagraph
(c) of the Commercial Computer Software - Restricted
Rights clause at FAR sec. 52.227-19 and subparagraph
(c) (1) (ii) of the Rights in Technical Data and Computer
Software clause at DFARS sec. 252.227-7013.
cisco Systems, Inc.
170 West Tasman Drive
San Jose, California 95134-1706
Cisco IOS Software, C2951 Software (C2951-UNIVERSALK9-M), Version 15.4(3)M2, RELEASE SOFTWARE (fc2)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 1986-2015 by Cisco Systems, Inc.
Compiled Fri 06-Feb-15 17:54 by prod_rel_team
MBRD Subsys Init
Reg adds done
IO Controller MSI,GPIO,HSIB ERR
SM Resets
GBIC
This product contains cryptographic features and is subject to United
States and local country laws governing import, export, transfer and
use. Delivery of Cisco cryptographic products does not imply
third-party authority to import, export, distribute or use encryption.
Importers, exporters, distributors and users are responsible for
compliance with U.S. and local country laws. By using this product you
agree to comply with applicable laws and regulations. If you are unable
to comply with U.S. and local laws, return this product immediately.
A summary of U.S. laws governing Cisco cryptographic products may be found at:
http://www.cisco.com/wwl/export/crypto/tool/stqrg.html
If you require further assistance please contact us by sending email to
[email protected].
Installed image archive
Cisco CISCO2951/K9 (revision 1.0) with 485376K/38912K bytes of memory.
Processor board ID FHK1428F2PG
7 Gigabit Ethernet interfaces
1 terminal line
1 Virtual Private Network (VPN) Module
DRAM configuration is 72 bits wide with parity enabled.
255K bytes of non-volatile configuration memory.
254464K bytes of ATA System CompactFlash 0 (Read/Write)
然後問了我一些問題
--- System Configuration Dialog ---
Would you like to enter the initial configuration dialog? [yes/no]: yes
At any point you may enter a question mark '?' for help.
Use ctrl-c to abort configuration dialog at any prompt.
Default settings are in square brackets '[]'.
Basic management setup configures only enough connectivity
for management of the system, extended setup will ask you
to configure each interface on the system
Would you like to enter basic management setup? [yes/no]:
選 yes
Would you like to enter basic management setup? [yes/no]: yes
Configuring global parameters:
Enter host name [Router]:
The enable secret is a password used to protect access to
privileged EXEC and configuration modes. This password, after
entered, becomes encrypted in the configuration.
Enter enable secret: admin
The enable password is used when you do not specify an
enable secret password, with some older software versions, and
some boot images.
Enter enable password: admin
% Please choose a password that is different from the enable secret
Enter enable password: 2wsx#EDC
The virtual terminal password is used to protect
access to the router over a network interface.
Enter virtual terminal password: 2wsx#EDC
Configure SNMP Network Management? [yes]:
Community string [public]:
Current interface summary
Any interface listed with OK? value "NO" does not have a valid configuration
Interface IP-Address OK? Method Status Protocol
Embedded-Service-Engine0/0 unassigned NO unset initializing down
GigabitEthernet0/0 unassigned NO unset down down
GigabitEthernet0/1 unassigned NO unset down down
GigabitEthernet0/2 unassigned NO unset down down
GigabitEthernet0/1/0 unassigned YES unset down down
GigabitEthernet0/1/1 unassigned YES unset down down
GigabitEthernet0/1/2 unassigned YES unset down down
GigabitEthernet0/1/3 unassigned YES unset down down
Vlan1 unassigned YES unset down down
Enter interface name used to connect to the
management network from the above interface summary: GigabitEthernet0/1/0
Configuring interface GigabitEthernet0/1/0:
Configure IP on this interface? [no]:
The following configuration command script was created:
hostname Router
enable secret 5 $1$233h$N.McbtNhCupPDDN7oogfb1
enable password 2wsx#EDC
line vty 0 4
password 2wsx#EDC
snmp-server community public
!
!
interface Embedded-Service-Engine0/0
shutdown
no ip address
!
interface GigabitEthernet0/0
shutdown
no ip address
!
interface GigabitEthernet0/1
shutdown
no ip address
!
interface GigabitEthernet0/2
shutdown
no ip address
!
interface GigabitEthernet0/1/0
no shutdown
no ip address
no mop enabled
!
interface GigabitEthernet0/1/1
shutdown
no ip address
!
interface GigabitEthernet0/1/2
shutdown
no ip address
!
interface GigabitEthernet0/1/3
shutdown
no ip address
!
interface Vlan1
shutdown
no ip address
!
end
[0] Go to the IOS command prompt without saving this config.
[1] Return back to the setup without saving this config.
[2] Save this configuration to nvram and exit.
Enter your selection [2]:
回答了一些問題最後我選擇了 [0] Go to the IOS command prompt without saving this config.
% You can enter the setup, by typing setup at IOS command prompt
Press RETURN to get started!
*Jan 2 00:00:02.219: %IOS_LICENSE_IMAGE_APPLICATION-6-LICENSE_LEVEL: Module name = c2951 Next reboot level = ipbasek9 and License = ipbasek9
*Jan 2 00:00:02.311: %IOS_LICENSE_IMAGE_APPLICATION-6-LICENSE_LEVEL: Module name = c2951 Next reboot level = securityk9 and License = securityk9
*Nov 12 02:33:51.643: c3600_scp_set_dstaddr2_idb(184)add = 80 name is Embedded-Service-Engine0/0
*Nov 12 02:33:52.547: %VPN_HW-6-INFO_LOC: Crypto engine: onboard 0 State changed to: Initialized
*Nov 12 02:33:52.551: %VPN_HW-6-INFO_LOC: Crypto engine: onboard 0 State changed to: Enabled
*Nov 12 02:34:04.907: %CTS-6-ENV_DATA_START_STATE: Environment Data Download in start state
*Nov 12 02:34:06.903: %PA-3-PA_INIT_FAILED: Performance Agent failed to initialize (Missing Data License)
*Nov 12 02:34:09.743: %LINK-3-UPDOWN: Interface GigabitEthernet0/0, changed state to down
*Nov 12 02:34:09.743: %LINK-3-UPDOWN: Interface GigabitEthernet0/1, changed state to down
*Nov 12 02:34:09.743: %LINK-3-UPDOWN: Interface GigabitEthernet0/2, changed state to down
*Nov 12 02:34:10.391: %LINEPROTO-5-UPDOWN: Line protocol on Interface Vlan1, changed state to down
*Nov 12 02:34:10.743: %LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet0/0, changed state to down
*Nov 12 02:34:10.743: %LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet0/1, changed state to down
*Nov 12 02:34:10.743: %LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet0/2, changed state to down
*Nov 12 02:36:17.383: %SYS-3-HARIKARI: Process Wait on Autoinstall top-level routine exited
*Nov 12 02:36:37.383: %PNP-6-HTTP_CONNECTING: PnP Discovery trying to connect to PnP server https://devicehelper.cisco.com/pnp/HELLO
*Nov 12 02:36:57.382: %PNP-6-HTTP_CONNECTING: PnP Discovery trying to connect to PnP server https://devicehelper.cisco.com/pnp/HELLO
*Nov 12 02:41:23.333: %LINK-5-CHANGED: Interface Embedded-Service-Engine0/0, changed state to administratively down
*Nov 12 02:41:23.337: %LINK-5-CHANGED: Interface GigabitEthernet0/0, changed state to administratively down
*Nov 12 02:41:23.409: %LINK-5-CHANGED: Interface GigabitEthernet0/1, changed state to administratively down
*Nov 12 02:41:23.513: %LINK-5-CHANGED: Interface GigabitEthernet0/2, changed state to administratively down
*Nov 12 02:41:24.333: %LINEPROTO-5-UPDOWN: Line protocol on Interface Embedded-Service-Engine0/0, changed state to down
*Nov 12 02:41:26.513: %IP-5-WEBINST_KILL: Terminating DNS process
*Nov 12 02:41:30.041: %SYS-5-RESTART: System restarted --
Cisco IOS Software, C2951 Software (C2951-UNIVERSALK9-M), Version 15.4(3)M2, RELEASE SOFTWARE (fc2)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 1986-2015 by Cisco Systems, Inc.
Compiled Fri 06-Feb-15 17:54 by prod_rel_team
*Nov 12 02:41:30.101: %CRYPTO-6-ISAKMP_ON_OFF: ISAKMP is OFF
*Nov 12 02:41:30.101: %CRYPTO-6-GDOI_ON_OFF: GDOI is OFF
*Nov 12 02:41:30.801: %LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet0/1/0, changed state to down
*Nov 12 02:41:30.801: %LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet0/1/1, changed state to down
*Nov 12 02:41:30.801: %LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet0/1/2, changed state to down
*Nov 12 02:41:30.801: %LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet0/1/3, changed state to down
Router>
進入了 IOS command prompt ?
看一下有什麼東西
Router>?
Exec commands:
<0-4>/<0-4> Enter card slot/sublot number
access-enable Create a temporary Access-List entry
access-profile Apply user-profile to interface
clear Reset functions
connect Open a terminal connection
crypto Encryption related commands.
disable Turn off privileged commands
disconnect Disconnect an existing network connection
do-exec Mode-independent "do-exec" prefix support
emm Run a configured Menu System
enable Turn on privileged commands
ethernet Ethernet parameters
exit Exit from the EXEC
help Description of the interactive help system
hw-module Hardware module level specific operations
ip IP SLA Exec Command
ips Intrusion Prevention System
lock Lock the terminal
login Log in as a particular user
logout Exit from the EXEC
modemui Start a modem-like user interface
mrinfo Request neighbor and version information from a multicast
router
mstat Show statistics after multiple multicast traceroutes
mtrace Trace reverse multicast path from destination to source
name-connection Name an existing network connection
pad Open a X.29 PAD connection
ping Send echo messages
power PS exec commands
ppp Start IETF Point-to-Point Protocol (PPP)
release Release a resource
renew Renew a resource
resume Resume an active network connection
rlogin Open an rlogin connection
routing-context Routing Context
set Set system parameter (not config)
show Show running system information
slip Start Serial-line IP (SLIP)
ssh Open a secure shell client connection
systat Display information about terminal lines
tclquit Quit Tool Command Language shell
telnet Open a telnet connection
terminal Set terminal line parameters
traceroute Trace route to destination
trm Trend Registration Module
tunnel Open a tunnel connection
ucse UCSE server
udptn Open an udptn connection
waas IOS Wide Area Application Services
where List active connections
x28 Become an X.28 PAD
x3 Set X.3 parameters on PAD
Router>
先關機吧 有點吵
看一下我剛剛設定了什麼密碼
enable secret: admin
The enable secret is a password used to protect access to
privileged EXEC and configuration modes. This password, after
entered, becomes encrypted in the configuration.
Enter enable secret: admin
enable password: 2wsx#EDC
The enable password is used when you do not specify an
enable secret password, with some older software versions, and
some boot images.
Enter enable password: admin
% Please choose a password that is different from the enable secret
Enter enable password: 2wsx#EDC
virtual terminal password: 2wsx#EDC
The virtual terminal password is used to protect
access to the router over a network interface.
Enter virtual terminal password: 2wsx#EDC
下面的說明只是上述的中翻英罷了
enable password 和 enable secret 指令被用來限制存取特權 EXEC 模式。enable password 只能在 enable secret 沒有設定的時候使用。應該使用 enable secret 指令，因為 enable secret 指令是加密的，而 enable password 指令沒有加密
繼續熟悉手邊的 Cisco 2951

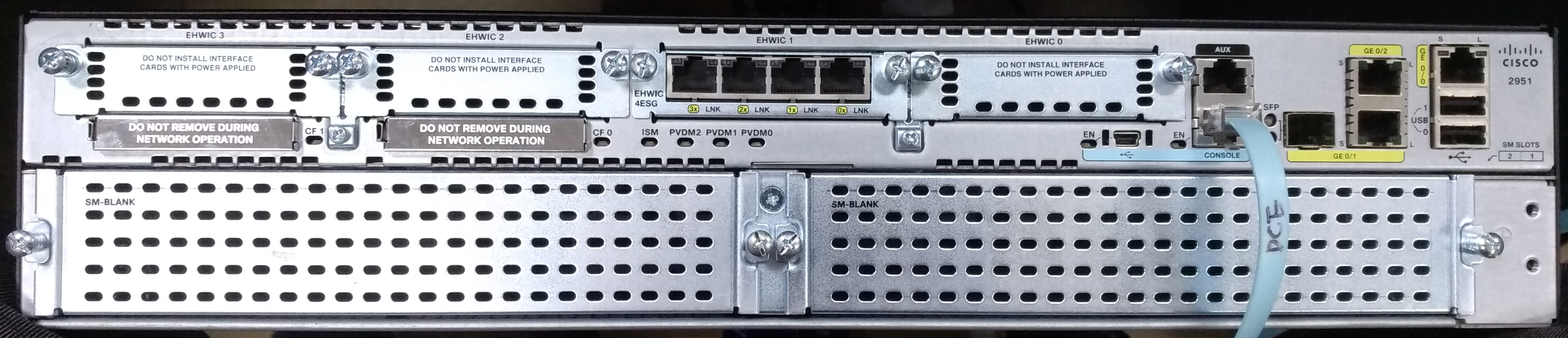

Cisco 2951 - interface - all

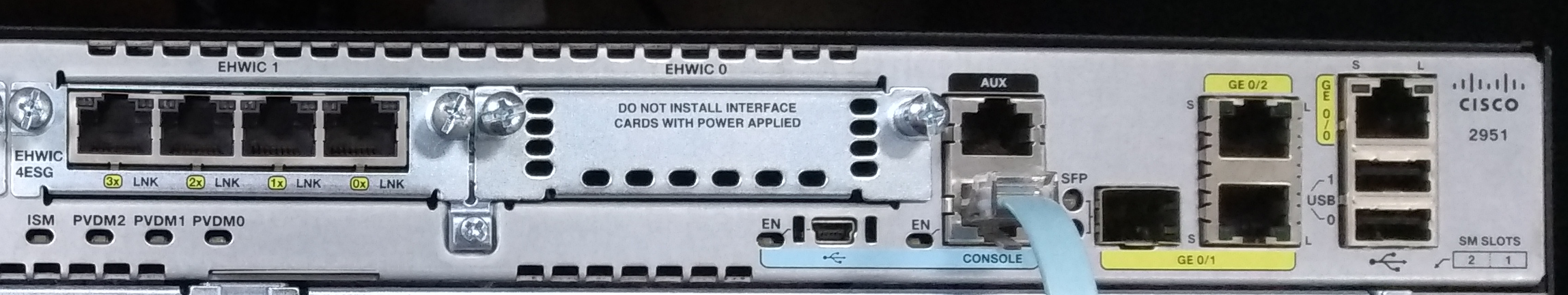

Cisco 2951 - interface - valid
對照一下早上的 Current interface summary
Current interface summary
Any interface listed with OK? value "NO" does not have a valid configuration
Interface IP-Address OK? Method Status Protocol
Embedded-Service-Engine0/0 unassigned NO unset initializing down
GigabitEthernet0/0 unassigned NO unset down down
GigabitEthernet0/1 unassigned NO unset down down
GigabitEthernet0/2 unassigned NO unset down down
GigabitEthernet0/1/0 unassigned YES unset down down
GigabitEthernet0/1/1 unassigned YES unset down down
GigabitEthernet0/1/2 unassigned YES unset down down
GigabitEthernet0/1/3 unassigned YES unset down down
Vlan1 unassigned YES unset down down

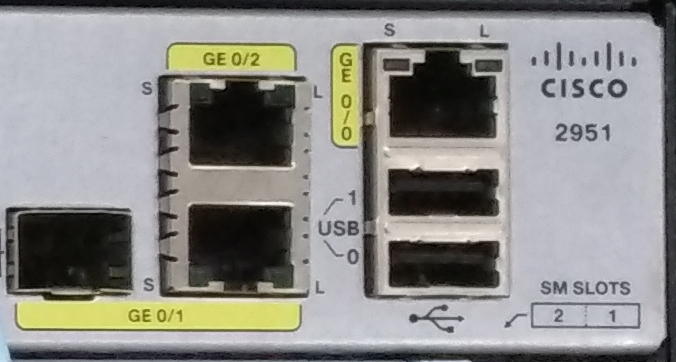

Cisco 2951 - interface - GE 0/0, GE 0/1, GE 0/2
這對應到的應該是
Interface IP-Address OK? Method Status Protocol
...
GigabitEthernet0/0 unassigned NO unset down down
GigabitEthernet0/1 unassigned NO unset down down
GigabitEthernet0/2 unassigned NO unset down down
...
左側還有 4 個 port

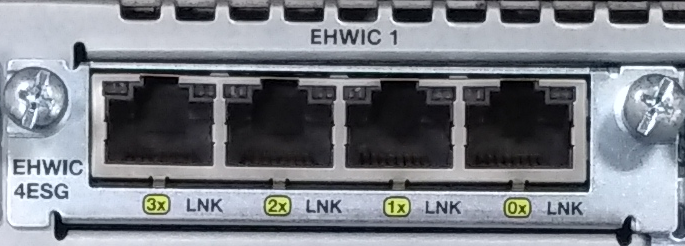

Cisco 2951 - interface - EHWIC 1
對應到的應該是
Interface IP-Address OK? Method Status Protocol
...
GigabitEthernet0/1/0 unassigned YES unset down down
GigabitEthernet0/1/1 unassigned YES unset down down
GigabitEthernet0/1/2 unassigned YES unset down down
GigabitEthernet0/1/3 unassigned YES unset down down
...
先學著怎麼設定 GE 0/0 讓自己的 PC 能夠 ping 的到吧
再開機吧
--- System Configuration Dialog ---
Would you like to enter the initial configuration dialog? [yes/no]:
這次選 no
看一下有什麼 command
Router>?
Exec commands:
<0-4>/<0-4> Enter card slot/sublot number
access-enable Create a temporary Access-List entry
access-profile Apply user-profile to interface
clear Reset functions
connect Open a terminal connection
crypto Encryption related commands.
disable Turn off privileged commands
disconnect Disconnect an existing network connection
do-exec Mode-independent "do-exec" prefix support
emm Run a configured Menu System
enable Turn on privileged commands
ethernet Ethernet parameters
exit Exit from the EXEC
help Description of the interactive help system
hw-module Hardware module level specific operations
ip IP SLA Exec Command
ips Intrusion Prevention System
lock Lock the terminal
login Log in as a particular user
logout Exit from the EXEC
modemui Start a modem-like user interface
mrinfo Request neighbor and version information from a multicast
router
mstat Show statistics after multiple multicast traceroutes
mtrace Trace reverse multicast path from destination to source
name-connection Name an existing network connection
pad Open a X.29 PAD connection
ping Send echo messages
power PS exec commands
ppp Start IETF Point-to-Point Protocol (PPP)
release Release a resource
renew Renew a resource
resume Resume an active network connection
rlogin Open an rlogin connection
routing-context Routing Context
set Set system parameter (not config)
show Show running system information
slip Start Serial-line IP (SLIP)
ssh Open a secure shell client connection
systat Display information about terminal lines
tclquit Quit Tool Command Language shell
telnet Open a telnet connection
terminal Set terminal line parameters
traceroute Trace route to destination
trm Trend Registration Module
tunnel Open a tunnel connection
ucse UCSE server
udptn Open an udptn connection
waas IOS Wide Area Application Services
where List active connections
x28 Become an X.28 PAD
x3 Set X.3 parameters on PAD
Router>
利用 enable - Turn on privileged commands
Router>enable
Router#?
Exec commands:
<0-4>/<0-4> Enter card slot/sublot number
access-enable Create a temporary Access-List entry
access-profile Apply user-profile to interface
access-template Create a temporary Access-List entry
archive manage archive files
auto Exec level Automation
beep Blocks Extensible Exchange Protocol commands
bfe For manual emergency modes setting
bulkstat Bulkstat exec commands
calendar Manage the hardware calendar
call-home Call-Home commands
cd Change current directory
clear Reset functions
clock Manage the system clock
cns CNS agents
configure Enter configuration mode
connect Open a terminal connection
copy Copy from one file to another
crypto Encryption related commands.
cts Cisco Trusted Security Exec Commands
debug Debugging functions (see also 'undebug')
delete Delete a file
dir List files on a filesystem
disable Turn off privileged commands
disconnect Disconnect an existing network connection
do-exec Mode-independent "do-exec" prefix support
dot1x IEEE 802.1X Exec Commands
eap EAP Exec Commands
emm Run a configured Menu System
enable Turn on privileged commands
eou EAPoUDP
erase Erase a filesystem
ethernet Ethernet parameters
event Event related commands
exit Exit from the EXEC
format Format a filesystem
fsck Fsck a filesystem
help Description of the interactive help system
hw-module Hardware module level specific operations
if-mgr IF-MGR operations
ip Exec commands for IP features
ip IP SLA Exec Command
ips Intrusion Prevention System
isdn Run an ISDN EXEC command on an ISDN interface
license License information
lock Lock the terminal
logging Handles logging operations
login Log in as a particular user
logout Exit from the EXEC
microcode microcode commands
mkdir Create new directory
modemui Start a modem-like user interface
monitor Monitoring different system events
more Display the contents of a file
mrinfo Request neighbor and version information from a multicast
router
mrm IP Multicast Routing Monitor Test
mstat Show statistics after multiple multicast traceroutes
mtrace Trace reverse multicast path from destination to source
name-connection Name an existing network connection
no Disable debugging functions
onep ONEP related commands
pad Open a X.29 PAD connection
partition Partition disk
ping Send echo messages
power PS exec commands
ppp Start IETF Point-to-Point Protocol (PPP)
pwd Display current working directory
redundancy Redundancy Facility (RF) exec commands
release Release a resource
reload Halt and perform a cold restart
rename Rename a file
renew Renew a resource
restart Restart Connection
resume Resume an active network connection
rlogin Open an rlogin connection
rmdir Remove existing directory
routing-context Routing Context
rsh Execute a remote command
send Send a message to other tty lines
service-module Service module
set Set system parameter (not config)
setup Run the SETUP command facility
show Show running system information
slip Start Serial-line IP (SLIP)
software Software commands
spec-file format spec file commands
ssh Open a secure shell client connection
start-chat Start a chat-script on a line
systat Display information about terminal lines
tarp TARP (Target ID Resolution Protocol) commands
tclquit Quit Tool Command Language shell
tclsh Tool Command Language shell
telnet Open a telnet connection
terminal Set terminal line parameters
test Test subsystems, memory, and interfaces
traceroute Trace route to destination
trm Trend Registration Module
tunnel Open a tunnel connection
ucse UCSE server
udptn Open an udptn connection
undebug Disable debugging functions (see also 'debug')
upgrade Upgrade commands
verify Verify a file
vlan Configure VLAN parameters
vtp Configure global VTP state
waas IOS Wide Area Application Services
webvpn WebVPN exec command
where List active connections
which-route Do OSI route table lookup and display results
write Write running configuration to memory, network, or terminal
x28 Become an X.28 PAD
x3 Set X.3 parameters on PAD
Router#
熟悉一下
在 privileged mode 之下可以利用 configure - Enter configuration mode
Router#configure
Configuring from terminal, memory, or network [terminal]?
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#
看一下 configuration mode 有什麼 command
Router(config)#?
Configure commands:
aaa Authentication, Authorization and Accounting.
access-list Add an access list entry
alias Create command alias
appfw Configure the Application Firewall policy
archive Archive the configuration
arp Set a static ARP entry
async-bootp Modify system bootp parameters
authentication Auth Manager Global Configuration Commands
autoupgrade Auto Upgrade Manager simplifies image upgrade
process
backhaul-session-manager Configure Backhaul Session Manager
banner Define a login banner
bba-group Configure BBA Group
beep Configure BEEP (Blocks Extensible Exchange
Protocol)
bfd BFD configuration commands
bfd-template BFD template configuration
boot Modify system boot parameters
bridge Bridge Group.
buffers Adjust system buffer pool parameters
bulkstat Bulkstat Application
busy-message Display message when connection to host fails
call Configure Call parameters
call-history-mib Define call history mib parameters
call-home Enter call-home configuration mode
carrier-id Name of the carrier associated with this trunk
group
cdp Global CDP configuration subcommands
cef Cisco Express Forwarding
cem Configure a specific cem channel
chat-script Define a modem chat script
cisp Set CISP parameters
class-map Configure CPL Class Map
clns Global CLNS configuration subcommands
clock Configure time-of-day clock
cns CNS agents
config-register Define the configuration register
configuration Configuration access
connect cross-connect two interfaces
control-plane Configure control plane services
credentials credentials service
crypto Encryption module
csdb Common Session Database
cts Cisco Trusted Security commands
cwmp Configure CPE WAN Management Protocol(CWMP)
cws Cloud Web Security
default Set a command to its defaults
default-value Default character-bits values
define interface range macro definition
device-sensor IOS Sensor Commands
dialer Dialer commands
dialer-list Create a dialer list entry
dnsix-dmdp Provide DMDP service for DNSIX
dnsix-nat Provide DNSIX service for audit trails
do-exec To run exec commands in config mode
dot1x IEEE 802.1X Global Configuration Commands
downward-compatible-config Generate a configuration compatible with older
software
dspfarm Enable the dspfarm service
eap EAP Global Configuration Commands
emm Specify pre-loading of MDF
enable Modify enable password parameters
end Exit from configure mode
energywise EnergyWise Global Configuration Commands
eou EAPoUDP Global Configuration Commands
epm EPM Global Configuration Commands
errdisable Error disable
ethernet Ethernet configuration
event Event related configuration commands
exception Exception handling
exit Exit from configure mode
fhrp Configure First Hop Redundancy Protocols
file Adjust file system parameters
flow Global Flow configuration subcommands
flow-sampler-map Flow sampler configuration
format Format the output
frame-relay global frame relay configuration commands
global-address-family Enter address-family base routing topology mode
help Description of the interactive help system
hostname Set system's network name
hw-module Configure specific hardware module
id-manager ID Pool Manager
ida-client IDA Client provides infra for communication with
IDA on cisco server
identity Identity Configuration Commands
interface Select an interface to configure
ip Global IP configuration subcommands
ipc Configure IPC system
iphc-profile Configure IPHC profile
ipv6 Global IPv6 configuration commands
isis Global ISIS configuration subcommands
iua Configure ISDN user Adaptation Layer
ixi IXI Config command
kerberos Configure Kerberos
key Key management
kron Kron interval Facility
l2protocol-tunnel Tunnel Layer2 protocols
l2tp Layer 2 Tunneling Protocol (L2TP) parameters
l2tp-class l2tp-class configuration
li-view LI View
license Configure license features
line Configure a terminal line
lldp Global LLDP configuration subcommands
location Global location configuration commands
logging Modify message logging facilities
login Enable secure login checking
login-string Define a host-specific login string
mab MAC Authentication Bypass Global Configuration
Commands
mac-address-table Configure the MAC address table
macro Create a command macro
map-class Configure static map class
map-list Configure static map list
memory Configure memory management
memory-size Adjust memory size by percentage
menu Define a user-interface menu
metadata Metadata Application
microcode configure microcode
mls mls global commands
modem-pool Configure a modem pool
modemcap Modem Capabilities database
monitor Monitoring different system events
mop Configure the DEC MOP Server
multilink PPP multilink global configuration
nat64 NAT64 configuration commands
netbios NETBIOS access control filtering
netconf Configure NETCONF
network-clock-participate Participate in Network Clocking
network-clock-select Choose system clocking priority
network-clock-switch Network clock switch or restore period
nmsp NMSP configuration commands
no Negate a command or set its defaults
ntp Configure NTP
object-group Configure ACL Object Group
onep ONEP functionality
parameter-map parameter map
parser Configure parser
password Configure encryption password (key)
pnp Configure PNP
policy-map Configure Policy Map
port-channel EtherChannel configuration
ppp PPP global configuration
printer Define an LPD printer
privilege Command privilege parameters
process Configure process
process-max-time Maximum time for process to run before
voluntarily relinquishing processor
prompt Set system's prompt
qos Global QoS configuration subcommands
rbe Commands for Routing RFC 1483 Ethernet
encapsulated packets
redundancy Enter redundancy mode
regexp regexp commands
resource Configure Embedded Resource Manager (ERM)
resume-string Define a host-specific resume string
rif Source-route RIF cache
rlogin Rlogin configuration commands
rmon Remote Monitoring
route-map Create route-map or enter route-map command mode
route-tag Route Tag
router Enable a routing process
sampler Define a Sampler
sasl Configure SASL
scheduler Scheduler parameters
scripting Configure options for scripting languages
secure Secure image and configuration archival commands
security Infra Security CLIs
service Modify use of network based services
service-instance Configure a Static Service
service-list Enter the service list
service-routing Configure service-routing
service-routing Configure service-routing
sgbp SGBP Stack Group Bidding Protocol configuration
shell Configure shell command
shutdown Shutdown system elements
signaling-class Configure signaling class
snap SNAP configuration
snmp Modify non engine SNMP parameters
snmp-server Modify SNMP engine parameters
sntp Configure SNTP
source-bridge Source-route bridging ring groups
spanning-tree Spanning Tree Subsystem
stackmaker Specify stack name and add its member
stacks Configure stacks
standby Global HSRP configuration commands
state-machine Define a TCP dispatch state machine
subscriber Subscriber configuration
subscriber-policy Subscriber policy
table-map Configure Table Map
tacacs-server Modify TACACS query parameters
tarp Global TARP configuration subcommands
template Select a template to configure
terminal-queue Terminal queue commands
tftp-server Provide TFTP service for netload requests
time-range Define time range entries
track Object tracking configuration commands
transceiver Select from transceiver configuration commands
translate Translate global configuration commands
trunk Global trunk configuration
user-group User Group Configuration Commands
username Establish User Name Authentication
vc-group Define a Frame Relay VC group
virtual-profile Virtual Profile configuration
virtual-template Virtual Template configuration
vlan VLAN commands
voice-ctl-file Configure a ctl-file instance
voice-phone-proxy Configure Phone proxy
vpdn Virtual Private Dialup Network
vpdn-group VPDN group configuration
vpdn-template vpdn-template configuration
vrf VRF commands
vstack Configure vstack parameters and enable or disable
SmartInstall
vtp Configure global VTP state
vty-async Enable virtual async line configuration
waas IOS Wide Area Application Services
warm-reboot Warm reboot allows quick reload in case of a
crash or by request
webvpn SSL VPN Commands
wrr-queue Configure weighted round-robin xmt queues
wsma Configure Web Services Management Agents
x25 X.25 Level 3
x29 X29 commands
xot Global XOT commands
zone FW with zoning
zone-pair Zone pair command
Router(config)#
利用 interface - Select an interface to configure 指定 GigabitEthernet 0/0
Router(config)#interface GigabitEthernet 0/0
Router(config-if)#
看一下有哪些 command
Router(config-if)#?
Interface configuration commands:
aaa Authentication, Authorization and Accounting.
access-expression Build a bridge boolean access expression
arp Set arp type (arpa, probe, snap), timeout, log options or
packet priority
authentication Auth Manager Interface Configuration Commands
backup Modify backup parameters
bandwidth Set bandwidth informational parameter
bfd BFD interface configuration commands
bgp-policy Apply policy propagated by bgp community string
bridge-group Transparent bridging interface parameters
carrier-delay Specify delay for interface transitions
cdp CDP interface subcommands
channel-group Add this interface to an Etherchannel group
clns CLNS interface subcommands
cmns OSI CMNS
crypto Encryption/Decryption commands
cts Configure Cisco Trusted Security
cwmp Configure CPE WAN Management Protocol(CWMP) on this
interface
cws Configure Cloud Web Security
dampening Enable event dampening
default Set a command to its defaults
delay Specify interface throughput delay
description Interface specific description
dot1q dot1q interface configuration commands
dot1x Interface Config Commands for IEEE 802.1X
duplex Configure duplex operation.
eou EAPoUDP Interface Configuration Commands
ethernet Ethernet interface parameters
exit Exit from interface configuration mode
fhrp Configure FHRP
flow-sampler Attach flow sampler to the interface
glbp Gateway Load Balancing Protocol interface commands
help Description of the interactive help system
history Interface history histograms - 60 second, 60 minute and
72 hour
hold-queue Set hold queue depth
ip Interface Internet Protocol config commands
iphc-profile Configure IPHC profile
ipv6 IPv6 interface subcommands
isis IS-IS commands
iso-igrp ISO-IGRP interface subcommands
keepalive Enable keepalive
llc2 LLC2 Interface Subcommands
lldp LLDP interface subcommands
load-interval Specify interval for load calculation for an interface
location Interface location information
logging Configure logging for interface
loopback Configure internal loopback on an interface
mab MAC Authentication Bypass Interface Config Commands
mac-address Manually set interface MAC address
macro Command macro
metadata Metadata Application
mop DEC MOP server commands
mtu Set the interface Maximum Transmission Unit (MTU)
nat64 NAT64 interface commands
netbios Use a defined NETBIOS access list or enable name-caching
no Negate a command or set its defaults
ntp Configure NTP
onep Configure onep settings
ospfv3 OSPFv3 interface commands
pagp PAgP interface subcommands
port-tagging Allow port tagging on an interface
pppoe pppoe interface subcommands
pppoe-client pppoe client
rate-limit Rate Limit
redundancy RG redundancy interface config
routing Per-interface routing configuration
service-policy Configure CPL Service Policy
service-routing Service Routing in Interface Mode
shutdown Shutdown the selected interface
snapshot Configure snapshot support on the interface
snmp Modify SNMP interface parameters
source Get config from another source
speed Configure speed operation.
standby HSRP interface configuration commands
tarp TARP interface subcommands
timeout Define timeout values for this interface
topology Configure routing topology on the interface
transmit-interface Assign a transmit interface to a receive-only interface
transport-opt Enable Transport Optimization on an Interface or a
Sub-Interface
tx-ring-limit Configure PA level transmit ring limit
user-group Interface-User-group Association
vlan-id Process VLAN-encapsulated packets with a specific VLAN ID
vlan-range Process VLAN-encapsulated packets with a range of VLAN
IDs
vnet Configure VNET interface options
vrf VPN Routing/Forwarding parameters on the interface
vrrp VRRP Interface configuration commands
waas WAN Optimization
zone-member Apply zone name
Router(config-if)#
利用 ip address ? 得知怎麼來設定 ip
Router(config-if)#ip address ?
A.B.C.D IP address
dhcp IP Address negotiated via DHCP
pool IP Address autoconfigured from a local DHCP pool
ip address 192.168.1.200 255.255.255.0
Router(config-if)#ip address 192.168.1.200 255.255.255.0
Router(config-if)#
怎麼來 check 呢?
這要利用 exit 退出 configuration mode
然後利用 show interfaces GigabitEthernet 0/0
Router#show interfaces GigabitEthernet 0/0
GigabitEthernet0/0 is administratively down, line protocol is down
Hardware is PQ3_TSEC, address is d0d0.fd3f.42e0 (bia d0d0.fd3f.42e0)
Internet address is 192.168.1.200/24
MTU 1500 bytes, BW 1000000 Kbit/sec, DLY 10 usec,
reliability 255/255, txload 1/255, rxload 1/255
Encapsulation ARPA, loopback not set
Keepalive set (10 sec)
Auto Duplex, Auto Speed, media type is RJ45
output flow-control is unsupported, input flow-control is unsupported
ARP type: ARPA, ARP Timeout 04:00:00
Last input never, output never, output hang never
Last clearing of "show interface" counters never
Input queue: 0/75/0/0 (size/max/drops/flushes); Total output drops: 0
Queueing strategy: fifo
Output queue: 0/40 (size/max)
5 minute input rate 0 bits/sec, 0 packets/sec
5 minute output rate 0 bits/sec, 0 packets/sec
0 packets input, 0 bytes, 0 no buffer
Received 0 broadcasts (0 IP multicasts)
0 runts, 0 giants, 0 throttles
0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored
0 watchdog, 0 multicast, 0 pause input
0 packets output, 0 bytes, 0 underruns
0 output errors, 0 collisions, 0 interface resets
0 unknown protocol drops
0 babbles, 0 late collision, 0 deferred
0 lost carrier, 0 no carrier, 0 pause output
0 output buffer failures, 0 output buffers swapped out
可以把網路線接上去了
接上網路線都沒亮燈
應該是受 administratively down 所影響
Router#show interfaces GigabitEthernet 0/0
GigabitEthernet0/0 is administratively down, line protocol is down
...
回到 configuration mode 的 interface GigabitEthernet 0/0
利用 no shutdown 把該 interface 叫起來
Router(config-if)#no shutdown
...
*Nov 12 07:05:02.923: %LINK-3-UPDOWN: Interface GigabitEthernet0/0, changed state to down
*Nov 12 07:05:06.735: %LINK-3-UPDOWN: Interface GigabitEthernet0/0, changed state to up
*Nov 12 07:05:07.735: %LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet0/0, changed state to up
...
應該是起來囉
Router#show interfaces GigabitEthernet 0/0
GigabitEthernet0/0 is up, line protocol is up
...
由 PC 已經可以 ping 到 GigabitEthernet 0/0
關機吧
