0855

目前 CTCU 的 M300 device 不少被駭客攻擊

我先確保 M300 的 multi-user 只有一個

目前 M300 的 user 由 system icos module 所負責

相關的結構定義如下

#define  SYSTEM_USER_NUM                         4

typedef struct
{
    char               szUsername[SYS_USERNAME_SIZE];
    char               szPassword[SYS_PASSWORD_SIZE];      // store in MD5 format
    int                userLevel;                          // level 1..3
} sSystemUser;

typedef struct
{
    char               szHostName[STRING64_SIZE];
    char               szDomain[STRING64_SIZE];
    sSystemUser        user[SYSTEM_USER_NUM];
    int		       szTimeout;
    int		       szRefreshPeriod;
    int                szAlwaysAdvancedSetup;
    int		       sysCfgChanged;
} sSystemConfig;

system icos module 初始化的流程如下

#define  SYSTEM_FAC_CFG_FILE		   "/home/factory/icos/system/systemcfg.ini"

static int LoadDefault(sSystemConfig *pCfg)
{
    ...
    if(0==SysParsorTextFile(SYSTEM_FAC_CFG_FILE, SystemCallBack,pCfg,sizeof(*pCfg)))
    {
        //return ICOS_SUCCESS;
    }
    ...
    return ICOS_SUCCESS;
}

static int InitSystem(char *pCfgStr)
{
    ...
    LoadDefault(pCfg);
    ...
}

sIcosModule systemModule=
{
    .szName        = "system",
    .Init          = InitSystem,
    .Exit          = ExitSystem,
    .Apply         = ApplySystemSetting,
    .GetSetting    = GetSystemSetting,
    .SetSetting    = SetSystemSetting,
    .VerifySetting = VerifySystemSetting,
    .GetStatus     = GetSystemInformation,
};

要理解 /home/factory/icos/system/systemcfg.ini 這個 file 要先盤一下 rootfs 的產出過程

先看一下 source code 內 proscend 下的 Makefile

BUILD_BASE				:= $(shell pwd)
...
CUSTOMER_FS_DIR			:= $(BUILD_BASE)/customer_fs
...
default all:
	echo "PROSCEND BUILD"
	@rm -rf deploy_fs
	@cp -af base_fs deploy_fs
	...
	@make -C $(CUSTOMER_FS_DIR)
	...

systemcfg.ini 會受 base_fs 以及 customer_fs 所影響

customer_fs 若有 systemcfg.ini 還會蓋掉 base_fs 內的 systemcfg.ini

先看到 base_fs - proscend/base_fs/default/rootfs/home/factory/icos/system/systemcfg.ini

hostname=
timeout=300
alwaysadvancedsetup=0

user-id=1
username=root
password=$1$$2Dg0uARUa9gcTJ9I5/iKb/
level=3

再看到 customer_fs 這裡不只一個客戶

  • proscend/customer_fs/AZURETEC
  • proscend/customer_fs/AZURETEC_GPS
  • proscend/customer_fs/CTCU
  • proscend/customer_fs/CTCU_GPS
  • proscend/customer_fs/PLANET
  • proscend/customer_fs/PLANET_GPS
  • proscend/customer_fs/XENTINO

裏頭有 systemcfg.ini 有

  • proscend/customer_fs/CTCU/default/rootfs/home/factory/icos/system/systemcfg.ini
  • proscend/customer_fs/CTCU_GPS/default/rootfs/home/factory/icos/system/systemcfg.ini
  • proscend/customer_fs/PLANET/default/rootfs/home/factory/icos/system/systemcfg.ini
  • proscend/customer_fs/PLANET_GPS/default/rootfs/home/factory/icos/system/systemcfg.ini

內容如下

proscend/customer_fs/CTCU/default/rootfs/home/factory/icos/system/systemcfg.ini

hostname=
timeout=300
alwaysadvancedsetup=0

user-id=1
username=admin
password=$1$$qRPK7m23GJusamGpoGLby/
level=3

user-id=2
username=user
password=$1$$ex9cQFo.PV11eSLXJFZuj.
level=1

proscend/customer_fs/CTCU_GPS/default/rootfs/home/factory/icos/system/systemcfg.ini

hostname=
timeout=300
alwaysadvancedsetup=0

user-id=1
username=admin
password=$1$$qRPK7m23GJusamGpoGLby/
level=3

user-id=2
username=user
password=$1$$ex9cQFo.PV11eSLXJFZuj.
level=1

proscend/customer_fs/PLANET/default/rootfs/home/factory/icos/system/systemcfg.ini

hostname=Cellular Gateway
timeout=300
alwaysadvancedsetup=0

user-id=1
username=admin
password=$1$$CoERg7ynjYLsj2j4glJ34.
level=3

user-id=2
username=user
password=$1$$ex9cQFo.PV11eSLXJFZuj.
level=1

proscend/customer_fs/PLANET_GPS/default/rootfs/home/factory/icos/system/systemcfg.ini

hostname=
timeout=300
alwaysadvancedsetup=0

user-id=1
username=admin
password=$1$$CoERg7ynjYLsj2j4glJ34.
level=3

user-id=2
username=user
password=$1$$ex9cQFo.PV11eSLXJFZuj.
level=1

把 user-id=2 的部分刪掉

diff --git a/proscend/customer_fs/CTCU/default/rootfs/home/factory/icos/system/systemcfg.ini b/proscend/customer_fs/CTCU/default/rootfs/home/factory/icos/system/systemcfg.ini
index 31df307..e977e2c 100644
--- a/proscend/customer_fs/CTCU/default/rootfs/home/factory/icos/system/systemcfg.ini
+++ b/proscend/customer_fs/CTCU/default/rootfs/home/factory/icos/system/systemcfg.ini
@@ -6,8 +6,3 @@ user-id=1
 username=admin
 password=$1$$qRPK7m23GJusamGpoGLby/
 level=3
-
-user-id=2
-username=user
-password=$1$$ex9cQFo.PV11eSLXJFZuj.
-level=1
diff --git a/proscend/customer_fs/CTCU_GPS/default/rootfs/home/factory/icos/system/systemcfg.ini b/proscend/customer_fs/CTCU_GPS/default/rootfs/home/factory/icos/system/systemcfg.ini
index 31df307..e977e2c 100644
--- a/proscend/customer_fs/CTCU_GPS/default/rootfs/home/factory/icos/system/systemcfg.ini
+++ b/proscend/customer_fs/CTCU_GPS/default/rootfs/home/factory/icos/system/systemcfg.ini
@@ -6,8 +6,3 @@ user-id=1
 username=admin
 password=$1$$qRPK7m23GJusamGpoGLby/
 level=3
-
-user-id=2
-username=user
-password=$1$$ex9cQFo.PV11eSLXJFZuj.
-level=1
diff --git a/proscend/customer_fs/PLANET/default/rootfs/home/factory/icos/system/systemcfg.ini b/proscend/customer_fs/PLANET/default/rootfs/home/factory/icos/system/systemcfg.ini
index 120e9f5..4f29946 100644
--- a/proscend/customer_fs/PLANET/default/rootfs/home/factory/icos/system/systemcfg.ini
+++ b/proscend/customer_fs/PLANET/default/rootfs/home/factory/icos/system/systemcfg.ini
@@ -6,8 +6,3 @@ user-id=1
 username=admin
 password=$1$$CoERg7ynjYLsj2j4glJ34.
 level=3
-
-user-id=2
-username=user
-password=$1$$ex9cQFo.PV11eSLXJFZuj.
-level=1
diff --git a/proscend/customer_fs/PLANET_GPS/default/rootfs/home/factory/icos/system/systemcfg.ini b/proscend/customer_fs/PLANET_GPS/default/rootfs/home/factory/icos/system/systemcfg.ini
index 53cfc07..6d04859 100644
--- a/proscend/customer_fs/PLANET_GPS/default/rootfs/home/factory/icos/system/systemcfg.ini
+++ b/proscend/customer_fs/PLANET_GPS/default/rootfs/home/factory/icos/system/systemcfg.ini
@@ -6,8 +6,3 @@ user-id=1
 username=admin
 password=$1$$CoERg7ynjYLsj2j4glJ34.
 level=3
-
-user-id=2
-username=user
-password=$1$$ex9cQFo.PV11eSLXJFZuj.
-level=1

proscend 下 make distclean 再 make menuconfig 選擇 M300/4_CTCU

verify ok... 的確只剩一組 user

上 code 吧

commit efa65189413775247ee7501c7d62dba8d723076c
Refs: [release/v1.74], {origin/release/v1.74}
Author: jeffrey <[email protected]>
Date:   Wed Oct 24 10:28:38 2018 +0800

    remove the second user at default configuration at following customer_fs:
    - CTCU
    - CTCU_GPS
    - PLANET
    - PLANET_GPS

 .../CTCU/default/rootfs/home/factory/icos/system/systemcfg.ini       | 5 -----
 .../CTCU_GPS/default/rootfs/home/factory/icos/system/systemcfg.ini   | 5 -----
 .../PLANET/default/rootfs/home/factory/icos/system/systemcfg.ini     | 5 -----
 .../PLANET_GPS/default/rootfs/home/factory/icos/system/systemcfg.ini | 5 -----
 4 files changed, 20 deletions(-)

1040

盤一下目前每個客戶的 預設帳密

  • nobrand - Name: root, default password: 2wsx#EDC
  • advice - Name: root, default password: 2wsx#EDC
  • Azerutec - Name: root, default password: 2wsx#EDC
  • CTCU - Name: admin, default password:
  • CXR - Name: root, default password: 2wsx#EDC
  • Hytec - Name: root, default password: 2wsx#EDC
  • Lite - Name: root, default password: 2wsx#EDC
  • Nautilus - Name: root, default password: 2wsx#EDC
  • Planet - Name: admin, default password: admin
  • Telewell - Name: root, default password: 2wsx#EDC
  • WIDE - Name: root, default password: 2wsx#EDC
  • Xentino - Name: root, default password: 2wsx#EDC

看來就 CTCU 跟 Planet 最有風險

1045

試著讓 dual image 都吃同一份 config

先整理 nandflash 的部分

flash layout 的部分就保持不動 - 由 uboot 的 bootargs 裡的 mtdparts 所決定

索性連 emmc 一起整理

1315

nandflash 的部分修改如下

diff --git a/proscend/memory_fs/nandflash/default/rootfs/etc/rc.local b/proscend/memory_fs/nandflash/default/rootfs/etc/rc.local
index 53c4184..616b56e 100644
--- a/proscend/memory_fs/nandflash/default/rootfs/etc/rc.local
+++ b/proscend/memory_fs/nandflash/default/rootfs/etc/rc.local
@@ -50,7 +50,6 @@ app_a_mtdn=5
 app_b_mtdn=10

 app_1_mount_n="/mnt/config"
-app_2_mount_n="/tmp/app_2"

 app_1_mount_d_data="/mnt/config/data"
 app_1_mount_n_data="/mnt/data"
@@ -58,23 +57,15 @@ app_1_mount_n_data="/mnt/data"
 app_1_mount_d_log="/mnt/config/log"
 app_1_mount_n_log="/home/log"

-app_2_data="/tmp/app_2/data"
-


 if df | grep rootfs_a
 then
     app_1_mtdn=$app_a_mtdn
     app_1_mount_d="ubi1:config_a"
-
-    app_2_mtdn=$app_b_mtdn
-    app_2_mount_d="ubi2:config_b"
 else
-    app_1_mtdn=$app_b_mtdn
-    app_1_mount_d="ubi1:config_b"
-
-    app_2_mtdn=$app_a_mtdn
-    app_2_mount_d="ubi2:config_a"
+    app_1_mtdn=$app_a_mtdn
+    app_1_mount_d="ubi1:config_a"
 fi


@@ -87,9 +78,6 @@ sysinfo_backup_app_1_dir="$app_1_mount_n_data"
 sysinfo_backup_app_1_file="sysinfo.txt"
 sysinfo_backup_app_1_path="$sysinfo_backup_app_1_dir"/"$sysinfo_backup_app_1_file"

-sysinfo_backup_app_2_dir="$app_2_data"
-sysinfo_backup_app_2_file="sysinfo.txt"
-sysinfo_backup_app_2_path="$sysinfo_backup_app_2_dir"/"$sysinfo_backup_app_2_file"


 # icos data storage
@@ -117,13 +105,6 @@ mkdir -p "$app_1_data_rtc"



-ubiattach -m $app_2_mtdn
-mkdir -p "$app_2_mount_n"
-mount -t ubifs "$app_2_mount_d" "$app_2_mount_n"
-mkdir -p "$app_2_data"
-
-
-
 # get uboot_env_ver from uboot env
 UBOOT_ENV_VER=$(fw_printenv uboot_env_ver 2>/dev/null | awk -F"=" '{ print $2 }')
 if [ "$UBOOT_ENV_VER" = "" ]
@@ -222,7 +203,6 @@ core_uboot_env_loose_indicate 0


 cp "$sysinfo_path" "$sysinfo_backup_app_1_path"
-cp "$sysinfo_path" "$sysinfo_backup_app_2_path"



diff --git a/proscend/memory_fs/nandflash/default/rootfs/usr/sbin/icos/FirmwareUpgrade.sh b/proscend/memory_fs/nandflash/default/rootfs/usr/sbin/icos/FirmwareUpgrade.sh
old mode 100755
new mode 100644
index 5b1fd0d..c38f0f4
--- a/proscend/memory_fs/nandflash/default/rootfs/usr/sbin/icos/FirmwareUpgrade.sh
+++ b/proscend/memory_fs/nandflash/default/rootfs/usr/sbin/icos/FirmwareUpgrade.sh
@@ -181,21 +181,6 @@ function burn_rootfs {



-# Synchronize the config MTD device
-function sync_config_mtd {
-  log "\nSynchronize the config MTD device ..."
-  progress_status "Synchronize the config MTD device ..."
-
-  log "Remove target config before copy"
-  rm -rf /tmp/app_2/data/*
-
-  cp -r /mnt/data/* /tmp/app_2/data
-
-  log "Synchronize the config MTD device succeeded"
-  progress_status "Synchronize the config MTD device succeeded"
-}
-
-
 function upgrade_nandflash_image {
     log "\nUpgrading the firmware for 'NAND Flash' storage memory ..."

@@ -254,11 +239,6 @@ function upgrade_nandflash_image {
         fi
     fi

-    progress=90
-
-    progress_log "Synchronizing the system configuration" "$progress" "$proportion" "$progress_base"
-    sync_config_mtd
-

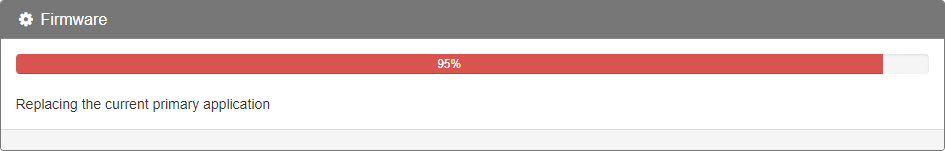

     progress=95
     progress_log "Replacing the current primary application" "$progress" "$proportion" "$progress_base"
     replace_primary_app

與 nandfalsh 以及 emmc 獨立的部分修改如下

diff --git a/proscend/prosrc/icos/icoslib/customize/customize.c b/proscend/prosrc/icos/icoslib/customize/customize.c
index 858749c..f9e7ea4 100644
--- a/proscend/prosrc/icos/icoslib/customize/customize.c
+++ b/proscend/prosrc/icos/icoslib/customize/customize.c
@@ -22,10 +22,8 @@

 #ifdef PROSRC_EMMC
 #define APP_1_DIR_NAME              "/mnt/mmc/app_a/app"
-#define APP_2_DIR_NAME              "/mnt/mmc/app_b/app"
 #else
 #define APP_1_DIR_NAME              "/mnt/config/app"
-#define APP_2_DIR_NAME              "/tmp/app_2/app"
 #endif


@@ -36,13 +34,11 @@
 #define CUSTOMIZE_ETC_DIR           ICOS_DIR"/"CUSTOMIZE_DIR_NAME

 #define CUSTOMIZE_APP_1_DIR         APP_1_DIR_NAME"/"CUSTOMIZE_DIR_NAME
-#define CUSTOMIZE_APP_2_DIR         APP_2_DIR_NAME"/"CUSTOMIZE_DIR_NAME

 #define CUSTOMIZE_TMP_DIR           TMPICOS_DIR"/"CUSTOMIZE_DIR_NAME
 #define CUSTOMIZE_ETC_CFG_FILE      CUSTOMIZE_ETC_DIR"/"CUSTOMIZE_CFG_NAME

 #define CUSTOMIZE_APP_1_CFG_FILE    CUSTOMIZE_APP_1_DIR"/"CUSTOMIZE_CFG_NAME
-#define CUSTOMIZE_APP_2_CFG_FILE    CUSTOMIZE_APP_2_DIR"/"CUSTOMIZE_CFG_NAME

 #define CUSTOMIZE_TMP_CFG_FILE      CUSTOMIZE_TMP_DIR"/"CUSTOMIZE_CFG_NAME
 #define CUSTOMIZE_FACTORY_CFG_FILE  "/home/factory/icos/"CUSTOMIZE_DIR_NAME"/"CUSTOMIZE_CFG_NAME
@@ -151,21 +147,11 @@ static int _init(char *pCfgStr)
         mkdir(APP_1_DIR_NAME, 0755);
     }

-    if (stat(APP_2_DIR_NAME, &st) < 0)
-    {
-        mkdir(APP_2_DIR_NAME, 0755);
-    }
-
     if (stat(CUSTOMIZE_APP_1_DIR, &st) < 0)
     {
         mkdir(CUSTOMIZE_APP_1_DIR, 0755);
     }

-    if (stat(CUSTOMIZE_APP_2_DIR, &st) < 0)
-    {
-        mkdir(CUSTOMIZE_APP_2_DIR, 0755);
-    }
-
     if (stat(CUSTOMIZE_TMP_DIR, &st) < 0)
     {
         mkdir(CUSTOMIZE_TMP_DIR, 0755);
@@ -397,7 +383,6 @@ static int _set_setting(int flag, int index, void* pStruct, int structSize)

     json_object_to_file_ext(CUSTOMIZE_TMP_CFG_FILE, jobj, JSON_C_TO_STRING_PRETTY);
     SysCopyFile(CUSTOMIZE_TMP_CFG_FILE, CUSTOMIZE_APP_1_CFG_FILE);
-    SysCopyFile(CUSTOMIZE_TMP_CFG_FILE, CUSTOMIZE_APP_2_CFG_FILE);

     return result;
 }



diff --git a/proscend/prosrc/icos/script/FirmwareUpgradeAPI.sh b/proscend/prosrc/icos/script/FirmwareUpgradeAPI.sh
old mode 100755
new mode 100644
index 98ed916..10a0b7a
--- a/proscend/prosrc/icos/script/FirmwareUpgradeAPI.sh
+++ b/proscend/prosrc/icos/script/FirmwareUpgradeAPI.sh
@@ -456,9 +456,6 @@ function upgrade_cfile {
         return 1
     fi

-    # cp the cfile to another dual image partition
-    cp "$ICOS_CFILE_PATH" /tmp/app_2/data
-
     return 0
 }

emmc 的部分修改如下

diff --git a/proscend/memory_fs/emmc/default/rootfs/etc/rc.local b/proscend/memory_fs/emmc/default/rootfs/etc/rc.local
index a262d1d..4bfce27 100644
--- a/proscend/memory_fs/emmc/default/rootfs/etc/rc.local
+++ b/proscend/memory_fs/emmc/default/rootfs/etc/rc.local
@@ -46,11 +46,6 @@ mmc_mount_d_app_a_data="/mnt/mmc/app_a/data"
 mmc_mount_d_app_a_log="/mnt/mmc/app_a/log"
 mmc_mount_d_app_a_user_data="/mnt/mmc/app_a/user_data"

-mmc_mount_d_app_b="/mnt/mmc/app_b"
-mmc_mount_d_app_b_data="/mnt/mmc/app_b/data"
-mmc_mount_d_app_b_log="/mnt/mmc/app_b/log"
-mmc_mount_d_app_b_user_data="/mnt/mmc/app_b/user_data"
-
 app_mount_n_data="/mnt/data"
 app_mount_n_log="/home/log"

@@ -62,10 +57,6 @@ sysinfo_backup_app_a_dir="$mmc_mount_d_app_a_data"
 sysinfo_backup_app_a_file="sysinfo.txt"
 sysinfo_backup_app_a_path="$sysinfo_backup_app_a_dir"/"$sysinfo_backup_app_a_file"

-sysinfo_backup_app_b_dir="$mmc_mount_d_app_b_data"
-sysinfo_backup_app_b_file="sysinfo.txt"
-sysinfo_backup_app_b_path="$sysinfo_backup_app_b_dir"/"$sysinfo_backup_app_b_file"
-
 # icos data storage
 app_data_icos="$app_mount_n_data"/"icos"

@@ -82,9 +73,9 @@ then
     sysinfo_backup_app_1_path=$sysinfo_backup_app_a_path
 else
     echo "running dual image is b"
-    app_mount_d_data=$mmc_mount_d_app_b_data
-    app_mount_d_log=$mmc_mount_d_app_b_log
-    sysinfo_backup_app_1_path=$sysinfo_backup_app_b_path
+    app_mount_d_data=$mmc_mount_d_app_a_data
+    app_mount_d_log=$mmc_mount_d_app_a_data
+    sysinfo_backup_app_1_path=$sysinfo_backup_app_a_path
 fi


@@ -97,10 +88,6 @@ mkdir -p "$mmc_mount_d_app_a_data"
 mkdir -p "$mmc_mount_d_app_a_log"
 mkdir -p "$mmc_mount_d_app_a_user_data"

-mkdir -p "$mmc_mount_d_app_b_data"
-mkdir -p "$mmc_mount_d_app_b_log"
-mkdir -p "$mmc_mount_d_app_b_user_data"
-
 mkdir -p "$app_mount_n_data"
 mkdir -p "$app_mount_n_log"

@@ -210,7 +197,6 @@ core_uboot_env_loose_indicate 0


 cp "$sysinfo_path" "$sysinfo_backup_app_a_path"
-cp "$sysinfo_path" "$sysinfo_backup_app_b_path"



diff --git a/proscend/memory_fs/emmc/default/rootfs/usr/sbin/icos/FirmwareUpgrade.sh b/proscend/memory_fs/emmc/default/rootfs/usr/sbin/icos/FirmwareUpgrade.sh
old mode 100755
new mode 100644
index 33b2c18..bea4479
--- a/proscend/memory_fs/emmc/default/rootfs/usr/sbin/icos/FirmwareUpgrade.sh
+++ b/proscend/memory_fs/emmc/default/rootfs/usr/sbin/icos/FirmwareUpgrade.sh
@@ -65,13 +65,6 @@ rootfs_app_b_dir="$mmc_p3_mount_n"



-data_app_a_dir="/mnt/mmc/app_a/data"
-data_app_b_dir="/mnt/mmc/app_b/data"
-
-data_app_1_dir="/mnt/data/"
-
-
-
 # Init the context for upgrading the firmware
 function context_init {
   log "\nInit the context for upgrading the firmware ..."
@@ -85,14 +78,12 @@ function context_init {
     zImage_app_2_path="$zImage_app_b_path"
     dtb_app_2_path="$dtb_app_b_path"
     rootfs_app_2_path="$rootfs_app_b_dir"
-    data_app_2_dir="$data_app_b_dir"
   else
     log "running dual image is b"

     zImage_app_2_path="$zImage_app_a_path"
     dtb_app_2_path="$dtb_app_a_path"
     rootfs_app_2_path="$rootfs_app_a_dir"
-    data_app_2_dir="$data_app_a_dir"
   fi


@@ -190,22 +181,6 @@ function burn_rootfs_emmc {



-# Synchronize the app data
-function sync_app_data {
-  log "\nSynchronize the app data ..."
-  progress_status "Synchronize the app data ..."
-
-  log "rm -rf $data_app_2_dir/*"
-  rm -rf "$data_app_2_dir"/* > /dev/null 2>&1
-
-  log "cp -r $data_app_1_dir/* $data_app_2_dir"
-  cp -r "$data_app_1_dir"/* "$data_app_2_dir" > /dev/null 2>&1
-
-  log "Synchronize the app data succeeded"
-  progress_status "Synchronize the app data succeeded"
-}
-
-
 # upgrade the firmware for 'eMMC' storage memory
 function upgrade_emmc_image {
     log "\nUpgrading the firmware for 'eMMC' storage memory ..."
@@ -266,10 +241,6 @@ function upgrade_emmc_image {
         fi
     fi

-    progress=90
-    progress_log "Synchronizing the system configuration" "$progress" "$proportion" "$progress_base"
-    sync_app_data
-
     progress=95
     progress_log "Replacing the current primary application" "$progress" "$proportion" "$progress_base"

先 build 一版 nand flash 的試試 - M300/4_CTCU... ok

mfgtool 燒錄... ok

實際測試

icosconfig bootinit... PASS

cat /home/log/web.log... PASS

check current partition... a

修改 WAN Priority - from ETH First to LTE Only

故意不完整開機兩次讓 device 切換 partition... ok

icosconfig bootinit... PASS

cat /home/log/web.log... PASS - 目前 log 也不分兩個 partition 了

check current partition... b

check WAN Priority... LTE Only

接著來試 firmware upgrade

失敗了


從 log 可以看到

...
Burn the rootfs to NAND Flash ...
Erasing rootfs_a patition and format it - MTD device 4
Attach rootfs_a patition to UBI - MTD device 4
Error: ubiattach /dev/ubi_ctrl -m 4 failed
burn_rootfs done
...

ubiattach 會受到目前 ubi device 數目的影響

最安全的作法是不要把 rc.local 跟 config_b 相關的 ubiattach 拿掉

再重新修改一次

nandflash 的改動如下

diff --git a/proscend/memory_fs/nandflash/default/rootfs/etc/rc.local b/proscend/memory_fs/nandflash/default/rootfs/etc/rc.local
index 53c4184..7c1b097 100644
--- a/proscend/memory_fs/nandflash/default/rootfs/etc/rc.local
+++ b/proscend/memory_fs/nandflash/default/rootfs/etc/rc.local
@@ -70,11 +70,11 @@ then
     app_2_mtdn=$app_b_mtdn
     app_2_mount_d="ubi2:config_b"
 else
-    app_1_mtdn=$app_b_mtdn
-    app_1_mount_d="ubi1:config_b"
+    app_1_mtdn=$app_a_mtdn
+    app_1_mount_d="ubi1:config_a"

-    app_2_mtdn=$app_a_mtdn
-    app_2_mount_d="ubi2:config_a"
+    app_2_mtdn=$app_b_mtdn
+    app_2_mount_d="ubi2:config_b"
 fi


diff --git a/proscend/memory_fs/nandflash/default/rootfs/usr/sbin/icos/FirmwareUpgrade.sh b/proscend/memory_fs/nandflash/default/rootfs/usr/sbin/icos/FirmwareUpgrade.sh
old mode 100755
new mode 100644
index 5b1fd0d..f712d1c
--- a/proscend/memory_fs/nandflash/default/rootfs/usr/sbin/icos/FirmwareUpgrade.sh
+++ b/proscend/memory_fs/nandflash/default/rootfs/usr/sbin/icos/FirmwareUpgrade.sh
@@ -254,11 +254,6 @@ function upgrade_nandflash_image {
         fi
     fi

-    progress=90
-
-    progress_log "Synchronizing the system configuration" "$progress" "$proportion" "$progress_base"
-    sync_config_mtd
-
     progress=95
     progress_log "Replacing the current primary application" "$progress" "$proportion" "$progress_base"
     replace_primary_app

emmc 的改動如下

diff --git a/proscend/memory_fs/emmc/default/rootfs/etc/rc.local b/proscend/memory_fs/emmc/default/rootfs/etc/rc.local
index a262d1d..f588bb0 100644
--- a/proscend/memory_fs/emmc/default/rootfs/etc/rc.local
+++ b/proscend/memory_fs/emmc/default/rootfs/etc/rc.local
@@ -82,9 +82,9 @@ then
     sysinfo_backup_app_1_path=$sysinfo_backup_app_a_path
 else
     echo "running dual image is b"
-    app_mount_d_data=$mmc_mount_d_app_b_data
-    app_mount_d_log=$mmc_mount_d_app_b_log
-    sysinfo_backup_app_1_path=$sysinfo_backup_app_b_path
+    app_mount_d_data=$mmc_mount_d_app_a_data
+    app_mount_d_log=$mmc_mount_d_app_a_log
+    sysinfo_backup_app_1_path=$sysinfo_backup_app_a_path
 fi


diff --git a/proscend/memory_fs/emmc/default/rootfs/usr/sbin/icos/FirmwareUpgrade.sh b/proscend/memory_fs/emmc/default/rootfs/usr/sbin/icos/FirmwareUpgrade.sh
old mode 100755
new mode 100644
index 33b2c18..7333aa1
--- a/proscend/memory_fs/emmc/default/rootfs/usr/sbin/icos/FirmwareUpgrade.sh
+++ b/proscend/memory_fs/emmc/default/rootfs/usr/sbin/icos/FirmwareUpgrade.sh
@@ -266,10 +266,6 @@ function upgrade_emmc_image {
         fi
     fi

-    progress=90
-    progress_log "Synchronizing the system configuration" "$progress" "$proportion" "$progress_base"
-    sync_app_data
-
     progress=95
     progress_log "Replacing the current primary application" "$progress" "$proportion" "$progress_base"

共通的部分改動如下

diff --git a/proscend/prosrc/icos/icoslib/customize/customize.c b/proscend/prosrc/icos/icoslib/customize/customize.c
index 858749c..f9e7ea4 100644
--- a/proscend/prosrc/icos/icoslib/customize/customize.c
+++ b/proscend/prosrc/icos/icoslib/customize/customize.c
@@ -22,10 +22,8 @@

 #ifdef PROSRC_EMMC
 #define APP_1_DIR_NAME              "/mnt/mmc/app_a/app"
-#define APP_2_DIR_NAME              "/mnt/mmc/app_b/app"
 #else
 #define APP_1_DIR_NAME              "/mnt/config/app"
-#define APP_2_DIR_NAME              "/tmp/app_2/app"
 #endif


@@ -36,13 +34,11 @@
 #define CUSTOMIZE_ETC_DIR           ICOS_DIR"/"CUSTOMIZE_DIR_NAME

 #define CUSTOMIZE_APP_1_DIR         APP_1_DIR_NAME"/"CUSTOMIZE_DIR_NAME
-#define CUSTOMIZE_APP_2_DIR         APP_2_DIR_NAME"/"CUSTOMIZE_DIR_NAME

 #define CUSTOMIZE_TMP_DIR           TMPICOS_DIR"/"CUSTOMIZE_DIR_NAME
 #define CUSTOMIZE_ETC_CFG_FILE      CUSTOMIZE_ETC_DIR"/"CUSTOMIZE_CFG_NAME

 #define CUSTOMIZE_APP_1_CFG_FILE    CUSTOMIZE_APP_1_DIR"/"CUSTOMIZE_CFG_NAME
-#define CUSTOMIZE_APP_2_CFG_FILE    CUSTOMIZE_APP_2_DIR"/"CUSTOMIZE_CFG_NAME

 #define CUSTOMIZE_TMP_CFG_FILE      CUSTOMIZE_TMP_DIR"/"CUSTOMIZE_CFG_NAME
 #define CUSTOMIZE_FACTORY_CFG_FILE  "/home/factory/icos/"CUSTOMIZE_DIR_NAME"/"CUSTOMIZE_CFG_NAME
@@ -151,21 +147,11 @@ static int _init(char *pCfgStr)
         mkdir(APP_1_DIR_NAME, 0755);
     }

-    if (stat(APP_2_DIR_NAME, &st) < 0)
-    {
-        mkdir(APP_2_DIR_NAME, 0755);
-    }
-
     if (stat(CUSTOMIZE_APP_1_DIR, &st) < 0)
     {
         mkdir(CUSTOMIZE_APP_1_DIR, 0755);
     }

-    if (stat(CUSTOMIZE_APP_2_DIR, &st) < 0)
-    {
-        mkdir(CUSTOMIZE_APP_2_DIR, 0755);
-    }
-
     if (stat(CUSTOMIZE_TMP_DIR, &st) < 0)
     {
         mkdir(CUSTOMIZE_TMP_DIR, 0755);
@@ -397,7 +383,6 @@ static int _set_setting(int flag, int index, void* pStruct, int structSize)

     json_object_to_file_ext(CUSTOMIZE_TMP_CFG_FILE, jobj, JSON_C_TO_STRING_PRETTY);
     SysCopyFile(CUSTOMIZE_TMP_CFG_FILE, CUSTOMIZE_APP_1_CFG_FILE);
-    SysCopyFile(CUSTOMIZE_TMP_CFG_FILE, CUSTOMIZE_APP_2_CFG_FILE);

     return result;
 }
diff --git a/proscend/prosrc/icos/script/FirmwareUpgradeAPI.sh b/proscend/prosrc/icos/script/FirmwareUpgradeAPI.sh
old mode 100755
new mode 100644
index 98ed916..10a0b7a
--- a/proscend/prosrc/icos/script/FirmwareUpgradeAPI.sh
+++ b/proscend/prosrc/icos/script/FirmwareUpgradeAPI.sh
@@ -456,9 +456,6 @@ function upgrade_cfile {
         return 1
     fi

-    # cp the cfile to another dual image partition
-    cp "$ICOS_CFILE_PATH" /tmp/app_2/data
-
     return 0
 }

一樣 build 一版 nand flash 的試試 - M300/4_CTCU... ok

mfgtool 燒錄... ok

實際測試

icosconfig bootinit... PASS

cat /home/log/web.log... PASS

check current partition... a

修改 WAN Priority - from ETH First to LTE First

故意不完整開機兩次讓 device 切換 partition... ok

icosconfig bootinit... PASS

cat /home/log/web.log... PASS - 目前 log 也不分兩個 partition 了

check current partition... b

check WAN Priority... LTE First

來試 firmware upgrade... PASS

改 build 一版 emmc 的來試試

記得重新 source proenv.sh 一次 - source proenv.sh m300e proscend-m300e

進 proscend

make distclean 再 make menuconfig 選 M300E/1_GPS

build bimage.sh... ok

mfgtoo 燒錄... ok

測試

icosconfig bootinit... PASS

cat /home/log/web.log... PASS

check current partition... 空白...

趕緊修一下

diff --git a/proscend/memory_fs/emmc/default/rootfs/etc/rc.local b/proscend/memory_fs/emmc/default/rootfs/etc/rc.local
index a262d1d..92eaf0a 100644
--- a/proscend/memory_fs/emmc/default/rootfs/etc/rc.local
+++ b/proscend/memory_fs/emmc/default/rootfs/etc/rc.local

@@ -192,7 +192,7 @@ fi


 # get the app primary
-APP_PRIMARY=$(fw_printenv app_primary 2>/dev/null | awk -F"=" '{ print $2 }')
+APP_PRIMARY=$(fw_printenv app_1 2>/dev/null | awk -F"=" '{ print $2 }')

再 build 一次

省點時間 先手動編輯 /etc/rc.local 後再重開機看看

PASS

root@Hardened Cellular Router:~# cat /tmp/etc/sysinfo.txt
UBOOT_ENV_VER=emmc_v1.0
MAC=random
HW_MCSV=016800001732C320
SERIALNO=NA
APP_PRIMARY=a

一樣修改 WAN Priority - from ETH First to LTE Only

故意不完整開機兩次讓 device 切換 partition... ok

icosconfig bootinit... PASS

cat /home/log/web.log... PASS - 目前 log 也不分兩個 partition 了

check current partition... b

check WAN Priority... LTE Only... PASS

試 firmware upgrade... ok

上 code 吧

commit 3ec75d4c37cf2dbfd260bfcbea18e86f3aef79d1
Refs: [release/v1.74], {origin/release/v1.74}
Author: jeffrey <[email protected]>
Date:   Wed Oct 24 16:38:08 2018 +0800

    no matter which active image partition is, use the same configuratition area at nandflash or emmc

 proscend/memory_fs/emmc/default/rootfs/etc/rc.local       |  8 ++++----
 .../emmc/default/rootfs/usr/sbin/icos/FirmwareUpgrade.sh  |  4 ----
 proscend/memory_fs/nandflash/default/rootfs/etc/rc.local  |  8 ++++----
 .../default/rootfs/usr/sbin/icos/FirmwareUpgrade.sh       |  5 -----
 proscend/prosrc/icos/icoslib/customize/customize.c        | 15 ---------------
 proscend/prosrc/icos/script/FirmwareUpgradeAPI.sh         |  3 ---
 6 files changed, 8 insertions(+), 35 deletions(-)

1640

先切回 M360 作一些小修改

pull the latest code of develop branch

build image... ok

upgrade via uboot... ok

commit b97794b51634ed783d1f8ff64171d0e270bcbd18
Refs: [develop], {origin/develop}
Author: jeffrey <[email protected]>
Date:   Wed Oct 24 16:58:26 2018 +0800

    - add 'Roaming' field at 'Status' web page
    - remove 'ANY' option from 'LTE / Lock Bands' web page

 proscend/prosrc/www/app/feature/lock_bands.html     | 2 +-
 proscend/prosrc/www/src/app/feature/status.html.src | 8 ++++++++
 2 files changed, 9 insertions(+), 1 deletion(-)

1700

再度切回 M300

build 一版 nandflash 適用的... ok

mfgtool 燒錄... ok

lock band 和 lock pci web page 不用 login 應該是 catch 所導致

忽略該 issue
