0900
review
0955
今年度的健康檢查順利結束
腹部超音波檢查順利 有中度脂肪肝
抽血的自費項目全選了 一年花一次買保險
1000
繼續 52XXZ 的 zebra
準備一個 debug 用的 zebra configuration - /tmp/zebra.conf
log file /tmp/zebra.log
啟動 zebra 並套用該 debug 用的 configuration - zebra -f /tmp/zebra.conf -u root
root@52XXZ:~# zebra -f /tmp/zebra.conf -u root
Multiple command installs to node 4 of command:
show ipv6 mroute vrf all
check log file - /tmp/zebra.log
2018/01/07 17:02:29 ZEBRA: Can't create pid lock file /var/run/quagga/zebra.pid (No such file or directory), exiting
既然 zebra 抱怨沒有 /var/run/quagga/ 那就準備給它
root@52XXZ:~# mkdir -p /var/run/quagga
再啟動 zebra
root@52XXZ:~# zebra -f /tmp/zebra.conf -u root -d
Multiple command installs to node 4 of command:
show ipv6 mroute vrf all
check log file - /tmp/zebra.log
root@52XXZ:~# cat /tmp/zebra.log
2018/01/07 17:02:29 ZEBRA: Can't create pid lock file /var/run/quagga/zebra.pid (No such file or directory), exiting
2018/01/07 17:02:51 ZEBRA: Zebra 1.1.0 starting: vty@2601
哈哈 成功了
看來只要把 mkdir -p /var/run/quagga 加在 zebra 啟動前即可
1045
修改 proscend/base_fs/default/rootfs/etc/rc.local
@@ -99,6 +99,9 @@ fi
# Handle the reset/reboot button
reset_btn_handler.sh &
+#quagga needed
+mkdir -p /var/run/quagga
+
/usr/sbin/seqcmdd -C /var/run/seqcmdd/ipt_cmd &
/usr/sbin/icospromsg &
/usr/sbin/icosconfig bootinit -P /var/usock/event.us
修改 proscend/prosrc/icos/icoslib/zebra/zebra.c
@@ -22,7 +22,7 @@
#define ZEBRA_DAEMON_PATH "/usr/sbin/zebra"
#define ZEBRA_DAEMON "zebra"
#define ZEBRA_ARGV "-d -u root -f %s"
-#define ZEBRA_CONF_FILE "/etc/quagga/zebra.conf"
+#define ZEBRA_CONF_FILE "/etc/icos/zebra/quagga_zebra.conf"
#define ZEBRA_CONF_FORMAT \
"hostname %s\n" \
"password %s\n"
@@ -53,7 +53,7 @@ static int _prepare_config(sZebraConfig *config)
{
CPRT("_prepare_config\n");
- FILE *fp = fopen(ZEBRA_CONF_FILE, "w");
+ FILE *fp = fopen(ZEBRA_CONF_FILE, "w+");
if (fp == 0)
{
CPRT("Failed to open file: '%s'\n", ZEBRA_CONF_FILE);
@@ -65,6 +65,10 @@ static int _prepare_config(sZebraConfig *config)
config->password
);
+#ifdef DEBUG
+ fprintf(fp, "log file /tmp/zebra.log\n");
+#endif
+
fclose(fp);
return ICOS_SUCCESS;
@@ -208,13 +212,13 @@ static int _apply(int flag, int index, void* pStruct, int structSize)
if (ATTVAL_MODE_ON == config->mode)
{
- system("/usr/sbin/quagga.init stop zebra 1>/dev/null 2>&1");
+ system("killall zebra 1>/dev/null 2>&1");
_prepare_config(config);
- system("/usr/sbin/quagga.init start zebra 1>/dev/null 2>&1");
+ system("zebra -d -u root -f /etc/icos/zebra/quagga_zebra.conf 1>/dev/null 2>&1");
}
else
{
- system("/usr/sbin/quagga.init stop zebra 1>/dev/null 2>&1");
+ system("killall zebra 1>/dev/null 2>&1");
}
return ICOS_SUCCESS;
build image... ok
check
ps aux | grep zebra... PASS
root@52XXZ:~# ps aux | grep zebra
root 1070 0.0 0.7 2508 984 ? Ss 09:33 0:00 zebra -d -u root -f /etc/icos/zebra/quagga_zebra.conf
root 2767 0.0 0.2 1812 364 ? S 09:34 0:00 grep zebra
cat /var/run/quagga/zebra.pid... PASS
root@52XXZ:~# cat /var/run/quagga/zebra.pid
1070
1100
趁勝追擊
修改 proscend/prosrc/icos/icoslib/rip_2g/rip_2g.c
@@ -33,7 +33,7 @@
#define RIP_2G_DAEMON_PATH "/usr/sbin/ripd"
#define RIP_2G_DAEMON "ripd"
#define RIP_2G_ARGV "-d -u root -f %s"
-#define RIP_2G_CONFIGURATION_FILE "/etc/quagga/ripd.conf"
+#define RIP_2G_CONFIGURATION_FILE "/etc/icos/rip_2g/quagga_ripd.conf"
#define RIP_2G_DEBUG_LOG "/tmp/ripd.log"
@@ -86,7 +86,7 @@ static int _make_configuration_file(rip_2g_t *setting)
{
_LOG_INFO("");
- FILE *fp = fopen(RIP_2G_CONFIGURATION_FILE, "w");
+ FILE *fp = fopen(RIP_2G_CONFIGURATION_FILE, "w+");
if (fp == 0)
{
_LOG_DEBUG("Failed to open file: '%s'", RIP_2G_CONFIGURATION_FILE);
@@ -465,7 +465,7 @@ static int _apply(int flag, int index, void* pStruct, int structSize)
{
system("killall ripd 1>/dev/null 2>&1");
_make_configuration_file(setting);
- system("ripd -d -u root");
+ system("ripd -d -u root -f /etc/icos/rip_2g/quagga_ripd.conf");
}
else
{
@@ -555,8 +555,7 @@ static int _verify_setting(int flag, int index, void* pStruct, int structSize)
return ICOS_FAILURE;
}
-
-
+ return ICOS_SUCCESS;
}
透過 web 啟動後沒有發現 ripd 的 process
直接在 shell 執行 - ripd -d -u root -f /etc/icos/rip_2g/quagga_ripd.conf
root@52XXZ:~# ripd -d -u root -f /etc/icos/rip_2g/quagga_ripd.conf
ripd: invalid option -- u
Try `ripd --help' for more information.
root@52XXZ:~#
沒有 -u 這個 option
check 一下 ripd 的版本
root@52XXZ:~# ripd -v
ripd version 0.94 (mips-openwrt-linux)
Copyright 1996-2001, Kunihiro Ishiguro
check 一下 zebra 的版本
root@52XXZ:~# zebra -v
zebra version 1.1.0
Copyright 1996-2005 Kunihiro Ishiguro, et al.
configured with:
--target=mips-openwrt-linux --host=mips-openwrt-linux --build=x86_64-linux-gnu --program-prefix= --program-suffix= --prefix=/usr --exec-prefix=/usr --bindir=/usr/bin --sbindir=/usr/sbin --libexecdir=/usr/lib --sysconfdir=/etc --datadir=/usr/share --localstatedir=/var --mandir=/usr/man --infodir=/usr/info --disable-nls --localstatedir=/var/run/quagga --sysconfdir=/etc/quagga/ --enable-shared --disable-static --enable-user=network --enable-group=network --enable-multipath=8 --disable-ospfclient --disable-capabilities --disable-doc --enable-zebra --disable-ospfd --disable-bgpd --disable-isisd --disable-ospf6d --disable-ripd --enable-ripngd --disable-vtysh
在 proscend 外層使用 make menuconfig 會發現 quagga-ripd 沒被選起來
直接修改 52xxz_defconfig
@@ -1129,15 +1129,15 @@ CONFIG_PACKAGE_miniupnpc=y
#
CONFIG_PACKAGE_ip=y
CONFIG_PACKAGE_quagga=y
-# CONFIG_PACKAGE_quagga-bgpd is not set
+CONFIG_PACKAGE_quagga-bgpd=y
# CONFIG_PACKAGE_quagga-isisd is not set
# CONFIG_PACKAGE_quagga-libospf is not set
CONFIG_PACKAGE_quagga-libzebra=y
# CONFIG_PACKAGE_quagga-ospf6d is not set
# CONFIG_PACKAGE_quagga-ospfd is not set
-# CONFIG_PACKAGE_quagga-ripd is not set
-CONFIG_PACKAGE_quagga-ripngd=y
-# CONFIG_PACKAGE_quagga-vtysh is not set
+CONFIG_PACKAGE_quagga-ripd=y
+# CONFIG_PACKAGE_quagga-ripngd is not set
+CONFIG_PACKAGE_quagga-vtysh=y
# CONFIG_PACKAGE_relayd is not set
#
直接在 proscend 外層 make distclean 後再 source proenv.sh
使用 time make 作 make 順便量一下時間
1140
不過那個 0.94 版的 ripd 是怎麼回事
root@52XXZ:~# ripd -v
ripd version 0.94 (mips-openwrt-linux)
Copyright 1996-2001, Kunihiro Ishiguro
將 52XXZ 的 quagga 升級成跟 M360P 的 quagga 版本一樣之前
也不是 0.94 而是 0.99
希望待會的 ripd 不會受影響才好
1300
build 好了 - 耗時 77m43.143s
user@8de9e3d5af60:~$ time make
...
make[1] world
make[2] tools/install
make[3] -C tools/m4 compile
...
make[3] -C package/base-files install
make[2] target/install
make[3] -C target/linux install
make[2] package/index
real 77m43.143s
user 59m50.292s
sys 13m34.557s
user@8de9e3d5af60:~$
進 proscend make distclean
make menuconfig... 勾選 debug
make... ok
upgrade via uboot - run update_fullimage... ok
check
zebra - 1.1.0
root@52XXZ:~# zebra -v
zebra version 1.1.0
Copyright 1996-2005 Kunihiro Ishiguro, et al.
configured with:
--target=mips-openwrt-linux --host=mips-openwrt-linux --build=x86_64-linux-gnu --program-prefix= --program-suffix= --prefix=/usr --exec-prefix=/usr --bindir=/usr/bin --sbindir=/usr/sbin --libexecdir=/usr/lib --sysconfdir=/etc --datadir=/usr/share --localstatedir=/var --mandir=/usr/man --infodir=/usr/info --disable-nls --localstatedir=/var/run/quagga --sysconfdir=/etc/quagga/ --enable-shared --disable-static --enable-user=network --enable-group=network --enable-multipath=8 --disable-ospfclient --disable-capabilities --disable-doc --enable-zebra --disable-ospfd --enable-bgpd --disable-isisd --disable-ospf6d --enable-ripd --disable-ripngd --enable-vtysh
ripd - 1.1.0
root@52XXZ:~# ripd -v
ripd version 1.1.0
Copyright 1996-2005 Kunihiro Ishiguro, et al.
configured with:
--target=mips-openwrt-linux --host=mips-openwrt-linux --build=x86_64-linux-gnu --program-prefix= --program-suffix= --prefix=/usr --exec-prefix=/usr --bindir=/usr/bin --sbindir=/usr/sbin --libexecdir=/usr/lib --sysconfdir=/etc --datadir=/usr/share --localstatedir=/var --mandir=/usr/man --infodir=/usr/info --disable-nls --localstatedir=/var/run/quagga --sysconfdir=/etc/quagga/ --enable-shared --disable-static --enable-user=network --enable-group=network --enable-multipath=8 --disable-ospfclient --disable-capabilities --disable-doc --enable-zebra --disable-ospfd --enable-bgpd --disable-isisd --disable-ospf6d --enable-ripd --disable-ripngd --enable-vtysh
root@52XXZ:~#
bgpd - 1.1.0
root@52XXZ:~# bgpd -v
bgpd version 1.1.0
Copyright 1996-2005 Kunihiro Ishiguro, et al.
configured with:
--target=mips-openwrt-linux --host=mips-openwrt-linux --build=x86_64-linux-gnu --program-prefix= --program-suffix= --prefix=/usr --exec-prefix=/usr --bindir=/usr/bin --sbindir=/usr/sbin --libexecdir=/usr/lib --sysconfdir=/etc --datadir=/usr/share --localstatedir=/var --mandir=/usr/man --infodir=/usr/info --disable-nls --localstatedir=/var/run/quagga --sysconfdir=/etc/quagga/ --enable-shared --disable-static --enable-user=network --enable-group=network --enable-multipath=8 --disable-ospfclient --disable-capabilities --disable-doc --enable-zebra --disable-ospfd --enable-bgpd --disable-isisd --disable-ospf6d --enable-ripd --disable-ripngd --enable-vtysh
很好
跟 M360P 版本一致了
透過 web 啟動
ps aux... PASS
root@52XXZ:~# ps aux | grep ripd
root 7264 0.0 0.7 2160 872 ? Ss 11:54 0:00 ripd -d -u root -f /etc/icos/rip_2g/quagga_ripd.conf
root 8169 0.0 0.2 1812 364 ? S 11:55 0:00 grep ripd
cat /tmp/ripd.log... PASS
root@52XXZ:~# cat /tmp/ripd.log
2018/01/10 11:54:34 RIP: RIPd 1.1.0 starting: vty@2602
2018/01/10 11:54:34 RIP: Redistribute new prefix 192.0.0.0.0/24 with nexthop 0.0.0.0 on the interface lan
2018/01/10 11:54:34 RIP: triggered update!
2018/01/10 11:54:36 RIP: update timer fire!
cat /var/run/quagga/ripd.pid... PASS
root@52XXZ:~# cat /var/run/quagga/ripd.pid
7264
可以進行 ripd 的測試了
先 commit 目前的成果
commit 127fd50f3d2d2634fe065314c7362619c9e4961d
Refs: [develop], {origin/develop}, {origin/HEAD}
Author: jeffrey <[email protected]>
Date: Mon Oct 8 13:33:16 2018 +0800
about the quagga package:
- rm version 0.99.20
- rm package/feeds/open_applications/quagga/*
- rm dl/quagga-0.99.20.tar.gz
- use version 1.1.0
- add package/net/quagga/*
- add dl/quagga-1.1.0.tar.gz
- modify linux configuration
- CONFIG_PACKAGE_quagga=y
- CONFIG_PACKAGE_quagga-bgpd=y
- CONFIG_PACKAGE_quagga-libzebra=y
- CONFIG_PACKAGE_quagga-ripd=y
- CONFIG_PACKAGE_quagga-vtysh=y
- modify /etc/rc.local
- `mkdir -p /var/run/quagga` since quagga needed
- modify `proscend/mconfig/configs/52XXZ/0_GENERIC/defconfig`
- `PROSRC_RIP_2G=y` for icos RIP module
- modify zebra icos module
- move the configuration file of zebra since our file system is read-only
- modify rip icos module
- move the configuration file of ripd since our file system is read-only
52xxz_defconfig | 8 +-
dl/quagga-0.99.20.tar.gz | Bin 2232520 -> 0 bytes
dl/quagga-1.1.0.tar.gz | Bin 0 -> 2870278 bytes
package/feeds/open_applications/quagga/Makefile | 263 --
.../feeds/open_applications/quagga/files/quagga | 335 ---
.../open_applications/quagga/files/quagga.conf | 7 -
.../open_applications/quagga/files/quagga.init | 11 -
.../quagga/patches/110-fix_ipctl_forwarding.patch | 25 -
.../quagga/patches/120-quagga_manet.patch | 895 ------
.../quagga/patches/130-fix_cpp.patch | 11 -
.../quagga/patches/140-holdtimer-set.patch | 22 -
.../quagga/patches/150-no-cross-fs-link.patch | 40 -
.../quagga/patches/160-pgbgp.patch | 3095 --------------------
.../quagga/patches/161-pgbgp-addon.patch | 318 --
.../quagga/patches/170-use-supported-pagers.patch | 29 -
.../patches/180-fix-lib-connect-memleak.patch | 61 -
.../quagga/patches/181-ospf-null-ptr-fix.patch | 51 -
.../quagga/patches/182-fix-bgpd-memleak.patch | 20 -
package/net/quagga/Makefile | 283 ++
package/net/quagga/files/quagga | 335 +++
package/net/quagga/files/quagga.conf | 7 +
package/net/quagga/files/quagga.init | 11 +
package/net/quagga/patches/140-holdtimer-set.patch | 22 +
.../net/quagga/patches/150-no-cross-fs-link.patch | 40 +
.../quagga/patches/170-use-supported-pagers.patch | 29 +
proscend/base_fs/default/rootfs/etc/rc.local | 3 +
proscend/mconfig/configs/52XXZ/0_GENERIC/defconfig | 2 +-
proscend/prosrc/icos/icoslib/rip_2g/rip_2g.c | 9 +-
proscend/prosrc/icos/icoslib/zebra/zebra.c | 14 +-
29 files changed, 748 insertions(+), 5198 deletions(-)
1335

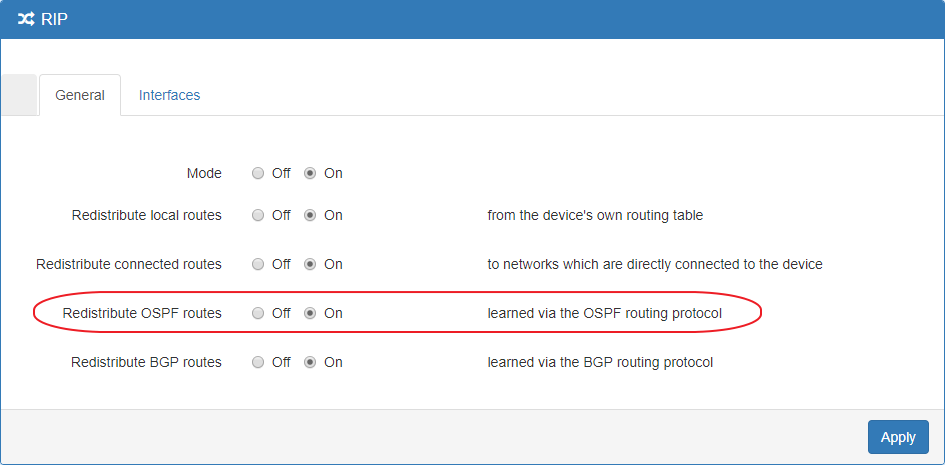

52XXZ 並沒有支援 OSPF
所以 RIP 的 web page 需做調整
拿掉 Redistribute OSPF routes
搞定
上 code
commit 66319dfd3b4cacc1164794d39ab7f6473cad7405
Refs: [develop], {origin/develop}, {origin/HEAD}
Author: jeffrey <[email protected]>
Date: Mon Oct 8 13:42:26 2018 +0800
about the 'IP Routing / RIP' web page:
- rm 'Redistribute OSPF routes' field
proscend/prosrc/www/app/feature/rip_2g.html | 2 +-
1 file changed, 1 insertion(+), 1 deletion(-)
可以開始測試了
同時來準備 52XXZ 的 wiki 吧
1440
RIP 測過了
wiki 也順便寫了
再盤一下 52XXZ 剩什麼
- BGP
- 已有 web ui
- 待測
- GRE
- 已有 web ui
- 待測
來作 BGP
BGP web page 一樣有個 Redistribute OSPF routes
拿掉
再來是要改 BGP 的 configuration 位置 - proscend/prosrc/icos/icoslib/bgp/bgp.c
@@ -39,7 +39,7 @@
#define BGP_DAEMON_PATH "/usr/sbin/bgpd"
#define BGP_DAEMON "ospfd"
#define BGP_ARGV "-d -u root -f %s"
-#define BGP_CONFIGURATION_FILE "/etc/quagga/bgpd.conf"
+#define BGP_CONFIGURATION_FILE "/etc/icos/bgp/quagga_bgpd.conf"
#define BGP_DEBUG_LOG "/tmp/bgpd.log"
@@ -90,7 +90,7 @@ static int _make_configuration_file(bgp_t *setting)
{
_LOG_INFO("");
- FILE *fp = fopen(BGP_CONFIGURATION_FILE, "w");
+ FILE *fp = fopen(BGP_CONFIGURATION_FILE, "w+");
if (fp == 0)
{
_LOG_DEBUG("Failed to open file: '%s'", BGP_CONFIGURATION_FILE);
@@ -521,7 +521,7 @@ static int _apply(int flag, int index, void* pStruct, int structSize)
{
system("killall bgpd 1>/dev/null 2>&1");
_make_configuration_file(setting);
- system("bgpd -d -u root");
+ system("bgpd -d -u root -f /etc/icos/bgp/quagga_bgpd.conf");
}
else
{
1520
bgp 測試也 PASS 了
commit 5e8004b4d2e6f2775b3f7319eb4bfdf714d79382
Refs: [develop], {origin/develop}, {origin/HEAD}
Author: jeffrey <[email protected]>
Date: Mon Oct 8 15:22:37 2018 +0800
modify bgp:
- move the configuration file of bgpd since our file system is read-only
- rm 'Redistribute OSPF routes' field at web page
proscend/prosrc/icos/icoslib/bgp/bgp.c | 6 +++---
proscend/prosrc/www/app/feature/bgp.html | 2 +-
2 files changed, 4 insertions(+), 4 deletions(-)
1525
回到 M360P
pull latest code... ok
build image... ok
補一下 Lock LTE Bands 的 Hin
上 code
commit 03e7a2b3c5b2b0e90e3440706b7bf2844e8ddb8a
Refs: [release/v0.08], {origin/release/v0.08}
Author: jeffrey <[email protected]>
Date: Mon Oct 8 15:42:47 2018 +0800
add the 'Hint' field into 'LTE / Lock Bands' web page
proscend/prosrc/www/app/feature/lock_bands.html | 2 ++
1 file changed, 2 insertions(+)
1635
ariel 的 LTE / Lock Bands 還要改一下 design
commit 5a2da0ecb5c7cb7e9cef1b98c25d51713788bfe7
Refs: [release/v0.08], {origin/release/v0.08}
Author: jeffrey <[email protected]>
Date: Mon Oct 8 16:35:45 2018 +0800
re-design 'LTE / Lock Bands' requested by original designer
proscend/prosrc/www/app/feature/lock_bands.html | 35 +++++++++++-----------
proscend/prosrc/www/app/feature/lock_bands.js | 31 +++++--------------
proscend/prosrc/www/app/locale-en.json | 1 +
proscend/prosrc/www/app/locale-fr.json | 1 +
proscend/prosrc/www/app/locale-zh-tw.json | 1 +
proscend/prosrc/www/brand_nobrand/brand/custom.css | 3 ++
.../prosrc/www/brand_proscend/brand/custom.css | 3 ++
7 files changed, 35 insertions(+), 40 deletions(-)
再小修一下
commit 88e7d423e8a175378076a663c19132604bb43c17
Refs: [release/v0.08], {origin/release/v0.08}
Author: jeffrey <[email protected]>
Date: Mon Oct 8 16:45:19 2018 +0800
- remove debug information from javascript
- fine tune the checkbox behaviour
proscend/prosrc/www/app/feature/lock_bands.js | 9 +++++----
1 file changed, 5 insertions(+), 4 deletions(-)
1700
ariel 發現 lock band 的功能如果不 reboot device 的話功能都無法正常動作
web ui 幫忙加一下 reboot 機制吧
commit 02c2023e6c74a205249152e68f8f29ad7b998940
Refs: [release/v0.08], {origin/release/v0.08}
Author: jeffrey <[email protected]>
Date: Mon Oct 8 17:01:21 2018 +0800
remind user to reboot to take effect
proscend/prosrc/www/app/feature/lock_bands.js | 8 +++++---
1 file changed, 5 insertions(+), 3 deletions(-)
1705
關於 M360P web upgrade 會停在 98% 的問題
我想到一個爛招 - 禮多人不怪
修改 proscend/prosrc/icos/script/FirmwareUpgrade.sh
@@ -88,6 +88,12 @@ function finish {
log "\nfirmware upgrade shell script succeeded"
log "finished"
progress_ok "firmware upgrade succeeded"
+ sleep 2
+ log "finished"
+ progress_ok "firmware upgrade succeeded"
+ sleep 2
+ log "finished"
+ progress_ok "firmware upgrade succeeded"
}
實際測測看才知道有沒有副作用
1720
測了十次都沒問題
上 code 讓大家一起測吧
commit ac2c2457604173c5badbf8fa16a7b6837586f9c8
Refs: [release/v0.08], {origin/release/v0.08}
Author: jeffrey <[email protected]>
Date: Mon Oct 8 17:17:29 2018 +0800
use a stupid way to solve the 'forever 98%' problem while upgrading via web
- issue occuring rate around once per 16 times
proscend/prosrc/icos/script/FirmwareUpgrade.sh | 6 ++++++
1 file changed, 6 insertions(+)
