待會 0900 來補個數據
今天預計每兩個小時抄一次數據
Mem: 296908K used, 212880K free, 1004K shrd, 0K buff, 19304K cached
CPU: 13% usr 35% sys 0% nic 38% idle 0% io 0% irq 12% sirq
Load average: 0.92 0.91 0.87 3/93 29936
PID PPID USER STAT VSZ %VSZ %CPU COMMAND
3 2 root RW 0 0% 4% [ksoftirqd/0]
1463 1 root S 2696 1% 3% {gpio_button.sh} /bin/bash /usr/sbin/i
321 1 root S 240m 48% 2% /usr/sbin/icospromsg
3157 321 root R 3720 1% 2% ndppd -p /var/run/ndppd.pid -c /var/nd
7 2 root SW 0 0% 1% [rcu_preempt]
618 1 root S 7864 2% 1% /usr/sbin/snmpd -Ln -c /tmp/icos/snmp/
634 1 root S 2692 1% 1% {icos_snmp_apply} /bin/sh /usr/sbin/ic
1552 321 root S 8144 2% 1% iweb -p 80 -d /www
1410 1 root S 4500 1% 0% mosquitto -c /tmp/icos/mqtt/mqtt.conf
145 1 root R 1588 0% 0% /usr/sbin/rngd -r /dev/urandom
20 2 root SW 0 0% 0% [cfinteractive]
30708 1571 root R 2904 1% 0% busybox top
1442 321 root S 2864 1% 0% syslogd -n -C200 -L
3156 321 root S 1772 0% 0% dhcp6s -c /var/wide_dhcp6s.conf -D -f
25749 2 root SW 0 0% 0% [kworker/0:0]
949 948 root S 138m 28% 0% /usr/lib/strongswan/ipsec/charon --use
2572 321 root S 63344 12% 0% agent -c /tmp/icos/cwmp -i /etc/icos/c
1693 321 root S 23272 5% 0% netmond
2757 1 root S 11476 2% 0% /usr/sbin/dhcpd -cf /tmp/icos/dhcp/dhc
1558 321 root S 8056 2% 0% iweb -p 443 -d /www -s
BU II 軟體成員剛剛招開了會議 - Memory Leaking Strategy discussion
我就負責收斂這個
目前 Web Process Abnormal Issue 這個 issue 已被證實為是 Memory Leaking 所導致
先把 WEB Process Abnormal Issue 這臨時專案結掉
再另開一個 Memory Leaking 內部的臨時專案
先做 工作項目 Burn Dual Image for MP
- mfgtool 燒錄的時候兩個 image 都燒一燒
動工的目標為 mfgtool 用的 ucl2.xml
參考設計圖 U-Boot Image Layout for NAND Flash v2.1 來施工
施工後的 mfgtool 用的 ucl2.xml 如下
<UCL>
<CFG>
<STATE name="BootStrap" dev="MX6SL" vid="15A2" pid="0063"/>
<STATE name="BootStrap" dev="MX6D" vid="15A2" pid="0061"/>
<STATE name="BootStrap" dev="MX6Q" vid="15A2" pid="0054"/>
<STATE name="BootStrap" dev="MX6SX" vid="15A2" pid="0071"/>
<STATE name="BootStrap" dev="MX6UL" vid="15A2" pid="007D"/>
<STATE name="BootStrap" dev="MX7D" vid="15A2" pid="0076"/>
<STATE name="Updater" dev="MSC" vid="066F" pid="37FF"/>
</CFG>
<LIST name="NAND Flash" desc="Choose NAND as media">
<CMD state="BootStrap" type="boot"
body="BootStrap" file ="firmware/u-boot-m300.imx-nand">Loading U-boot</CMD>
<CMD state="BootStrap" type="load"
file="firmware/zImage" address="0x80800000"
loadSection="OTH" setSection="OTH" HasFlashHeader="FALSE" >Loading Kernel.</CMD>
<CMD state="BootStrap" type="load"
file="firmware/%initramfs%" address="0x83800000"
loadSection="OTH" setSection="OTH" HasFlashHeader="FALSE">Loading Initramfs.</CMD>
<CMD state="BootStrap" type="load"
file="firmware/zImage-imx6ul-%6uldtb%-%nanddtb%.dtb" address="0x83000000"
loadSection="OTH" setSection="OTH" HasFlashHeader="FALSE">Loading device tree.</CMD>
<CMD state="BootStrap" type="jump" > Jumping to OS image. </CMD>
<!--burn the uboot to NAND: -->
<CMD state="Updater" type="push"
body="$ mount -t debugfs debugfs /sys/kernel/debug">Mounting debugfs</CMD>
<CMD state="Updater" type="push"
body="$ flash_erase /dev/mtd0 0 0">Erasing Boot partition</CMD>
<CMD state="Updater" type="push"
body="$ flash_erase /dev/mtd1 0 0">Erasing Boot env partition</CMD>
<CMD state="Updater" type="push"
body="send" file="files/u-boot-m300.imx-nand" ifdev="MX6UL">Sending u-boot.bin</CMD>
<CMD state="Updater" type="push"
body="$ kobs-ng init -x -v --chip_0_device_path=/dev/mtd0 $FILE">Flashing Bootloader</CMD>
<!-- burn the kernel_a -->
<CMD state="Updater" type="push"
body="$ flash_erase /dev/mtd2 0 0">Erasing Kernel partition A</CMD>
<CMD state="Updater" type="push"
body="send" file="files/zImage">Sending kernel zImage</CMD>
<CMD state="Updater" type="push"
body="$ nandwrite -p /dev/mtd2 -p $FILE">Flashing Kernel A</CMD>
<!-- burn the kernel_b -->
<CMD state="Updater" type="push"
body="$ flash_erase /dev/mtd7 0 0">Erasing Kernel partition B</CMD>
<CMD state="Updater" type="push"
body="send" file="files/zImage">Sending kernel zImage</CMD>
<CMD state="Updater" type="push"
body="$ nandwrite -p /dev/mtd7 -p $FILE">Flashing Kernel B</CMD>
<!-- burn the dtb_a -->
<CMD state="Updater" type="push"
body="$ flash_erase /dev/mtd3 0 0">Erasing dtb partition A</CMD>
<CMD state="Updater" type="push"
body="send" file="files/zImage-imx6ul-14x14-evk.dtb">Sending Device Tree file</CMD>
<CMD state="Updater" type="push"
body="$ nandwrite -p /dev/mtd3 -p $FILE">Flashing dtb A</CMD>
<!-- burn the dtb_b -->
<CMD state="Updater" type="push"
body="$ flash_erase /dev/mtd8 0 0">Erasing dtb partition B</CMD>
<CMD state="Updater" type="push"
body="send" file="files/zImage-imx6ul-14x14-evk.dtb">Sending Device Tree file</CMD>
<CMD state="Updater" type="push"
body="$ nandwrite -p /dev/mtd8 -p $FILE">Flashing dtb B</CMD>
<!--prepare all ubi device: -->
<CMD state="Updater" type="push"
body="$ flash_erase /dev/mtd4 0 0">Erasing rootfs_a partition</CMD>
<CMD state="Updater" type="push"
body="$ flash_erase /dev/mtd5 0 0">Erasing config_a partition</CMD>
<CMD state="Updater" type="push"
body="$ flash_erase /dev/mtd9 0 0">Erasing rootfs_b partition</CMD>
<CMD state="Updater" type="push"
body="$ flash_erase /dev/mtd10 0 0">Erasing config_b partition</CMD>
<CMD state="Updater" type="push"
body="$ ubiformat /dev/mtd4"/>
<CMD state="Updater" type="push"
body="$ ubiformat /dev/mtd5"/>
<CMD state="Updater" type="push"
body="$ ubiformat /dev/mtd9"/>
<CMD state="Updater" type="push"
body="$ ubiformat /dev/mtd10"/>
<CMD state="Updater" type="push"
body="$ ubiattach /dev/ubi_ctrl -m 4">Attaching UBI partition - /dev/ubi0</CMD>
<CMD state="Updater" type="push"
body="$ ubiattach /dev/ubi_ctrl -m 5">Attaching UBI partition - /dev/ubi1</CMD>
<CMD state="Updater" type="push"
body="$ ubiattach /dev/ubi_ctrl -m 9">Attaching UBI partition - /dev/ubi2</CMD>
<CMD state="Updater" type="push"
body="$ ubiattach /dev/ubi_ctrl -m 10">Attaching UBI partition - /dev/ubi3</CMD>
<CMD state="Updater" type="push"
body="$ ubimkvol /dev/ubi0 -N rootfs_a -m"/>
<CMD state="Updater" type="push"
body="$ ubimkvol /dev/ubi1 -N config_a -m"/>
<CMD state="Updater" type="push"
body="$ ubimkvol /dev/ubi2 -N rootfs_b -m"/>
<CMD state="Updater" type="push"
body="$ ubimkvol /dev/ubi3 -N config_b -m"/>
<!-- burn the rootfs_a -->
<CMD state="Updater" type="push"
body="$ mkdir -p /mnt/rootfs_a"/>
<CMD state="Updater" type="push"
body="$ mount -t ubifs ubi0:rootfs_a /mnt/rootfs_a"/>
<CMD state="Updater" type="push"
body="pipe tar -jxv -C /mnt/rootfs_a" file="files/rootfs.tar.bz2">Sending and writting rootfs_a</CMD>
<CMD state="Updater" type="push"
body="frf">Finishing rootfs write</CMD>
<CMD state="Updater" type="push"
body="$ umount /mnt/rootfs_a">Unmounting rootfs_a partition</CMD>
<!-- burn the rootfs_b -->
<CMD state="Updater" type="push"
body="$ mkdir -p /mnt/rootfs_b"/>
<CMD state="Updater" type="push"
body="$ mount -t ubifs ubi2:rootfs_b /mnt/rootfs_b"/>
<CMD state="Updater" type="push"
body="pipe tar -jxv -C /mnt/rootfs_b" file="files/rootfs.tar.bz2">Sending and writting rootfs_b</CMD>
<CMD state="Updater" type="push"
body="frf">Finishing rootfs write</CMD>
<CMD state="Updater" type="push"
body="$ umount /mnt/rootfs_b">Unmounting rootfs_a partition</CMD>
<CMD state="Updater" type="push"
body="$ echo Update Complete!">Done</CMD>
</LIST>
</UCL>直接使用 mfgtool 做燒錄
目前看到結果是成功的
直接放到板子上看結果
上電後不等 linux 的 rc.local 走完就拔電
兩次後 uboot 會切換成 partition B 做開機
開機成功
可以準備 燒錄工具包 給產線了
抄數據
Mem: 297156K used, 212632K free, 992K shrd, 0K buff, 18860K cached
CPU: 9% usr 24% sys 0% nic 55% idle 0% io 0% irq 10% sirq
Load average: 1.05 1.16 1.04 1/94 16739
PID PPID USER STAT VSZ %VSZ %CPU COMMAND
3 2 root SW 0 0% 5% [ksoftirqd/0]
1463 1 root S 2696 1% 4% {gpio_button.sh} /bin/bash /usr/sbin/i
3157 321 root S 3720 1% 3% ndppd -p /var/run/ndppd.pid -c /var/nd
321 1 root S 240m 48% 3% /usr/sbin/icospromsg
1552 321 root S 8144 2% 1% iweb -p 80 -d /www
634 1 root S 2692 1% 1% {icos_snmp_apply} /bin/sh /usr/sbin/ic
7 2 root SW 0 0% 1% [rcu_preempt]
30708 1571 root R 2904 1% 0% busybox top
20 2 root SW 0 0% 0% [cfinteractive]
145 1 root S 1588 0% 0% /usr/sbin/rngd -r /dev/urandom
13665 2 root SW 0 0% 0% [kworker/0:0]
949 948 root S 138m 28% 0% /usr/lib/strongswan/ipsec/charon --use
2572 321 root S 63344 12% 0% agent -c /tmp/icos/cwmp -i /etc/icos/c
1693 321 root S 23272 5% 0% netmond
2757 1 root S 11476 2% 0% /usr/sbin/dhcpd -cf /tmp/icos/dhcp/dhc
1558 321 root S 8056 2% 0% iweb -p 443 -d /www -s
618 1 root S 7864 2% 0% /usr/sbin/snmpd -Ln -c /tmp/icos/snmp/
1464 1 root S 5944 1% 0% /usr/sbin/icoswdog -T 120
320 1 root S 5944 1% 0% /usr/sbin/seqcmdd -C /run/seqcmdd/ipt_
2524 321 root S 4780 1% 0% ramond -i ppp0 -c /var/ramond_ppp0.con
抄數據
Mem: 297084K used, 212704K free, 932K shrd, 0K buff, 18912K cached
CPU: 9% usr 22% sys 0% nic 58% idle 0% io 0% irq 9% sirq
Load average: 0.29 0.44 0.62 1/92 5211
PID PPID USER STAT VSZ %VSZ %CPU COMMAND
1463 1 root S 2696 1% 4% {gpio_button.sh} /bin/bash /usr/sbin/i
3 2 root SW 0 0% 4% [ksoftirqd/0]
321 1 root S 240m 48% 2% /usr/sbin/icospromsg
3157 321 root S 3720 1% 2% ndppd -p /var/run/ndppd.pid -c /var/nd
7 2 root SW 0 0% 1% [rcu_preempt]
634 1 root S 2692 1% 1% {icos_snmp_apply} /bin/sh /usr/sbin/ic
1552 321 root S 8144 2% 1% iweb -p 80 -d /www
30708 1571 root R 2904 1% 1% busybox top
20 2 root SW 0 0% 1% [cfinteractive]
1693 321 root S 23272 5% 0% netmond
618 1 root S 7864 2% 0% /usr/sbin/snmpd -Ln -c /tmp/icos/snmp/
1410 1 root S 4500 1% 0% mosquitto -c /tmp/icos/mqtt/mqtt.conf
405 321 root S 2048 0% 0% dnsmasq -C /tmp/icos/dns/dnsmasq.conf
145 1 root S 1588 0% 0% /usr/sbin/rngd -r /dev/urandom
28558 2 root SW 0 0% 0% [kworker/0:1]
949 948 root S 138m 28% 0% /usr/lib/strongswan/ipsec/charon --use
2572 321 root S 63344 12% 0% agent -c /tmp/icos/cwmp -i /etc/icos/c
2757 1 root S 11476 2% 0% /usr/sbin/dhcpd -cf /tmp/icos/dhcp/dhc
1558 321 root S 8056 2% 0% iweb -p 443 -d /www -s
1464 1 root S 5944 1% 0% /usr/sbin/icoswdog -T 120

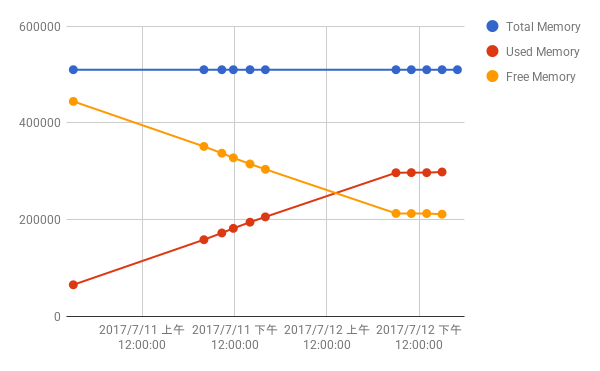

BU II 小組全體剛剛開了會
發現到從早上 9 點開始
M300 耗用 memory 的成長線性趨勢的特性突然不見了
這才發現 /usr/sbin/icospromsg 的 VSZ 停在 240m
321 1 root S 240m 48% 2% /usr/sbin/icospromsg
神奇的是 aaron 桌上的 沒幹甚麼事的 M300
這兩天有事沒事過去看一下也發現持續成長的 /usr/sbin/icospromsg 的 VSZ 也停在 240m
好奇之餘過去 38 號 DQA 那邊看一下...
他們的 M300 的 /usr/sbin/icospromsg 的 VSZ 停在 247m...
還以為抓到 /usr/sbin/icospromsg 什麼上限值之類的
還是繼續抄數據好了
繼續
Mem: 298504K used, 211284K free, 940K shrd, 0K buff, 19080K cached
CPU: 10% usr 22% sys 0% nic 56% idle 0% io 0% irq 10% sirq
Load average: 0.64 0.48 0.69 1/93 32169
PID PPID USER STAT VSZ %VSZ %CPU COMMAND
1463 1 root S 2696 1% 4% {gpio_button.sh} /bin/bash /usr/sbin/i
3 2 root SW 0 0% 4% [ksoftirqd/0]
321 1 root S 240m 48% 2% /usr/sbin/icospromsg
3157 321 root S 3720 1% 2% ndppd -p /var/run/ndppd.pid -c /var/nd
7 2 root RW 0 0% 1% [rcu_preempt]
634 1 root S 2692 1% 1% {icos_snmp_apply} /bin/sh /usr/sbin/ic
20 2 root SW 0 0% 1% [cfinteractive]
1552 321 root S 8144 2% 1% iweb -p 80 -d /www
618 1 root S 7864 2% 0% /usr/sbin/snmpd -Ln -c /tmp/icos/snmp/
31364 1571 root R 2904 1% 0% busybox top
145 1 root S 1588 0% 0% /usr/sbin/rngd -r /dev/urandom
1693 321 root S 23272 5% 0% netmond
1410 1 root S 4500 1% 0% mosquitto -c /tmp/icos/mqtt/mqtt.conf
1442 321 root S 2864 1% 0% syslogd -n -C200 -L
949 948 root S 138m 28% 0% /usr/lib/strongswan/ipsec/charon --use
2572 321 root S 63344 12% 0% agent -c /tmp/icos/cwmp -i /etc/icos/c
2757 1 root S 11476 2% 0% /usr/sbin/dhcpd -cf /tmp/icos/dhcp/dhc
1558 321 root S 8056 2% 0% iweb -p 443 -d /www -s
1464 1 root S 5944 1% 0% /usr/sbin/icoswdog -T 120
320 1 root S 5944 1% 0% /usr/sbin/seqcmdd -C /run/seqcmdd/ipt_
順便追加個 cat /proc/meminfo
root@Mobile Router:~# cat /proc/meminfo
MemTotal: 509788 kB
MemFree: 211488 kB
MemAvailable: 224116 kB
Buffers: 0 kB
Cached: 19136 kB
SwapCached: 0 kB
Active: 255376 kB
Inactive: 8992 kB
Active(anon): 245588 kB
Inactive(anon): 584 kB
Active(file): 9788 kB
Inactive(file): 8408 kB
Unevictable: 0 kB
Mlocked: 0 kB
HighTotal: 0 kB
HighFree: 0 kB
LowTotal: 509788 kB
LowFree: 211488 kB
SwapTotal: 0 kB
SwapFree: 0 kB
Dirty: 80 kB
Writeback: 0 kB
AnonPages: 245152 kB
Mapped: 10932 kB
Shmem: 940 kB
Slab: 13956 kB
SReclaimable: 4140 kB
SUnreclaim: 9816 kB
KernelStack: 752 kB
PageTables: 1716 kB
NFS_Unstable: 0 kB
Bounce: 0 kB
WritebackTmp: 0 kB
CommitLimit: 254892 kB
Committed_AS: 468464 kB
VmallocTotal: 1548288 kB
VmallocUsed: 5580 kB
VmallocChunk: 1340408 kB
CmaTotal: 327680 kB
CmaFree: 146480 kB
root@Mobile Router:~#
不抄數據了
目前利用 john 提供的 /mnt/data/IGNORED_MODULE_LIST 已取得了一些進展
加上 aaron 提供的 script 固定時間打印 /usr/sbin/icospromsg 的 VSZ
目前 aaron 已經找到了 openvpn 的 memory leaking 問題
至於是否還有其他模組還有 memory leaking 的問題則有待觀察
已經肯定跟 pppoe 沒有關係
那就把隔壁和我們這邊 pppoe 的測試環境都撤掉
自己桌上的 M300 利用 aaron 提供的 script 固定 30 秒打印 /usr/sbin/icospromsg 的 VSZ
先放到明天看看
