Terascala Lustre Storage - shawfdong/hyades GitHub Wiki
| Service Tag | Item | Description |
|---|---|---|
| 67TZPW1 | PowerEdge R210II | Management Server |
| 5FJRTS1 | PowerConnect 5448 | GbE Switch |
| 5BMZPW1 | PowerEdge R710 | Metadata Server |
| 5BN0QW1 | PowerEdge R710 | Metadata Server |
| B0DZPW1 | PowerVault MD3220 | Metadata Storage Target |
| 5BNYPW1 | PowerEdge R710 | Object Storage Server |
| 5BPYPW1 | PowerEdge R710 | Object Storage Server |
| B0C1QW1 | PowerVault MD3220 | Object Storage |
| B0BZPW1 | PowerVault MD3220 | Object Storage |
| 9ZHZPW1 | PowerVault MD1200 | Object Storage Expansion |
| 9ZH0QW1 | PowerVault MD1200 | Object Storage Expansion |
| 5BP0QW1 | PowerEdge R710 | Object Storage Server |
| 5BNZPW1 | PowerEdge R710 | Object Storage Server |
| B0CYPW1 | PowerVault MD3220 | Object Storage |
| 87WBRW1 | PowerVault MD3220 | Object Storage |
| 9ZH1QW1 | PowerVault MD1200 | Object Storage Expansion |
| 9ZHYPW1 | PowerVault MD1200 | Object Storage Expansion |
| Network | Subnet | Netmask |
|---|---|---|
| Hyades Private GbE | 10.6.0.0 | 255.255.0.0 |
| Hyades Private 10GbE | 10.7.0.0 | 255.255.0.0 |
| Hyades IPoIB | 10.8.0.0 | 255.255.0.0 |
| Management #1 | 192.168.3.0 | 255.255.255.0 |
| Management #2 | 192.168.4.0 | 255.255.255.0 |
| Heartbeat | 192.168.199.0 | 255.255.255.0 |
| node | Description | Hyades Private 10GbE | Hyades IPoIB | Management #1 | Management #2 | Heartbeat | IPMI |
|---|---|---|---|---|---|---|---|
| tms | Management Server (PE R210II) | 192.168.3.1 | 192.168.4.1 | 10.9.8.2 | |||
| mds-01 | Meta Data Server #1 (PE R710) | 10.7.8.142 | 10.8.8.142 | 192.168.3.142 | 192.168.4.142 | 192.168.199.1 | 192.168.3.11 |
| mds-02 | Meta Data Server #2 (PE R710) | 10.7.8.143 | 10.8.8.143 | 192.168.3.143 | 192.168.4.143 | 192.168.199.2 | 192.168.4.12 |
| mdt | Meta Data Target (MD3220) | 192.168.3.201 | 192.168.4.201 | ||||
| oss-01 | Object Storage Server #1 (PE R710) | 10.7.8.144 | 10.8.8.144 | 192.168.3.144 | 192.168.4.144 | 192.168.199.3 | 192.168.3.13 |
| oss-02 | Object Storage Server #2 (PE R710) | 10.7.8.145 | 10.8.8.145 | 192.168.3.145 | 192.168.4.145 | 192.168.199.4 | 192.168.4.14 |
| osts-01-a | Object Storage Target #1a (MD3220) | 192.168.3.202 | 192.168.4.202 | ||||
| osts-01-b | Object Storage Target #1b (MD3220) | 192.168.3.203 | 192.168.4.203 | ||||
| oss-03 | Object Storage Server #3 (PE R710) | 10.7.8.146 | 10.8.8.146 | 192.168.3.146 | 192.168.4.146 | 192.168.199.5 | 192.168.3.15 |
| oss-04 | Object Storage Server #4 (PE R710) | 10.7.8.147 | 10.8.8.147 | 192.168.3.147 | 192.168.4.147 | 192.168.199.6 | 192.168.4.16 |
| osts-02-a | Object Storage Target #2a (MD3220) | 192.168.3.204 | 192.168.4.204 | ||||
| osts-02-b | Object Storage Target #2b (MD3220) | 192.168.3.205 | 192.168.4.205 |
Additionally, tms, the Terascala Management Server, has the IP address 10.6.8.2 in the Hyades Private GbE subnet.

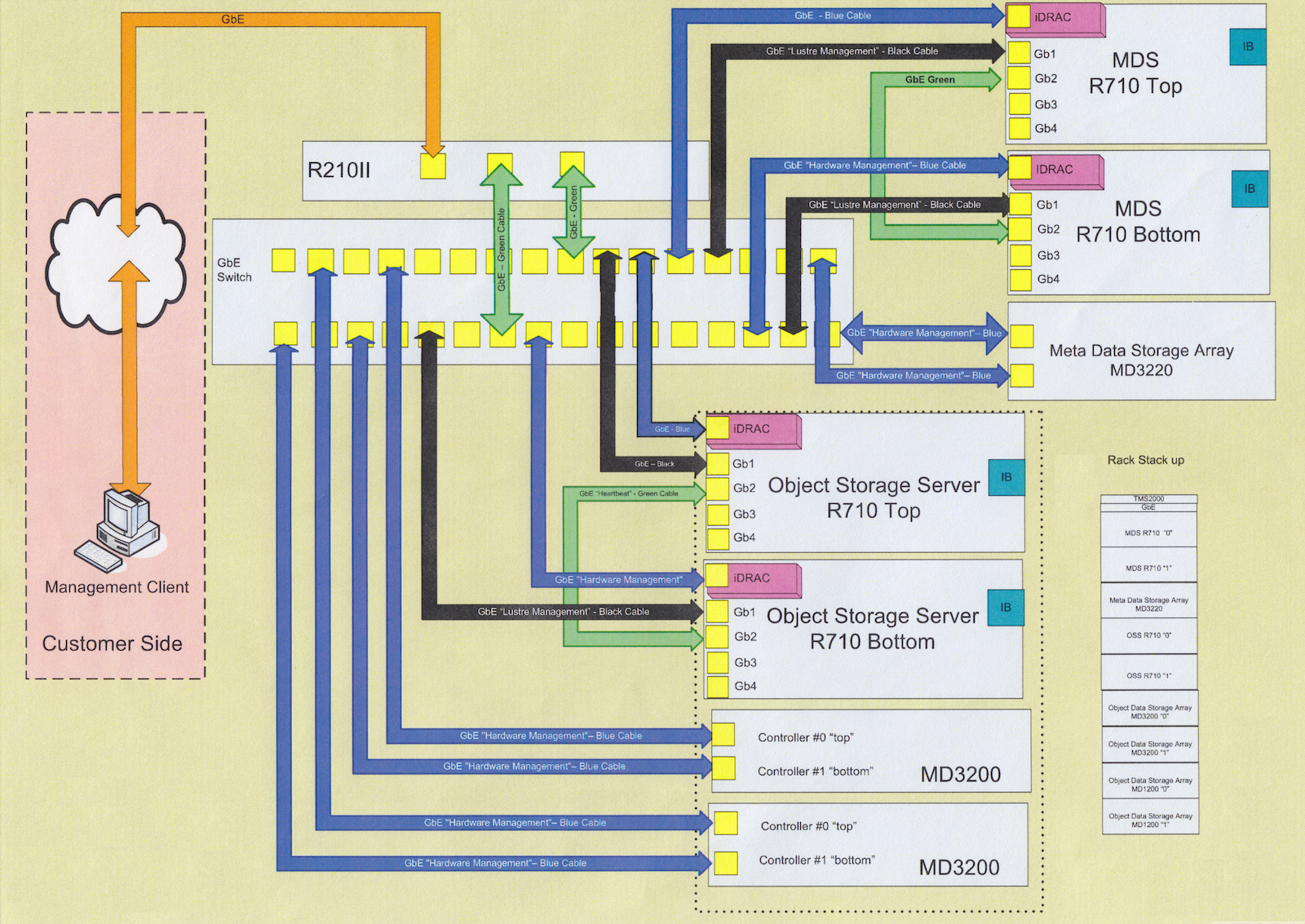

1. Management Network

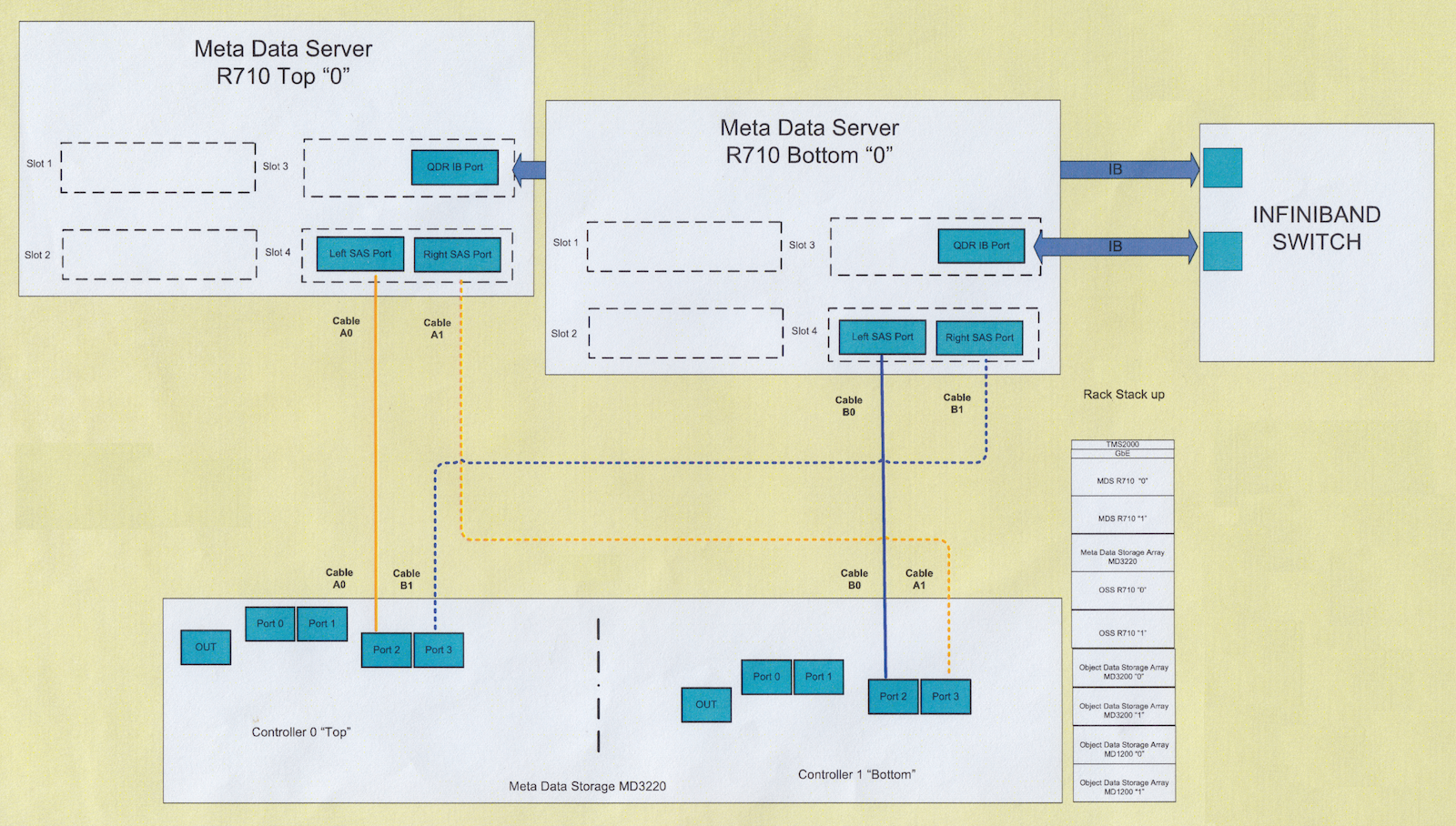

2. MDS SAS Interconnects

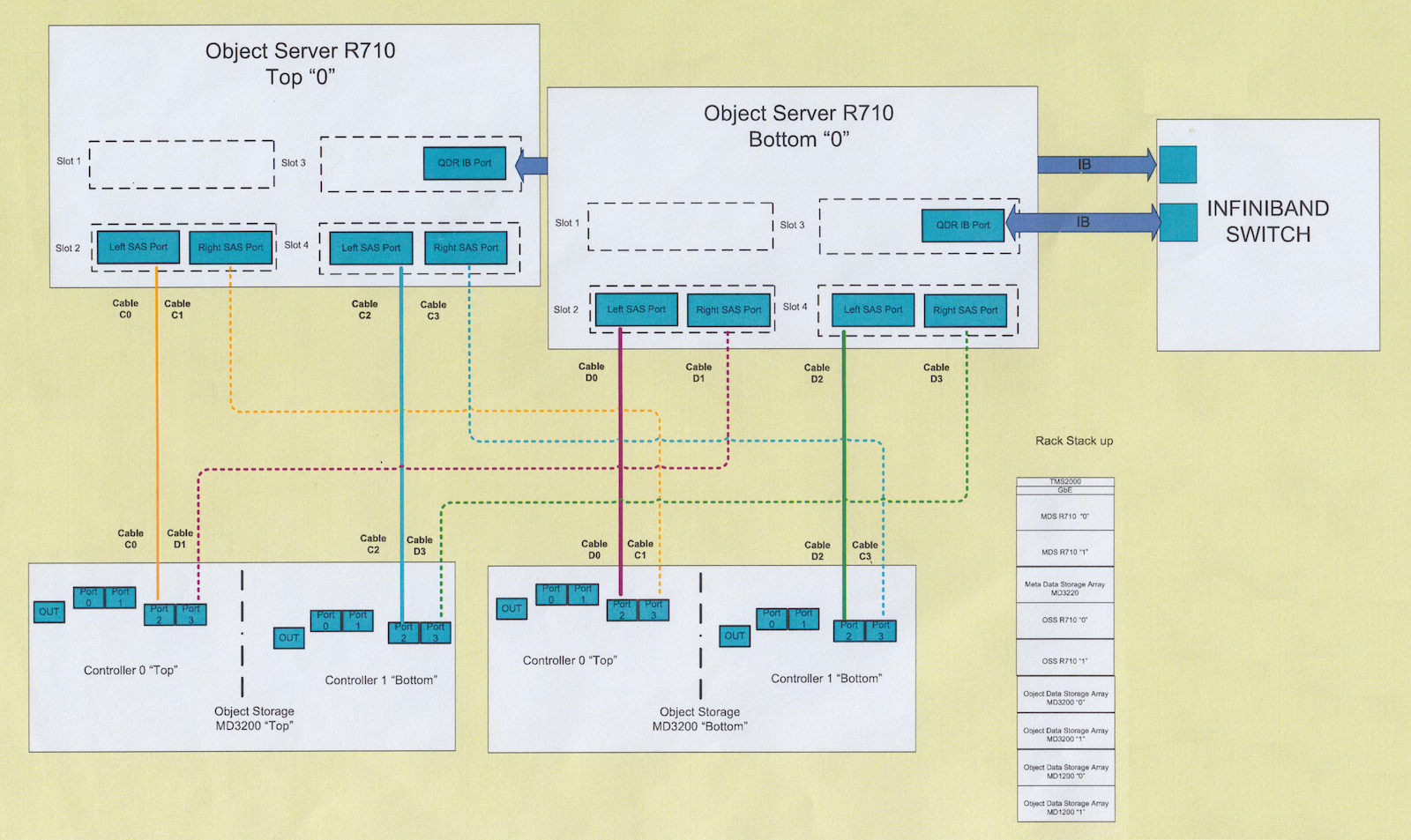

3. OSS SAS Interconnects

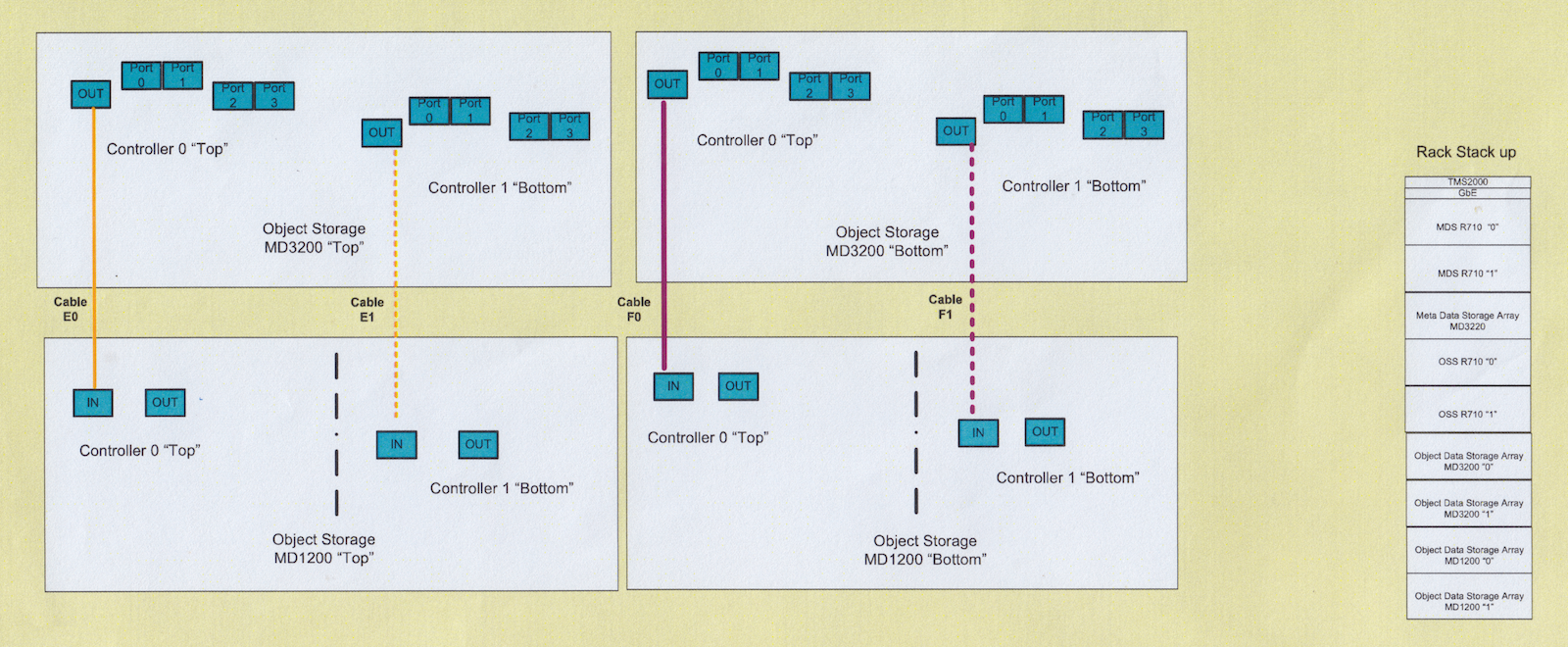

4. MD3200 to MD1200 SAS Interconnects
Initially, the Terascala Lustre Storage ran Lustre server 1.8.8 on top of Linux kernel 2.6.18-308.4.1.el5_lustre.1.8.8_1.3.4. In May 2014, the Terascala Lustre Storage was upgrade to run Lustre server 2.1.5 on top of Linux kernel 2.6.32-279.19.1.el6_lustre.2.1.5_1.0.7.
