Modernization of the legacy User Management Export screen (lib/usermanagement/usersExport.php, gui/templates/dashio/usermanagement/usersExport.tpl) — tracked in #920, closing the open feature gap #880 (user export to XML missing).

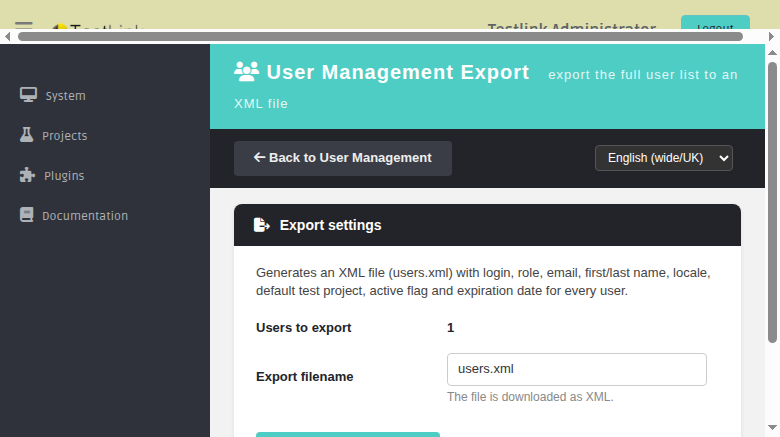

The legacy Smarty screen (a form submitting to usersExport.php) is replaced by a standalone Dashio page (gui/templates/usermanagement/usersExport.html) backed by a plain-PHP REST BFF API (api/usersexport/index.php). The User Management → Export toolbar button now opens the modern screen instead of the legacy usersExport.php form submit — the last legacy action still reachable from the modern UI.

Path: System → User Management → toolbar Export URL: gui/templates/usermanagement/usersExport.html?tproject_id=..&tplan_id=.. BFF API: GET ?action=info + POST ?action=export on /api/usersexport/ Rights: mgt_users (exactly like the legacy screen — only the admin role holds it).

The BFF reproduces lib/usermanagement/usersExport.php:

• Content: full user list — one entry per account with the exact legacy 10 fields: id, login, role_id, email, first, last, locale, default_testproject_id, active, expiration_date.
• Formats: XML (legacy default; ADODB_XML generator, root <users>, row <user>, text/xml; charset=ISO-8859-1) or Markdown (Refs #922) — a GitHub-flavoured table with the same 10 fields, pipe/backslash/newline-escaped cells, served text/markdown; charset=utf-8.
• Default filename: users.xml for XML, users.md for MD; selecting a format auto-rolls the pre-filled name (applyTypeDefaultFilename) while the select still honours any user-typed custom name.
• Filename override: any custom name is honored in Content-Disposition after being sanitized by basename() (path-traversal safe).

1. GET ?action=info (requires mgt_users) returns the default filename, the number of users to export, the exportTypes map (XML, MD) and the grants map. The screen shows them in the export card.
2. User picks the File type (XML or Markdown) and clicks Export.
3. POST ?action=export (with exportType) streams the dump as text/xml; charset=ISO-8859-1 or text/markdown; charset=utf-8 with Content-Disposition: attachment (Pragma: public, Cache-Control: must-revalidate).
4. Browser saves the file via blob download (X-Requested-With: XMLHttpRequest); JSON errors surface as a toast.
5. Back to User Management returns to usersView.html in the same context.

• No mgt_users right → HTTP 403 {"status":"error","message":"No rights", "right":"mgt_users"} on BOTH routes; the screen shows the lock warn-box "You do not have the mgt_users right required to export users." and disables the Export button and leaves the file-type select empty.
• Unauthenticated → HTTP 401 "Not authenticated".
• Empty file name → client-side toast "Please provide a filename.", no POST.
• Unknown export type (e.g. CSV) → HTTP 400 "Unsupported export type: CSV".

• Filename: basename() + CR/LF/quote strip (no path traversal, no header injection).
• XSS: all DOM values escaped via esc()/.text()/.val(); server messages inserted as text.
• SQL injection: ids intval()-cast, no raw concatenation.
• CSRF / same-origin: bffSameOriginGuard() + X-Requested-With header.

• usersView.html toolbar gained an Export button (data-i18n="user.export") wired to gotoExport(), which navigates the mainframe to usersExport.html carrying the current tproject_id/tplan_id.
• lib/usermanagement/usersExport.php is kept for backward compatibility.

All strings use userexport.* keys present in all ten locale bundles (en/de/es/fr/it/ja/pt/ro/ru/zh), plus the user.export toolbar key. The MD feature adds userexport.fileType, userexport.type.xml, userexport.type.md (Refs #922).

Suite 71 in tmp/TLU_Test_Cases.md — 13/13 PASS (BFF info/export parity, filename override + sanitization, empty-filename validation, 403 no-right both routes + browser warn state, 401 unauthenticated, i18n in all bundles, Event Viewer clean).

Suite 1520 (Refs #922) in tmp/TLU_Test_Cases.md — 14/14 PASS (info exportTypes map, browser format selector + filename rollover, MD export payload/headers, custom MD filename, XML regression, UI blob download, unknown- type 400, empty-filename client guard, guest 403 warn state, anonymous 401, i18n keys in all 10 bundles, Event Viewer clean).
