Update Linked Test Case Versions (planUpdateTC) — Wiki

The modernized Update Linked Test Case Versions screen replaces the legacy lib/plan/planUpdateTC.php. It re-links the test case versions attached to a test plan to newer (or any user-chosen) active versions, remapping executions and custom-field execution values exactly like TestLink 1.9.20 (doUpdate() / doBulkUpdateToLatest() → testplan::get_linked_and_newest_tcversions()).

Path: Test Plan > Update Linked Test Case Versions (requires an active test plan) URL: gui/templates/plans/planUpdateTC.html?tproject_id=<id>&tplan_id=<id> BFF API: api/plans/index.php (REST: GET /update-linked; POST /update-linked/selected, /update-linked/latest) Prerequisite: menu visibility needs testplan_update_linked_testcase_versions; every mutation requires testplan_planning (same as legacy rightsAnd check).

---

Table of Contents

1. Screen Layout
2. Row States & Legacy Parity
3. Three-Table Remap
4. Rights Model
5. REST API Reference
6. i18n Keys
7. Testing

---

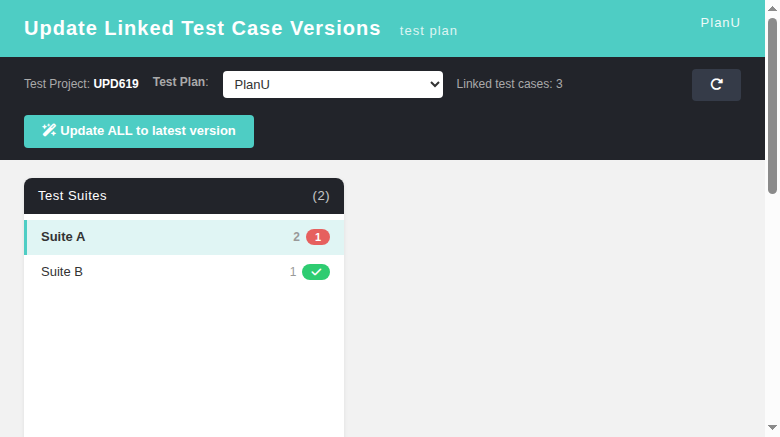

1. Screen Layout

• Teal Dashio header: title, subtitle, locale switcher.
• Toolbar: test project name, test plan picker, linked-count chip, reload, Update ALL to latest version, locale switcher.
• Left panel — suite list with updatable counts as badges; clicking a suite switches the table.
• Right panel — per-suite table with columns:
  • tick checkbox + Target Version dropdown (-- default; every active sibling version offered, newest tagged).
  • Test Case (external id + name) with links to Test Specification (tcView.html) and Execution History (execHistory.html).
  • Linked Version, Newest Active Version, Status badge (Latest / Updatable / linked version inactive), Executed counter.
• Footer: selected count + hint line.
• Confirm modals for both bulk actions list each old → new pair before applying.

2. Row States & Legacy Parity

• Rows flagged Latest still expose checkbox + target select whenever another active sibling exists — legacy tideUpForGUI() allowed re-linking an up-to-date case to any other active version (downgrades included). Only rows whose linked version is inactive or has no active siblings are read-only.

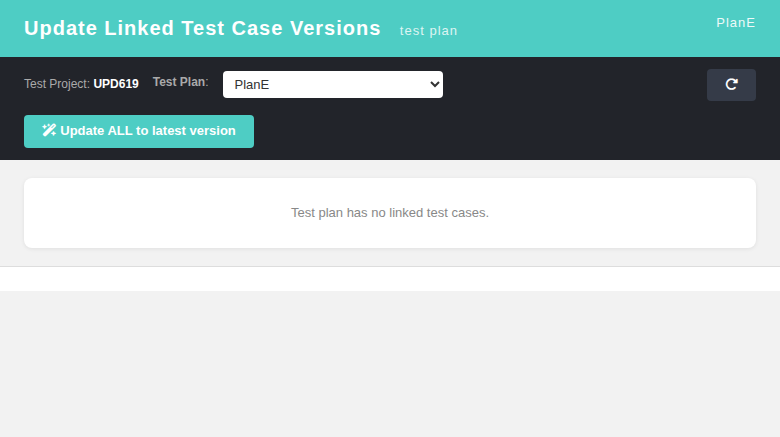

• The green "already newest" banner shows when nothing is updatable.
• Since #624 a row counts as Latest only under the exact legacy rule of testplan::get_linked_and_newest_tcversions(): among ACTIVE siblings take those with node id > linked id, newest = max-id candidate, and require its VERSION number > linked version number (node-id order ≠ version order after imports). The Linked version inactive badge outranks the green Latest badge.

3. Three-Table Remap

Both mutations re-link using the LIVE link row read from the database and remap, in one transaction-style sequence, exactly like legacy doUpdate():

1. testplan_tcversions — link moved to target tcversion id;
2. executions — execution history follows the new version;
3. cfield_execution_values — custom field values follow too. The plan↔project binding is validated server-side on every request (400 when the supplied tproject_id does not match the plan's parent), preventing cross-project manipulation.

4. Rights Model

Right	Effect
testplan_update_linked_testcase_versions	ASIDE menu entry visible
testplan_planning	required by all three BFF routes (403 otherwise)

No-rights users get a persistent localized error state in the screen and a 403 JSON from the API.

5. REST API Reference

Method & route	Purpose
GET /api/plans/index.php/update-linked?tproject_id=&tplan_id=	Context payload: project/plan info, suites with updatable counts, per-item linked/newest/target versions + executed qty + state (ok / empty / pick). Since #624: tplan_id=0 with a valid tproject_id no longer 400s — it returns the picker payload (tplans, tplan:null, empty suites/items) so the screen boots into plan-selection mode
POST /update-linked/selected {updates:{tcId:tcversionId}}	Re-links each listed case to the chosen active version (3-table remap); returns updated count
POST /update-linked/latest	Bulk move of every non-latest link to its newest active version (legacy get_linked_and_newest_tcversions())

Errors are JSON with error_code: NO_TPLAN, NO_TPROJECT, NO_RIGHTS (403), plus per-pair validation failures.

6. i18n Keys

All UI strings use the client-side TLi18n module with uptc.* keys present in all ten locale bundles (en, ro, de, es, fr, it, ja, pt, ru, zh), including uptc.noPermission, uptc.description, uptc.feedbackUpdated ({n} placeholder). Since #624 apiFail() maps server error_codes to localized toasts: NO_TPLAN→uptc.errNoTplan, NO_TPROJECT/BAD_TPLAN→uptc.errNoTproject, NO_SELECTION→uptc.noSelection; unknown codes fall back to the raw server message.

6a. Issue #624 Fix — is_latest semantics & boot dead-end

Root cause chain

1. updTcItems() derived is_latest from node-id ordering only (max(active sibling id) <= linked id) — legacy requires the additional version-number condition (testplan.class.php:1150,1158). A link on version 5 whose v3 sibling had a higher node id was offered a "downgrade as update"; bulk preview disagreed with the bulk action.
2. Badge priority rendered green Latest before checking linked_active, masking inactive-linked rows.
3. GET with tplan_id=0 hard-failed 400 NO_TPLAN, leaving an empty picker (dead end) plus a raw English toast (apiFail() had no error_code map).
4. Minor: footer printed bare "0 "; getDBTables() called inside the per-item loop of POST /latest.

Fix approach — replicate the legacy candidate rule in updTcItems() (active sibling with id>linked AND version>linked ⇒ updatable; newest = max-id such candidate), keep all active non-linked siblings as manual targets (tideUpForGUI() parity); add context-only GET mode returning state:'pick' with the plan list; reorder badge checks (inactive first); map error_codes to TLi18n keys added to all 10 bundles; localize the 0-row footer; hoist getDBTables().

Before / after evidence:

7. Testing

Full suite (15 cases) in tmp/TLU_Test_Cases.md — Suite 619, 15/15 PASS: rendering, suite switching, update-selected with non-newest target, executions remap proof, bulk-to-latest, no-selection guard, cancel path, empty plan, permission paths (BFF/screen/menu) and cross-project IDOR guard. Regression Suite 624 (11 cases R1–R11, all PASS) covers the #624 fixes: id-order vs version-order edge (v5-linked row stays Latest), inactive-badge priority, preview==bulk-action agreement, pick-mode boot, localized error toasts and footer.
