Modernization of the legacy read-only test suite viewer reachable via lib/testcases/archiveData.php?edit=testsuite&id=<suite_id> — GitHub issue #818.

The legacy popup (opened from the test-case search results of searchAdvancedView.html via openTsEdit()) is replaced by a standalone Dashio page (gui/templates/testcases/suiteView.html) backed by a plain-PHP REST BFF API (api/suiteview/index.php).

Path: Advanced Search → Test-Suites result row → suite name (opens the viewer popup). URL: gui/templates/testcases/suiteView.html?id=<suite_id>&tproject_id=.. BFF API: GET ?action=info on /api/suiteview/ Rights: mgt_view_tc on the owning test project (resolved by walking up nodes_hierarchy from the suite node — the popup may be opened for a suite of a project different from the session context, mirroring legacy archiveData.php behaviour). Tracking issue: #818

Scope note. This is intentionally the SMALLEST coherent sub-screen of the legacy archiveData.php tool: the read-only test-suite viewer only. The edit=testproject and edit=testcase routes are NOT ported — the modernized tcView.html (test case view popup) and testSpec.html (tree) already cover that ground. reqMilestones.php (status-table "BROKEN!" row) no longer exists.

---

---

The BFF reproduces the read-only suite viewer: testsuite::show() + containerView.tpl / tsuiteViewerRO.inc.tpl:

• Suite identity — node name + id, parent node name (or empty for a root-level suite), node type guard (testsuite type only; a test-case node id is rejected with 404).
• Suite details — testsuites.details text.
• Child content — count of direct child suites and the list of directly linked test cases with their latest version (highest tcversions.version whose tcversions.id node is a child of the test-case node): external id (PREFIX-N, e.g. SV-1), name, version number, active flag, status, importance (canonical TestLink levels: HIGH=3 / MEDIUM=2 / LOW=1, rendered as High/Medium/Low badges), summary.
• Keywords — test-suite level keywords (object_keywords for the suite node — mirrors legacy testsuite::getKeywords(), which reads by fk_id only; real UI writes store fk_table='nodes_hierarchy'), deduped, ordered. Each modern chip carries the object_keywords link id so keywords can be added / removed / deep-assigned (issue #1364, see below) when the user has both mgt_modify_tc and mgt_modify_key on the owning project.
• Attachments — attachment metadata of the suite (title, file name, size, date), newest first. The legacy suite manager is bound to the nodes_hierarchy attachment table, so the BFF filters fk_table='nodes_hierarchy' (suite attachments uploaded through the real workflow are stored there, not under testsuites). With mgt_modify_tc on the owning project the user can additionally upload and delete attachments (issue #1366, see below); read-only viewers get the plain list.

Section	Description

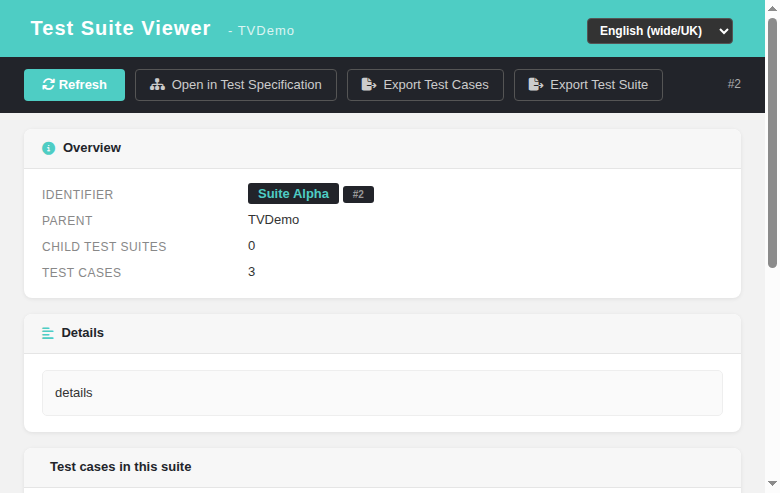

Header	"Test Suite Viewer" + owning test project name + locale switcher
Toolbar	Refresh, "Open in Test Specification" (→ testSpec.html?tproject_id=..), Export Test Cases, Export Test Suite, Generate spec (HTML), Generate spec (Word) (when testplan_metrics on the owning project), Import Test Cases/Test Suite + Table view (when mgt_modify_tc), context (#id)
Overview card	Identifier (suite name + #id), Parent, Child test suites, Test cases
Details card	Suite details (fallback (no details))

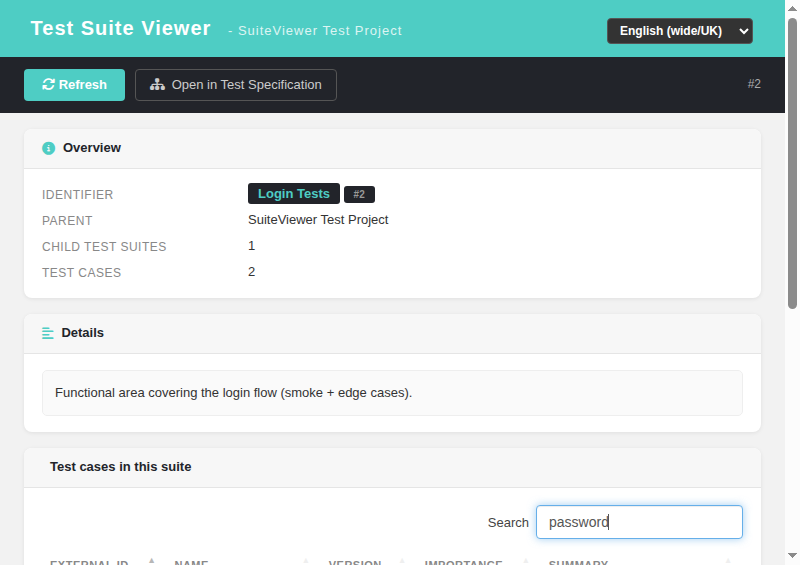

Test cases card	DataTable (External ID, Name, Version, Importance badge, Summary) with search + pagination
Test cases table view card	Full grid for bulk-set (users with mgt_modify_tc): checkbox column, External ID, Name, Version, Status, Importance, Execution Type, Summary + per design-time custom field a set-input (checkbox + value select/text); bulk toolbar (Status / Importance / Execution Type selects + "Apply to selected")
Keywords card	Keyword chips, each with a remove icon when the user may assign keywords; plus a free-keyword multi-select with + Add and Add to all testsuites deep buttons (hidden for read-only users / when no free keywords)
Attachments card	Attachment DataTable rows with size + date + per-row Delete + Add attachment upload form (title + file + Upload) when mgt_modify_tc; hidden only for read-only users with no attachments
Footer	Generated-on timestamp

Legacy parity target: the testcases_table_view action of lib/testcases/containerEdit.php:215-224 (button in containerViewTestSuiteTextButtons.inc.tpl, only shown when modify_tc_rights == 'yes') → moveTestCasesViewer(), which rendered a full selectable grid of the suite test cases (MAX version each, regardless of the active flag) with design-time custom-field set inputs (html_table_inputs(..., addCheck=true)) and a bulk toolbar whose Save ran doBulkSet() (status / importance / execution_type + design_values_to_db).

Piece	Location
Rights	info returns can_manage = mgt_modify_tc == 'yes' on the owning project; the toolbar button is hidden otherwise.
Grid BFF	GET /api/suiteview/?action=table&id=<suite>&tproject_id=<pid> — one row per test case (MAX tcversions.version, inactive versions INCLUDED, matching the legacy grid), each with tcversion_id, tcase_id, name, external_id_display, version, active, status, importance, execution_type, summary and cf.{cfId} design values; plus cfs definitions and domains (localized status/importance/execution_type maps).
Bulk write BFF	POST /api/suiteview/?action=bulk_set {id, tproject_id, rows:[{tcversion_id,tcase_id}], status, importance, execution_type, cfs:{cfId:value}} — gated on mgt_modify_tc (HTTP 403 otherwise); per selected version applies setStatus/setImportance/setExecutionType when the value > 0, then cfield_mgr->design_values_to_db() for each provided CF value (legacy doBulkSet ordering, containerEdit.php:1434).

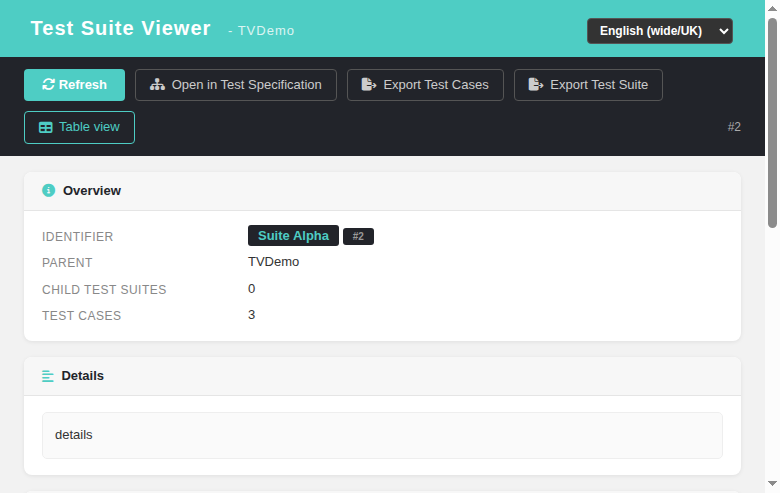

UI	"Table view" toolbar button toggles the full grid; header checkbox selects/deselects all; DataTable with search + pagination; bulk toolbar under the grid + success/error feedback (suvw.tbl* keys, all 10 locales).

Legacy parity target: legacy containerView.tpl:77-85 (jsCallDeleteFile → deleteAttachmentRelativeURL) and containerView.tpl:196-204 include attachments.inc.tpl with bDownloadOnly=false whenever $gui->modify_tc_rights == 'yes' → the fileUpload / deleteFile actions of lib/testcases/containerEdit.php:129-167 (level=testsuite), calling fileUploadManagement($db, testsuiteID, fileTitle, 'nodes_hierarchy') and deleteAttachment($db, file_id).

Piece	Location
Rights	Same can_manage = mgt_modify_tc == 'yes' on the OWNING project (legacy grants->testcase_mgmt); the upload form and per-row Delete are rendered only when true, and both BFF endpoints re-check it server-side (403).
Upload BFF	POST /api/suiteview/?action=attachment_upload&id=<suite>&tproject_id=<pid> — multipart uploadedFile + optional fileTitle; calls fileUploadManagement($db, <suite>, <title>, 'nodes_hierarchy') (same helper as legacy). Returns the refreshed attachment list; 422 + code on upload failure (allowed_files, empty_extension, ...).
Delete BFF	POST /api/suiteview/?action=attachment_delete&id=<suite>&tproject_id=<pid>&file_id=<att> — ownership guard (attachments.id=<file_id> AND fk_id=<suite> AND fk_table='nodes_hierarchy', else 404), then deleteAttachment($db, <att>, false). Returns the refreshed list.
Rows	info / both write actions return each attachment with a download_url (/api/attachments/index.php?action=download&id=<att>), so the metadata matches the legacy download link.
UI	#attUpload (title + file + Upload) shown when CAN_MANAGE; #attTable DataTable with a per-row Delete button gated by the same flag; inline success/error feedback (suvw.uploadOk, suvw.deleteOk, suvw.delAttConfirm, upload error codes).

Legacy attachments.inc.tpl:89 renders EVERY attachment row as a clickable download in both read-write and read-only modes — <a href="lib/attachments/ attachmentdownload.php?id=N" target="_blank" class="bold" title="click_to_get_attachment">{title}</a>. Only the delete button is gated by modify_tc_rights (attach_downloadOnly, containerView.tpl:201-204). The modern BFF already returned a download_url per row; the front-end was printing the title as inert <b> text.

Piece	Location
Download URL	api/suiteview/index.php suiteAttachments() emits download_url = /api/attachments/index.php?action=download&id=<att> per row (upload/delete refresh lists too).
Download endpoint	api/attachments/index.php?action=download&id=<att> streams the file (attachments feature must be enabled; SVG not script-safe is force-downloaded).
Link	gui/templates/testcases/suiteView.html renderAttachments() wraps the title in <a class="bold att-dl-link" href="{download_url}" target="_blank" rel="noopener" title="{suvw.clickToDownload}"> for EVERY row (fallback download URL assembled from a.id if download_url missing); delete button only when CAN_MANAGE.
Tooltip	new i18n key suvw.clickToDownload (legacy click_to_get_attachment = "Click to get attachment") in all ten locale bundles.

Screenshots (issue #1365): normal (admin) , read-only viewer .

1. On load the page reads id (accepts id / testsuite_id / item_id) and optional tproject_id from the query string.
2. GET ?action=info&id=..&tproject_id=.. → the BFF resolves the suite, walks up to the owning test project, enforces mgt_view_tc, and returns the suite/tc/keywords/attachments payload.
3. The popup renders; the TC name link and the toolbar "Open in Test Specification" open the modernized tcView.html / testSpec.html.

• Unauthenticated → 401 "Not authenticated".
• Missing/invalid id → 400 "Invalid test suite id".
• Unknown suite / non-suite node → 404 "Test suite not found".
• Owning project unresolvable → 404 "Owning test project not found".
• No mgt_view_tc → 403 "You are not authorized to view this test suite".
• Front-end: red banner + hidden content for load failures; "No test suite id provided." when the page is opened without an id.

The suite-level import entry points of the legacy operations panel are restored (legacy containerViewTestSuiteTextButtons.inc.tpl:72-77 importItem and :129 import-TC span):

• Import Test Cases — opens tcImport.html?containerID=<suite>&tproject_id=<pid> (flat import, legacy $importTestCasesAction).
• Import Test Suite — opens tcImport.html?containerID=<suite>&tproject_id=<pid>&useRecursion=1 (deep suite import, legacy $importToTSuiteAction).

Both buttons are gated by mgt_modify_tc on the owning project (legacy modify_tc_rights; the BFF already exposes it as can_manage) — for a read-only user they are not rendered. The launcher reuses the already-modern tcImport.html + api/testcasesimport (no BFF change); the target suite is shown in the import screen header and the uploaded cases land under that suite.

The testsuite-level test-spec document generation of the legacy operations panel (containerViewTestSuiteTextButtons.inc.tpl:66-70 report / report_word buttons, URLs containerView.tpl:54-58: lib/results/printDocument.php?type=testspec& level=testsuite&allOptionsOn=1&format=0|4&id=<suite>) is ported into the modern toolbar:

Piece	Location
Buttons	"Generate spec (HTML)" (format=0) + "Generate spec (Word)" (format=4) ghost buttons in the suiteView toolbar, rendered only when info.can_print is true.
Rights	info now returns can_print = testplan_metrics on the OWNING test project — exact legacy printDocument.php checkRights() parity (explicit project id, because the popup may be opened for a suite of another project).
Launcher	openSuiteSpec(format) opens `gui/templates/testcases/printTestDoc.html?type=testspec&level=testsuite&id=&tproject_id=&format=0
Document	Reuses the already-modern print stack: api/testcasesprint (BFF, session + testplan_metrics) wrapping the battle-tested legacy generator lib/results/printDocument.php. HTML renders in a real-time iframe viewer; Word triggers the .doc blob download.

The scope is the single suite (with its nested sub-suites); sibling suites are excluded — verified on the fixture (Suite Alpha + Subsuite Gamma included, Suite Beta's "Create Report" case excluded).

Server side stays authoritative: even if the UI gate were bypassed, the print BFF returns HTTP 403 "No permission" for a user without testplan_metrics on the project.

• Permission: mgt_view_tc enforced server-side on the owning test project (never trusted from the client).
• XSS: all DOM-bound values pass through escapeHtml(); DataTables uses HTML escaping by default.
• SQL injection: all ids cast with intval().
• CSRF / same-origin: bffSameOriginGuard(); the popup only issues GETs.
• Event Viewer cleanliness: a frr() helper normalizes fetchFirstRow() null/false returns so 400/404 paths never emit E_WARNING rows into the events table (found + fixed during testing).

searchAdvancedView.html openTsEdit() now opens /gui/templates/testcases/suiteView.html?id=<id>&tproject_id=.. instead of /lib/testcases/archiveData.php?edit=testsuite&id=<id>. No other modernized screen routes suite viewing through archiveData.php (grep-clean).

Full legacy parity with gui/templates/dashio/testcases/include/object_keywords.inc.tpl (rendered by tsuiteViewerRO.inc.tpl:39-41 with args_edit_enabled = $gui->modify_tc_rights):

• Remove — each keyword chip carries a remove icon when the user may assign keywords. Clicking it shows the native confirm "Really remove keyword ?" (legacy keyword_remove_confirmation + remove_kw_msgbox_msg), then POST api/suiteview/index.php?action=keyword_remove ({id, kw_link_id}) → legacy containerEdit.php doAction=removeKeyword → testsuite::deleteKeywordByLinkID() (plain DELETE FROM object_keywords WHERE id = kw_link_id).
• Add — free-keyword multi-select lists the project keywords NOT already linked to this suite (legacy testsuite::getFreeKeywords(): keywords.testproject_id = owning project, id NOT IN object_keywords for fk_id = suite). + Add → POST ?action=keyword_add ({id, keyword_ids}) → legacy doAction=addKeyword → testsuite::addKeywords() (flat link to the suite only).
• Add to all testsuites deep — POST ?action=keyword_add_deep → legacy doAction=addKeywordTSDeep → testsuite::addKeywordsDeep(): assigns to the suite AND its whole subtree, diffing against getKeywordsForTSSet() to avoid duplicate links. Legacy quirk preserved verbatim: addKeywordsDeep only chains through suites that already have at least one keyword (the getKeywordsForTSSet map only contains suites present in object_keywords), so keyword-less child suites are left untouched — reproduced exactly by the BFF because it invokes the same testsuite method (verified by calling the legacy method directly).

Rights gate (port of the full legacy gate):

• Invoke the legacy method directly (testsuite::addKeywords / addKeywordsDeep / deleteKeywordByLinkID).
• UI + API gate: BOTH mgt_modify_tc == 'yes' on the owning project (legacy modify_tc_rights / grants->testcase_mgmt, containerEdit.php:120-124) AND mgt_modify_key == 'yes' (legacy assign_keywords, testsuite.class.php:521-525). The info payload exposes can_assign_keywords for the front-end; the three write endpoints return 403 otherwise.
• BFF hardening beyond legacy: keyword_ids validated to belong to the owning project (else 400) and not already linked (else 409); kw_link_id validated to actually belong to THIS suite (fk_id + fk_table guard, else 404) before the delete.

info payload now returns keywords as objects {keyword_id, kw_link_id, keyword} (the link id is what removeKeyword needs) plus free_keywords [{keyword_id, keyword}] and can_assign_keywords.

Legacy parity with testsuite.class.php:533 → html_table_of_custom_field_values($id, scope='design') rendered by tsuiteViewerRO.inc.tpl:48-53:

• BFF — GET ?action=info now returns custom_fields: [{id, label, value}] built with testsuite::get_linked_cfields_at_design() (cfield_node_types JOIN for node_type testsuite, LEFT JOIN cfield_design_values keyed by the suite node id, ORDER BY display_order)
  • cfield_mgr::string_custom_field_value(). BUGID 3989 show_custom_fields_without_value (true in config.inc.php:1971) is honoured: CFs without a value are still listed with an empty cell. Same {id,label,value} shape + implementation as the exec-popup suite block (api/execsetresults esrTestSuite()).
• Screen — a Dashio Custom fields .card (teal fa-tasks icon) sits between the Details card and the test-case table. .kv label/value grid; renderCustomFields(r.custom_fields) hides the card entirely when the project has no design CFs for the suite. The value is backend-escaped HTML (htmlspecialchars + link insertion for string, mailto: for email, nl2br for text area, date formatting for date/datetime) and is inserted raw (not re-escaped) exactly like the legacy {$gui->cf} cell, so clickable links survive.

Bug found while implementing: any URL-valued string CF crashed with Undefined constant LINKS_NEW_WINDOW (string_api.php:322, MantisBT backport 6969837d9 added the reference without the constant). Fixed by defining LINKS_NEW_WINDOW=1 / LINKS_SAME_WINDOW=0 in cfg/const.inc.php — filed as #1539.

All user-facing strings use suvw.* keys present in all ten locale bundles (de, en, es, fr, it, ja, pt, ro, ru, zh). The attachment upload/delete feature (#1366) adds/documents 19 attachment keys (suvw.addAttachment, suvw.upload, suvw.uploadTitle, suvw.chooseFile, suvw.uploadOk, suvw.delete, suvw.delAttConfirm, suvw.deleteOk, suvw.deleteFail, suvw.noAttachments, suvw.noFileSelected, suvw.attTitle/attFile/attSize/attDate, suvw.attachments and the four suvw.err* upload codes) in every bundle; all bundles validated with python3 -m json.tool. The keyword assignment feature (#1364) adds 10 keys (suvw.selectKeywords, suvw.removeKeyword, suvw.removeKwConfirm with {kw} interpolation, suvw.addKeyword, suvw.addKeywordsDeep, suvw.noKeywordSelected, suvw.kwAddOk, suvw.kwAddDeepOk, suvw.kwRemoveOk, suvw.kwOpFail) in all ten bundles. The custom-field values feature (#1363) adds suvw.customFields ("Custom fields" / "Benutzerdefinierte Felder" / "Campos personalizados" / "Champs personnalisés" / "Campi personalizzati" / "カスタムフィールド" / "Câmpuri personalizate" / "Пользовательские поля" / "自定义字段") in all ten bundles.

See Suite 819 in tmp/TLU_Test_Cases.md (21/21 PASS). The import launchers (#1370) are covered by the Issue #1370 suite in the same file (10/10 PASS). The generate-testsuite-spec feature (#1369) is covered by the Issue #1369 / Suite 1524 suite (13/13 PASS). The attachment upload + delete feature (#1366) is covered by the Issue #1366 suite in the same file (11/11 PASS). The keyword assignment feature (#1364) is covered by the Issue #1364 suite in the same file (13/13 PASS). The custom-field values feature (#1363) is covered by the Issue #1363 suite in the same file (9/9 PASS).

The viewer exposes the legacy Test-Suite-Viewer test-case operations from the toolbar and the table view:

• + Create Test Case — deep-links testSpec.html?tproject_id=<p>&containerID=<suite>&create=1; testSpec auto-selects the suite in the tree and opens the create-test-case form (modern entry to legacy create_tc → tcEdit.php?doAction=create&containerID=).
• Reorder Test Cases — POST api/suiteview/index.php?action=reorder_testcases; honours $tlCfg->testcase_reorder_by (EXTERNAL_ID default / NAME natsort), legacy reorderTestCasesViewer. An explicit by override is accepted.
• Create from Issue XML — opens tcCreateFromIssues.html?containerID=<suite>&tproject_id=<p> pre-targeted at the suite (legacy create_tc_from_issue_xml span).
• Table view — Move / Copy / Delete selected — target-suite picker lists all suites of the project except the current one. move_testcases reparents, copy_testcases performs a deep copy (testcase + version + steps/CF), and delete_testcases removes the node and its version (executed test cases are refused, mirroring testproject_delete_executed_testcases). Legacy do_move_tcase_set / do_copy_tcase_set / do_delete_testcases.

All operations are gated on mgt_modify_tc on the owning project (can_manage); the three toolbar buttons are hidden otherwise. New BFF endpoints live in api/suiteview/index.php and 17 suvw.* keys were added to all ten locale bundles.

Bug fixed during testing: TV_TABLE was referenced but never declared in suiteView.html, aborting renderTableView() before DataTable initialization (console ReferenceError). Declared the variable; filed as issue #1527.
