Test Specification Import (tcCreateFromIssue) β€” Modernized

Issue: Refs #1896

  • Legacy: lib/testcases/tcCreateFromIssue.php (1068 lines) β€” a full Smarty controller that rendered testcases/tcCreateFromIssue.tpl, a template that never existed in gui/templates/dashio (nor in gui/templates/tl-classic), so the screen was dead code: no ASIDE entry, no $actions-> mapping and no caller reached it.
  • Modern: gui/templates/testcases/tcCreateFromIssue.html + BFF api/tccreatefromissue/index.php
  • Shared engine: lib/testcases/tcCreateFromIssue.functions.php
  • Legacy controller is now a context-preserving redirect shim to the modern page.

What the screen does

The Test Specification Import screen creates test cases (and, recursively, test suites) in the current test project from a TestLink / Mantis-issue XML export.

  • Context card: Test Project + target container.
  • Target test suite picker: the project root plus the dotted suite tree.
  • File picker (TestLink XML only) with a Maximum file size: N KB hint.
  • Recursive import (<testsuite> XML) checkbox that reveals the legacy Import into project root option.
  • Duplicate check criteria: Same name / Same internal ID / Same external ID.
  • Action for duplicates: Skip duplicates / Update last version / Generate new test case / Create new version.
  • Import / Cancel, a per-entry Import result table (Test case / Detail) with a Processed counter, a toast and a loading overlay.

BFF (api/tccreatefromissue/index.php)

Session auth + bffSameOriginGuard + bffEnforceSession; right mgt_modify_tc on the owning project.

  • GET ?action=init&tproject_id=N[&containerID=M] β€” project/container context, the flat suite picker ({id,name,depth}), maxUploadBytes, grants, the duplicate hitOptions / actionOptions labels (resolved through lang_get() exactly like legacy lib/testcases/tcImport.php).
  • GET ?action=tree&tproject_id=N β€” suites for the picker.
  • POST ?action=import (multipart uploadedFile) β€” root element must be testcases or testsuite; parameters useRecursion, bIntoProject, hit_criteria, action_on_duplicated_name; calls the extracted engine and normalizes each legacy positional [name, message] row to a {name, message} object.
  • Status contract: 401 anon / 403 no-right (audited) / 404 unknown project / 400 bad id / 413 oversize / 422 invalid or wrong-root XML / 405 method.

Legacy engine extraction

The import engine was lifted verbatim into lib/testcases/tcCreateFromIssue.functions.php (only init_args() and initializeGui() excluded): importTestCaseDataFromXML, saveImportedTCData, buildKeywordList, check_xml_tc_tsuite, nl2p, processCustomFields, processRequirements, importTestCasesFromSimpleXML, getTestCaseSetFromSimpleXMLObj, getStepsFromSimpleXMLObj, getCustomFieldsFromSimpleXMLObj, getRequirementsFromSimpleXMLObj, getKeywordsFromSimpleXMLObj, importTestSuitesFromSimpleXML, processTestSuiteCF.

Wiring & i18n

  • $actions->tcCreateFromIssue in lib/functions/common.php.
  • ASIDE entry Test Specification Import in api/aside/index.php, next to Import Test Cases, using the new $TLS_href_tc_spec_import label.
  • 32 tccfi.* keys in all 10 i18n bundles (ai/verify_i18n_coverage.sh PASS, 7300 keys).
  • $TLS_href_tc_spec_import added to all 19 locale/*/strings.txt catalogues (mixed encodings handled; php -l clean).

Verification

  • Curl: init/tree load; non-recursive <testcases> import (2 rows ok); recursive <testsuite> import creates sub-suites (2 rows ok, tree lists the new suites); invalid XML β†’ 422; anon β†’ 401.
  • Browser: form renders localized, target-suite picker populated, recursive checkbox reveals Import into project root, import renders the result table, toast Import completed., EN↔RO locale switch, clean console.
  • Event Viewer: no new Error / Warning rows (audit-only).

Screenshots

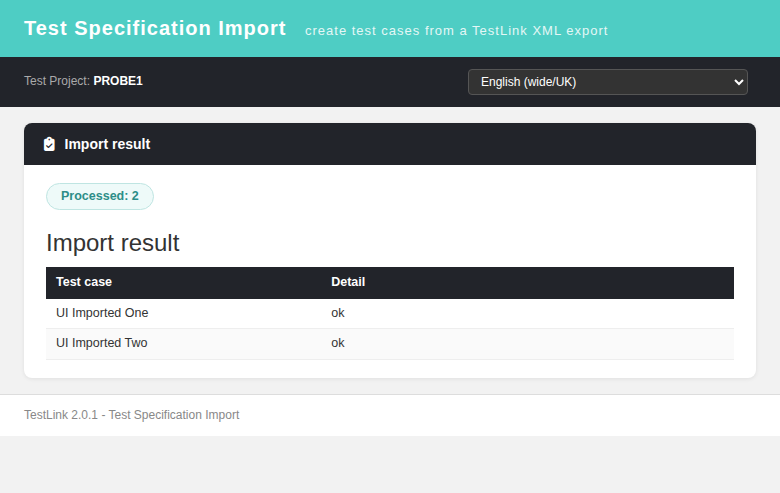

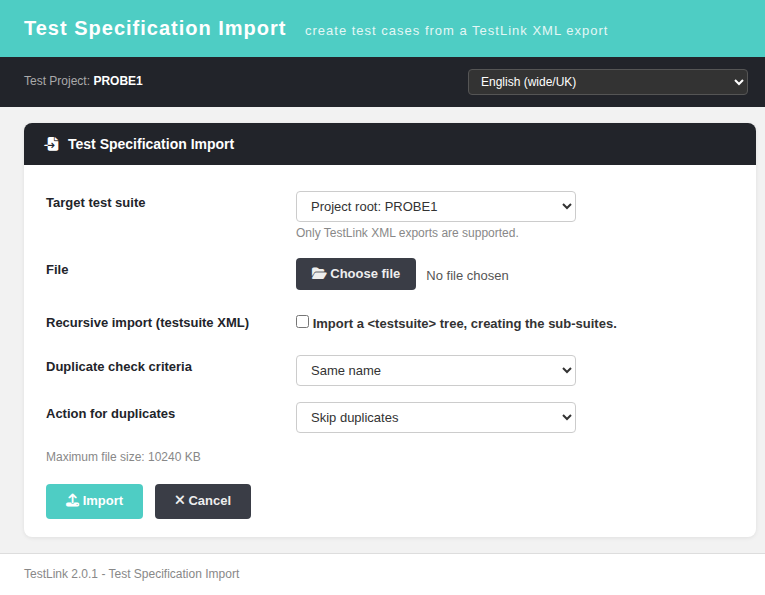

Test Specification Import β€” form Test Specification Import β€” import result
