Modernization of the legacy Export Test Plan screen (lib/plan/planExport.php, gui/templates/dashio/plan/planExport.tpl) — tracked in #754.

The legacy Smarty screen is replaced by a standalone Dashio page (gui/templates/plans/planExport.html) backed by a plain-PHP REST BFF API (api/planexport/index.php). The Test Plan Management → Export Test Plan Links toolbar button now opens the modern screen instead of the legacy planExport.php redirect.

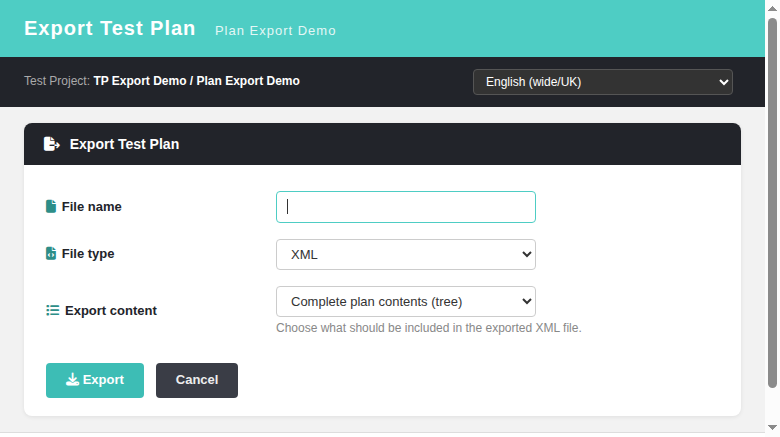

Path: Plans → Test Plan Management → row Export icon URL: gui/templates/plans/planExport.html?tproject_id=..&tplan_id=.. BFF API: GET ?action=info + POST ?action=export on /api/planexport/ Rights: any authenticated session that can read the plan (parity with legacy).

The BFF reproduces lib/plan/planExport.php:

• Export content modes (whitelisted, falls back to linkedItems):
  • linkedItems — linked test cases (minimal) and platforms
  • tree — complete plan contents (suite tree, summaries, preconditions)
  • 4results — a format usable to import execution results
• Default filename: <mode>_<tplan>[+_<platform>][+_<build>].xml (spaces→_)
• File type: always XML
• File formats documentation link: below the File type select the form shows a "(View file formats documentation)" link pointing to /docs/tl-file-formats.pdf (opens in a new tab) — parity with the legacy planExport.tpl:65 link / PARTIAL_URL_TL_FILE_FORMATS_DOCUMENT (cfg/const.inc.php:917). Label key pex.viewFileFormatDoc (#1386).

1. GET ?action=info resolves the plan, builds the default filename and the export-content dropdown (404 on unknown plan).
2. User picks a mode / file name and clicks Export.
3. POST ?action=export streams the XML as application/xml + Content-Disposition: attachment (filename CR/LF/quote-sanitized), Pragma: public, Cache-Control: must-revalidate.
4. Browser saves the XML via blob download; JSON errors surface as a toast.

Legacy parity with lib/plan/planExport.php:142-151 / the execution-window launch (execNavigator.tpl → openExportTestPlan(...,'4results',form_token), inc_filter_panel.tpl:204): when the popup is opened with &form_token=<tree token>, the exported For results import XML is scoped to the test cases currently shown in the execution window.

• POST ?action=export with form_token>0 reads $_SESSION['execution_mode'][token]['testcases_to_show'] and passes it as the tcaseSet filter to exportForResultsToXML() → getLinkedStaticView() restricts the XML via NH_TCASE.id IN (...). Only the 4results mode is scoped; linkedItems/tree are unaffected.
• GET ?action=info reports form_token + scopedCount; the page keeps a hidden <input name="form_token"> (planExport.tpl:48 parity) and shows a green hint "Export limited to the N test case(s) currently shown in the execution window" (key pex.scopedNote, 4results mode only). The exportContent mode passed by the launch URL is also preserved.
• Safety: token is intval-cast before session-array indexing (no array injection); the scope set is read server-side from the session, never from the request. Without a token (Test Plan Management → Export) behaviour is unchanged: 4results exports every linked test case.
• Tracked in #1385.

• Invalid tplan_id → 400 · Unknown plan → 404 · Unauthenticated → 401
• Empty file name → client-side toast "File name is required."
• JSON error payloads read from the blob and shown as toast (not downloaded)

• Header injection: Content-Disposition filename strips CR/LF/"
• XSS: all DOM values escaped via esc()/.text()/.val()
• SQL injection: ids intval()-cast, mode whitelisted
• CSRF / same-origin: bffSameOriginGuard() + X-Requested-With

• exportAction → planExport.html ✅
• assignRolesAction → usersAssignPlan.html ✅
• gotoExecuteAction → execTest.html ✅
• importAction → legacy planImport.php (not yet modernized)

Each modernized base URL uses a clean tplan_id= so the front-end appends the real plan id (avoids the duplicate-tplan_id bug feeding screen plan 0).

All strings use pex.* keys present in all ten locale bundles (pex.viewFileFormatDoc added for the documentation link in #1386).

Suite 813 in tmp/TLU_Test_Cases.md — 14/14 PASS. File-format-doc link (issue #1386) covered by Suite 1498 — 4/4 PASS. form_token scoping of the 4results export (issue #1385) covered by Suite 1385 — PASS (see tmp/TLU_Test_Cases.md).
