Test Automation Specification — Modernized Screen

Modernization of Test Automation Specification (lib/results/testAutomationSpec.php) — GitHub issue #1485.

The last standalone legacy lib/results/* report controller is replaced by a standalone Dashio page (gui/templates/results/testAutomationSpec.html) backed by a plain-PHP REST BFF (api/testautomationspec/index.php). The screen is reached from the ASIDE menu Test Case Design → Test Automation Specification (replacing the old "Test Automation Team" menu action).

URL: gui/templates/results/testAutomationSpec.html?tproject_id=<id> BFF API: api/testautomationspec/index.php Rights: mgt_view_tc on the REQUESTED test project (legacy parity of being able to view the test-case design) → 401 anonymous / 400 missing project or unknown action / 404 unknown project (answered before the rights probe) / 403 no right / 500 generation failure (JSON, no HTML leak).

The report lists every automated test case of the project (exec_type TESTCASE_EXECUTION_TYPE_AUTO), grouped by test suite — the same dataset the legacy screen produced via genSpecViewFlat().

---

Table of Contents

1. What the screen does
2. REST API Reference
3. Legacy parity notes
4. i18n Keys
5. Security
6. Testing

1. What the screen does

Feature	Legacy behavior	Modern implementation
Dataset	genSpecViewFlat('testproject', ...) filtered to TESTCASE_EXECUTION_TYPE_AUTO, onlyLatestTCV	BFF calls the identical legacy function with the identical arguments and re-shapes the result into clean JSON
Grouping	per test suite, caption shows the suite path verbatim	same — each suite is a caption header (/ASD Root Suite/ style) followed by its table
Row	legacy template printed the automated test suite/name + latest version	Dashio table columns: Automated Test Case (external id + name, click → modern tcView.html popup), Version, Importance badge (High=red / Medium=amber / Low=green)
Counts	spec summary header	toolbar shows project name, automated test-case count, total suites, generation timestamp (tas.stats), Refresh button

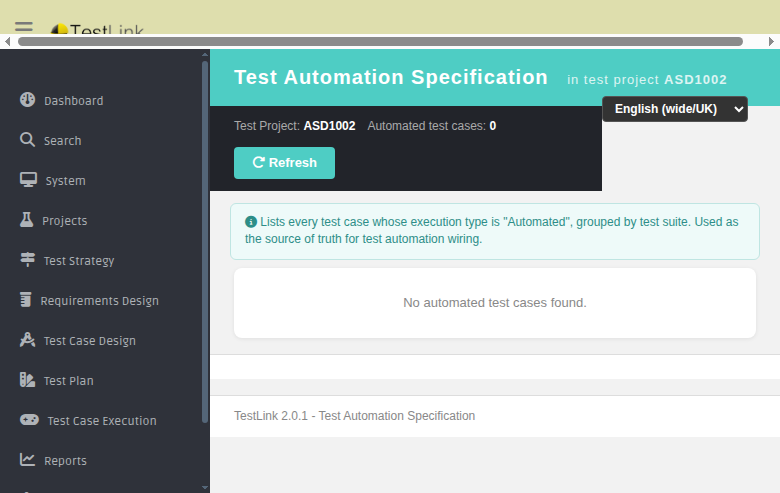

Empty project	legacy message "Test Automation Specification is empty"	localized tas.noAutomated empty state panel
No permission	legacy denied-access redirect	localized red 403 banner, no data rendered

2. REST API Reference

Single route, session-authenticated, JSON.

Method	Route	Query	Returns
GET	?action=spec	tproject_id (optional — falls back to session testprojectID, legacy initUserEnv context)	{status:'ok', tprojectId, tprojectName, numTc, totalSuites, generatedOn, suites:[{id, name, testcase_qty, testcases:[{id, external_id, name, version, importance}]}]}

Error conditions

• Missing/invalid session → HTTP 401 {status:'error',...}.
• Unknown action or missing project → HTTP 400.
• Unknown/forged tproject_id → HTTP 404 (checked before the rights probe, so a nonexistent project never reveals right-grant errors).
• Authenticated user without mgt_view_tc on the requested project → HTTP 403.
• Generation exception → HTTP 500 JSON (wrapped in try/catch; the legacy call cannot emit a raw HTML fatal).

3. Legacy parity notes

• The BFF require_onces lib/functions/specview.php (function-only library) and calls: genSpecViewFlat($db,'testproject',$tproject_id,$tproject_id,'',null,0,array('exec_type'=>TESTCASE_EXECUTION_TYPE_AUTO),array('onlyLatestTCV'=>true)) — byte-identical arguments to the legacy controller.
• Suite caption uses suite['name'] verbatim (keeps the /Root/Suite/ path shape TestLink users expect).
• version is the TC version id (int); importance is the TestLink scale (1=High, 2=Medium, 3=Low), mapped to localized badges client-side.
• The ASIDE entry replaced the legacy testAutomationSpec action; the old lib/results/testAutomationSpec.php controller is kept only as reference and is no longer reachable from the modern UI.

4. i18n Keys

All labels are client-side via TLi18n; keys under the tas. namespace in all 10 locale bundles (en.json, ro.json, de.json, es.json, fr.json, it.json, ja.json, pt.json, ru.json, zh.json): tas.caption, tas.inProject, tas.testProject, tas.automatedCases, tas.hint, tas.results, tas.noAutomated, tas.noRights, tas.colTestCase, tas.colVersion, tas.colImportance, tas.impHigh, tas.impMedium, tas.impLow, tas.stats + footer footers.tasSpec.

The ASIDE menu label btn_report_test_automation was added to all 19 locale/*/strings.txt files and registered in gui/templates/dashio/labels/labels.aside.tpl.

5. Security

• Every route runs behind bffSameOriginGuard() (CSRF same-origin / custom header proof) exactly like every other BFF.
• Rights are checked with $user->hasRight($db,'mgt_view_tc',$tproject_id) on the URL-provided project id — never the session-only variant hasRightOnProj() (which reads $_SESSION['testprojectID'] and would let a user with rights on any session project read another project's report).
• All server data goes through esc()/intval; tcase/tcversions are null-guarded before array access.

6. Testing

Regression suite 1485 (16/16 PASS) in tmp/TLU_Test_Cases.md, verified in browser + API after review fixes. Fixtures: tmp/fixtures_aside_walk.php (project ASD1001, TC API health execution_type AUTO) and tmp/fixtures_tas_empty.php (project ASD1002, no test cases). Event Viewer: no new Error/Warning entries generated.
