Issue: #955 Status: IMPLEMENTED & VERIFIED (2026-09-22) — branch task/issue-955-show-on-exec

The legacy custom field screens rendered the field's Display on execution (show_on_execution) capability in two places:

• gui/templates/dashio/cfields/cfieldsView.tpl:49,62 — a dedicated "Display on execution" column that renders the displayOnExec icon (<i class="fa fa-desktop"></i>, lib/functions/tlsmarty.inc.php:546) for every field whose show_on_execution is set;
• gui/templates/dashio/cfields/cfieldsEdit.tpl:171-178 — a "Display on test execution" Yes/No combo (cf_show_on_execution) that lets the user control show_on_execution independently of the enable-on area. The combo is hidden (cfieldCfg->cf_show_on.execution.style) when it cannot apply, driven by cfieldCfgIni/cfieldsEdit.php:70-96.

The rules that guard the combo (must be preserved by any rewrite):

• lib/cfields/cfieldsEdit.php:93-96 — in edit mode, enable_on_execution truthy ⇒ the combo is hidden (enable-on execution implies show-on).
• gui/templates/dashio/cfields/cfieldsEditJS.tpl:251-269 — initShowOnExec(): switching the enable-on area to execution hides the combo and forces show_on_execution=1; selecting any other area re-shows it.
• lib/cfields/cfieldsEdit.php:198-227 — request2cf() hard-codes enable_on_<area> == 1 ⇒ show_on_<area> = 1 server-side.
• lib/functions/cfield_mgr.class.php:167-186 — show_on_cfg['execution'] is set for build/testsuite/testplan/testcase but 0 for requirement_spec and requirement, so requirement fields can never display on execution.

The modern screens dropped all of this:

• gui/templates/cfields/cfieldsView.html:219-222 — the "Available On" column listed only the enable_on_* contexts; show_on_execution (e.g. the seeded Tier field, show_on_execution=1) rendered just "Design" with no display-on icon.
• Both edit modals (cfieldsView.html, gui/templates/cfields/ cfieldsAssignView.html) had no "Display on test execution" control at all.
• api/cfields/index.php:212 — POST /api/cfields hard-coded show_on_execution => 0, so even a field enabled on execution stored 0 until an edit re-saved it.

Measured gap (fresh import, no fixtures): GET /api/cfields returned show_on_execution correctly (BFF cfToJSON, index.php:96) but the value was never rendered, never editable, and POST always wrote 0.

• POST / (create) — show_on_execution is now read from the request body instead of being hard-coded to 0. The legacy rule is enforced server-side: enable_on_execution == 1 ⇒ show_on_execution = 1, exactly like request2cf() (cfieldsEdit.php:198-227).
• PUT /{id} (update) — same enforcement: enable_on_execution forces show_on_execution=1; otherwise the submitted flag is honoured.
• Requirement scrub — for node types requirement_spec / requirement both flags are forced to 0 (parity with the legacy missing-keys defaults in request2cf()): a requirement field can never carry show_on_execution / enable_on_execution, regardless of what the client sends.

• cfieldsView.html: new "Display on execution" table column between Active and Available On. Renders the legacy fa fa-desktop icon (teal) with a cf.showOnExec tooltip when cf.show_on_execution is set, otherwise -. DataTables columns array extended to 7 columns.
• Both modals: new "Display on test execution" checkbox (#editShowOnExecution, i18n cf.showOnExec) with a hint line (cf.showOnExecHint).
• NO_EXEC_DISPLAY_NODES (['requirement_spec','requirement']) mirrors show_on_cfg; applyShowOnExecVis() implements the legacy combination:
  • group hidden + checkbox force-checked while #editEnableExecution is checked (initShowOnExec parity);
  • group hidden + checkbox force-cleared for requirement node types (a stale check after switching node type is scrubbed, just like legacy request2cf defaulted both flags to 0);
  • otherwise visible and freely editable — the independent toggle.
• Wired into showCreateModal() / editCf() / saveCf() in both screens; the assign screen's name links (Assigned + Available) share the same editCf().

cf.displayOnExec ("Display on execution"), cf.showOnExec ("Display on test execution") and cf.showOnExecHint added to all 10 bundles (gui/templates/i18n/{en,ro,de,fr,es,it,pt,ja,zh,ru}.json). Translations reuse the legacy $TLS_display_on_exec / $TLS_show_on_exec wording from locale/*/strings.txt where available; ro and it get fresh faithful translations. All bundles validated with python3 -m json.tool.

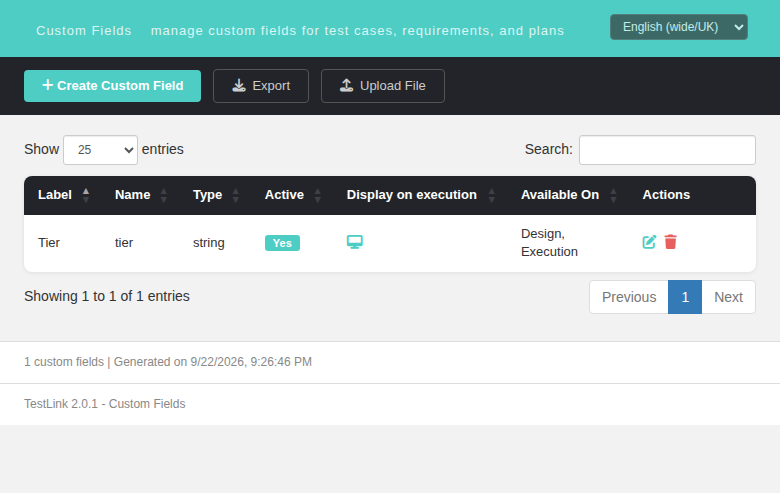

• Table column: field tier (show_on_execution=1) renders the desktop icon; "Available On" lists "Design, Execution".
• Enable-on ⇒ show-on (create): node testcase + "Enable On → Execution" checked hides the toggle and force-checks it; save stores show_on_execution=1, enable_on_execution=1.
• Independent toggle (the gap): env created with only Design enabled and "Display on test execution" checked → stored show_on_execution=1 while enable_on_execution=0.
• Requirement nodes: node requirement hides the group; switching from testcase to requirement_spec clears a previously checked toggle.
• Assign screen: modal opened from the Available-table name link shows the toggle; toggling off + Save → PUT persisted show_on_execution=0 (enable_on_execution=0); re-enabled → 1.
• BFF force rule (raw API): POST {enable_on_execution:1, show_on_execution:0} stores 1; POST {enable_on_execution:0, show_on_execution:1} stores 1 (edge fields cleaned up after).
• Browser console clean; inline JS node --check clean; all 10 bundles valid.
• Event Viewer / events: only audit entries (log_level=16), 0 new Error/Warning rows.

Suite 955 in tmp/TLU_Test_Cases.md — 9/9 PASS.

Refs #955.
