Task 1351 — reqSpecView revision log history tooltip (gap vs legacy)

Issue: #1351 Status: IMPLEMENTED — branch task/issue-1351

The gap

The modern Requirement Specification Viewer (gui/templates/requirements/reqSpecView.html) rendered the revision of the spec as an inert badge (<span class="badge-rev">Revision 2</span>) in the Overview card. The legacy 1.9.20 screen showed an on-hover revision log history tooltip:

  • gui/templates/dashio/requirements/include/reqSpecViewJS.inc.tpl:12-38 — tip4log() builds an Ext.ToolTip (width: 500, dismissDelay: 0, trackMouse: true) targeting the revision cell tooltip-<revision_id> and autoLoads lib/ajax/getreqspeclog.php?item_id=<req_specs_revisions.id>.
  • gui/templates/dashio/requirements/reqSpecView.tpl:116-119 — the revision cell carries log_message_small icon; hovering shows the FULL untruncated log message of the current revision.
  • lib/ajax/getreqspeclog.php — SELECT log_message FROM req_specs_revisions WHERE id=..., nl2br, strips wrapping <p>/</p>, empty message → empty_log_message.

The modern screen never displayed the log: the re-written spec_view BFF action did not return log_message, and the client never called spec_revision_view (which does). Same gap was filed separately for reqCompare (#1308) and reqView (#1303); reqSpecCompare got a very similar tooltip under #1357.

Modern implementation (port)

Pattern mirrored from the verified #1357 fix in gui/templates/requirements/reqSpecCompare.html. No extra fetch round-trip: the full log already travels in the spec_view payload.

BFF — api/reqspec/index.php (spec_view action):

  • spec.log_message — the log_message of the shown (latest) revision, fetched directly from req_specs_revisions by spec.revision_id (requirement_spec_mgr::get_by_id() does not select it, lib/functions/requirement_spec_mgr.class.php:189-214).
  • spec.log_message_len — req_spec_cfg->log_message_len (default 200, config.inc.php:1713), same sink spec_revision_compare exposes.

HTML — gui/templates/requirements/reqSpecView.html:

  • The overview Revision row is now <span class="rev-log-tip"> wrapping the badge plus a fa-commenting-o log icon (title = rsv.revisionLog).
  • A mouse-tracked #logTooltip div (fixed position, dark Dashio style, white-space: pre-wrap, max-width 500px) is shown/hidden via event delegation on #ovCard (bindRevLogTooltip()), reading SPEC.log_message.
  • normalizeLogTip() mirrors getreqspeclog.php: strip <p>, </p> → newline, trim; empty → common.emptyLogMessage. Content is rendered with .text() → no HTML injection (legacy tooltip autoLoaded raw HTML — an XSS vector this port intentionally drops).

Screenshots

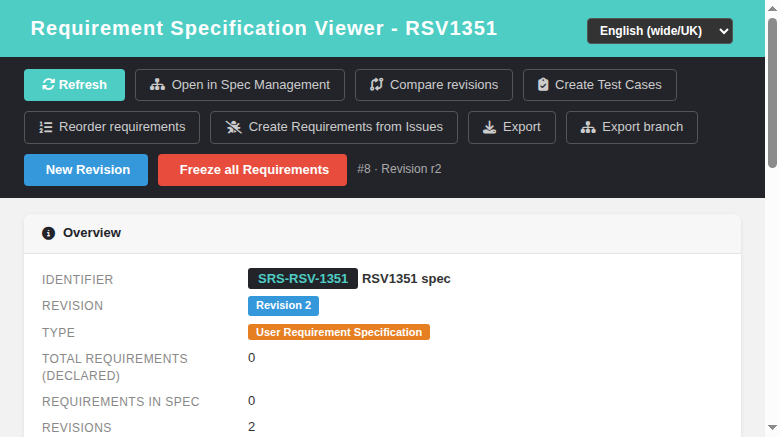

Normal state:

reqSpecView normal

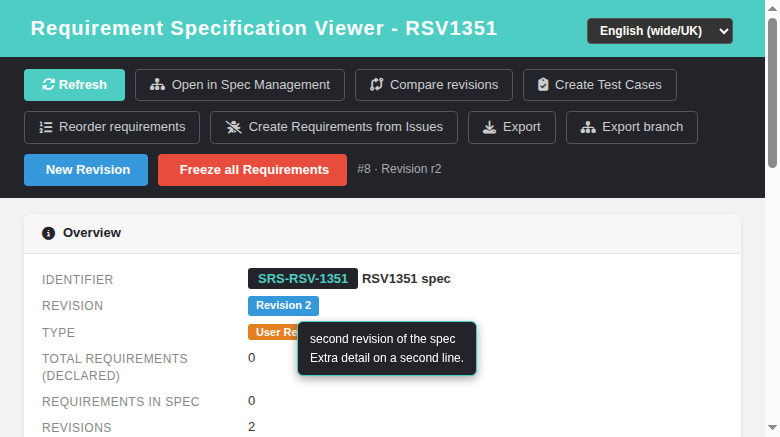

Hover over the revision row — full log tooltip:

reqSpecView tooltip

Same tooltip in Romanian (?locale=ro):

reqSpecView tooltip RO

i18n

New key rsv.revisionLog ("Revision log message") added to all 10 locale bundles (en ro de es fr it ja pt ru zh), reusing the existing per-locale rsvr.logMessage wording. The empty-message placeholder reuses the shared common.emptyLogMessage ("Log message is empty", present in all 10 bundles).

REST API

GET ?action=spec_view&id=N[&tproject_id=N] now additionally returns spec.log_message (string) and spec.log_message_len (int req_spec_cfg->log_message_len). Rights unchanged: mgt_view_req on the spec's owning test project.

Testing

Suite 1544 — Task Issue #1351 in tmp/TLU_Test_Cases.md (7/7 PASS): BFF payload carries the revision log; hover shows the full untruncated log tooltip; mouse-leave hides it; empty-log placeholder renders common.emptyLogMessage; ?locale=ro translates icon title + badge; Event Viewer clean (no log_level ≥ 32 rows); legacy getreqspeclog.php + sibling reqSpecCompare.html regression pass. Fixture: tmp/fixtures_1351.php.

Files

File Purpose
api/reqspec/index.php spec_view now returns spec.log_message + spec.log_message_len
gui/templates/requirements/reqSpecView.html revision row → .rev-log-tip + mouse-tracked #logTooltip (Dashio #1357 pattern)
gui/templates/i18n/{en,ro,de,es,fr,it,ja,pt,ru,zh}.json rsv.revisionLog key
tmp/fixtures_1351.php re-runnable fixture: project RV51 + spec SRS-RSV-1351 with 2 logged revisions
