Modernization of Create Test Cases from Issue XML (Mantis) import screen (lib/testcases/tcCreateFromIssueMantisXML.php) — GitHub issue #1502.

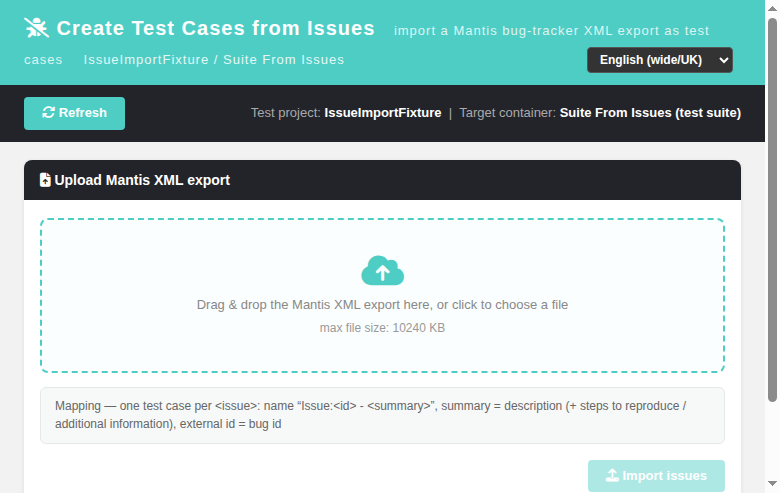

This was the last standalone legacy import screen in lib/testcases/ not yet ported: it uploads a Mantis bug-tracker XML export and creates one test case per <issue>. The legacy Smarty screen is replaced by a standalone Dashio page (gui/templates/testcases/tcCreateFromIssues.html) backed by a plain-PHP REST BFF (api/tccreatefromissues/index.php, session-based auth).

Path: <Test Case Design> → Create Test Cases from Issues XML in the ASIDE (visible when modify_tc on the active project), link switch $actions->tcCreateFromIssues in lib/functions/common.php URL: gui/templates/testcases/tcCreateFromIssues.html?tproject_id=<id>[&containerID=<suite-or-project id>] BFF API: api/tccreatefromissues/index.php (GET ?action=init, POST ?action=import) Right: mgt_modify_tc on the target test project (403 otherwise)

---

1. What the screen does
2. REST API Reference
3. Legacy parity notes
4. i18n Keys
5. Security
6. Testing

Feature	Legacy behavior	Modern implementation
Entry point	button in containerView.tpl (lib/testcases/tcCreateFromIssueMantisXML.php?containerID=)	ASIDE sub-item under Test Case Design (gated modify_tc) + $actions->tcCreateFromIssues link switch
Source format	Mantis bug-tracker XML export, root <mantis>, one <issue> per bug	same; validated (LIBXML_NONET, well-formedness, root tag check → 422)
Name per issue	Issue:<id> - <summary> (issue_issue label)	identical server-side build, labels localized via client locale hint
Summary	issue_description label + description, plus issue_steps_to_reproduce / issue_additional_information when present, joined with <p>	identical
External id / type	tc_external_id = bug id, execution MANUAL, importance MEDIUM	identical
Duplicate external id	skip + "You are hitting an existent Test Case with SAME EXTERNAL ID" + full suite path	identical (path uses get_path + prefix + glue + externalid)
Duplicate name	check_duplicate_name on with action_on_duplicate_name = null (auto rename path)	identical
Name too long	warning block + truncated name	identical (field_size.testcase_name, 80% truncation)
Upload cap	import_file_max_size_bytes config	identical (413 over limit; 400 on missing file)
Result feedback	server-side result-map table after submit	live result table (name + message), issues-found count, feedback bar, toast
Container	any containerID param	validated to belong to the test project (walk to project root), project itself allowed

All routes require an authenticated session (401 when anonymous). locale parameters accept en, ro, … 5-char codes; project rights are checked against the requested tproject_id.

Method & path	Purpose	Failure modes
GET ?action=init&tproject_id=N[&containerID=N][&locale=xx_YY]	context: tproject name, resolved container (project or suite), maxUploadBytes, grant map, localized issue_* labels	400 invalid/missing tproject or foreign container, 404 unknown project, 401 anon
POST ?action=import&tproject_id=N&containerID=N&locale=…, multipart field uploadedFile	parse <mantis> export, create the TCs, return per-row result map	400 no file, 403 no right, 405 non-POST, 413 over size cap, 422 invalid XML/root, 500 guarded DB error

• The legacy controller is fully ported: same issue_* label keys, same <p> joiners, same DUPLICATE external-id owner check (getInternalID + suite path via tree_manager->get_path), same name-length warning block, same testcase::create() call with check_duplicate_name + action_on_duplicate_name = null + external_id in options.
• Labels are generated server-side through init_labels() exactly like the legacy saveImportedTCData; the BFF honours the client locale hint the same way the legacy used the session locale (verified French labels: Anomalie/Tache:104 - …, Étapes pour reproduire).
• No keywords/custom fields/requirements in a bug-tracker export — the legacy branches for those data sources were out of scope of this screen.
• Two documented deviations from the legacy byte-for-byte behavior (both improvements): (1) tc_external_id is set to the bug id — the legacy hardcoded externalid => null, so reimporting the same file into another suite is now correctly blocked (hit_with_same_external_ID) instead of silently creating duplicates with null external ids; (2) values are trimmed and the steps_to_reproduce / additional_information sections are omitted when empty (the legacy appended the label even for empty elements).

All labels/messages use the client-side TLi18n module; keys tcfi.title, tcfi.headerSub, tcfi.ctxProject, tcfi.ctxContainer, tcfi.uploadTitle, tcfi.dropHint, tcfi.sizeHint, tcfi.mappingTitle, tcfi.mappingBody, tcfi.uploadBtn, tcfi.resultTitle, tcfi.issuesCount, tcfi.emptyResult, tcfi.colName, tcfi.colMessage, tcfi.errNoPermission, tcfi.errLoad, tcfi.noFile, tcfi.importing, tcfi.importFail, tcfi.importOk, tcfi.tcRows, tcfi.fileSelected, tcfi.suite, footers.tcCreateFromIssues are defined in ALL locale bundles (gui/templates/i18n/*.json: de, en, es, fr, it, ja, pt, ro, ru, zh). The ASIDE label href_tc_create_from_issues was added to labels.aside.tpl + all 19 locale strings.txt files.

• Session-based auth (401) + bffSameOriginGuard() CSRF check on POST.
• Right check mgt_modify_tc on the ACTUAL requested project before any write (403).
• Container membership validated against the project tree (no cross-project imports).
• XML parsed with simplexml_load_string + LIBXML_NONET and libxml internal errors — no network fetches, no entity expansion leaks, 422 on malformed input; upload capped at import_file_max_size_bytes.
• All ids numeric-cast; result messages written with text() (no XSS).

Suite #1502 in tmp/TLU_Test_Cases.md: 19/19 PASS — pristine import (name, summary structure, external id, MANUAL/medium, node order), container = project, foreign-container 400, unknown-project 404, duplicate external-id block with the legacy path message, malformed XML 422, wrong root 422, missing file 400, POST enforcement 405, French server-label localization, ASIDE link + label, EN↔RO locale switch (plus RO rerender), Event Viewer clean (0 ERROR/WARNING rows). Re-verified 19/19 green after the 8ef9694d3 accidental wipe + restoration (29af13e99, 9ec1822b6). Fixture: tmp/fixtures_1502.php.
