The modernized Execute Tests screen (gui/templates/execute/execTest.html + api/execute/index.php) dropped the legacy execution-time custom fields feature entirely. When a test project defined custom fields with show_on_execution=1 and enable_on_execution=1, the tester could no longer enter a value for them on the execute form, and any previously-saved value was never persisted to cfield_execution_values. This is a regression of a legacy TestLink feature.

• gui/templates/tl-classic/execute/inc_exec_test_spec.tpl:119-128 renders the execution-time custom field input table inside cfields_exec_time_tcversionid_<tcv> for the test case (inc_exec_controls.tpl:108-116, inc_exec_img_controls.tpl:136-147).
• lib/execute/execSetResults.php:1968-1971 builds those inputs via html_table_of_custom_field_inputs($testcase_id, null, 'execution', "_".$testcase_id, ...).
• gui/javascript/execSetResults.js:113-131 (checkCustomFields) and gui/javascript/cfield_validation.js:36 (validateCustomFields) validate them on submit.
• lib/functions/exec.inc.php:94-100,203 (write_execution()) harvests every custom_field_* key out of $exec_data, then calls execution_values_to_db() → persists/updates/deletes cfield_execution_values.

1. api/execute/index.php ?action=tcDetails returned no execution-CF data: no exec_cfields_html, no exec_cfields metadata. The reason the legacy single-execution render works is the testcase class overrides get_linked_cfields_at_execution() (testcase.class.php:5419) to resolve the project from the tcversion — the BFF never invoked the rendering helper at all.
2. gui/templates/execute/execTest.html renderForm() had no custom field section, and saveExecution() never collected CF values.
3. api/execute/index.php ?action=save never forwarded custom_field_* keys into $execData, so write_execution() had nothing to persist.

Live proof (fresh fixture, admin/admin): opening the case on the modernized screen showed no CF input, and saving produced SELECT * FROM cfield_execution_values → 0 rows / empty.

The legacy input names are custom_field_<type>_<id>_<tcaseId> (e.g. custom_field_0_1_3). Splitting on _ yields 5 parts, not 4, because the literal prefix custom_field itself contains an underscore:

[0]=custom  [1]=field  [2]=type  [3]=id  [4]=tcaseId

Legacy write_execution() uses cf_nodeid_pos=4 (exec.inc.php:86) for the tcase id and _build_cfield() uses cftype_pos=2 / cfid_pos=3 (cfield_mgr.class.php:1881-1883). Any forwarding/validation code MUST use the same 5-part parsing: parts[2]=type, parts[3]=id. (An earlier attempt used parts[1]/parts[2] → "field_0", never matched the real 0_1, silently dropped the values.)

Backend — api/execute/index.php:

• ?action=tcDetails: when the user holds the Execute right ($canExecute), compute exec_cfields_html via the exact legacy call html_table_of_custom_field_inputs($tcaseId, null, 'execution', '_'.$tcaseId, null, null, $tprojectId) (which returns the correct custom_field_<type>_<id>_<tcaseId> inputs — passing $tplan_id in that argument returns empty/NULL), plus exec_cfields metadata (id/name/label/type/required) via get_linked_cfields_at_execution($tcversionId, null, null, null, null, $tprojectId). Both baked into the JSON payload as exec_cfields_html + exec_cfields.
• ?action=save: for every payload key prefixed custom_field_, verify its (type,id) against the field's real linked execution CFs ($allowedCf, preventing a forged payload from writing unrelated values), then forward the allowed keys into $execData so write_execution() → execution_values_to_db() persists them.

Frontend — gui/templates/execute/execTest.html:

• renderForm() renders a "Custom Fields" section (#execCFields) after preconditions when current.exec_cfields_html is present.
• Read-only mode disables #execCFields inputs.
• saveExecution() collects every CF input value into the FormData payload under its custom_field_* name (checkbox only when checked; multi-select per value; date/datetime _input|_hour|_minute|_second segments ride along naturally).
• New validateExecCustomFields() mirrors cfield_validation.js: required (empty → block + toast exe.cfRequired), numeric (type 1), float (type 2), email (type 4); generic failures → exe.cfInvalid.
• Checkbox-group (type 5) required is "at least one checked" in the group, not "every checkbox": required boxes are grouped by their base name (stripping the []); an empty group blocks save with exe.cfRequired, but checking any one box satisfies the requirement. A later review found the initial required logic was per-checkbox-inverted and rejected valid single selections — fixed so the whole group validates on at least one checked box.
• Minimal CSS for .exec-cf-block / .cf-inputs.

i18n: added exe.customFields, exe.cfRequired, exe.cfInvalid to all 10 locale bundles (de,en,es,fr,it,ja,pt,ro,ru,zh), each validated with python3 -m json.tool.

• Legacy-parity rendering + persistence: reuses the exact legacy helper (html_table_of_custom_field_inputs) and the exact legacy write path (write_execution() → execution_values_to_db()). No schema change, no new endpoint, no duplicated CF logic.
• Minimal blast radius: only the modernized Execute screen touches these two files + i18n; the legacy execSetResults.php screen and write_execution() are untouched.
• Forgery-safe forward: validating each submitted CF name against the version's actually-linked fields prevents a crafted payload from inserting arbitrary rows.
• Alternatives rejected: re-implementing a bespoke CF renderer in the BFF was unnecessary and risked drifting from the legacy input naming contract; a new endpoint duplicate would be redundant.

• api/execute/index.php — tcDetails (exec CF render+metadata), save (forward validated custom_field_*).
• gui/templates/execute/execTest.html — CF section render, roMode disable, saveExecution() collection, validateExecCustomFields(), CSS.
• gui/templates/i18n/{de,en,es,fr,it,ja,pt,ro,ru,zh}.json — 3 new exe.* keys per bundle.

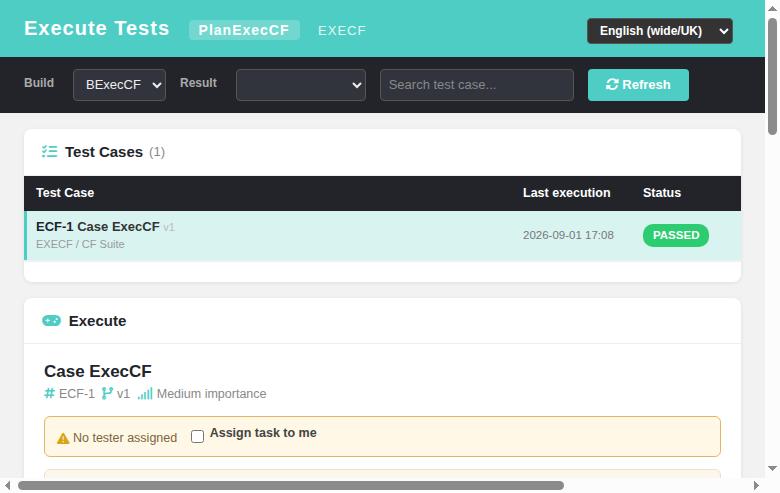

• docs/screenshots/issue-791-exec-cf-input.png — screenshot showing the "Execution Note CF" input rendered on the execute form.

• Phase 1 (fix): fix(execute): render & persist execution-time custom fields (Refs #791) — see git log on fix/issue-791-exec-cf-inputs.

Verified 2026-09-01 with fixture php tmp/fixtures_791.php (project EXCCF id 1, plan PlanExecCF id 6, build BExecCF id 1, case "Case ExecCF" id 3/version 4, CF ecf_exec_note id 1), headless Chrome at http://localhost:8082, admin/admin. Event Viewer: no new Error/Warning; browser console clean.
