Bugfix Issue 434 Duplicate Header workAreaSimple - sebiboga/testlink-upgraded GitHub Wiki
Issue: #434
Branch: fix/issue-434 (verification + documentation)
Status: FIXED & VERIFIED (2026-08-23) — fix itself landed upstream in commit 9eba4f88f (credited to sibling issue #431, filed ~3h before #434); this run re-verified every render path live and closed the ticket.
Pages rendered through the dashio workAreaSimple.tpl template (e.g. Code Tracker
Management flows) showed two stacked TestLink headers: the shell's own header
(rendered around the mainframe iframe by lib/general/main.php) plus a second,
full HTML head/header injected inside the iframe content.
- Pre-
9eba4f88f,gui/templates/dashio/workAreaSimple.tpl:6began with{include file="inc_head.tpl"}. -
gui/templates/dashio/include/inc_head.tpl:11-24emits a FULL<head>: charset meta,<base href>,<title>TestLink</title>, favicon, jQuery,testlink_library.js, all CSS. - In the dashio layout this template renders as iframe content, so its head duplicated the chrome the parent page already draws → stacked headers.
The tl-classic theme uses workAreaSimple.tpl as a standalone page where the
include is correct; the dashio port reused it verbatim without dropping the head.
Commit 9eba4f88f: replace {include file="inc_head.tpl"} with a minimal
<!DOCTYPE html><html><body> skeleton. Rejected alternatives: conditional
include via Smarty variable (coupling for zero benefit — no dashio consumer needs
a standalone head); stripping inc_head.tpl itself (breaks the many templates
that legitimately use it).
Blast radius — 4 render paths display this template, all fixed identically:
| Path | Trigger |
|---|---|
firstLogin.php:29 |
self-signup disabled notice |
lib/general/frmWorkArea.php:234 |
no-active-build warning |
lib/functions/common.php:180 |
DB connect fatal |
lib/functions/info.inc.php:34 |
displayInfo() ← displayMgr.php:76
|
Render path exercised through firstLogin.php with
$tlCfg->user_self_signup = FALSE set temporarily (untracked fixture, removed
afterwards):
| State | bytes |
<head> tags |
<title> |
inc_head artifacts (testlink_library.js / <base href> / favicon.ico) |
|---|---|---|---|---|
PRE-fix (template restored locally from 9eba4f88f~1) |
3165 | 1 | TestLink |
ALL present — duplicate reproduced |
| POST-fix (current tree) | 234 | 0 | 0 | NONE |
Post-fix output is the minimal document: single <h1 class="title">, one
.workBack block, back-link. Compiled Smarty cache (gui/templates_c/)
contains no workAreaSimple artifact referencing inc_head.
Browser checks:

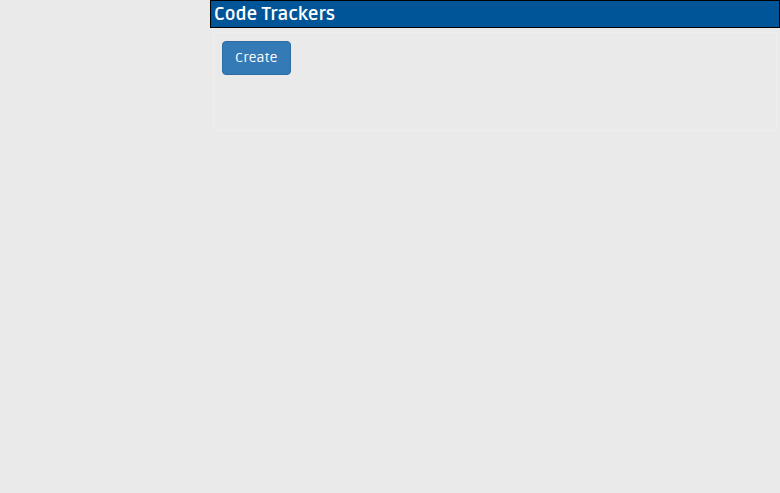

- Legacy
/lib/codetrackers/codeTrackerView.php— single<h1>Code Trackers</h1>, no stacking. - Modernized
/gui/templates/codetracker/codetrackerView.html— clean single layout, 1<head>.
![]()
Regression matrix R1–R4 recorded as Suite 434 — 7/7 PASS in
tmp/TLU_Test_Cases.md; Event Viewer delta during testing: only 2 AUDIT-level
rows (login + self-signup fixture), zero new Error/Warning events.
- Missing template
gui/templates/dashio/login/firstLogin.tpl→ plainGET /firstLogin.phpfatals HTTP 500 under dashio (Smarty "Unable to load template"). - Locale key
error_self_signup_disabledmissing from all bundles → literal "LOCALIZE:" marker rendered on that notice page.
