Bugfix — Issue #1916: tcEdit.php post-action render emitted 18 E_WARNING rows per request (tcViewViewer.inc.tpl / tcbody.inc.tpl unset vars)

Issue: https://github.com/sebiboga/testlink-upgraded/issues/1916 Files changed:

• lib/testcases/testcaseCommands.class.php (grant list g2c)
• lib/testcases/tcEdit.php (grant list grant2check)
• lib/functions/testcase.class.php (other-version ghost_preconditions + the other-version CF loop switch)

Symptom

Immediately after #1860 unblocked the tcEdit.php version lifecycle render (it used to die with a Smarty compile 500), each of these three URLs wrote E_WARNING rows to the Event Viewer on every request:

.../tcEdit.php?deactivate_this_tcversion=1&tcase_id=T&tcversion_id=V   -> 1 E_WARNING
.../tcEdit.php?activate_this_tcversion=1&tcase_id=T&tcversion_id=V     -> (same path, 1)
.../tcEdit.php?do_create_new_version=1&tcase_id=T&tcversion_id=V       -> 16 E_WARNINGs

Three distinct signatures, all in the legacy test-case viewer partials:

1. Undefined property: stdClass::$delete_frozen_tcversion — tcViewViewer.inc.tpl src :238/:286 (compiled :293/:340).
2. Undefined array key "ghost_preconditions" — tcbody.inc.tpl src :73 (compiled :99).
3. Trying to access array offset on null ×6 — tcbody.inc.tpl compiled :31,54,71,86,117,127.

The page still returned HTTP 200 and rendered correctly; the only impact was Event Viewer pollution (the issue's priority: minor).

Approach (root cause → method → why)

These partials are reached only through the legacy path testcase::show() → tcView.tpl → tcViewViewer.inc.tpl → tcbody.inc.tpl. The normal viewing path (archiveData.php?edit=testcase) now 302-redirects to the modern gui/templates/testcases/tcEdit.html, so tcView.tpl is exercised only by the tcEdit post-action renders (activate / deactivate / create-new-version / do_copy) — which is why #1860 unmasked these warnings exactly there.

RC1 — $args_can_do->delete_frozen_tcversion was never populated

testcase::initShowGui() (lib/functions/testcase.class.php:7511-7520) builds $goo->can_do = getShowViewerActions(...) and then copies delete_frozen_tcversion onto it only if (property_exists($grantsObj, 'delete_frozen_tcversion')). getShowViewerActions() (testcase.class.php:4957-4989) does not define that member in its default map.

The two grant builders used by the tcEdit post-action path therefore left it undefined:

• testcaseCommands::__construct() $g2c list — lib/testcases/testcaseCommands.class.php:43-46
• tcEdit::initializeGui() $grant2check list — lib/testcases/tcEdit.php:657-661

The reference builder testcase::getStandardGrantsNames() (testcase.class.php:156-171) does include delete_frozen_tcversion (line 169) — that is what testcase::show() builds when $grantSet is null, i.e. the "healthy" tcView controller. The tcEdit path passes its own incomplete grants object, so the property_exists branch never fired and tcViewViewer.inc.tpl:238/:286 read an undefined property.

Why populate the grants instead of guarding the template with {if isset(...)}: the ticket listed both options. Populating restores the reference (tcView) behaviour rather than hiding the bug for the next caller. It is behaviour-neutral: admin (users.role_id=8) holds rights.id=47 testcase_freeze but not rights.id=56 delete_frozen_tcversion (measured via role_rights), so the member resolves to null, and null == "yes" is false — identical to the previous unset-null in every == "yes" comparison. Same truth value ⇒ no button appears/disappears; only the warning disappears. Guarding was rejected because it leaves the grants gap latent.

RC2 — other versions lacked ghost_preconditions

testcase::show() sets ghost_preconditions only for the current version (testcase.class.php:1087-1088). The other-versions loop (:1208-1210) set ghost but not ghost_preconditions. tcView.tpl:290 passes an other-version row as args_testcase, so tcbody.inc.tpl:73 ({$tco.ghost_preconditions}) hit Undefined array key.

RC3 — $gui->cf_other_versions stayed null (the 6 array-offset warnings)

The current-version CF loop (testcase.class.php:1182-1192) correctly does foreach($cfPlaces as $cfpKey => ...) switch($cfpKey). The other-versions loop (:1213-1219) does foreach($cfPlaces as $locKey => ...) switch ($cfpKey) — $cfpKey is the stale variable left over from the finished outer loop (value hide_because_is_used_as_variable, confirmed by instrumenting testcase::show() with a temp dump). Every iteration therefore hit that case's break; and $gui->cf_other_versions[...] was never assigned → null. tcView.tpl:232-235 then passed args_cf=null → tcbody.inc.tpl read inc_tcbody_cf[...] on null → 6 warnings per other-version row.

The fix

# lib/testcases/testcaseCommands.class.php  (g2c)
+                 'testproject_edit_executed_testcases',
+                 'delete_frozen_tcversion');

# lib/testcases/tcEdit.php  (grant2check)
+                       'testproject_delete_executed_testcases',
+                       'delete_frozen_tcversion');

# lib/functions/testcase.class.php  (other-versions loop)
             $ref[$qdx]['ghost'] = sprintf(self::GHOSTMASK, ...);
+            $ref[$qdx]['ghost_preconditions'] =
+              sprintf(self::GHOSTPRECONDITIONSMASK, $tcvSet[0]['tc_external_id'], $ref[$qdx]['version']);

             foreach($cfPlaces as $locKey => $locFilter) {
-              switch ($cfpKey) {
+              switch ($locKey) {

Verification

Fresh fixture (php tmp/fixtures_1859.php → tcase 44 / tcversion 45), logged in as admin/admin, four post-action renders (deactivate, activate, create_new_version ×2 — the two create_new_version calls produced two other-version viewer rows, the exact RC2/RC3 case):

Metric	Pre-fix	Post-fix
COUNT(events WHERE log_level=2) (E_WARNING)	18	0
COUNT(events WHERE log_level IN (1,2,4,8))	≥18	0
HTTP status of all three URLs	200	200
event log_level histogram	warnings + audit	{16: 2} (audit only)

Rendered HTML: bytes=112991, test-case name ×16, new_version ×3, delete_tc_version ×2 buttons intact. Headless-Chrome console: only 1 pre-existing Deprecated feature used notice, no JS errors. Regression gate (TLU_REQUIRE_SUITE="Issue #1916" bash ai/verify_test_suites.sh): 7 PASS / 0 FAIL.

Screenshot

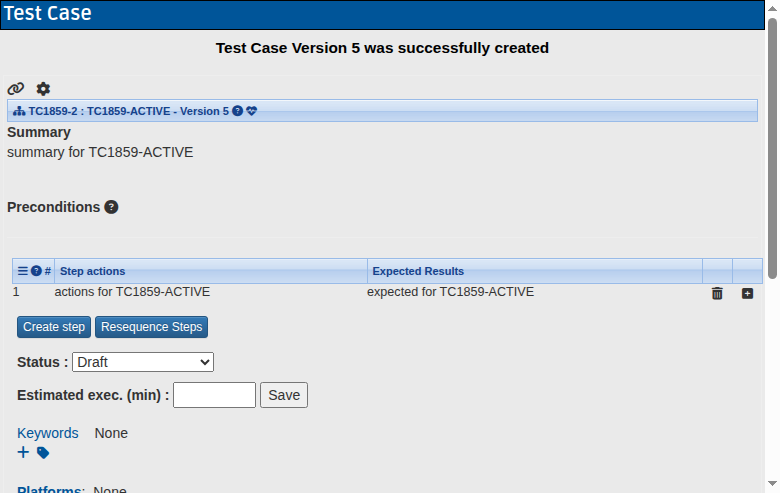

Post-action render (create-new-version) after the fix — test-case viewer, steps and the new_version / delete_tc_version buttons intact, no warning overlay, Event Viewer clean:
