Bugfix — Issue #1703: `codeTrackerInterface::connect()` built `$connection_args` with two-level interpolation, so a failed code-tracker connection logged nothing

Branch: fix/issue-1703 Files changed: lib/codetrackerintegration/codeTrackerInterface.class.php (1 statement, 2 lines + comment) Severity: minor (diagnosability) — no wrong verdict, no data loss, but an operator had zero usable information when a db-API code tracker's database was unreachable.

This is the code-tracker twin of #1701 (docs/Bugfix-Issue-1701-Check-Connection-Dead-Diagnostic.md). Same defect shape, same fix shape, different file. #1701's run was explicitly time-boxed to a single bug with "no drive-by changes in unrelated files", so the codetracker side was left behind — and it is now the only remaining unfixed instance of the pattern in the repository.

Symptom

A code-tracker connection failure produced no Event Viewer record at all. Not a degraded one, not a wrong one — none. The line that records host / database / user / ADODB error code is dead code:

// lib/codetrackerintegration/codeTrackerInterface.class.php
if (!$result['status'])
{
  $this->dbConnection = null;
  $connection_args = "(interface: - Host:$this->cfg->dbhost - " .        // <- dies here
                     "DBName: $this->cfg->dbname - User: $this->cfg->dbuser) ";
  $msg = sprintf(lang_get('CTS_connect_to_database_fails'),$connection_args);
  tLog($msg  . $result['dbms_msg'], 'ERROR');                            // <- never reached
}

Measured end-to-end (php driver that boots the app, loads the real class and reads the real events table):

$ php /tmp/opencode/r1703/drive.php
FATAL: Error: Object of class stdClass could not be converted to string
  at .../lib/codetrackerintegration/codeTrackerInterface.class.php:188

MAX(events.id) before = 10
MAX(events.id) after  = 10
--- rows written by the repro: 0 ---

The subtlety: why `stdClass`, and why it matters

$this->cfg is not a SimpleXMLElement at line 188. setCfg() builds one at :105 and then converts it:

// lib/codetrackerintegration/codeTrackerInterface.class.php:147
$this->cfg = json_decode(json_encode($this->cfg));

json_decode() without a second argument returns a stdClass. PHP resolves only one property level in a non-curly interpolated string, so "$this->cfg->dbhost" interpolates $this->cfg — the stdClass — and leaves ->dbhost as literal text. Stringifying a stdClass raises a fatal Error, which aborts the statement one line before tLog().

Both candidate readings of the same construct were measured side by side, because they fail differently and the distinction decides the fix:

construct	`$cfg` type	result
`"$cfg->dbhost"` (local var, one level)	`SimpleXMLElement`	`Host:127.0.0.1` — works
`"$this->cfg->dbhost"` (two levels)	`SimpleXMLElement`	`Host:->dbhost` — garbled, harmless
`"$this->cfg->dbhost"` (two levels)	`stdClass`	fatal `Error` — the real case

Had line 147 not converted cfg, this would have been a cosmetic string-mangling bug. Because it did, it is a hard crash that eats the diagnostic. That is why "just a stdClass, probably harmless" would have been the wrong conclusion.

Why it survived — a latent fatal, correctly `minor`

codeTrackerInterface::connect() is the base-class implementation, and both concrete subclasses override it:

$ grep -rn "function connect" lib/codetrackerintegration/*.php
lib/codetrackerintegration/githubrestCodeTrackerInterface.class.php:207
lib/codetrackerintegration/stashrestInterface.class.php:98

$ sed -n '28,29p' lib/functions/tlCodeTracker.class.php
var $systems = array( 1 => array('type' => 'stash', ...), 200 => array('type' => 'github', ...));

There is no db key in tlCodeTracker::$systems, so no UI route reaches line 188 today. The base method is not dead by design, though: getMyInterface() (:156) exists solely to return a class named by $cfg->interfacePHP, i.e. the class exists to be extended by a DB-backed tracker. So this is an armed fatal for the next db-API tracker, not a currently-firing crash — which is also why priority minor is right.

The second reason it mattered: after #1701 the codebase was internally inconsistent. A reader comparing issueTrackerInterface.class.php:241 (braces + explanatory comment) against codeTrackerInterface.class.php:188 (no braces, no comment) would reasonably conclude the codetracker one was fine.

Fix

Wrap the three property reads in {} — the identical shape already merged for #1701:

+      // Issue #1703: PHP resolves only ONE property level in a non-curly
+      // interpolated string, so "$this->cfg->dbhost" interpolated $this->cfg
+      // (a stdClass, see setCfg() line 147) and left "->dbhost" as literal
+      // text. Stringifying a stdClass raised a fatal Error here, one line
+      // before the tLog() below, so a failed code-tracker connection
+      // produced no Event-Viewer record at all.
-      $connection_args = "(interface: - Host:$this->cfg->dbhost - " .
-                         "DBName: $this->cfg->dbname - User: $this->cfg->dbuser) ";
+      $connection_args = "(interface: - Host:{$this->cfg->dbhost} - " .
+                         "DBName: {$this->cfg->dbname} - User: {$this->cfg->dbuser}) ";

Why this method

Converges, not diverges. Matches the #1701 twin exactly, so the two base classes now share one shape. The fix also removes the misleading signal that :188 needs no braces.
Minimal. One statement; no signature, behaviour, API or i18n change (the message string is unchanged and already resolves).
Rejected: stringify first ($host = (string)$this->cfg->dbhost; then "Host:$host"). Same output, 3 extra statements, a second place for the value to be mangled.
Rejected: drop the diagnostic / wrap it in try-catch. Hides the problem and leaves the Event Viewer empty — i.e. preserves the original symptom.
Rejected: rewrite :147 to keep SimpleXMLElement. That reintroduces the "Serialization of 'SimpleXMLElement' is not allowed" session failure documented right above it (:129-146), which is the whole reason the json_decode round-trip exists.

Blast radius

The dangerous shape is a double-quoted string interpolating $this->X->Y (two levels).

$ grep -rnE '"[^"]*\$this->[A-Za-z_]+->[A-Za-z_]+' --include=*.php lib/
lib/codetrackerintegration/codeTrackerInterface.class.php:188      <-- THE DEFECT
lib/codetrackerintegration/codeTrackerInterface.class.php:189      <-- THE DEFECT
lib/issuetrackerintegration/issueTrackerInterface.class.php:241     already fixed (#1701)
lib/issuetrackerintegration/issueTrackerInterface.class.php:242     already fixed (#1701)
... all remaining hits are either already curly-braced or function calls

:188-189 were the only two unfixed sites in the repository. Both lines are the same statement, so they cannot diverge. codeTrackerInterface.class.php:203-204 is flagged by the same grep but uses . concatenation, not interpolation — safe.

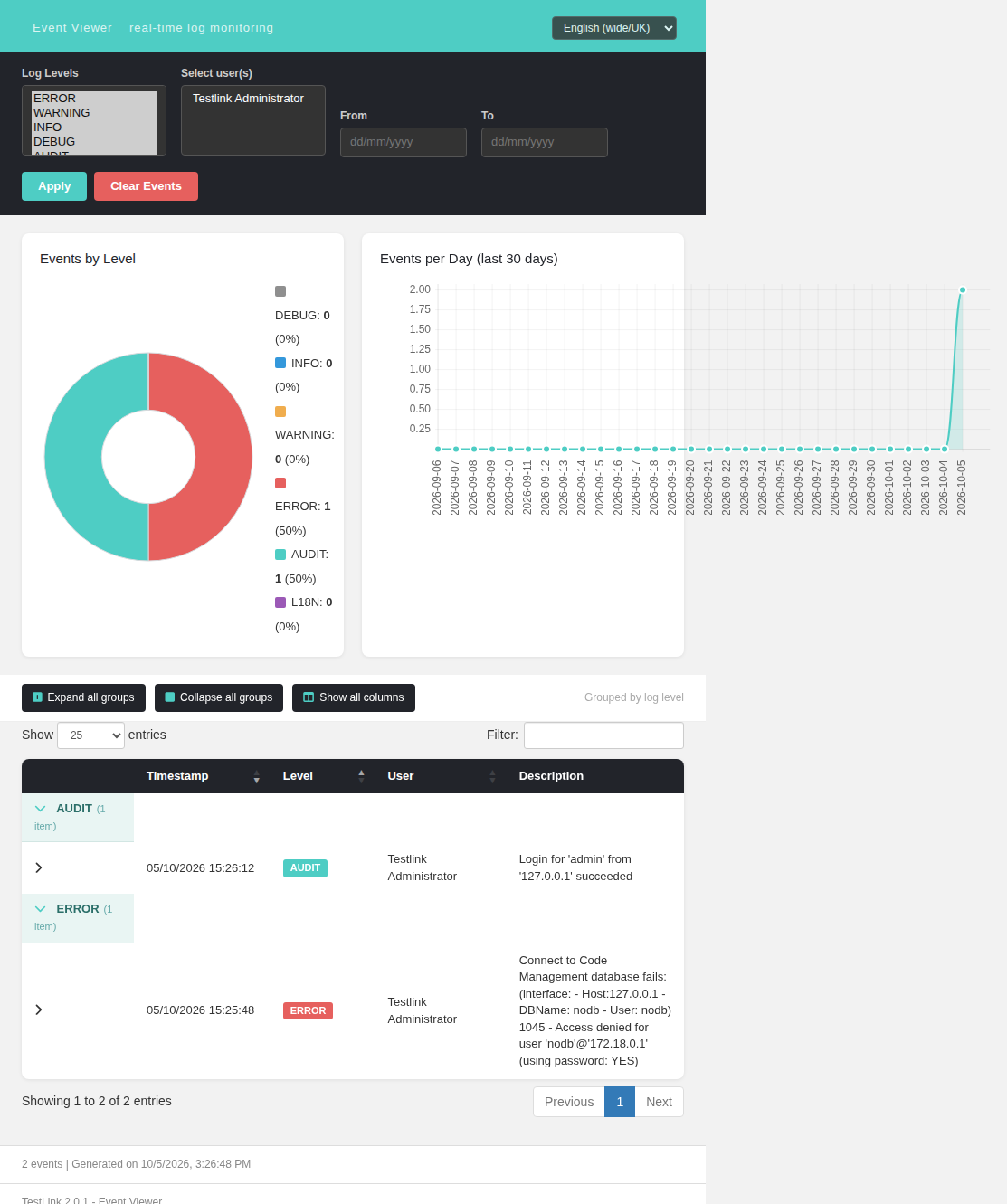

Evidence — Event Viewer, post-fix

The diagnostic now surfaces in the Event Viewer with host, database, user and the ADODB message. Pre-fix this screen gained no row at all (the fatal aborted the statement one line before tLog()):

code tracker connection diagnostic recorded

Verification

Same driver, same cfg, same database as the pre-fix run:

# ---------- POST-FIX ----------
$ php /tmp/opencode/r1703/drive.php
ctor returned normally; isConnected() = 0

$ mysql -B testlink -e "SELECT id,log_level,LEFT(description,200) FROM events ORDER BY id DESC LIMIT 1"
id  log_level  d
12  1          Connect to Code Management database fails: (interface: - Host:127.0.0.1 -
               DBName: nodb - User: nodb) 1045 - Access denied for user 'nodb'@'172.18.0.1'
               (using password: YES)

Host:, DBName:, User: and the ADODB code now reach the Event Viewer.

#	case	expectation	result
R1	inherited `connect()`, unreachable DB (the reported bug)	no fatal; exactly 1 `events` row, level ERROR, with host/DB/user and ADODB code	PASS
R2	same, pre-fix baseline	fatal at `:188`, 0 rows	FAIL as expected (this is the reproduction)
R3	inherited `connect()`, reachable DB	`isConnected() = 1`, no new `events` row	PASS
R4	`dbhost` absent → early `return false` at `:168-171`	`isConnected() = 0`, `$connection_args` never reached, no warning	PASS
R5	`getMyInterface()` (`:156`) `interfacePHP` round-trip	returns the cfg value verbatim	PASS
R6	registered REST types unaffected	both subclasses still declare their own `connect()`; base stays `abstract`	PASS
R7	`php -l` on the edited file	clean	PASS
R8	no new Error/Warning rows from R3–R6	`COUNT(*) = 0`	PASS

Root-cause guards: I1 lang_get('CTS_connect_to_database_fails') resolves to "Connect to Code Management database fails: %s" (checked on purpose — :190 had never executed, so the fix activates new code and any latent warning there would become a new Event-Viewer row; none appeared). I2 one-level vs two-level interpolation asserted separately. I3 repo-wide sweep finds no other unbraced two-level interpolation. I4 a successful connection logs nothing, proving the fix is not merely swallowing the exception.

Two traps that will bite the next person measuring a `tLog()` path

Both were hit during this fix and are recorded so a future run does not read them as a failed fix:

tLog() silently no-ops without an open logger transaction. logging.inc.php:87-96 returns tl::ERROR immediately when $g_tlLogger->getTransaction() is falsy, and logger.class.php writeEvent() only reaches the DB when the logger has a handler bound. The GUI gets both from doAuthorize.php. A CLI driver must do it explicitly, otherwise a working fix reports "0 rows":
```
global $g_tlLogger;
$tlDb = new database(DB_TYPE); doDBConnect($tlDb);
$g_tlLogger->setDB($tlDb);
$g_tlLogger->startTransaction("REPRO1703", "cli-drive.php", 1);
```
Count rows with COUNT(*) WHERE id > $B, never by subtracting MAX(id). The auto-increment gap made a single written row look like two (10 → 12).

Re-run in one command

cd /home/runner/work/testlink-upgraded/testlink-upgraded
php -l lib/codetrackerintegration/codeTrackerInterface.class.php \
 && php /tmp/opencode/r1703/drive.php \
 && php /tmp/opencode/r1703/matrix.php \
 && mysql -h 127.0.0.1 -utestlink -ptestlink -B testlink \
      -e "SELECT id,log_level,LEFT(description,200) FROM events ORDER BY id DESC LIMIT 3"

Full suite: tmp/TLU_Test_Cases.md → Regression — Issue #1703.
