Issue — #1684 (label bug, opened 2026-09-28T05:33:26Z, the OLDEST open issue without a work-type label at the time of this run — this run's operator selected the oldest eligible bug instead of the newest one ai/FIX-ISSUE.md §1 normally mandates; the deviation was ordered explicitly and the issue was picked by the documented sort_by(.createdAt) triage query) Screen — gui/templates/requirements/reqTreeReorder.html Component — Requirement Specification Tree move / reorder screen (ported in #1681) Fix commit — f60e8965d fix(reqtreereorder): row reorder buttons act on their OWN row, not on the selected one (Refs #1681) Verification branch — fix/issue-1684 Status — the fix was already on the default branch and is verified error-free; the ticket was simply never closed. This page records the investigation, the root cause, the grep that must be run whenever a modernized screen mixes a per-row control with a shared selection, and the 9-case regression matrix.

The four per-row reorder controls — Up, Down, To top, To bottom — acted on the requirement that was currently selected (the one picked for the Move to another specification card) instead of the row whose button was clicked.

As soon as any row was selected, clicking a reorder button on a different row reordered the wrong requirement, or did nothing at all. Two observable variants, both silent:

Impact. The user builds a pending order that does not match what they clicked; the Unsaved changes chip lights up and Apply writes the wrong order into the database. In variant 1 the chip actively endorsed a corrupting reorder. No exception, no warning, no error card — the corruption is invisible until someone compares the requirement sequence with the specification document.

1. php tmp/fixtures_1681.php — a public test project with requirements enabled, two specs (TR1-SPEC-A with 3 requirements, TR1-SPEC-B empty) and the permission-path users. On a freshly imported database the ids are tproject=1 specA=2 specB=4 reqs=6,8,10 (the original report's 13 / 16 came from a database imported earlier).
2. Force the specification into the order the report needs (TR1-1, TR1-3, TR1-2):

   mysql -h 127.0.0.1 -utestlink -ptestlink testlink -e \
     "UPDATE nodes_hierarchy SET node_order=0 WHERE id=6;
      UPDATE nodes_hierarchy SET node_order=1 WHERE id=10;
      UPDATE nodes_hierarchy SET node_order=2 WHERE id=8;"

   (nodes_hierarchy is where the order lives — requirements only holds id, srs_id, req_doc_id.)
3. Login admin / admin at http://localhost:8082/index.php.
4. Open http://localhost:8082/gui/templates/requirements/reqTreeReorder.html?tproject_id=1&req_spec_id=2.
5. Click Select on row 2.
6. Click To top on row 3.
7. Pre-fix: the list becomes TR1-3, TR1-1, TR1-2. Post-fix: the list becomes TR1-2, TR1-1, TR1-3.

To see the pre-fix build again: git show f60e8965d^:gui/templates/requirements/reqTreeReorder.html > gui/templates/requirements/reqTreeReorder.html.

// render(): the row loop knows `i`, the buttons do not
act.append(btn('fa-arrow-up',   t('reqtr.moveUp'),    'up'));      // <- no i
act.append(btn('fa-arrow-down', t('reqtr.moveDown'),  'down'));    // <- no i
act.append(btn('fa-chevron-up', t('reqtr.moveTop'),   'top'));     // <- no i
act.append(btn('fa-chevron-down',t('reqtr.moveBottom'),'bottom')); // <- no i

function btn(icon, label, dir) {
  var b = $('<span class="rm" data-mv="' + dir + '">…</span>');
  b.on('click', function () { nudge(dir); });                     // <- row identity dropped
  return b;
}

function nudge(dir) {
  if (BUSY || !GRANT.modify) { return; }
  var i = ITEMS.findIndex(function (x) { return x.id === PICKED; });   // <- the MOVE-CARD SELECTION
  if (i < 0) { /* "first enabled button" fallback — correct, but only when nothing is selected */ }
  var j = i;
  if (dir === 'up') { j = i - 1; } else if (dir === 'down') { j = i + 1; }
  …
  if (j < 0 || j >= ITEMS.length) { return; }    // <- silent no-op, no message
}

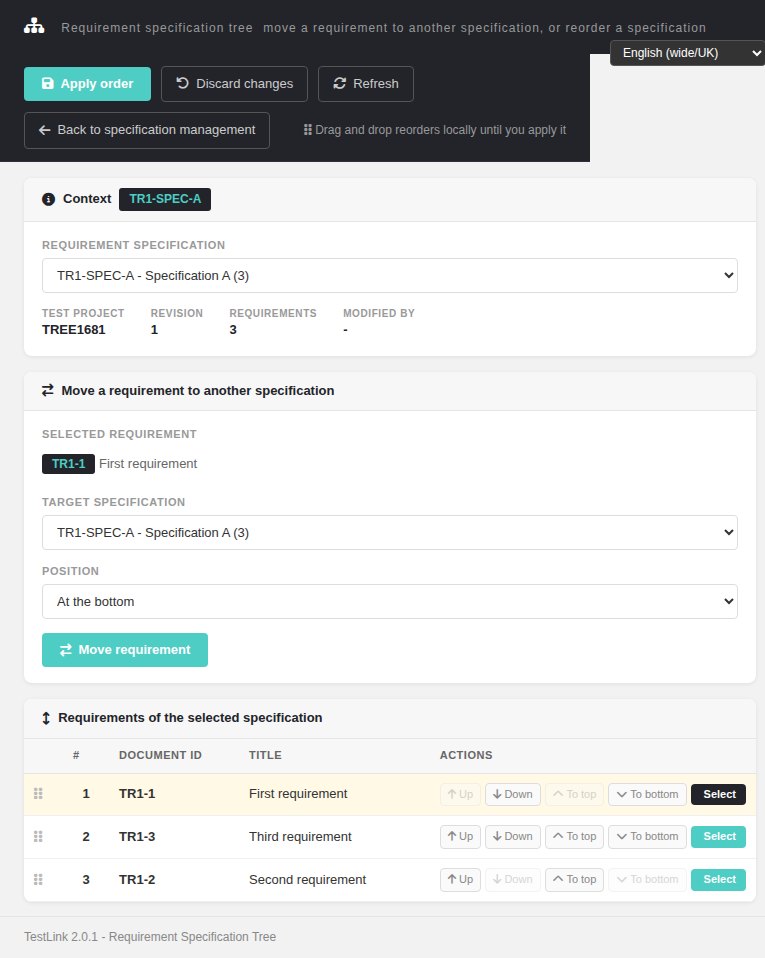

Live DOM readings (scripted clicks on the real page, #ordBody tr .rdid):

start                      : TR1-1, TR1-3, TR1-2
after Select row 2 + To top on row 3  : TR1-3, TR1-1, TR1-2     <-- WRONG
after Select row 1 + Up    on row 3    : TR1-1, TR1-3, TR1-2     <-- unchanged

• Server / access log: only the single GET …/reqTreeReorder.html?tproject_id=1&req_spec_id=2 → [200] plus the login round-trip. Zero XHRs fire during the faulty clicks — the reorder is pure client-side array work, so api/reqtreereorder/index.php (?action=reorder) is never asked to reorder anything. The BFF is innocent.
• Browser console: filtered to error + warn → no console messages found. No exception, no warning.
• Network: no reorder / move request at any point until Apply — the wrong row is what gets queued.
• events table: nothing. The corruption is data-level and silent; there is no log trail to follow.

A shared-state collision, not merely a missing argument. One variable carried two meanings:

The smoking gun is in the source, no runtime needed. applyRowState() — :225-228 (pre-fix) / :256-259 (now) — already disabled the controls per row:

if (d === 'up'    && i === 0)     { dis = true; }
if (d === 'down'  && i === n - 1) { dis = true; }
if (d === 'top'   && i === 0)     { dis = true; }
if (d === 'bottom'&& i === n - 1) { dis = true; }

So the markup advertised row-scoped controls while the handler was selection-scoped. Any screen where the disabled-state logic and the click handler disagree about what a button acts on is the smell to look for.

Regression source — introduced by dcd23815a "Dashio screen for requirement-spec tree move/reorder" (Refs #1681): the row-scoped buttons and the selection-scoped handler were written in one pass and never shared a source of truth.

Diff: 1 file, +10 / −14. Bind the row into the button; delete the shared-state path entirely.

function btn(icon, label, dir, idx) {
  var b = $('<span class="rm" data-mv="' + dir + '">…</span>');
  // The row index is bound per button: a reorder control must always act on
  // the row it lives in, never on the currently selected requirement.
  b.on('click', function () { nudge(idx, dir); });
  return b;
}

function nudge(i, dir) {
  if (BUSY || !GRANT.modify) { return; }
  if (i < 0 || i >= ITEMS.length) { return; }     // bounds-validate the captured index
  var j = i;
  if (dir === 'up')    { j = i - 1; } else if (dir === 'down') { j = i + 1; }
  if (j < 0 || j >= ITEMS.length) { return; }
  if (dir === 'top')    { j = 0; }
  if (dir === 'bottom') { j = ITEMS.length - 1; }
  var mv = ITEMS.splice(i, 1)[0];
  ITEMS.splice(j, 0, mv);
  render();
  markDirty();
}

Why this method (and what was rejected):

• Rejected — read the index from the DOM at click time (tr.index()): it would work, but it re-introduces an implicit "which row is this really?" lookup, the very ambiguity that caused the bug, and it silently depends on the table's DOM shape.
• Rejected — keep the "first enabled button" fallback: it is the code that made the pre-fix behaviour look right in the unselected case and wrong in every other case. Removing it is what makes the invariant provable: a reorder control can no longer reach PICKED at all.
• Chosen — capture the index at render time, because it is the only approach where the invariant is a property of the type signature (nudge(i, dir) can only be called with a row), not of a runtime lookup.

Why stale indices are impossible. nudge() ends with render() (:342), which rebuilds every button with fresh indices — so a captured index can never outlive the row it was bound to. Drag & drop (:307-318) also ends in render(), and it carries its own from index in dataTransfer, so it was never affected.

PICKED keeps its one legitimate job: renderSel() (:351-360), the row highlight (:283) and the Move requirement action (doMove() :439-451, sendMove() :453-478).

tmp/TLU_Test_Cases.md → ## Regression — Issue #1684: … — 9 cases, 9 PASS. Dataset: php tmp/fixtures_1681.php, spec 2 forced to TR1-1, TR1-3, TR1-2.

Case 7 is the decisive end-to-end proof: with row 2 selected — the exact state that triggered the bug — the clicked row moved and the database received TR1-2, TR1-1, TR1-3. Pre-fix the same sequence wrote TR1-3, TR1-1, TR1-2.

# 1. every click handler on the screen
grep -nE "\.on\('click'" gui/templates/requirements/reqTreeReorder.html

# 2. any handler that resolves its target row from a shared selection variable
grep -nE "findIndex\(function \(x\) \{ return x\.id === [A-Z_]+; \}\)" gui/templates/<screen>.html

# 3. the mismatch that proves the bug: disabled-state logic is per row…
grep -nE "if \(d === '(up|down|top|bottom)' *&& *i ===" gui/templates/<screen>.html
#    …so any handler for the same control must take `i` too

If (3) matches but the corresponding handler in (1) does not receive i, the screen has this bug.

• None introduced by f60e8965d.
• Found during this run and filed as #1804, not fixed here: the disabled reorder controls are non-interactive <span class="rm dis"> elements rather than real <button disabled>, so they carry no keyboard/aria-disabled semantics, no pointer-events:none, and no title explaining why they are disabled — and because there is no pointer-events:none, a click on a .dis control still dispatches (harmless today because nudge() bounds-checks). Functionally correct; an a11y / polish item.
