Every request that transitively loaded the vendored XML-RPC client third_party/phpxmlrpc/lib/xmlrpc.inc died with a compile-time ParseError and answered HTTP 500 with a 0-byte body. The fatal is never routed through tLog(), so the Event Viewer stayed empty — the crash was invisible in the product's own audit trail (measured: events held 1 row, the unrelated audit_login_succeeded LOGIN event, after two HTTP 500s).

The library is the Trac XML-RPC issue-tracker transport, loaded at file scope by lib/issuetrackerintegration/tracxmlrpcInterface.class.php:30, so as soon as one Trac/XML-RPC issue tracker is configured, the modern Issue Trackers screen is dead:

The grid route was the widest of these: tlIssueTracker::getAll() resolves every row's implementation class, so a single Trac row emptied the whole management screen headers and toolbar only, no rows.

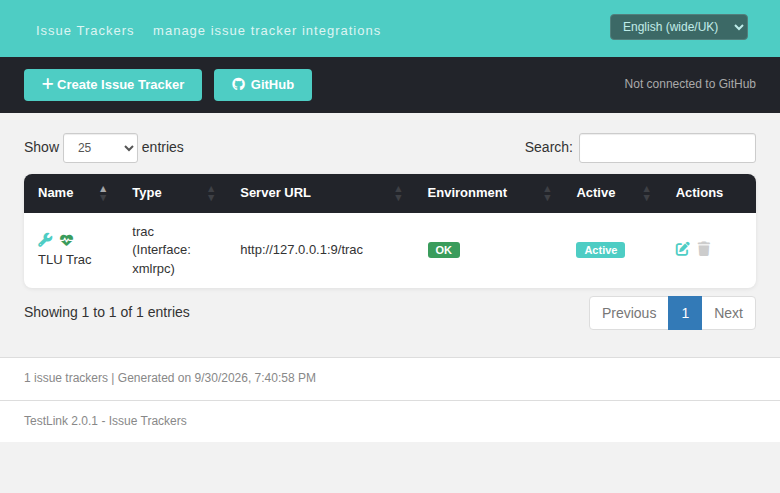

After the fix the same screen lists the Trac tracker, and its Check connection wrench (the green heartbeat in the Actions column) answers 200:

• TestLink 2.0.1, PHP 8.3.35, MariaDB (testlink), app at http://localhost:8082.

• Branch fix/issue-1635, fix commit a7938609 (library) + 8b5ada4e6 (suite/screenshots).

• The report's fixture uses type => 22; on this schema the Trac/XML-RPC system is type 19 — lib/functions/tlIssueTracker.class.php:71 19 => array('type' => 'trac', 'api' => 'xmlrpc'), so the implementation class is tracxmlrpcInterface. With 22 the BFF answers 400/invalid_type and never loads the library, so the ParseError is not reachable. Minimal reproduction:

  INSERT INTO testprojects (id,prefix,active,issue_tracker_enabled,code_tracker_enabled)
    VALUES (1,'TLU',1,1,0);
  INSERT INTO issuetrackers (name,type,cfg) VALUES ('TLU Trac',19,
    '<issuetracker><username>anonymous</username><password></password><uribase>http://127.0.0.1:9/trac</uribase></issuetracker>');
  INSERT INTO testproject_issuetracker (testproject_id,issuetracker_id) VALUES (1,1);

  The cfg needs a single <issuetracker> root (that is what tracxmlrpcInterface::getCfgTemplate() returns). Two roots make issueTrackerInterface::setCfg() log Failure loading XML STRING / Extra content at the end of the document and leave the interface half-built, which then reports a misleading connected:false.

Hop 1 — the reported ParseError. xmlrpc.inc:554

$temp =& new xmlrpcval($GLOBALS['_xh']['value'], $GLOBALS['_xh']['vt']);

Assigning the result of new by reference was deprecated in PHP 5.3 and became a syntax error in PHP 7. This is a compile-time error, so it does not matter which line is executed — merely require-ing the file is fatal. php -l reports only the first error, and line 554 is the first of 47:

$ grep -c '=& *new' third_party/phpxmlrpc/lib/xmlrpc.inc
47

A one-line fix (as suggested in the report) would therefore have re-surfaced as a fresh ParseError at the next occurrence (:1117).

Hop 2 — the constructors of the same file are no longer constructors. xmlrpc.inc:857 xmlrpc_client(), :1891 xmlrpcresp(), :2039 xmlrpcmsg(), :2649 xmlrpcval() are PHP-4-style constructors. PHP 8 only calls __construct(), so new silently returns an uninitialised object — no error, just garbage:

$ php ctor_probe.php        # new xmlrpc_client('http://127.0.0.1:9/trac/xmlrpc')
before:  path=NULL   server=NULL   port=0   method='http'      <-- parse_url() never ran
after :  path='/trac/xmlrpc' server='127.0.0.1' port=9 method='http'

Without hop 2 the fix would only have converted a 500 into a green "Connection OK" for a client that can never address a server.

Why it stayed hidden. Nothing else in the tree loads the library (grep -rn phpxmlrpc --include=*.php . outside third_party/ returns exactly one hit, tracxmlrpcInterface.class.php:30), it is a 3 600-line vendored file that no modern screen imports, and its failures are compile-time fatals that produce no events row.

1. third_party/phpxmlrpc/lib/xmlrpc.inc — dropped the illegal reference on all 47 =& new assignments. In PHP 5+ objects are handles, so = new is the same assignment =& new emulated; behaviour-preserving.

2. third_party/phpxmlrpc/lib/xmlrpc.inc — renamed the 4 PHP-4-style constructors to __construct (one explanatory comment each).

3. api/issuetracker/index.php + lib/functions/tlIssueTracker.class.php — defence in depth, so that a future unloadable implementation file degrades instead of blanking a screen:

   • the autoloading class_exists($impl) probe sat outside the try of both check-connection routes (:202, :263) — it now sits inside, so the route answers its existing 502 {"status":"error","connected":false} plus a tLog() Event Viewer ERROR row;
   • the same include in the GET /cfg-template branch (:175) is wrapped in a try that answers the structured interface_missing code;
   • tlIssueTracker::getAll() (:646) already degraded an unknown type to "environment not OK" (issue #1617), but the @class_exists($impl) probe itself raises the ParseError of a broken file — @ cannot suppress a Throwable — so the whole listing still died. The if/else block is now inside a try { … } catch (\Throwable $e) that degrades that single row and logs it.

   Measured with the library reverted again (fault injection) and the patched BFF/class in place — nothing is a 0-byte 500 any more:

   route	library broken + patched guards
   GET /api/issuetracker/index.php (grid)	200, the Trac row is still listed
   GET /api/issuetracker/index.php/{id}/check-connection	502 {"status":"error","connected":false} + events ERROR row
   GET /api/issuetracker/index.php/cfg-template?type=19	200 {"status":"error","code":"interface_missing","iface":"tracxmlrpcInterface"} + events ERROR row

Rejected alternatives: fixing line 554 only (the file still cannot compile); replacing xmlrpc.inc with a modern phpxmlrpc 4.x release (a third-party version bump rewriting ~3 600 lines and changing the Trac wire behaviour — far beyond a minimal fix); disabling the Trac type (hides the defect, drops a feature).

Suite 1635 in tmp/TLU_Test_Cases.md — 14 PASS / 0 FAIL / 1 known residual:

• php -l and php -r 'require …' clean; grep -c '=& *new' = 0.
• the client object is now really initialised (path/server/port correct).
• all four Trac routes answer 200; the controls (cfg-template?type=20, the list route for other types) are byte-identical to before.
• browser (chrome-devtools): ASIDE → Issue Trackers → the wrench of the Trac row sends GET .../1/check-connection → 200 {"status":"ok","connected":true,"message":"Connection OK"} and the cell turns into the green fa-heartbeat icon.
• Event Viewer: 0 new Error/Warning rows (events = 1 row, the own login).
• rights unchanged: the $canManage gate is still evaluated before the try.

The wire layer below the client object still uses functions PHP removed:

$ php -r 'require "…/xmlrpc.inc"; $m = new xmlrpcmsg("ticket.get");
          $m->addParam(new xmlrpcval(5)); echo $m->serialize();'
PHP Fatal error: Uncaught Error: Call to undefined function each() in .../xmlrpc.inc:2946
#0 xmlrpcval->serialize()  #1 xmlrpcmsg->createPayload()

13 each() sites (xmlrpcval::serialize/serializeval/structeach/getval/scalarval/scalartyp, php_xmlrpc_decode, php_xmlrpc_encode, xmlrpc_client::send…) plus xmlrpc.inc:2277 split("\r?\n", …) in parseResponseHeaders(). Both were removed from PHP (each() in 8.0, split() in 7.0), so a real ticket.get round-trip still fatals even though the Check connection path now works. That is a separate, larger port (every each() site relies on the array internal pointer) whose end-to-end verification needs a live XML-RPC endpoint, so it is filed as its own issue instead of being rushed into this fix. xmlrpcs.inc and xmlrpc_wrappers.inc (the server side of the same vendored library) carry the same PHP-4 constructs but are not loaded by TestLink.

Second, related finding: tracxmlrpcInterface::connect() (tracxmlrpcInterface.class.php:130-156) never probes the server — it only builds the client object — so isConnected() answers true for any syntactically valid cfg even when the Trac host refuses connections (the fixture points at http://127.0.0.1:9, where nothing listens, and the check still says "Connection OK"). That false positive is pre-existing 1.9.20 behaviour and was deliberately not changed by this fix.

Wiki page for issue #1635; branch fix/issue-1635; the same text is mirrored in the repository under docs/Bugfix-Issue-1635-phpxmlrpc-ParseError-Trac-XMLRPC.md (without the images).
