Bugfix — Issue #1605: the keyword CSV import reported success while importing nothing

Issue: #1605 — api/keywords POST /import: returns 200 {"status":"ok"} when nothing is imported (wrong delimiter, duplicates or bad rows are all silently ignored) Commit: 1691c92b0 on fix/issue-1605 Affected screens: Keyword Export / Import (gui/templates/keywords/keywordsExport.html) and the api/keywords BFF Regression suite: tmp/TLU_Test_Cases.md → Regression — Issue #1605 (30 cases, 26 PASS + 4 pre-fix baseline reproductions)

---

1. Symptom

POST /api/keywords/index.php/import answered 200 {"status":"ok"} even when no keyword was created. A user uploading a normal comma-delimited CSV, a file of duplicates, or a file of empty names was told the import succeeded.

The failure left no trace whatsoever: the events table gained zero rows, so neither the audit trail nor the Event Viewer showed that anything had gone wrong.

2. Reproduction (pre-fix)

printf 'imported-1605-a,note a\n' > /tmp/k.csv
curl -b cookies -H 'X-Requested-With: XMLHttpRequest' \
     -F tproject_id=1 -F type=csv -F uploadedFile=@/tmp/k.csv \
     http://localhost:8082/api/keywords/index.php/import
# => 200 {"status":"ok"}      ... and the keywords table is unchanged

The same file with ; instead of , imported fine, because ; is the legacy default delimiter.

3. Root cause

Hop 1 — the importer threw every per-row verdict away

lib/functions/testproject.class.php:1362 (pre-fix):

function importKeywordsFromCSV($testproject_id,$fileName,$delim = ';')
{
  $handle = fopen($fileName,"r");
  if ($handle) {
    while($data = fgetcsv($handle, TL_IMPORT_ROW_MAX, $delim)) {   // :1367
      $kw = new tlKeyword();
      $kw->initialize(null,$testproject_id,NULL,NULL);
      if ($kw->readFromCSV(implode($delim,$data)) >= tl::OK) {      // :1371
        if ($kw->writeToDB($this->db) >= tl::OK) {                   // :1373
          logAuditEvent(TLS("audit_keyword_created",$kw->name), "CREATE", $kw->dbID, "keywords");
        }                                                           // no else, no counter
      }
    }
    fclose($handle);
    return tl::OK;                                                  // :1380 UNCONDITIONAL
  }
  return ERROR;                                                     // :1384 only fopen() failure
}

tlKeyword::checkKeywordName() (lib/functions/tlKeyword.class.php:389-401) rejects a comma in a keyword name (preg_match("/(\"|,)/") → E_NAMENOTALLOWED), and tlKeyword::doesKeywordExist() (:348) returns E_NAMEALREADYEXISTS for a duplicate. Those negative codes died inside the if at line 1373.

The function therefore returned tl::OK as long as fopen() worked, i.e. regardless of whether 0, 1 or 500 keywords landed.

Note the inverted constants. tl::OK === 1 and tl::ERROR === 0 (lib/functions/object.class.php:27,34), so >= tl::OK really does mean ">= 1", and != tl::OK is a strict "did fopen() work?" test.

Hop 2 — the BFF route had no zero-rows guard

api/keywords/index.php:412-420 (pre-fix):

$pfn    = $type === 'csv' ? 'importKeywordsFromCSV' : 'importKeywordsFromXMLFile';
$result = $tproject_mgr->$pfn($tproject_id, $dest);
@unlink($dest);
if ($result != tl::OK) {                 // only true when fopen() failed
  http_response_code(422);
  out(['status'=>'error','message'=>'Wrong keywords file','error_code'=>'WRONG_FORMAT']);
}
out(['status' => 'ok']);                 // no imported/skipped counters

Why a comma file silently did nothing

With $delim=';' the line imported-1605-a,note a is a single fgetcsv column. readFromCSV() at line 1371 was handed the whole line, so $data[0] = 'imported-1605-a,note a' became the keyword name — and a name containing a comma is always rejected by checkKeywordName(). Skipped, with no counter, no event and no error.

Blast radius

call site	guarded before the fix?
api/keywords/index.php:413 (POST /import)	NO — this bug
api/keywordsxml/index.php:325 (the real Import dialog)	yes — before/after count guard from #1615
lib/keywords/keywordsImport.php	2.0.1 shim → 302 to the modern dialog

So the two 2.0.1 import entry points disagreed: one reported failure, the other reported success, for the identical file.

4. The fix

4.1 The importer reports what it did

testproject::importKeywordsFromCSV() gained an optional by-ref $stats argument:

rows     => data rows found in the file
imported => keywords actually written
skipped  => rows that were rejected (rows - imported, always exact)
errors   => [{row, code, name}] per rejected row, `code` = the tlKeyword::E_* value

• $stats is optional, so both existing callers and the legacy tl-classic / dashio screens are untouched; the tl::OK / tl::ERROR return contract is unchanged.
• errors[] is capped at IMPORT_KEYWORD_ERRORS_MAX (200) so a 10 MB all-duplicate file cannot produce ~200 000 rendered nodes; skipped stays exact.
• Blank lines (fgetcsv yields array(null)) are no longer counted as data rows.

4.2 The delimiter is decided once per file, and is quote-aware

New testproject::keywordImportDelimiter() sniffs the raw bytes of the first IMPORT_KEYWORD_SNIFF_LINES (50) non-blank lines with str_getcsv():

• if any line really splits on ; → ; — the legacy default and what exportKeywordsToCSV() writes;
• only when no line splits on ; and at least one splits on , → ,.

So the natural comma file is accepted, and a ; file can never be reinterpreted.

Why quote-aware, and why the first attempt was rejected by code review. The initial implementation chose the delimiter per row and re-split an already-unquoted fgetcsv() field. A code review blocked it with a concrete counter-example: the line "a,b" (one quoted field) came back from fgetcsv as ['a,b'] and was then invented into name a + notes b and written — where 1.9.20 rejected the name. Deciding per file with a quote-aware sniff keeps "a,b" as ONE rejected name. The per-row choice had a second flaw the review also caught: a file mixing ; and , rows was imported half-wrong. Both are covered by regression cases 1605-14 and 1605-15.

4.3 Both BFFs publish the real outcome

situation	api/keywords/index.php	api/keywordsxml/index.php
at least one keyword landed	200 + imported/skipped/rows/errors[]/keyword_count	200 + the same
file had data rows, none accepted	422 NO_KEYWORDS_IMPORTED + per-row errors[]	400 NO_KEYWORDS_IMPORTED
file had no data rows at all	422 EMPTY_FILE	400 EMPTY_FILE
file unreadable (fopen failed)	422 WRONG_FORMAT (unchanged)	400 wrong_keywords_file (unchanged)
XML arm	as before	as before (see #1666)

A raw tlKeyword::E_* code is mapped to a stable short code (CHAR_NOT_ALLOWED / EMPTY_NAME / ALREADY_EXISTS / DB_ERROR / WRONG_FORMAT / REJECTED) that the client and the i18n layer can translate.

In api/keywordsxml the new codes are gated on a $fileWasReadable flag captured before the zero-rows guard overwrites $result, so an unreadable file still honestly reports "the format could not be read". The XML arm keeps the legacy code on purpose — its behaviour is deliberately unchanged (see §6).

4.4 The dialog tells the user what happened

gui/templates/keywords/keywordsExport.html:

• a per-row error card listing every rejected row and the offending keyword;
• a partial import no longer reads as plain success — "Imported 2 of 5 rows; 3 row(s) were rejected - see the details below.";
• an all-rejected import shows a red banner and no green success box;
• the hint now states the delimiter: "…Use semicolon ";" as the field separator (a comma separated file is accepted too).";
• the report is gated on MODE === 'import' so it never leaks onto the Export tab.

The per-row reasons deliberately reuse the keyword popup's existing kwedit.err* wording, so the same reason reads identically in both screens.

4.5 i18n

Four new keys plus a reworded hint, in all 10 locale bundles (en ro de es fr it ja pt ru zh):

kwxml.errNoneImported, kwxml.errEmptyFile, kwxml.rowError ({row} {name} {reason}), kwxml.partialImportMsg, kwxml.importHint.

All bundles validated with python3 -m json.tool.

5. Verification

#	check	result
1605-01	the pre-fix repro, comma file	was 200 ok + empty table → now 422 NO_KEYWORDS_IMPORTED with 2 named rows
1605-06	; import unchanged	200 {"imported":2,"skipped":0,"rows":2}
1605-07	comma file now imports	200 {"imported":2,...}, cc1/cc2 in the table
1605-08/09	mixed file	200 {"imported":1,"skipped":3,"rows":4} with 3 named failures
1605-10/11	empty / blank-lines-only file	422 EMPTY_FILE, rows:0
1605-13	single-column line	200, 1 keyword, empty notes (1.9.20 parity)
1605-14	review blocker "a,b"	1 rejected row, name stays a,b, nothing written
1605-15	review S2 mixed ;+, file	one delimiter for the file, imported:0, skipped:2
1605-17	XML arm unchanged	measured identical pre-fix and post-fix
1605-20/21/22	dialog copy	per-row lines with names, partial summary, red-only on total failure
1605-25/26	i18n	4 keys × 10 bundles valid; live ro renders translated, no raw keys
1605-27	legacy callers	2-argument call unaffected; constants unchanged
1605-28	Event Viewer	log_level 16 only — 0 new ERROR/WARNING rows
1605-29	console	only the expected 400 XHR log, no JS errors

Gates: php -l on 4 files, node --check on the dialog's inline JS, and python3 -m json.tool on all 10 bundles — all clean.

6. Known separate defect — #1666 (not fixed here)

An XML round-trip import of already-existing keywords is wrongly rejected 400 wrong_keywords_file. The zero-rows guard in api/keywordsxml uses the keyword count as a proxy for "nothing happened", but a valid re-import only UPDATEs, so the count does not grow.

Verified pre-existing, by restoring the pre-fix api/keywordsxml/index.php from HEAD and re-running the same request: byte-identical 400 before and after this fix. Filed as #1666.

7. Files changed

file	purpose
lib/functions/testproject.class.php	importKeywordsFromCSV() gains the optional $stats report; new keywordImportDelimiter() whole-file quote-aware sniff
config.inc.php	IMPORT_KEYWORD_ERRORS_MAX (200), IMPORT_KEYWORD_SNIFF_LINES (50)
api/keywords/index.php	/import publishes the real outcome; keywordCountFor(), importErrorRows()
api/keywordsxml/index.php	same report on ?action=import; $fileWasReadable gate; importErrorRows()
gui/templates/keywords/keywordsExport.html	per-row error list, partial summary, new serverMessage() codes, Export-tab gate
gui/templates/i18n/{en,ro,de,es,fr,it,ja,pt,ru,zh}.json	4 new keys + reworded kwxml.importHint
docs/screenshots/issue-1605-*.png	partial-import and nothing-imported states
CHANGELOG	one line under the 2.0.1 [KEY BUGFIX] section

8. Screenshots

A partial import now says how much landed and names every rejected row — the keyword manager dialog, Import tab, CSV:

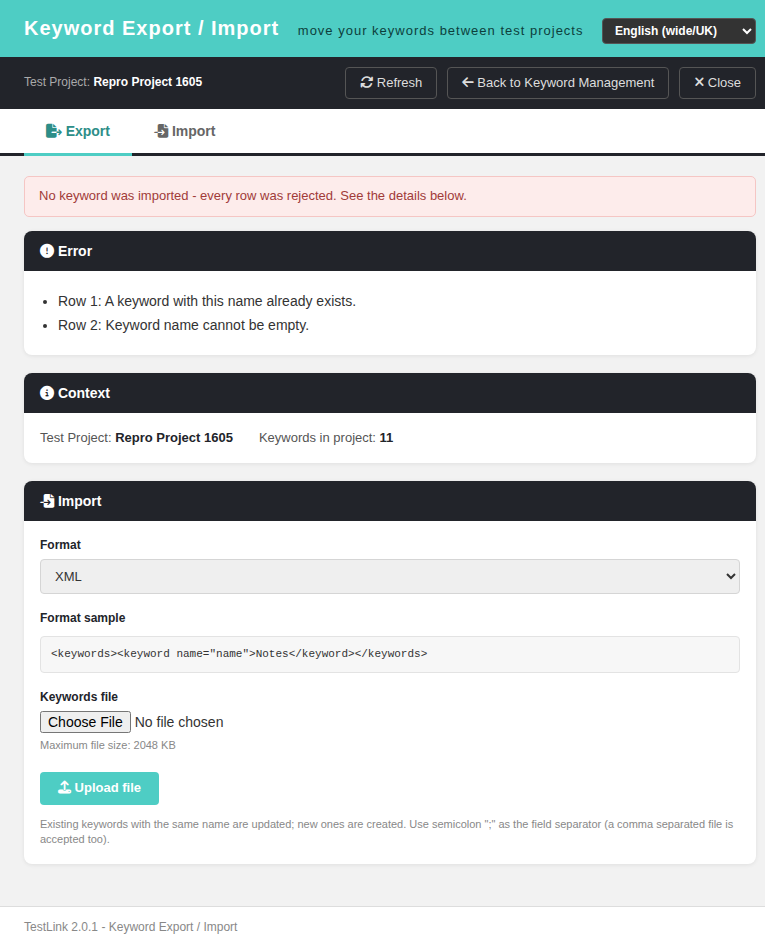

When nothing at all is imported there is a red banner and no green success box (previously the same file reported "Keywords imported"):
