The Assigned Test Case Overview report (ASIDE → Reports → Assigned Test Case Overview) shows every test case whose execution is assigned to a user, grouped per test plan. Each row carries build, test suite, test case (with quick-execution, history and edit icons), platform (when the plan has platforms), priority, last execution status, and assignment age. It replaces the legacy 1.9.20 lib/testcases/tcAssignedToUser.php HTML view (in its show_all_users=1 Reports entry variant) with a modern Dashio-styled page backed by a plain-PHP REST BFF.

Path: ASIDE menu → Reports → Assigned Test Case Overview URL: gui/templates/results/assignedTcOverview.html?tproject_id=<id>&show_all_users=1&show_inactive_and_closed=1 BFF API: api/reports/index.php — GET ?action=assigned_tc_overview&tproject_id=&show_all_users=&show_inactive_and_closed=&show_closed_builds= Rights: testplan_metrics Tracking issue: #684 Deep-link params: #1255

The header carries the test project context. The toolbar shows the test project name, a "Show closed builds" checkbox (session-persisted via sessionStorage), and a Refresh button. The checkbox is hidden when a specific build is deep-linked (build_id>0, legacy show_build_selector parity).

For each test plan with assigned test cases, a collapsible section renders:

Each test case cell contains:

• Execution History — opens execHistory.php popup for the TC
• Quick Pass / Fail / Block — inline execution buttons (if user has testplan_execute right on that plan). Click confirms, then POSTs to the BFF quick_exec action which inserts an execution row.
• Execute — opens execSetResults.php popup for the full execution flow

The quick-exec icons write an executions row directly via BFF POST:

POST /api/reports/index.php?action=quick_exec
{
  "tplan_id": <int>,
  "platform_id": <int>,
  "build_id": <int>,
  "tcversion_id": <int>,
  "result": "p" | "f" | "b"
}

Guards:

• testplan_execute right on (tproject, tplan) context
• Status whitelist: only p, f, b are accepted
• When exec_cfg->exec_mode->tester == 'assigned_to_me': checks user_assignments via JOIN to testplan_tcversions to confirm the clicking user is the assigned tester
• tester_id is always the session user (not the filter user, which collapses to TL_USER_ANYBODY=0 in the overview variant)

A test plan with no assigned test cases is omitted entirely. A project with zero assignments shows "No records found."

GET /api/reports/index.php?action=assigned_tc_overview

Parameters:

• tproject_id (required) — test project context
• show_all_users (default 0, legacy init_args:293 default) — overview-for-all-users variant (the Reports aside link pins 1)
• show_inactive_and_closed (default 0) — include inactive/closed TC versions
• show_inactive_tplans (presence, legacy init_args:291) — tplan_status='all' instead of 'active'
• show_closed_builds / show_closed_builds_hidden (default 0, persisted in session) — include closed builds
• user_id (optional) — filter by specific user; when show_all_users is absent the report scopes to it (deep-link target)
• tplan_id (optional) — restrict to one test plan
• build_id (optional) — restrict to one build and force build_status='all' + tplan_status='all' (legacy initFilters:457-463)

Response shape:

{
  "status": "ok",
  "hasData": true,
  "tproject_id": 901,
  "tproject_name": "ATO Demo Project",
  "glue_char": "-",
  "tplans": [
    {
      "id": 951,
      "name": "ATO Plan Alpha",
      "show_platforms": true,
      "priority_enabled": true,
      "has_exec_right": true,
      "rows": [
        {
          "user_login": "",
          "user_id": 1,
          "build_name": "b1",
          "suite_path": "ATO Root Suite",
          "tc_id": 921,
          "tcversion_id": 923,
          "prefix": "ATOD",
          "tc_external_id": 1,
          "name": "TC one",
          "version": 1,
          "tplan_id": 951,
          "status": "p",
          "status_key": "passed",
          "creation_ts_epoch": 1787630936,
          "age_days": 0,
          "can_exec": true,
          "platform_id": 971,
          "platform_name": "Desktop",
          "priority": 3,
          "priority_level": "high"
        }
      ]
    }
  ]
}

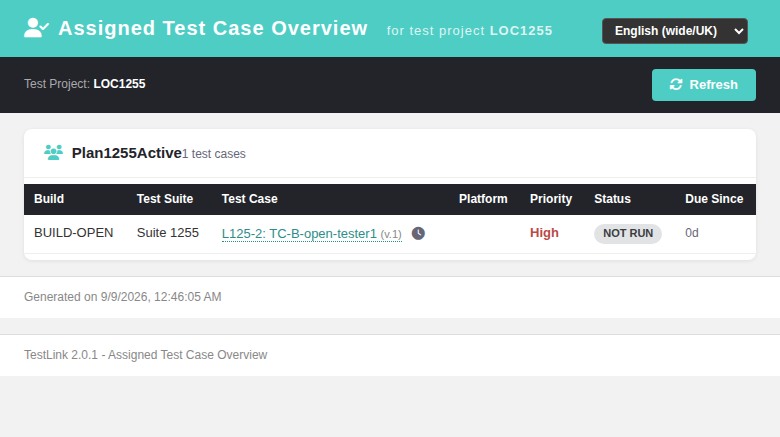

The screen honors the exact deep-link parameter set of the legacy tcAssignedToUser.php init_args(), so emailed/guiding links open the report pre-filtered:

gui/templates/results/assignedTcOverview.html?tproject_id=<id>&user_id=<uid>&tplan_id=<plan>&build_id=<build>[&show_inactive_tplans]

• user_id — report scoped to that user (when show_all_users absent; the flag wins and collapses to any-user, legacy init_args:321-323)
• tplan_id — single test plan
• build_id — single build; the "Show closed builds" checkbox is hidden (show_build_selector parity) and both build/tplan status filters are forced to all
• show_inactive_tplans — presence: include inactive test plans
• show_closed_builds / show_closed_builds_hidden — URL values take precedence over the sessionStorage value

The email "execution tasks assigned to me" link (lib/functions/assignment_mgr.class.php → ltx.php?item=xta2m) now redirects to this screen: launch_inner_xta2m() resolves the test project from the plan and builds assignedTcOverview.html?tproject_id=<resolved>&user_id=<target>&tplan_id=<plan>&build_id=<build> (legacy: lib/testcases/tcAssignedToUser.php). check_xta2m still requires the target user to match the session user.

The screen honors the exact deep-link parameter set of the legacy tcAssignedToUser.php init_args(), so emailed/guiding links open the report pre-filtered:

gui/templates/results/assignedTcOverview.html?tproject_id=<id>&user_id=<uid>&tplan_id=<plan>&build_id=<build>[&show_inactive_tplans]

• user_id — report scoped to that user (when show_all_users absent; the flag wins and collapses to any-user, legacy init_args:321-323)
• tplan_id — single test plan
• build_id — single build; the "Show closed builds" checkbox is hidden (show_build_selector parity) and both build/tplan status filters are forced to all
• show_inactive_tplans — presence: include inactive test plans
• show_closed_builds / show_closed_builds_hidden — URL values take precedence over the sessionStorage value

The email "execution tasks assigned to me" link (lib/functions/assignment_mgr.class.php → ltx.php?item=xta2m) now redirects to this screen: launch_inner_xta2m() resolves the test project from the plan and builds assignedTcOverview.html?tproject_id=<resolved>&user_id=<target>&tplan_id=<plan>&build_id=<build> (legacy: lib/testcases/tcAssignedToUser.php). check_xta2m still requires the target user to match the session user.

The legacy screen (lib/testcases/tcAssignedToUser.php) uses:

• testcase::get_assigned_to_user() with mode=full_path
• get_last_execution() for status per build/platform
• extTable for rendering (grouped by first column)
• Raw SQL INSERT for quick-execution (same executions table)
• Session-based show_closed_builds persistence

The modern screen preserves all legacy behavior with Dashio visual patterns.
